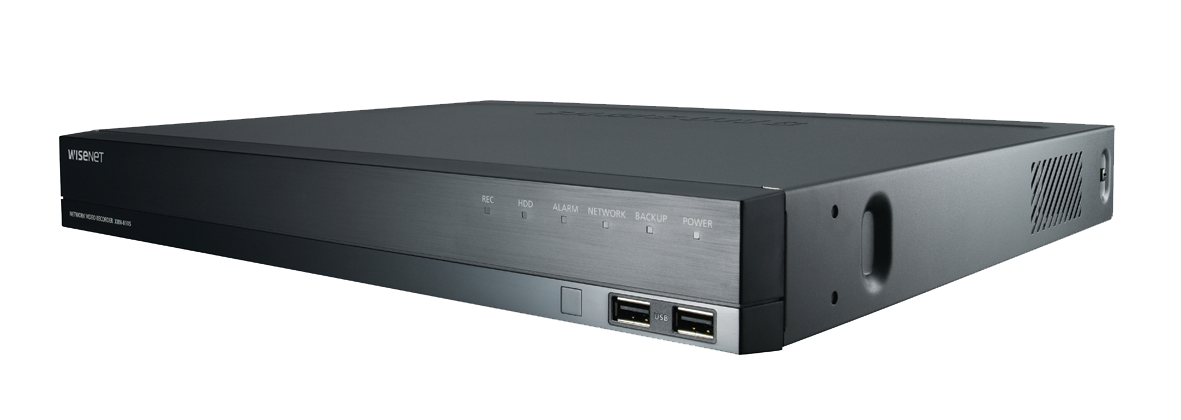

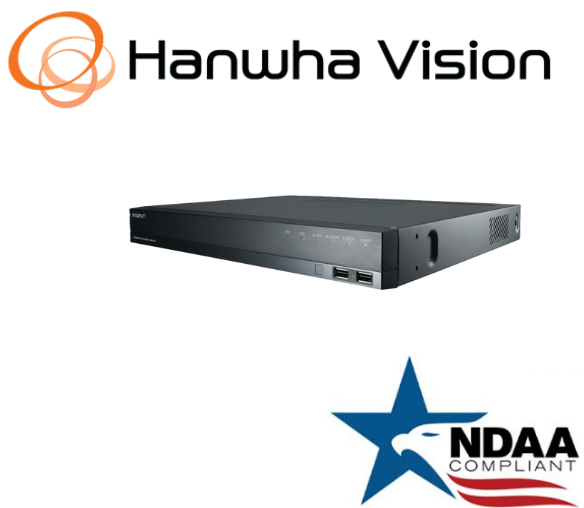

Hanwha Techwin XRN-820S-12TB HDD 8CH 8K 32MP PoE+ NVR AI IP Security Recorder
Hanwha Techwin XRN-820S-12TB HDD 8CH 8K 32MP PoE+ NVR AI IP Security Recorder
SKU:XRN-820S-12TB
Regular price
$2,807.00 USD
Regular price
Sale price
$2,807.00 USD
Unit price
/
per
Hanwha Techwin XRN-820S-12TB 8CH 8K 32MP PoE+ NVR AI IP Security Recorder
XRN-820S-12TB
8CH NVR
• Up to 8CH 32MP supported
• Max. 100Mbps network camera recording
• HDMI out
• User friendly UI / UX
• AI search support when working with Wisenet AI camera
• Dynamic Event support
- New event function of cameras is available without software update
• H.265, H.264, MJPEG codec supported

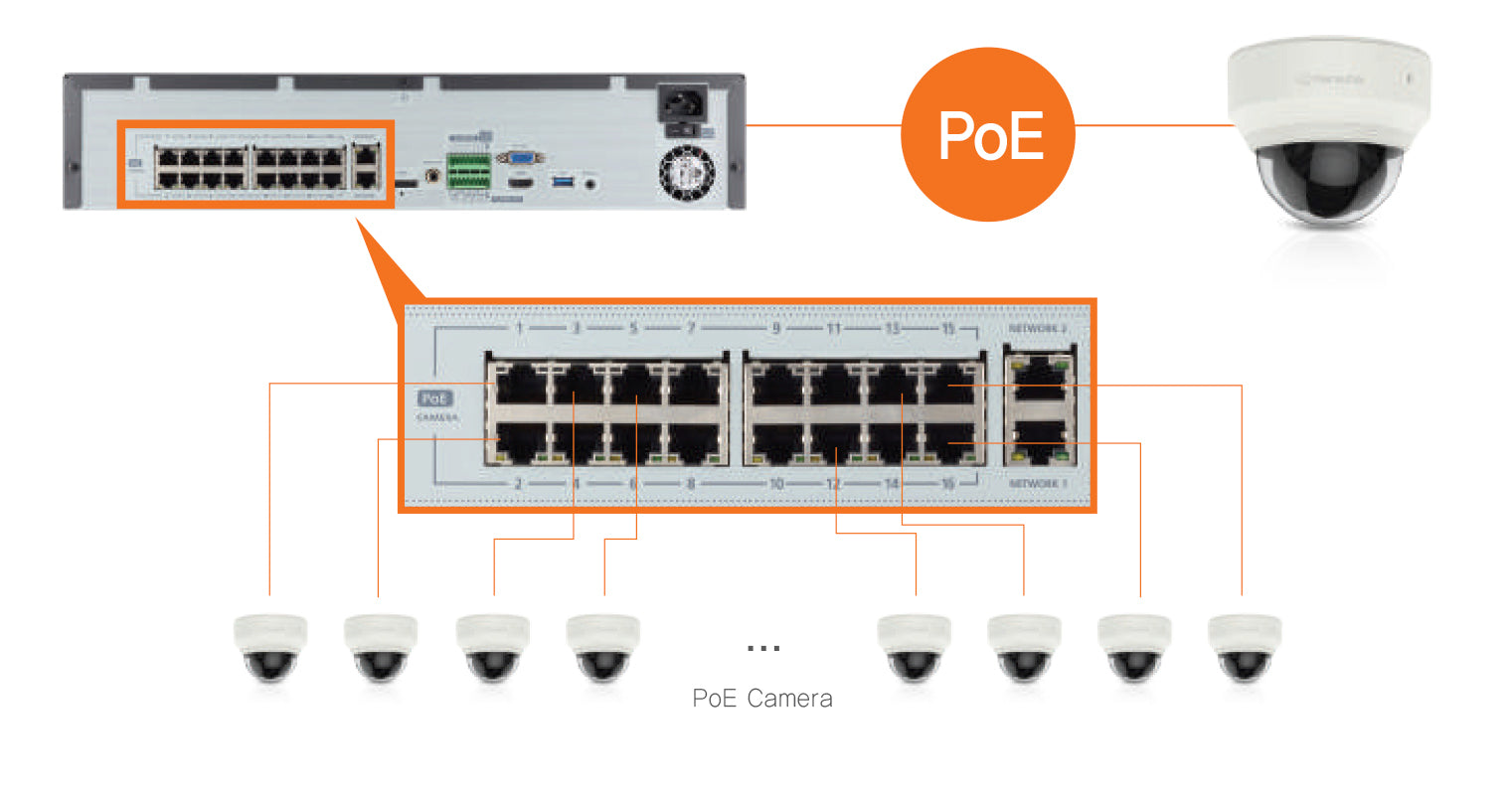

• Plug & play by 8 PoE ports
• Bookmark management (Up to 100 set)
• SATA 2ea (Up to 12TB)
Product Specification
Display
Display
Network camera
Inputs
Max. 8CH
Resolution
32MP ~ CIF
Protocols
SUNAPI, ONVIF
Decoding
Local Display
FHD : HDMI & VGA Dual monitor
UHD : HDMI Single monitor
Multi Screen Display
[Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9/ Sequence
[Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
Resolution
[Local Monitior]
FHD Clone mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(480fps)
UHD Single mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(270fps)
FHD Expand mode: 32M(12fps, H.265 Only), 12M(25fps, H.265 Only), 8.3M(30fps), 1080p(90fps), D1(200fps)
Expand mode : Max 15fps when displaying 8CH
Performance
Operating System
Embedded
Linux
Record
Compression
H.265, H.264, MJPEG
Recording Bandwidth
Max. 100Mbps
Resolution
32MP ~ CIF
Mode
Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
Event Trigger
Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event
Event Action
e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out
Search & Play
Playback Bandwidth
Max. 32Mbps
User
Max. 4 Users (Local 1, Remote 3)
Simultaneous playback
Max. 32CH(Local 8CH, Remote 8CH per user)
Fisheye Dewarping
CMS
Mode
Date & Time(Calendar), Event list, Text Search, Smart Search
Resolution
CIF ~ 32MP (Up to H.264 8.3MP, H.265 32MP)
Playback Control
Fast/Slow Forward / Backward, Move one step Up / Down
Storage
Supported HDD
Up to 6TB
HDD Slot
SATA 2ea(Max. 12TB)
Backup
File backup
BU/Exe(GUI), JPG/AVI(Network)
Function
Multi channel(Up to 8CH) Play, Date-Time/Title display
Network
Protocol
IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS
Hanwha DDNS
Transmission Bandwidth
Max. 100Mbps
Audio
GUI
8 CH(network)
Web
G.711, G.726, AAC(16/48KHz)
Audio Communication
2-Way
Max Remote Users
Search(3), Live Unicast(10), Multicast(20)
Security
IP address filtering, User access Log, 802.1x, Encryption
Device certificate(Hanwha Techwin Root CA), Signed firmware
Web viewer
Supported OS
Windows 10, macOS 10.13
Supported browser
Google Chrome, Microsoft Edge, Mac Safari, Firefox
Viewer Software
WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS
Functions
Camera Setup
Register
Auto, Manual
Item
IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon)
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ
Control
Via GUI, Webviewer, SPC-2000
Preset
300 Presets
Smart phone
Support Model
iOS, Android
Protocol Support
RTP, RTSP, HTTP, CGI(SUNAPI)
Control
Live 8CH(Multi-Profile Support), Playback 4CH
Max. Remote Users
Search(3), Live Unicast(10)
Redundancy
Failover
N+1
ARB
Support
Easy configuration
P2P(QR code)
Interface
Front
Indicator
HDD, Alarm, Power, Record, Backup, Network
Storage
OK
HDMI
1EA 3840x2160 30Hz
VGA
1EA 1920x1080 60Hz
Audio
Out 1EA
Ethernet
PoE RJ-45 8EA (LAN, 10/100), RJ-45 2ea (LAN/WAN 1Gbps)
Alarm
In 4EA, Out 2EA
USB
3EA(Front 2 x USB 2.0, Rear 1 x USB 3.0)
Power inlet
AC 1EA
System
Log
Log List
Max. 100,000 (System Log, Event Log each)
System Control
Mouse, Web, Controller (SPC-2000)
Language
English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
Environmental
Operating Temperature
0°C to +40°C(32℉ to 104℉)
Operating Humidity
20% ~ 85% RH
Electrical
Power Input
100 ~ 240 VAC ±10%; 50/60 Hz
Power Consumption
Max 160W
PoE Budget
100W
Mechanical
Color / Material
Black
Dimension (WxHxD)
370 x 50.7 x 324.3 mm
Weight
2.7Kg
Intelligent Analysis
AI Search
Object Attribute
Compatible for Wisenet AI Camera
-
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
