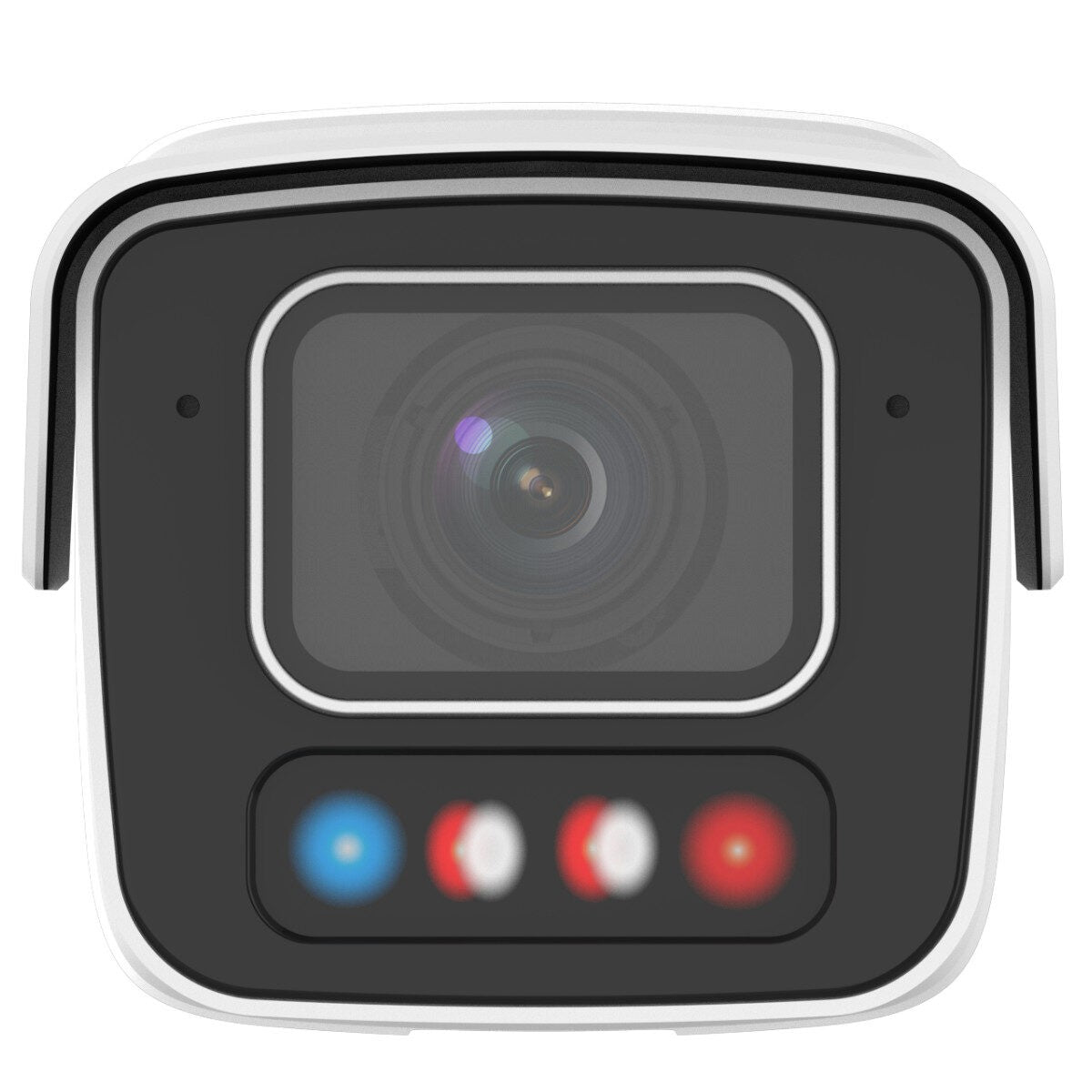

UNV 4MP IP67 Audio NDAA Uniview Tri-Guard VF Bullet Network IP Security Camera

Regular price $853.30
Sale price $853.30 Regular price $0.00
Unit price
  • Vendor:
    Uniview
  • Availability:
    In Stock
  • SKU:
    IPC2B14SE-ADZKMC-WP-I1

REQUEST A QUOTE >

Compare Ask a question

Ask a Question

* Required fields

 Size guide Share

  • Estimated Delivery:Jun 20 - Jun 24

  • Free Shipping & Returns: On all orders over $75

UNV 4MP IP67 Audio NDAA Uniview Tri-Guard VF Bullet Network IP Security Camera

UNV 4MP IP67 Audio NDAA Uniview Tri-Guard VF Bullet Network IP Security Camera

Regular price $853.30
Sale price $853.30 Regular price $0.00
Unit price
Product description
Shipping & Return
User Manual

UNV 4MP NDAA IP67 with OwlView Plus Tri-Guard VF Dual-light Bullet Network Security Camera 2.8mm-12mm Motorized Zoom Lens

Key Features:

  • Camera Type: Bullet
  • Resolution: 4MP
  • Image Sensor: 1/1.8" CMOS
  • Lens Type: Motorized Zoom Lens
  • Field of View: 110.4°
  • Weatherproof Rating: IP67

Description:

Experience the future of surveillance with the Uniview OwlView Turret Camera from Uniview. This is a cutting-edge security solution designed to deliver unparalleled performance in low-light environments. Powered by Uniview's revolutionary Wise-ISP technology, this camera redefines night-time monitoring, providing vivid, full-color images without the need for additional lighting.
Upgrade your security with the 4MP Turret OwlView Camera, where cutting-edge technology meets reliable, high-quality surveillance.
this camera provides the confidence and clarity you need to protect what matters most.

Specification:

Camera
Max Resolution 4 MP
Sensor 1/1.8" CMOS
Min. Illumination Color: 0.0005 Lux (F1.2, AGC ON)
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 to 1/100000 s
Adjustment Angle Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N > 56 dB
WDR 130 dB
Lens
Focal Length 2.8 to 12 mm
Iris Type Fixed
Iris F1.2
Field of View (H) 113.5° to 54.6°
Field of View (V) 61.6° to 30.8°
Field of View (D) 131.1° to 62.8°
Lens Type Motorized
DORI
DORI Distance (Lens) 2.8 to 12 mm
DORI Distance (Detect) 43.4 m to 186.2 m (142.4 ft. to 610.9 ft)
DORI Distance (Observe) 17.4 m to 74.5 m (57.1 ft. to 244.4 ft)
DORI Distance (Recognize) 8.7 m to 37.2 m (28.5 ft. to 122.1 ft)
DORI Distance (Identify) 4.3 m to 18.6 m (14.1 ft. to 61.0 ft)
Illuminator
Supplemental Light Dual light
Illumination Distance (IR) 40 m (131.2 ft)
Illumination Distance (Warm Light) 40 m (131.2 ft)
IR On/Off Control Auto/Manual
Wavelength 850 nm
Light On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate-Main Stream 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps
Frame Rate-Sub Stream 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Frame Rate-Third Stream D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate 128 Kbps to 16 Mbps
U-code Support
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Support
Video Stream Triple streams
White Balance Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction 2D/3D DNR
Auto Scene Match (ASM) Support
Flip Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping N/A
HLC Support
BLC Support
Defog Digital defog
Intelligent
Smart Intrusion Prevention Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Statistical Analysis N/A
People Counting Support people flow counting and crowd density monitoring
Attribute Collection SIP with color retrieval
Events
Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General Function Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage MicroSD, up to 512 GB
Network Storage ANR, NAS (NFS)
Network
Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security TLS 1.2, DTLS 1.2, Certificate Management, Brute Force Protection, Strong Password, OTP (One Time Programmable), Port Security, MAC Filtering, IP Filtering, Digital Watermarking, Configuration Encrypted Export, Configuration Encrypted Storage, HTTPS, Secure Boot, Firmware Encryption, Password protection, RTP/RTSP over HTTPS, Gateway ARP Binding, Audit logs, Protected Shell, Session Timeout, 802.1X Authentication (EAP-TLS, EAP-MD5), WSSE and Digest Authentication for ONVIF, Digest Authentication for HTTP, Digest SHA256 Authentication for HTTP, Digest SHA256 Authentication for ONVIF, Signed Firmware, Basic and Digest Authentication for RTSP
Client EZStation, APP
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O 1/1
Serial Port N/A
Built-in Mic Built-in dual-mic
Built-in Speaker Support
WIFI N/A
Network 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4)
FCC (FCC 47 CFR part15 B)
Safety CE-LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU)
Protection IP67 (IEC 60529)
IK10 (IEC 62262)
NEMA 4X
General
Power DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption Max. 5.0 W
Power Interface Ø5.5 mm coaxial power plug
Dimensions 265.2 mm × 95.2 mm × 82.9 mm (10.4" × 3.7" × 3.3" ) (L × W × H)
Weight 0.98 kg (2.16 lb)
Material Metal + Plastic
Working Environment -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection 4 KV
Reset Button Support
