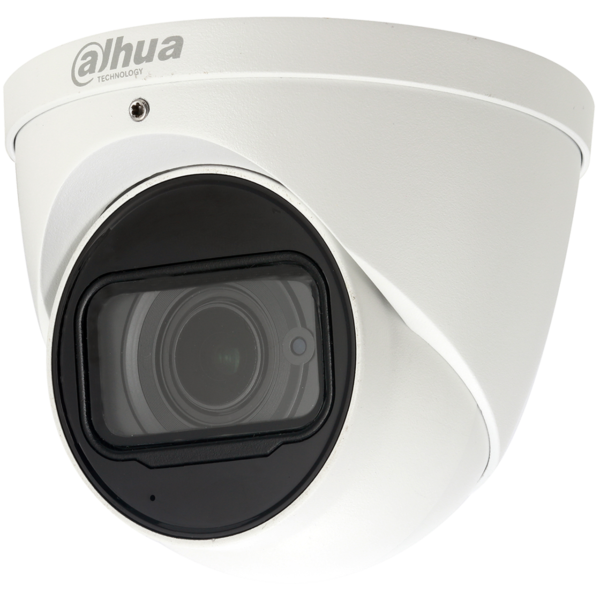

Dahua 4MP IP67 IR ePoE Eyeball Network Security Camera 2.8 mm Fixed Lens with Night Vision, Built-in Microphone

Features

Camera

• Image Sensor 1/1.8-in. 4 MP CMOS
• Effective Pixels 2688(H) x 1520(V)
• RAM/ROM 512 MB/128 MB
• Scanning System Progressive
• Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
• Minimum Illumination Color: 0.002 lux at F1.6, 0 lux at F1.6 (IR on)
• S/N Ratio Greater than 50 dB
• IR Distance Up to 50 m (164.04 ft)
• IR On/Off Control Auto, Manual
• IR LEDs Two (2)

Lens

• Lens Type Fixed-focal
• Mount Type Board-in
• Focal Length 2.8 mm
• Maximum Aperture F1.6
• Angle of View Horizontal: 113°, Vertical: 60°
• Focus Control Fixed
• Close Focus Distance 1.30 m (4.27 ft)

Video

• Compression Smart H.265+, H.265, Smart H.264+, H.264, H.264B,
• H.264H, MJPEG (Sub Stream only)
• Streaming Capability Three (3) Streams
• Resolution 4 MP (2688 x 1520), 2560 x 1440, 2304 x 1296, 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
• Frame Rate Main Stream:4 MP (2688 x 1520) at 30 fps, or 1080p (1920 x 1080) at 60 fps
• Sub Stream 1: D1 at 30 fps
• Sub Stream 2: 1080p at 30 fps
• Bit Rate Control CBR/VBR
• Bit Rate H.264: 32 Kbps to 8192 Kbps, H.265: 19 Kbps to 8192 Kbps
• Day/Night Auto (ICR), Color, B/W
• BLC Mode BLC, HLC, Ultra WDR (140 dB), SSA
• White Balance Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
• Gain Control Auto, Manual, Gain Priority, Shutter Priority
• Noise Reduction 3D DNR
• Motion Detection Off, On (4 Zones, Rectangular)
• Region of Interest Off, On (4 Zones)
• Advanced Features Smart IR, Defog
• Flip 0°, 90°, 180°, 270°
• Mirror Off, On
• Privacy Masking Off, On (4 Areas, Rectangular)

Audio

• Compression G.711a, G.711Mu, AAC, G.726, G.723

Network

• Ethernet RJ-45 (10/100 Base-T)
• Protocol HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x
• Interoperability ONVIF Profile S and G, CGI, Milestone, Genetec, P2P
• Streaming Method Unicast / Multicast
• Maximum User Access 20 Users
• Edge Storage Network Attached Storage (NAS), FTP, Micro SD Slot, maximum 256 GB
• Web Viewer IE (Version 8 and higher), Chrome, Firefox, Safari (Version 12 and higher)
• Management Software SmartPSS, DSS, DMSS
• Mobile Operating System IOS, Android

Certifications

• Safety UL60950-1, CAN/CSA C22.2 No.60950-1-07, EN60950-1
• Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 Subpart B, Electromagnetic Compatibility Directive 2014/30/EU

Interface

• Audio Input: Built-in Microphone

Electrical

• Power Supply 12 VDC (±30%) or PoE (IEEE 802.3af, Class 0)
• Power Consumption 12 VDC Standard: 2.1 W with IR ON: 6.2 W
• PoE Standard: 2.6 W with IR ON: 7.2 W

Environmental

• Operating Conditions –40° C to +60° C (–40° F to +140° F), Less than 95% RH
• Storage Conditions –40° C to +60° C (–40° F to +140° F)
• Ingress Protection IP67

Construction

• Casing Metal
• Dimensions ø106.0 mm x 99.20 mm (4.17 in. x 3.91 in.)
• Net Weight 0.55 kg (1.21 lb), Gross Weight 0.71 kg (1.57 lb)

Analytics+

• Pro Functions
• People Counting Delivers accurate flow statistics from the following methods:
  Line Crossing: counts a person as they cross a threshold in a defined direction.
  Region: counts the number of people in a defined area.
  Counts people simultaneously from four (4) threshold lines and four (4) defined regions³.

Application Functions

• Face Capture Detects and captures a snapshot of a human face within a scene.
• Perimeter Protection Detects human and/or vehicular motion and triggers an alarm for the following methods:
• Tripwire Target crosses a defined line.
  Intrusion Target enters or exits a defined perimeter.\
  Fast Moving Target exceeds a set speed when exiting a defined area
  Parking Detection Vehicle remains in a defined area without motion for a set period of time.
  Crowd Gathering Specified number of people remain inside a defined area for a set time.
  Loitering Detection Target remains in motion inside a defined area longer than a specified amount of time.

Core Analytic Functions

• Standard Features
  Triggers an alarm if one the following events are detected:
  Tampering with the camera
  Error writing to an onboard Micro SD card
  Error sending or receiving data over the network
  Unauthorized access to the camera
  IP Address Conflict
  Scene Change
• Premium Features
  Triggers an alarm and takes a defined action for the following events if any motion is detected:
  Motion An object moves through any part of the scene.
  Motion An object moves through any part of the scene.
  Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
  Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
