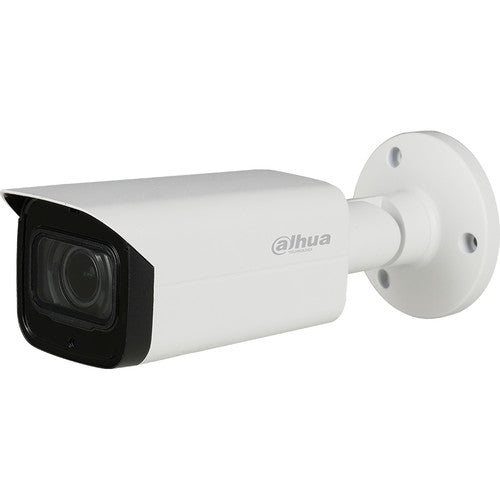

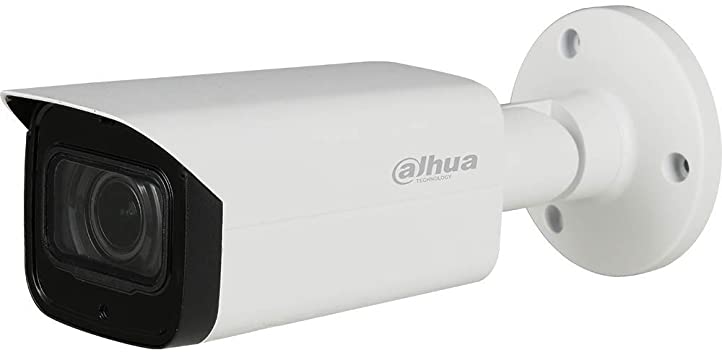

Dahua HDCVI 8MP IR IP67 HDCVI Outdoor Bullet Security Camera 3.6 mm Fixed Lens
Dahua HDCVI 8MP IR IP67 HDCVI Outdoor Bullet Security Camera 3.6 mm Fixed Lens
SKU:A82AF53
Couldn't load pickup availability
Dahua Technology 8MP Outdoor IR IP67 HD-CVI Audio Bullet Security Camera 3.6 mm Fixed Lens with Night Vision, Built-in Microphone
Experience the superior clarity of Dahua’s Ultra 4K HDCVI cameras for vast coverage and superior image details. Dahua Ultra 4K HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The 4K HDCVI camera uses next-generation ISP chip technology developed by Dahua to deliver stunning video. This home-grown ISP features the latest image processing algorithms and is optimized for surveillance camera operations. With total control of the ISP features and production, Dahua can offer the latest security systems at a cost-effective price.
For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
- 1/1.8-in. 8MP Progressive-scan CMOS Imager
- 4K (3840 x 2160) at 15 fps Maximum Resolution
- 3.6 mm Fixed Lens
- Starlight Technology for Ultra Low-light Applications
- True Wide Dynamic Range (120 dB) and 2D/3D Noise Reduction
- HD or SD Output, Switchable
- Built-in Microphone
- Maximum IR Length 80 m (262 ft), Smart IR
- IP67 Ingress Protection
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
Dahua Technology A82AF53 Specs
| Sensor | 1/2" CMOS |
| Effective Pixels | 3840 x 2160, 8 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/100,000 to 1/3 Second |
| Minimum Illumination | Color: 0.005 Lux at f/1.6 (30 IRE) 0 Lux with IR On |
| S/N Ratio | >65 dB |
| IR Range | 262.47' / 80 m |
| IR Control | Auto, Manual |
| IR LEDs | 4 |
| Lens Type | Fixed Lens, Fixed Iris |
| Mount Type | Board-In |
| Focal Length | 3.6mm |
| Maximum Aperture | f/1.6 |
| Horizontal Angle of View | 87° |
| Close Focus Distance | 98.43" / 2500 mm |
| Detect | 341' / 104 m at 8 ppf |
| Observe | 138' / 42 m at 19 ppf |
| Recognize | 69' / 21 m at 38 ppf |
| Identify | 33' / 10 m at 76 ppf |
| Horizontal | 0 to 360° |
| Vertical | 0 to 90° |
| Rotation | 0 to 360° |
| Resolution | 3840 x 2160 (8 MP) |
| Frame Rate | HD-CVI: 15 fps at 8 MP 20 fps at 6 MP 30 fps at 4 MP CVBS: 960H |
| Output | 1 x BNC HD-CVI Channel Switchable to CVBS |
| Transmission | Over RG-59/U Coax 720p: 2624.67' / 800 m 1080p: 1640.42' / 500 m 8 MP: 1640.42' / 500 m Over RG-6/U Coax 720p: 3937.01' / 1200 m 1080p: 2624.67' / 800 m 8 MP: 2296.59' / 700 m Over Cat 6 UTP (Separately Available Balun Required) 720p: 1476.38' / 450 m 1080p: 984.25' / 300 m 8 MP: 984.25' / 300 m |
| Day/Night | Auto (IR Cut Filter), Manual |
| OSD Menu | Multi-Language |
| BLC Modes | BLC, HLC, True WDR |
| WDR | 120 dB |
| Gain Control | Automatic (AGC) |
| Noise Reduction | 2D, 3D |
| White Balance | Auto, Manual |
| Smart IR | Auto, Manual |
| CE | EN55032, EN55024, EN50130-4 |
| Safety | UL60950-1 CAN/CSA C22.2 No.60950-1 |
| Electromagnetic Compatibility | FCC CFR 47 Part 15 Subpart B ANSI C63.4-2014 |
| Interface | 1 x RCA, Input Built-In Microphone |
| Power Supply | 12 VDC ±30% |
| Maximum Power Consumption | 11.3 W |
| Operating/Storage Temperature | -22 to 140°F / -30 to 60° C |
| Operating/Storage Humidity | 90% RH Maximum |
| Ingress Protection | IP67 |
| Casing | Aluminum |
| Dimensions | 9.61 x 3.56 x 3.56" / 244.1 x 90.4 x 90.4 mm |
| Weight | 0.93 lb / 0.42 kg |
| Package Weight | 3 lb |
| Box Dimensions (LxWxH) | 12.3 x 9.7 x 6.1" |
