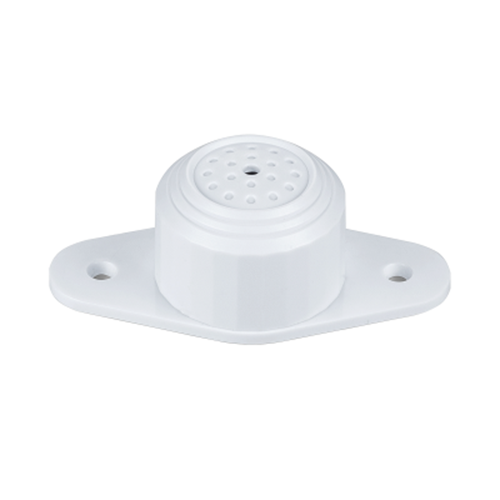

Monitor audio with the HAP100 Pinhole Pickup Microphone from Dahua Technology. This device is an omnidirectional condenser microphone that can pick up audio within a 131.23 square foot coverage area. It is housed in PC plastic. Screws, plastic anchors, and a mounting template are included.
- Omni-directional, High-fidelity Condenser Microphone
- Pinhole Design for discreet installation
- 30 KV Air Contact ESD with Built-in Lightning Protection
- Power Supply Polarity Reversal and Electrostatic Protection
- Best Fit for Spaces Between 5 m² (16.40 ft²) to 40 m² (121.23 ft²)
Dahua Technology HAP100 Specs
| Range | 16.4 to 131.23'² / 5 to 40 m² |
| Sensitivity | -40 dB (-45 to -20 dB, adjustable) |
| Frequency Response | 20 Hz to 20 kHz |
| Directional Characteristic | Omnidirectional |
| Signal to Noise Ratio (SNR) | 70 dB (1 m 40 dB sound source SPL) |
| Dynamic Range | 104 dB (1 kHz at maximum dB SPL) |
| Sound Pressure | Maximum Sustainable: 120 dB SPL (1 kHz, THD 1%) |
| Output Impedance | 600 Ohms (non-equilibrium) |
| Output Signal Amplitude | 2.5 V p-p / -25 dB |
| Working Voltage | 12 VDC (9 to 15 VDC) |
| Working Current | 60 mA (50 to 100 mA) |
| Operating Temperature | -22 to 158°F / -30 to 70°C |
| Interface | Audio Out: RCA Power In: DC Connector |
| Color | White |
| Casing Material | PC plastic |
| Certifications | CE, FCC |
| Dimensions | 2.48 x 1.18 x 0.87" / 63 x 30 x 22 mm |
| Weight | 0.08 lb / 0.034 kg |
Packaging Info
| Package Weight | 0.155 lb |
| Box Dimensions (LxWxH) | 3.85 x 3.75 x 1.75" |
