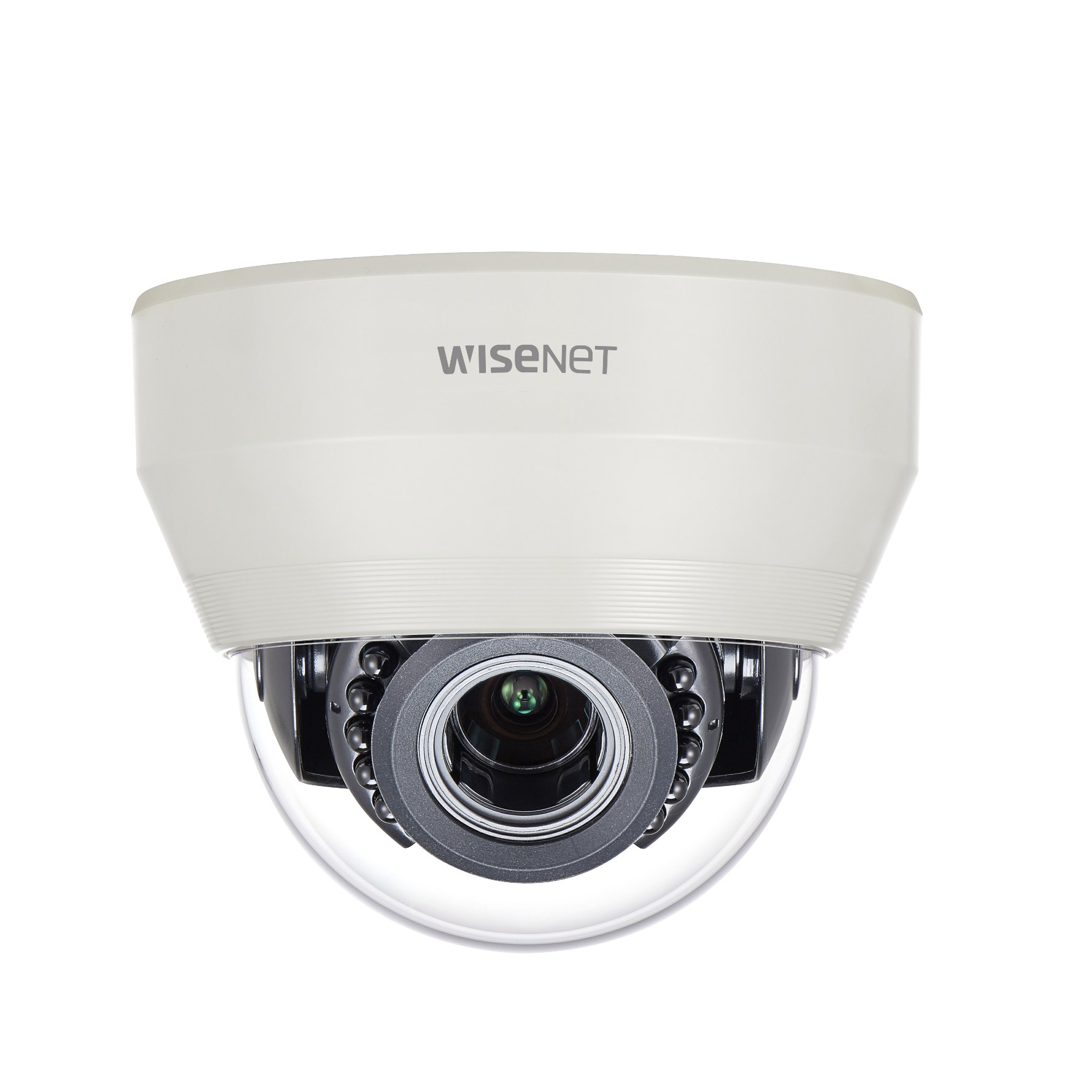

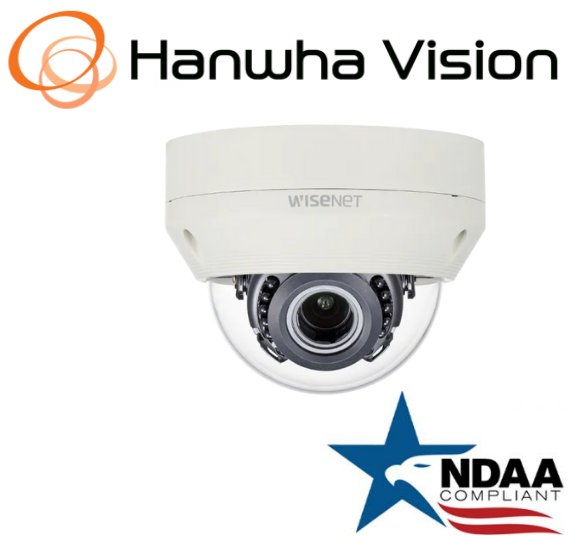

Hanwha Techwin HCD-7070RA QHD 4MP AnalogHD IR Dome Security Camera3.2 -10mm Lens
Hanwha Techwin HCD-7070RA QHD 4MP AnalogHD IR Dome Security Camera3.2 -10mm Lens
SKU:HCD-7070RA
Regular price
$270.00 USD
Regular price
Sale price
$270.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Hanwha Techwin HCD-7070RA QHD (4MP) Analog HD+ IR Dome Security Camera
HCD-7070RA
Pentabrid compatible
QHD (4MP) Analog IR Dome Camera
• QHD (2560 x 1440, 30fps) resolution
• 0.16 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
• 3.2 ~ 10mm (3.1x) varifocal lens
• Day & Night (ICR), DWDR, Motion detection
• Transmission distance Max. 500m
• Easy installation (Plug & play), Dual power
• 0.16 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
• 3.2 ~ 10mm (3.1x) varifocal lens
• Day & Night (ICR), DWDR, Motion detection
• Transmission distance Max. 500m
• Easy installation (Plug & play), Dual power
Product Specification
Video
Imaging Device
1/3" 4MP CMOS
Resolution
2560x1440
Max. Framerate
30fps@4M(N), 25fps@4M(P)
Min. Illumination
Color: 0.16Lux(F1.6, 1/30sec)
BW: 0Lux(IR LED on)
Video Out
BNC(AHD), additional CVBS for installation(2Pin connector type)
Video Transmission Distance
500m(5C2V Coaxial Cable)
Lens
Focal Length (Zoom Ratio)
3.2~10mm(3.1x) manual varifocal
Max. Aperture Ratio
F1.6
Angular Field of View
H: 93.48°(Wide)~29.44°(Tele), V: 50.47°(Wide)~16.64°(Tele), D: 112.53°(Wide)~33.7°(Tele)
Min. Object Distance
0.5m(1.64ft)
Focus Control
Manual
Lens Type
DC auto iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range
0°~350° / 0°~63° / 0°~355°
Operational
Day & Night
Auto(ICR)
Backlight Compensation
UserBLC, HLC, DWDR
Digital Noise Reduction
2DDNR
Motion Detection
4 zones
Privacy Masking
2 zones
Gain Control
Low / Middle / High / Very High
White Balance
ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed
1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P)
Video Rotation
H-Rev/V-Rev
Analytics
Motion detection
Alarm I/O
MD Output 1ea
IR Viewable Length
20m(65.62ft)
Coaxial Protocol
ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity
-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Input Voltage
24VAC, 12VDC
Power Consumption
Max 5.8W
Mechanical
Color / Material
Ivory / Plastic
Product Dimensions / Weight
Ø119.8x98.5mm(Ø4.72”x3.88”), 320g(0.71 lb)
- • Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
