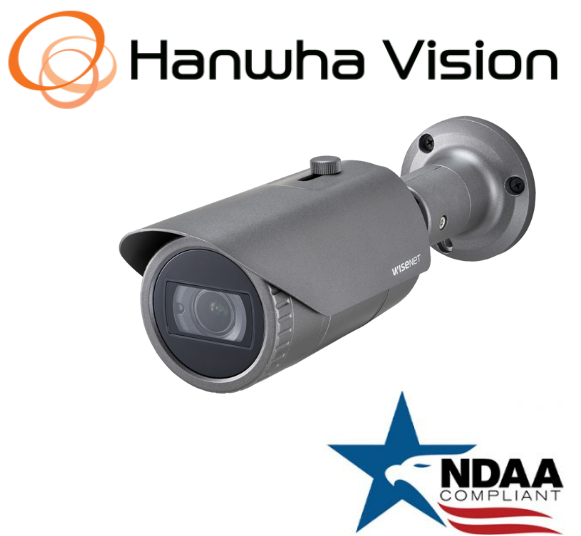

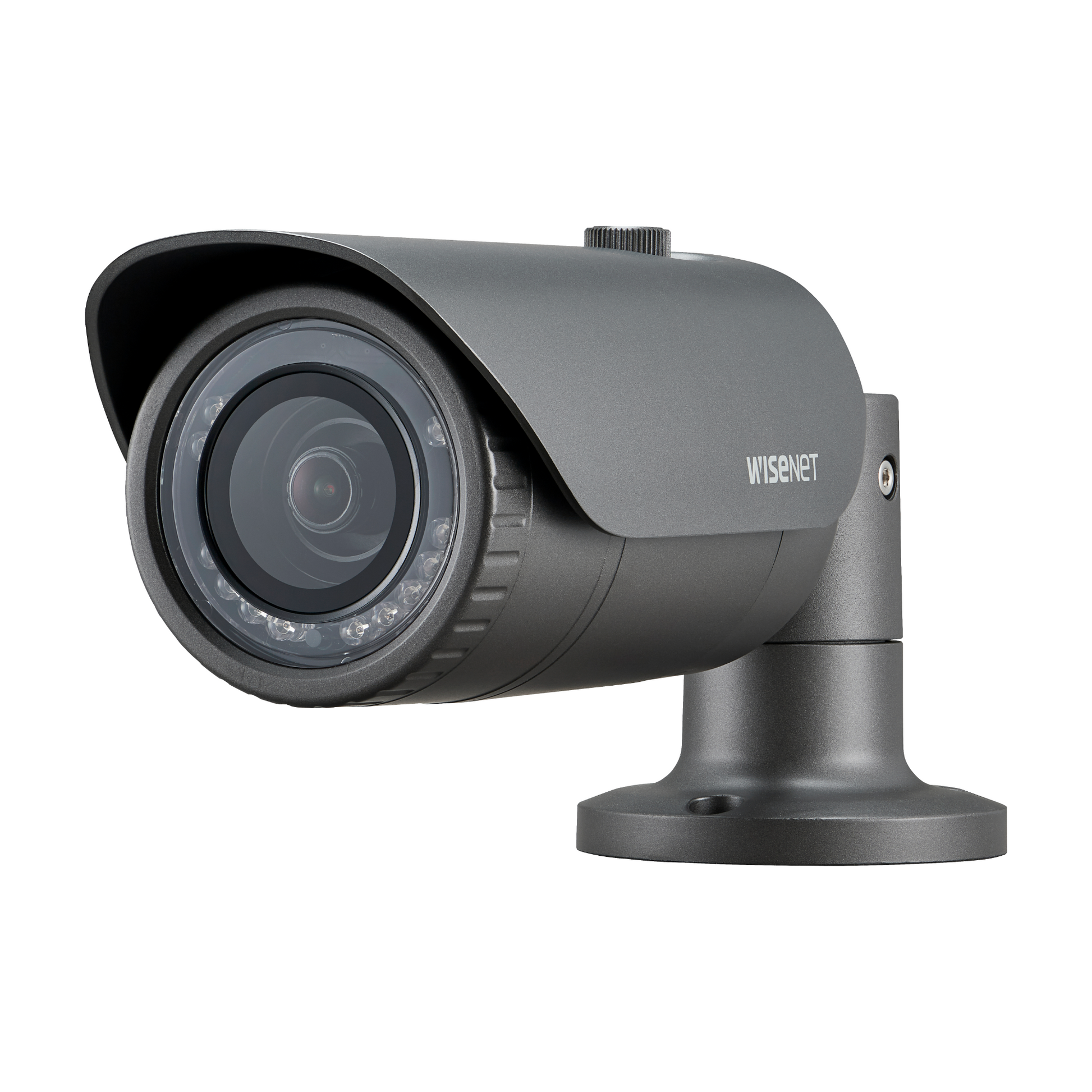

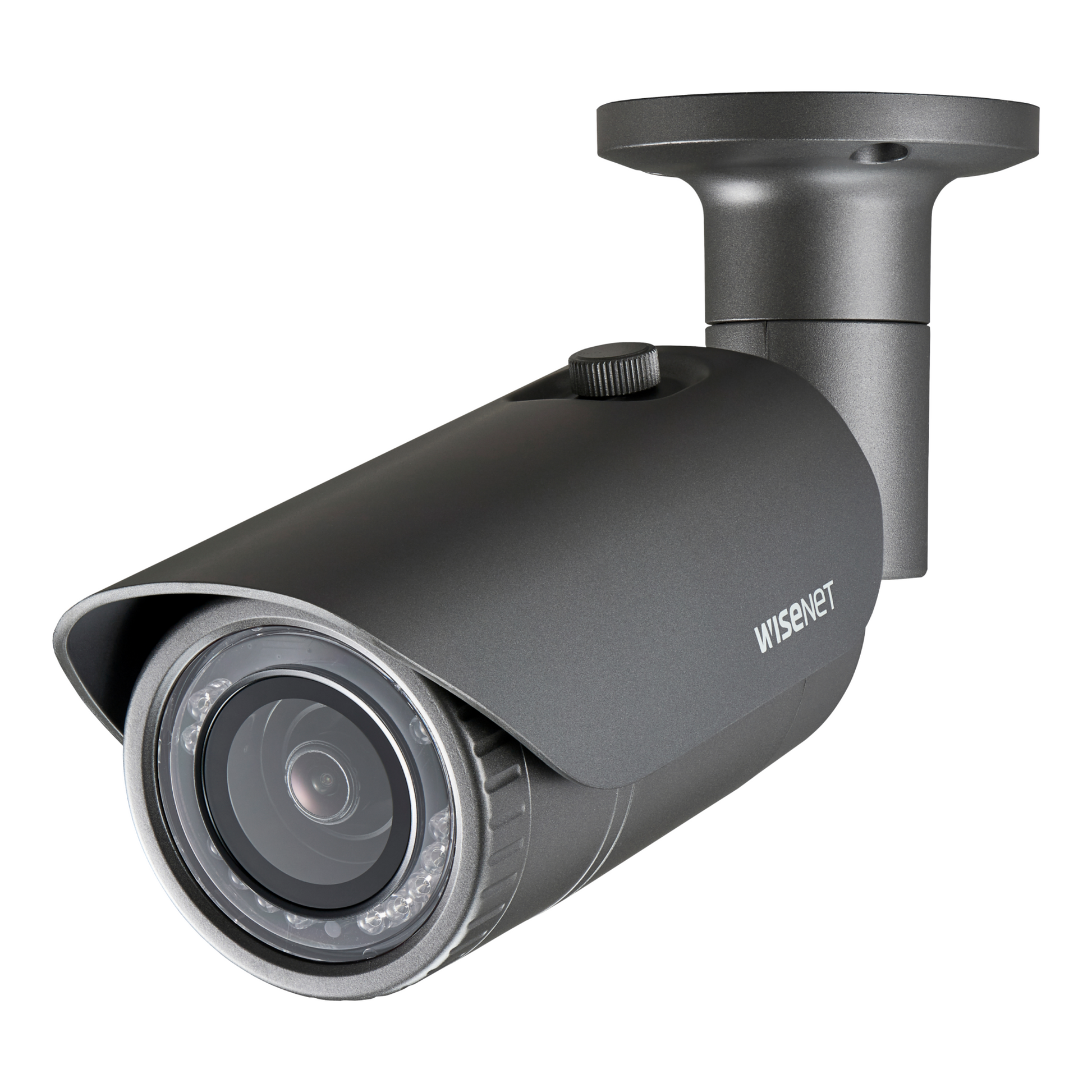

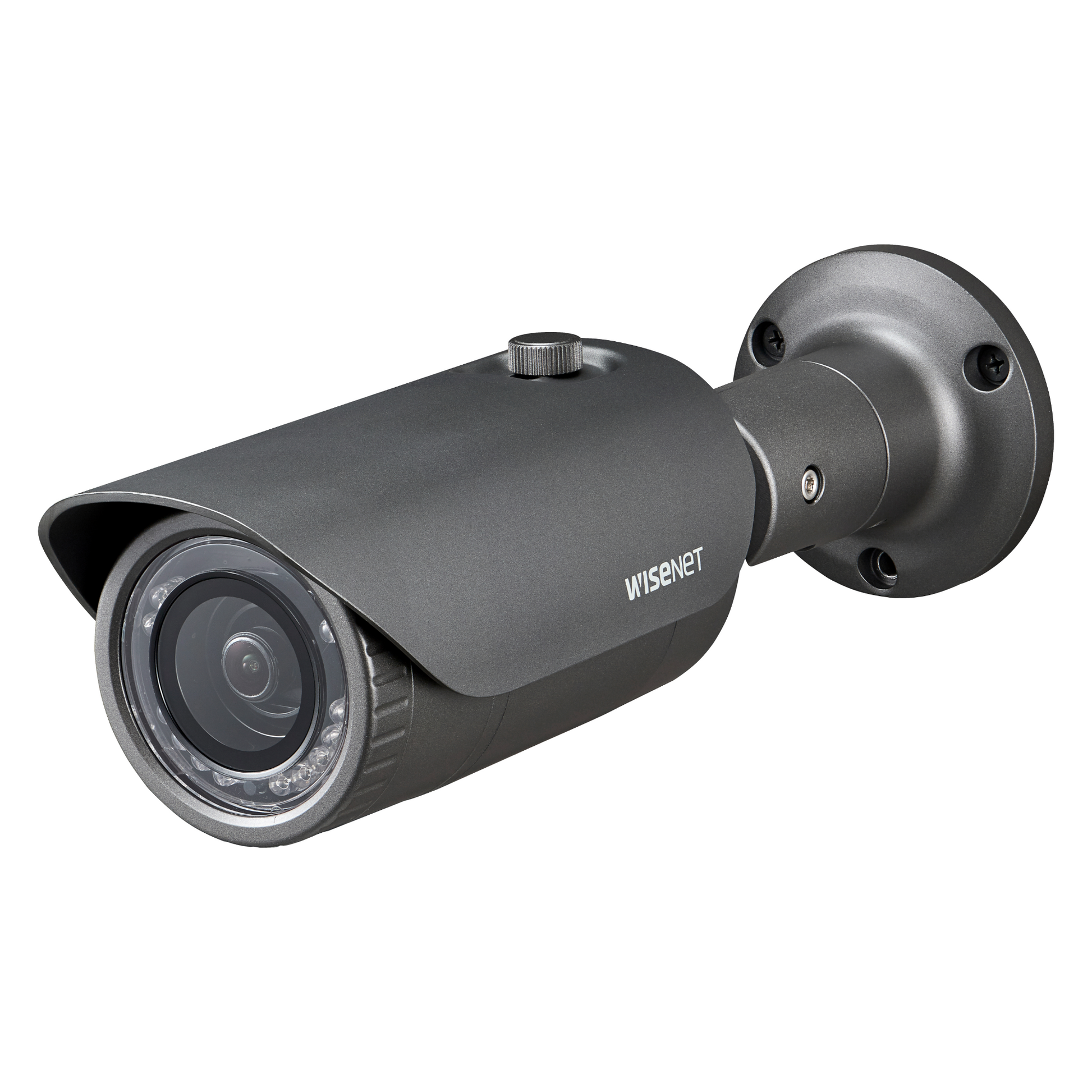

Hanwha Techwin HCO-7020RA 4MP Analog HD+ IR Bullet Security Camera 4.0mm fixed lens
HCO-7020RA
Pentabrid compatible
QHD (4MP) Analog IR Bullet Camera
• QHD (2560 x 1440, 30fps) resolution • 0.27 Lux@F2.0 (Color),0 Lux (B/W : IR LED on) • Built-in 4.0mm fixed lens • Day & Night (ICR), DWDR, Motion detection • IR Viewable Length 25m • Transmission distance max.500m • Easy installation (Plug & play), IP66, IK10
Product Specification
Video
Imaging Device
1/3" 4MP CMOS
Resolution
2560x1440
Max. Framerate
30fps@4M(N), 25fps@4M(P)
Min. Illumination
Color: 0.27Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on)
Video Out
BNC(AHD), additional CVBS for installation(2Pin connector type)
Video Transmission Distance
500m(5C2V Coaxial Cable)
Lens
Focal Length (Zoom Ratio)
4.0mm fixed
Max. Aperture Ratio
F2.0
Angular Field of View
H: 78.22°, V: 41.21°, D: 87.91°
Min. Object Distance
0.5m(1.64ft)
Operational
Day & Night
Auto(ICR)
Backlight Compensation
UserBLC, HLC, DWDR
Digital Noise Reduction
2DDNR
Motion Detection
4 zones
Privacy Masking
2 zones
Gain Control
Low / Middle / High / Very High
White Balance
ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed
1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P)
Video Rotation
H-Rev/V-Rev
Analytics
Motion detection
IR Viewable Length
25m(82.02ft)
Coaxial Protocol
ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity
-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -10°C
Certification
IP66, IK10
Input Voltage
12VDC
Power Consumption
Max 5W
Mechanical
Color / Material
Dark Gray / Aluminum
Product Dimensions / Weight
Ø70.0 x 246.0mm(Ø2.76”x9.69”), 670g(1.48 lb)
• Design and specifications are subject to change without notice. • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
