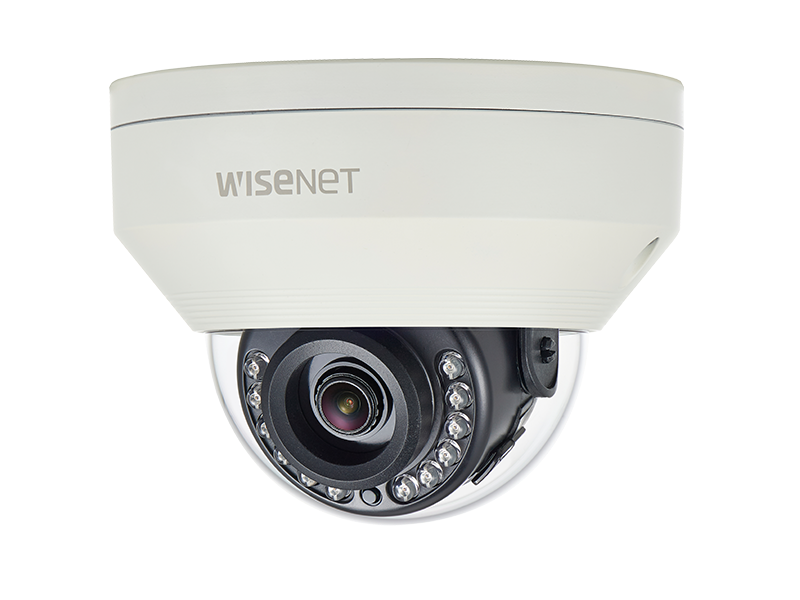

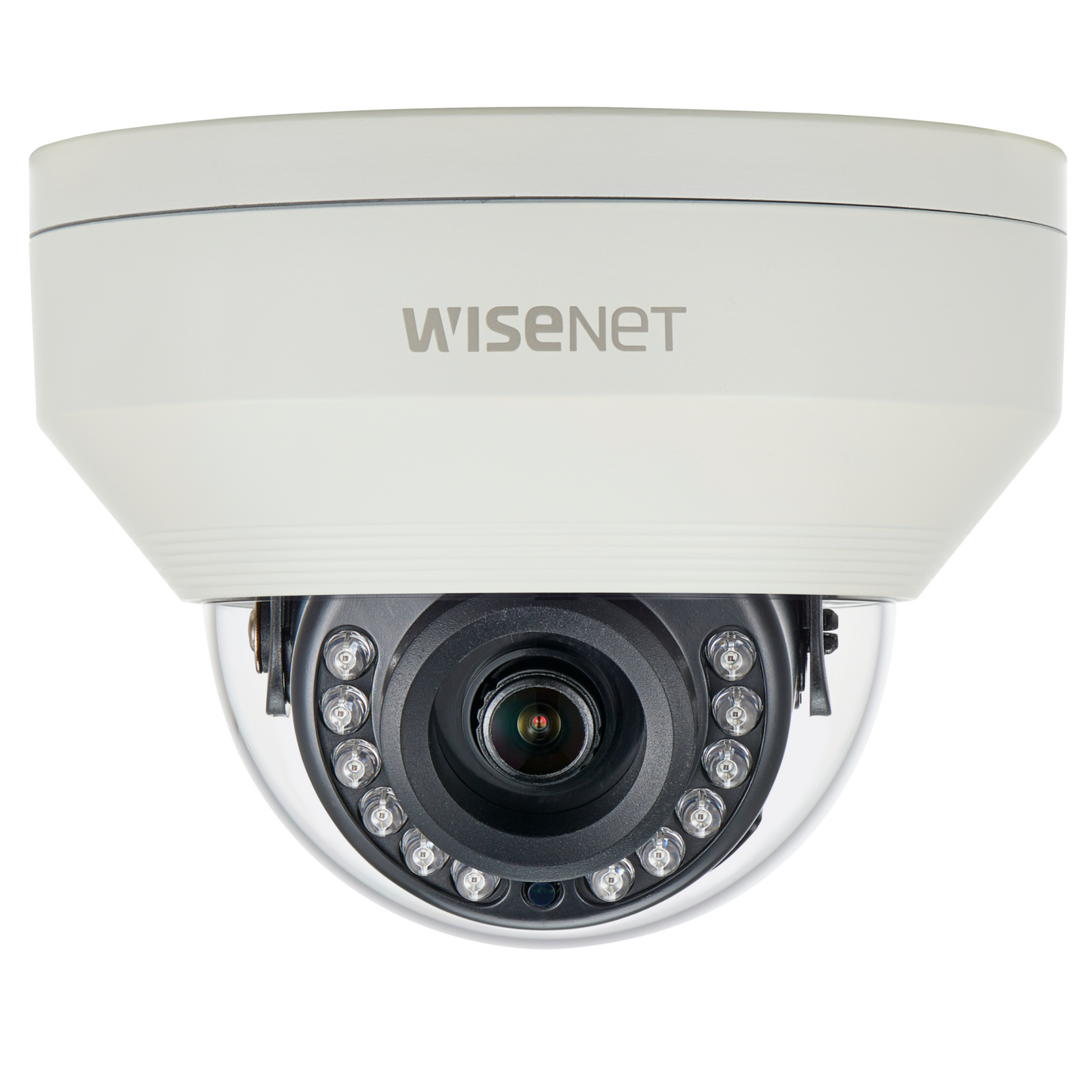

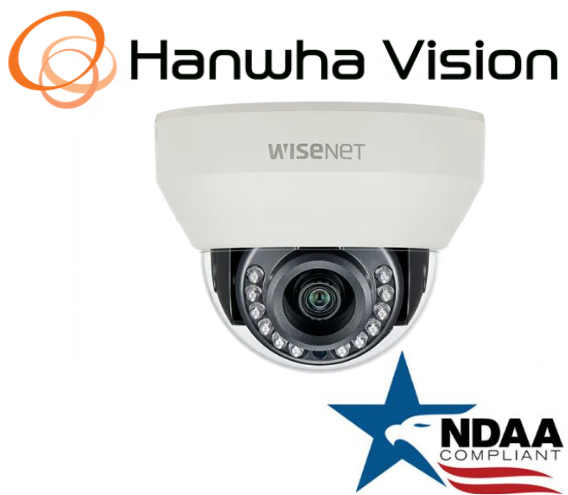

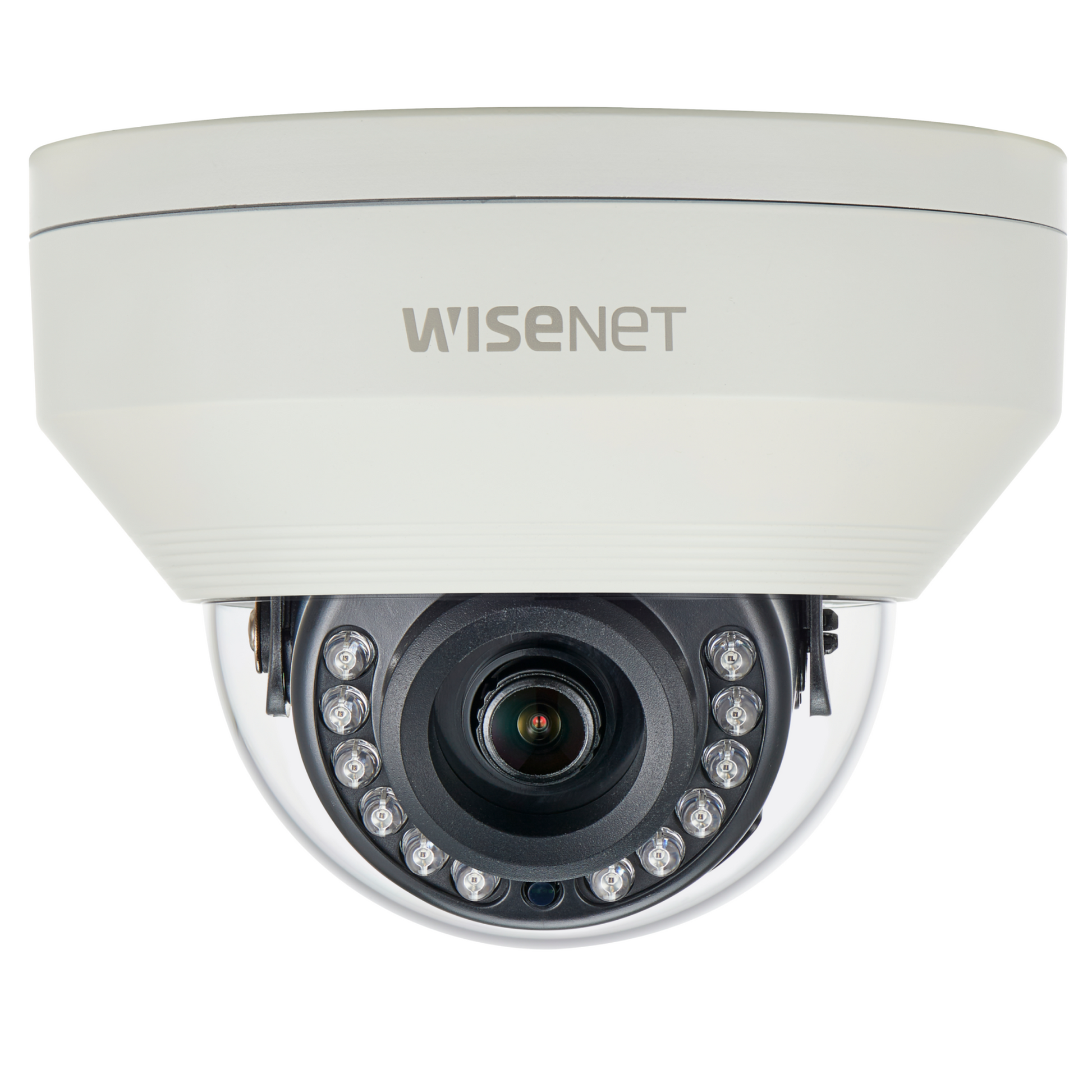

Hanwha Techwin HCV-7010RA 4MP Analog HD+ Vandal-Resistant IR Dome Security Camera

HCV-7010RA

QHD (4MP) Analog Vandal-Resistant IR Dome Camera

Product Specification

• Video
  Imaging Device		1/3" 4MP CMOS
  Resolution		2560x1440
  Max. Framerate		30fps@4M(N), 25fps@4M(P)
  Min. Illumination		Color: 0.26Lux(F1.8, 1/30sec) BW: 0Lux(IR LED on)
  Video Out		BNC(AHD), additional CVBS for installation(2Pin connector type)
  Video Transmission Distance		500m(5C2V Coaxial Cable)
  Lens
  Focal Length (Zoom Ratio)		2.8mm fixed
  Max. Aperture Ratio		F1.8
  Angular Field of View		H: 107.48°, V: 59.47°, D: 122.01°
  Min. Object Distance		0.5m(1.64ft)
  Pan / Tilt / Rotate
  Pan / Tilt / Rotate Range		0°~350° / 0°~67° / 0°~355°
  Operational
  Day & Night		Auto(ICR)
  Backlight Compensation		UserBLC, HLC, DWDR
  Digital Noise Reduction		2DDNR
  Motion Detection		4 zones
  Privacy Masking		2 zones
  Gain Control		Low / Middle / High / Very High
  White Balance		ATW / AWC / Manual / Indoor / Outdoor
  Electronic Shutter Speed		1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P)
  Video Rotation		H-Rev/V-Rev
  Analytics		Motion detection
  IR Viewable Length		20m(65.62ft)
  Coaxial Protocol		ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron)
  Environmental & Electrical
  Operating Temperature / Humidity		-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -10°C
  Certification		IP66, IK10
  Input Voltage		12VDC
  Power Consumption		Max 5W
  Mechanical
  Color / Material		Ivory / Aluminum
  Product Dimensions / Weight		Ø120.3 x 91.7mm(Ø4.74”x3.61”), 510g(1.12 lb)

• • Design and specifications are subject to change without notice.
  • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
