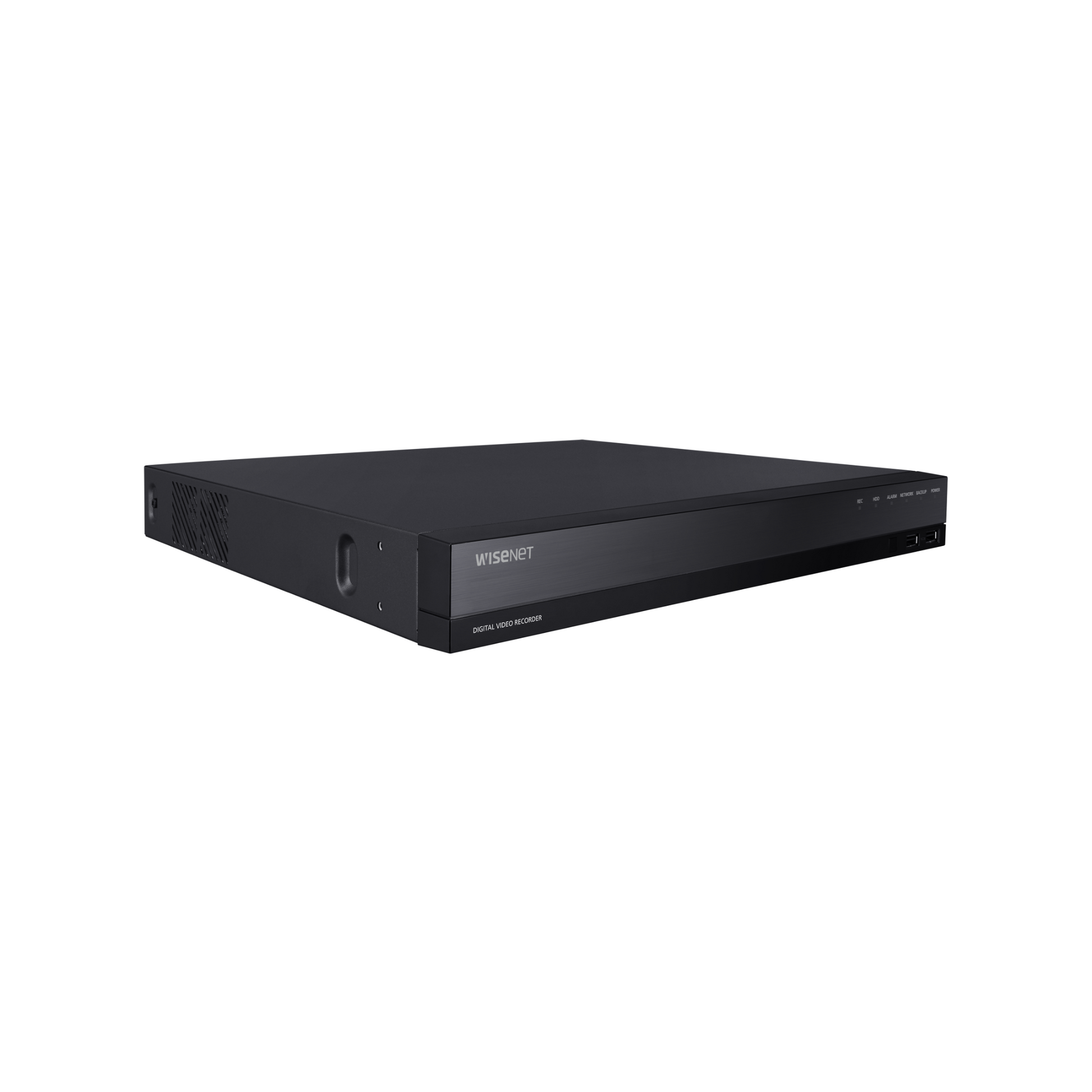

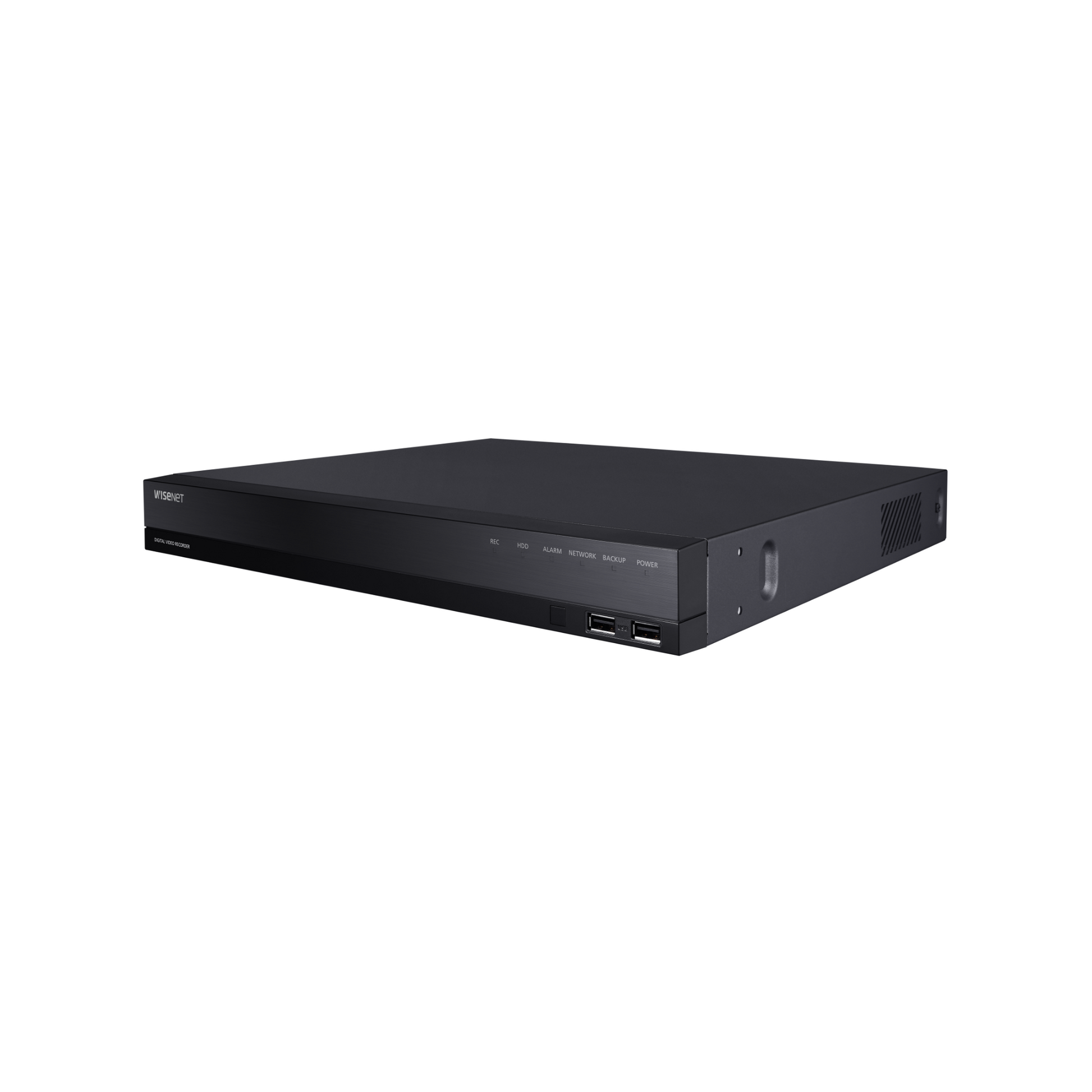

Hanwha Techwin HRX-1620-12TB 16CH 8MP IP Pentabrid DVR security Recorder12TB HDD

Hanwha Techwin HRX-1620-12TB 16CH 8MP IP Pentabrid DVR security Recorder12TB HDD

SKU:HRX-1620-12TB

Regular price $2,910.00 USD
Regular price Sale price $2,910.00 USD
Sale Sold out
Shipping calculated at checkout.
Hanwha Techwin HRX-1620-12TB 16 CH 8MP IP Pentabrid DVR security Recorder 12TB HDD

HRX-1620-12TB

18 Channel AHD, TVI, CVI, CVBS, IP Pentabrid Recorder
The Wisenet HD+ Pentabrid DVR features support for AHD (up to 8MP), TVI (up to 8MP), CVI (up to 5MP), CVBS and IP (up to 8MP), 16 Channel analog + 2 IP camera channels. Easily migrate analog channels with recording up to 18 IP channels. Other features include recording 1080p @ 30fps/channel (frame rate at higher resolutions will vary), triple codec H.265/H.264/MJPEG, 70Mbps throughput on analog and 51mbps throughput on IP cameras), 2 internal HDD, 4 Channel audio input / 1 Channel audio output, 16 alarm input and 4 relay output, coaxial control, HDMI/VGA video output, 1 X spot monitor output, QR code

Key Features:
  • 16 Channel 8MP AHD DVR
  • AHD, TVI, CVI (Maximum 8MP), analog camera, IP input
  • 18 channel total recording capability (Network / Network + analog)
  • 4K HDMI / VGA / spot video output
  • 4 Channel audio input / 1 Channel audio output
  • 16 alarm input / 4 relay output
  • Up to 2 internal HDDs (Maximum 6TB teach)
  • Coaxial cable (Pelco-C, ACP)
  • Smartphone support with QR code

Product Spec

  • Display
    Analog camera
    Inputs 16CH(1Vp-p 75ohm, BNC)
    Signal Type AHD(8MP, 5MP, 4MP, 1080p, 720p)
    HDTVI(8MP, 5MP, 4MP, 1080p, 720p)
    HDCVI(5MP, 4MP, 1080p, 720p)
    CVBS(NTSC/PAL)
    Network camera
    Inputs Max. 18CH
    Resolution 8MP ~ CIF
    Protocols SUNAPI(Wisenet), ONVIF
    Live
    Local Display 1x HDMI, 1x VGA (Dual monitor)
    HDMI: 3840 x 2160, 1920x1080, 1280x720 (1920x1080, Clone mode)
    VGA: 1920x1080, 1280x720
    Resolution [Analog Camera(NTSC/PAL)]
    - 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH
    [Network Camera]
    - Typ. 2MP(480fps)
    Performance
    Record
    Compression H.265, H.264, MJPEG
    Record Rate(Analog) Analog Camera(NTSC/PAL)
    (Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH
    (Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD full fps/CH
    * The maximum recording frame rate depends on the frame rate of the input camera.
    Recording Bandwidth Max. 70Mbps (Analog Camera only) ~ 51Mbps (Network Camera only)
    Resolution 8MP ~ CIF
    Mode Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track
    Event Trigger Alarm Input
    Analog Camera : Video Loss, Motion Detection,Tampering
    Network Camera : Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event
    Event Action E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
    Search & Play
    Playback Bandwidth Max. 32Mbps (18CH simultaneously)
    User Max. 4 Users (Local 1, Remote 3)
    Simultaneous playback 18CH(Local Monitor)
    4Ch (CMS, Wisenet Mobile), 1Ch(Web)
    Fisheye Dewarping WEB / CMS
    Storage
    Supported HDD Up to 6TB
    HDD Slot SATA 2ea(Max 12TB)
    Backup
    File backup BU, EXE(Include Player), AVI(Webviewer only)
    Function Max. 10 CH play, Date-time/title display
    Functions
    PTZ
    Control Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller
    Smart phone
    Support Model iOS, Android
    Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
    Control Live(16ch) : Multi-Profile Support
    Playback(4Ch Multi Playback, Max 2MP)
    Event push
    Max. Remote Users Search(3), Live Unicast(10)
    Redundancy
    ARB Support
    Easy configuration Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code)
    Coaxial Control CVBS(Pelco-C)/AHD/CVI/TVI

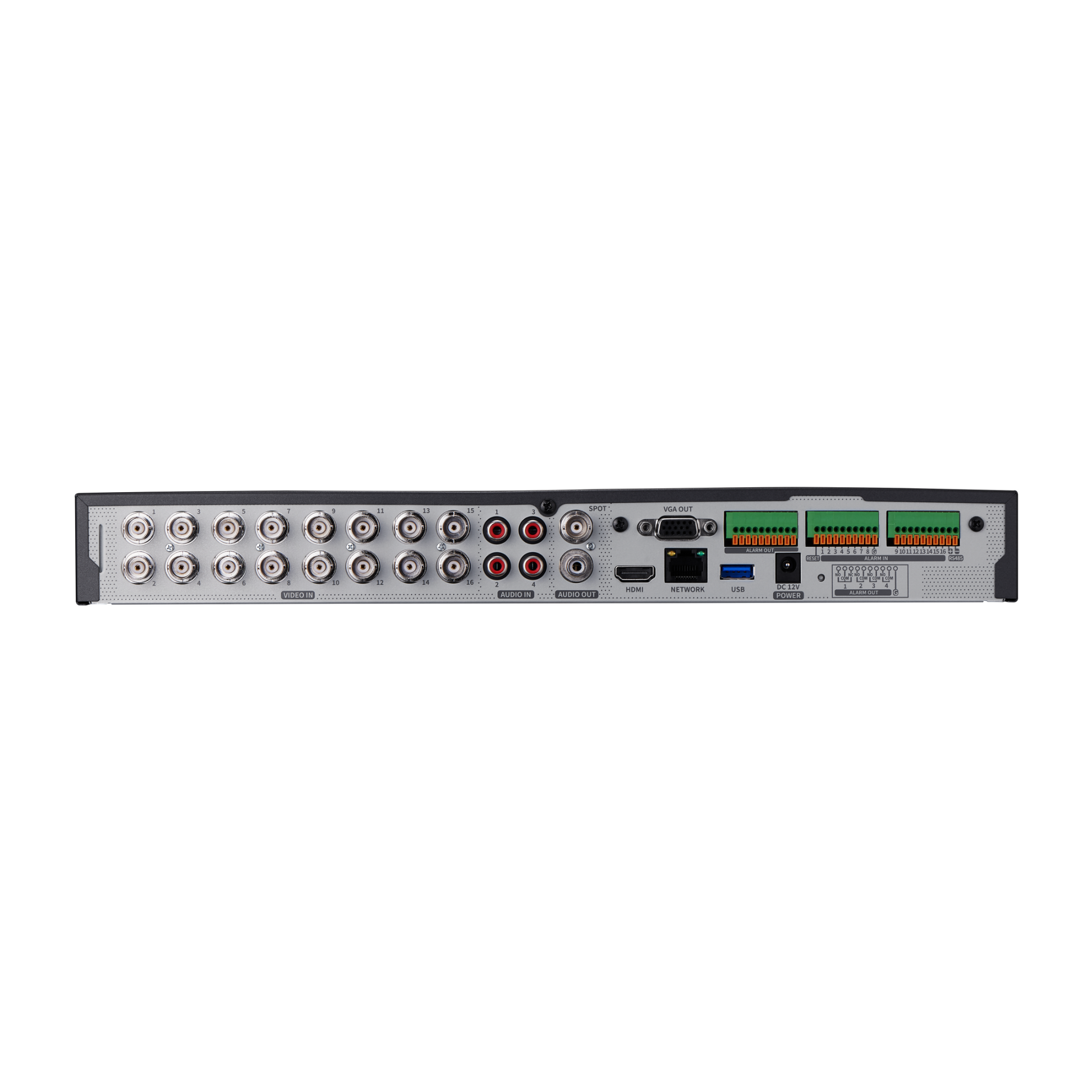

    Interface
    HDMI 1EA
    VGA 1EA
    BNC 16CH In / 1CH Out(Spot Output)
    Audio Out(1EA, RCA, Line)
    Ethernet RJ-45(10/100/1000BASE-T)
    Alarm In 16EA, Out 4EA
    - Relay Out1(NO/NC/COM)
    - Relay Out2~4(NO/COM)
    USB 3EA(Front USB2.0 2a , Rear USB 3.0 1ea)
    Serial(Protocols) RS-485 (Samsung-T/Pelco-D/Pelco-p) * for PTZ
    Power inlet 1EA DC Input Jack
    System
    System Control Mouse, IR Remocon, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000)
    Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
    Environmental
    Operating Temperature 0°C to +40°C(+32℉ to +104℉)
    Operating Humidity 20% ~ 85% RH
    Certification UL, CE, FCC, KC
    Electrical
    Power Input DC12V
    Power Consumption Max. 41W (6T HDD 2ea)
    Mechanical
    Color / Material Black / Metal
    Dimension (WxHxD) 370.0x 44.0 x 320mm(14.57” x 1.73” x 12.6”)
    Weight Approx. 2.6Kg (5.8 lb, 4TB HDD 1ea)
    Network
    Protocol TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
    DDNS Wisenet DDNS
    Transmission speed Analog Camera(NTSC/PAL)
    (Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH, 720p 30/25fps/CH, SD 30/25fps/CH
    (Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD full fps/CH
    * The maximum recording frame rate depends on the frame rate of the input camera.
    Transmission Bandwidth Max. 30Mbps
    Audio
    Input/Output 4 Line in / 1 Line out
    Compression G.711 (N/W Cam G.711, 726)
    Audio Communication 2-Way
    Max Remote Users Search(3), Live Unicast(10), Multicast(20)
    Security IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup)
    Device Certificate(Hanwha Techwin Root CA)
    Viewer Software SSM, Webviewer, Smart Viewer, Wisenet mobile
    Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS

  • • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
