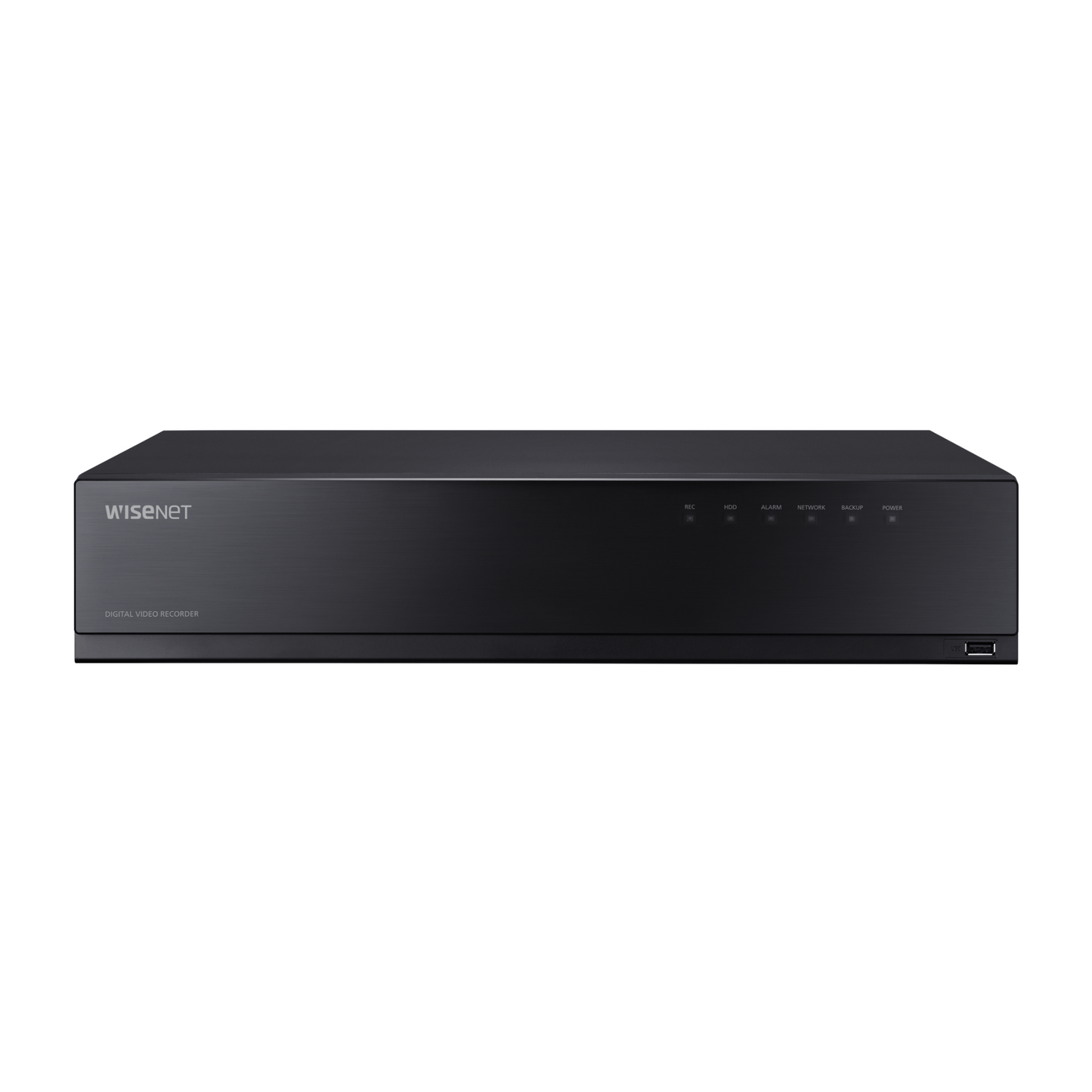

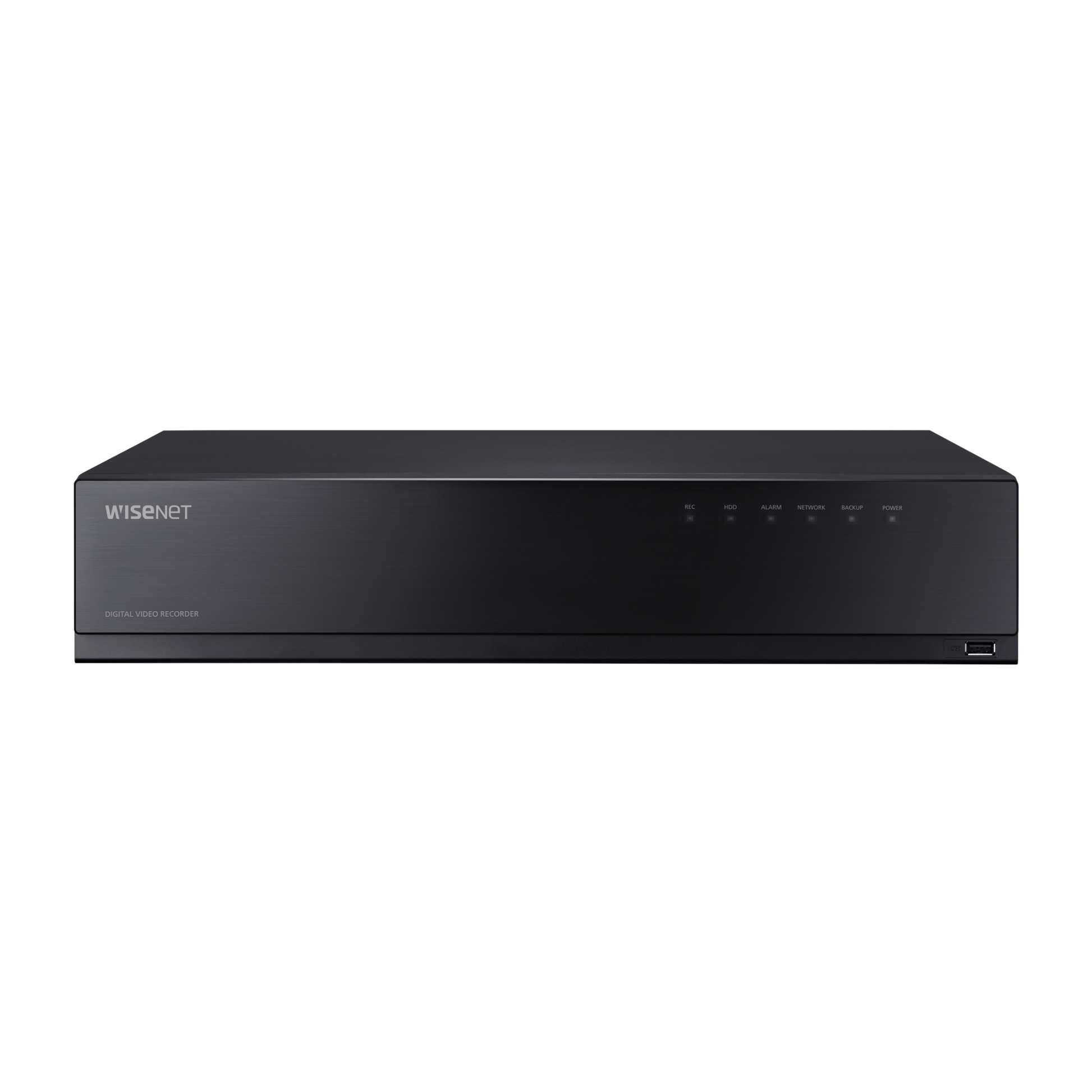

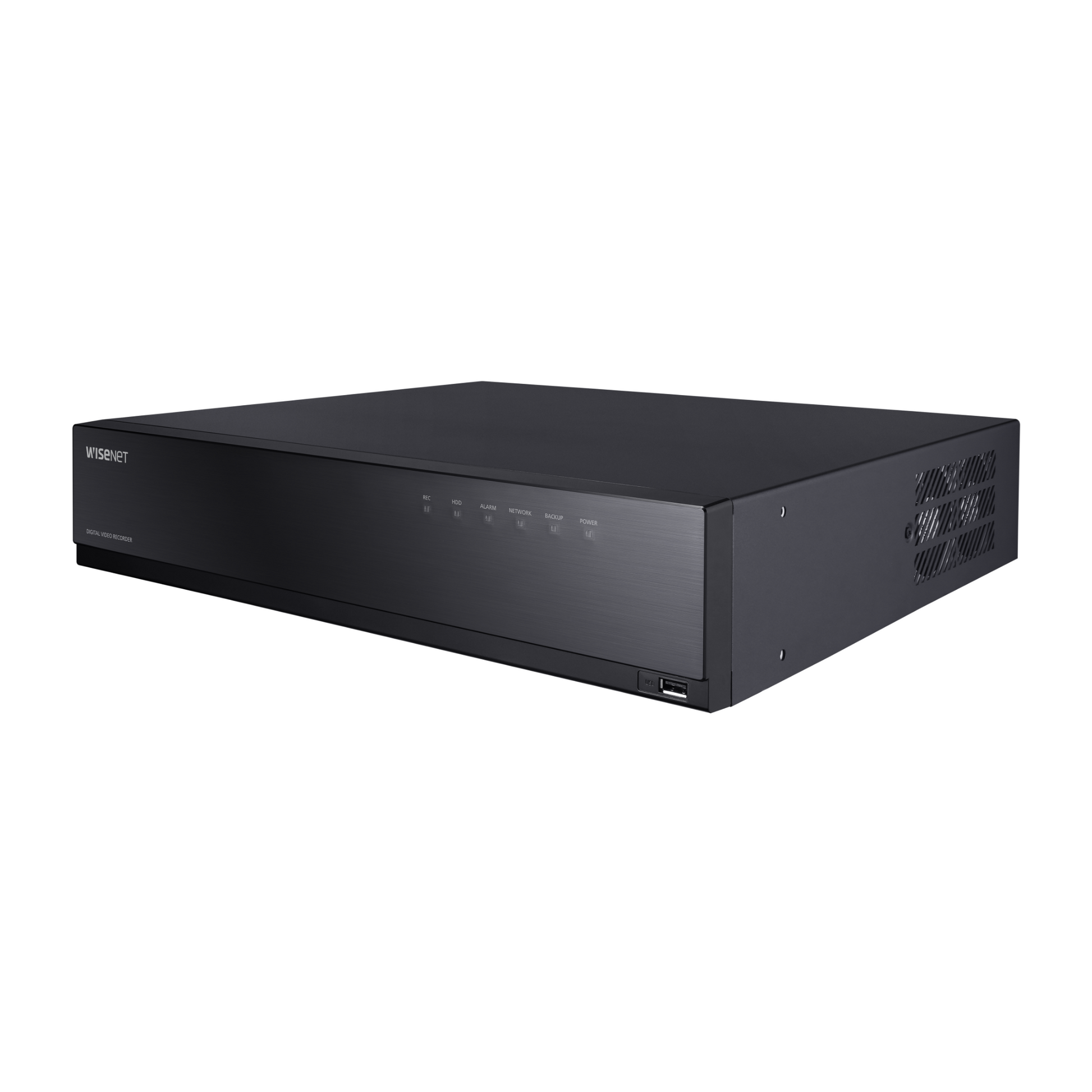

Hanwha Techwin HRX-1621-12TB 16CH 8MP Pentabrid DVR security Recorder 12TB HDD

18 Channel AHD, TVI, CVI, CVBS, IP Pentabrid Recorder

The Wisenet HD+ Pentabrid DVR features support for AHD (up to 8MP), TVI (up to 8MP), CVI (up to 5MP), CVBS and IP (up to 8MP), 16 Channel analog + 2 IP camera channels. Easily migrate analog channels with recording up to 18 IP channels. Other features include recording 1080p @ 30fps/channel (frame rate at higher resolutions will vary), triple codec H.265/H.264/MJPEG, 70Mbps throughput on analog and 51mbps throughput on IP cameras), 8 internal HDD, 16 Channel audio input / 1 Channel audio output, 16 alarm input and 4 relay output, coaxial control, HDMI/VGA video output, 1 X spot monitor output, QR code

• 16 Channel 8MP AHD DVR
• AHD, TVI, CVI (Maximum 8MP), analog camera, & IP input
• 18 channel total recording capability (Network / Network + analog)
• 4K HDMI / VGA / spot video output
• 16 Channel audio input / 1 Channel audio output
• 16 alarm input / 4 relay output
• Up to 8 internal HDDs (Maximum 6TB teach)
• Coaxial cable (Pelco-C, ACP)
• Smartphone support with QR code

Product Spec

• Display
  Analog camera
  	Inputs	16CH(1Vp-p 75ohm, BNC)
  	Signal Type	AHD(8MP, 5MP, 4MP, 1080p, 720p) HDTVI(8MP, 5MP, 4MP, 1080p, 720p) HDCVI(5MP, 4MP, 1080p, 720p) CVBS(NTSC/PAL)
  Network camera
  	Inputs	Max. 18CH
  	Resolution	8MP ~ CIF
  	Protocols	SUNAPI(Wisenet), ONVIF
  Live
  	Local Display	1x HDMI, 1x VGA (Dual monitor) HDMI: 3840 x 2160, 1920x1080, 1280x720 (1920x1080, Clone mode) VGA: 1920x1080, 1280x720
  	Resolution	[Analog Camera(NTSC/PAL)] - 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH [Network Camera] - Typ. 2MP(480fps)
  Performance
  Record
  	Compression	H.265, H.264, MJPEG
  	Record Rate(Analog)	Analog Camera(NTSC/PAL) (Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH (Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera.
  	Recording Bandwidth	Max. 70Mbps (Analog Camera only) ~ 51Mbps (Network Camera only)
  	Resolution	8MP ~ CIF
  	Mode	Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track
  	Event Trigger	Alarm Input Analog Camera : Video Loss, Motion Detection,Tampering Network Camera : Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event
  	Event Action	E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
  Search & Play
  	Playback Bandwidth	Max. 32Mbps (18CH simultaneously)
  	User	Max. 4 users (Set 1, Remote 3)
  	Simultaneous playback	18CH(Local Monitor) 4Ch (CMS, Wisenet Mobile), 1Ch(Web)
  	Fisheye Dewarping	WEB / CMS
  Storage
  	Supported HDD	Up to 6TB
  	HDD Slot	SATA 8ea(Max 48TB)
  Backup
  	File backup	BU, EXE(Include Player), AVI(Webviewer only)
  	Function	Max. 16 CH play, Date-time/title display
  Functions
  PTZ
  	Control	Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller
  Smart phone
  	Support Model	iOS, Android
  	Protocol Support	RTP, RTSP, HTTP, CGI(SUNAPI)
  	Control	Live(16ch) : Multi-Profile Support Playback(4Ch Multi Playback, Max 2MP) Event push
  	Max. Remote Users	Search(3), Live Unicast(10)
  Redundancy
  	ARB	Support
  Easy configuration		Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code)
  Coaxial Control		CVBS(Pelco-C)/AHD/CVI/TVI

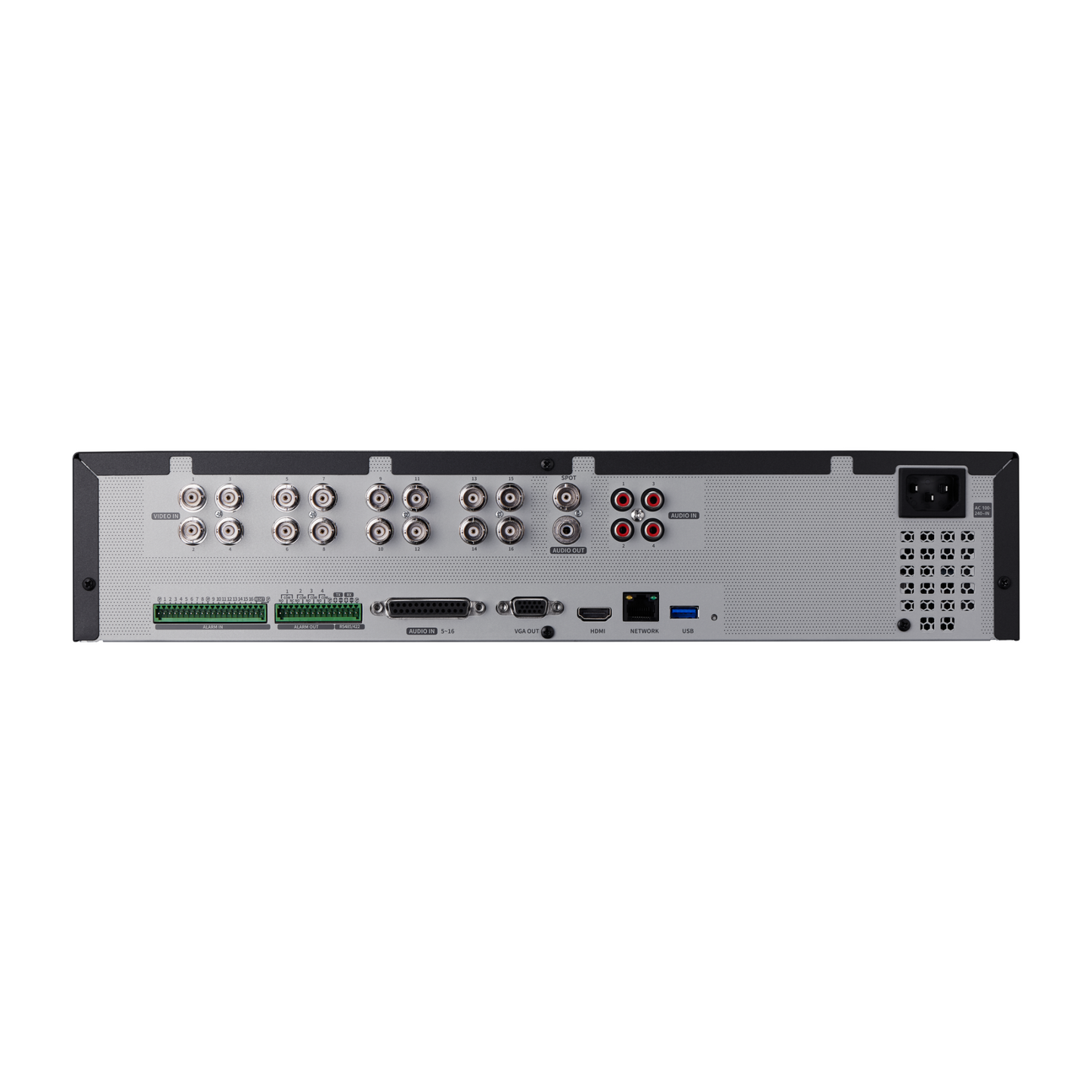

  Interface
  HDMI		1EA
  VGA		1EA
  BNC		16CH In / 1CH Out(Spot Output)
  Audio		Out(1EA, RCA, Line)
  Ethernet		RJ-45(10/100/1000BASE-T)
  Alarm		In 16EA, Out 4EA - Relay Out1(NO/NC/COM) - Relay Out2~4(NO/COM)
  USB		2EA(Front USB2.0, Rear USB 3.0))
  Serial(Protocols)		RS-485/422 (Samsung-T/Pelco-D/Pelco-p) * for PTZ
  Power inlet		1EA AC
  System
  System Control		Mouse, IR Remocon, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000)
  Language		English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
  Environmental
  Operating Temperature		0°C to +40°C(+32℉ to +104℉)
  Operating Humidity		20% ~ 85% RH
  Certification		UL, CE, FCC, KC
  Electrical
  Power Input		100~240 VAC±10%, 50/60 Hz
  Power Consumption		Max. 180W (6T HDD 8ea)
  Mechanical
  Color / Material		Black / Metal
  Dimension (WxHxD)		440 x 88 x 384.8mm(17.32” x 3.46” x 15.15”)
  Weight		Approx. 5.6Kg (12.4 lb, 4TB HDD 1ea)
  Network
  Protocol		TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
  DDNS		Wisenet DDNS
  Transmission speed		Analog Camera(NTSC/PAL) (Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH, 720p 30/25fps/CH, SD 30/25fps/CH (Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera.
  Transmission Bandwidth		Max. 30Mbps
  Audio
  	Input/Output	16 Lline in (Built in 4 Line, Option : Audio Extension Cable) / 1Line line out
  	Compression	G.711 (N/W Cam G.711, 726)
  	Audio Communication	2-Way
  Max Remote Users		Search(3), Live Unicast(10), Multicast(20)
  Security		IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) Device Certificate(Hanwha Techwin Root CA)
  Viewer Software		SSM, Webviewer, SmartViewer, Wisenet Mobile Viewer Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS

• • Design and specifications are subject to change without notice.
  • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
