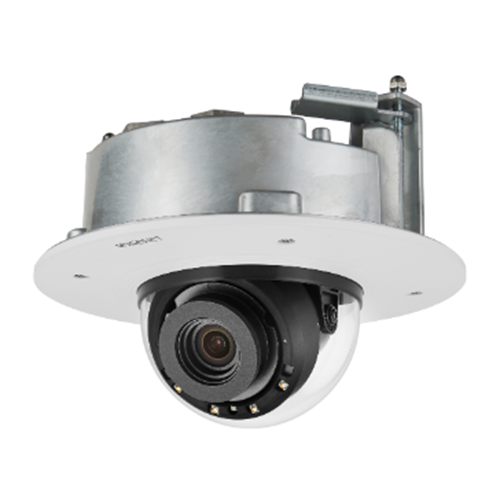

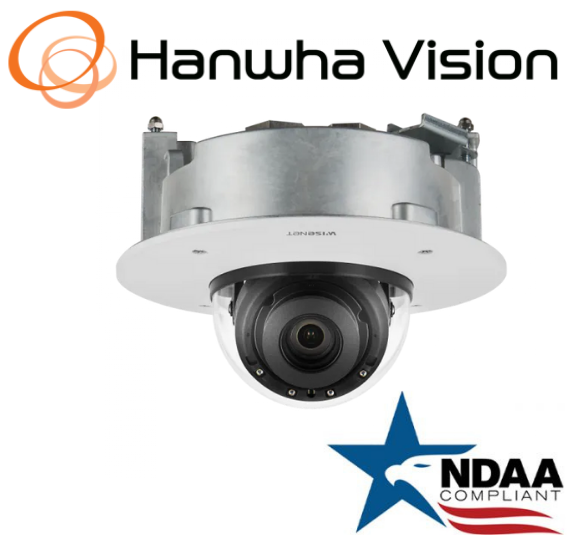

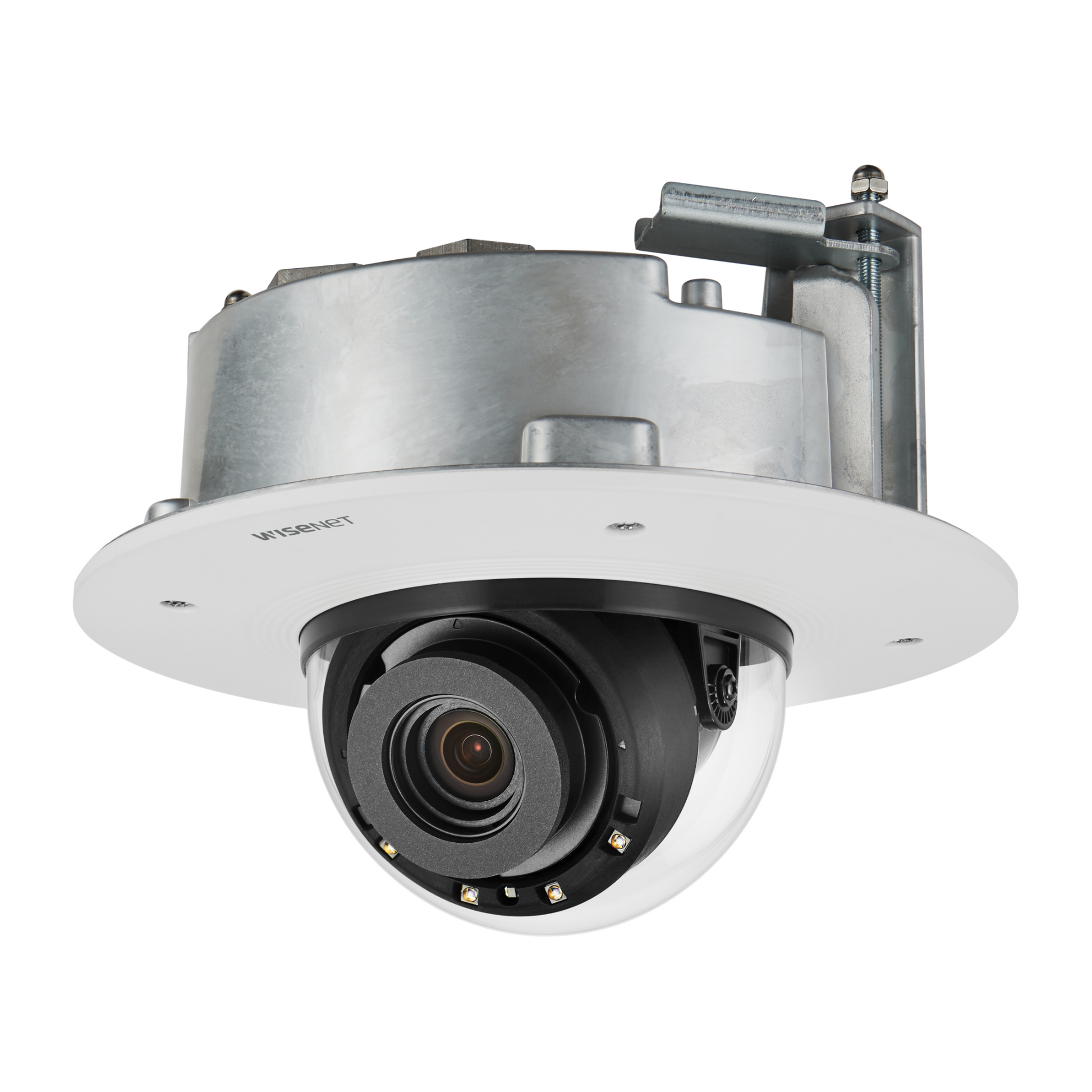

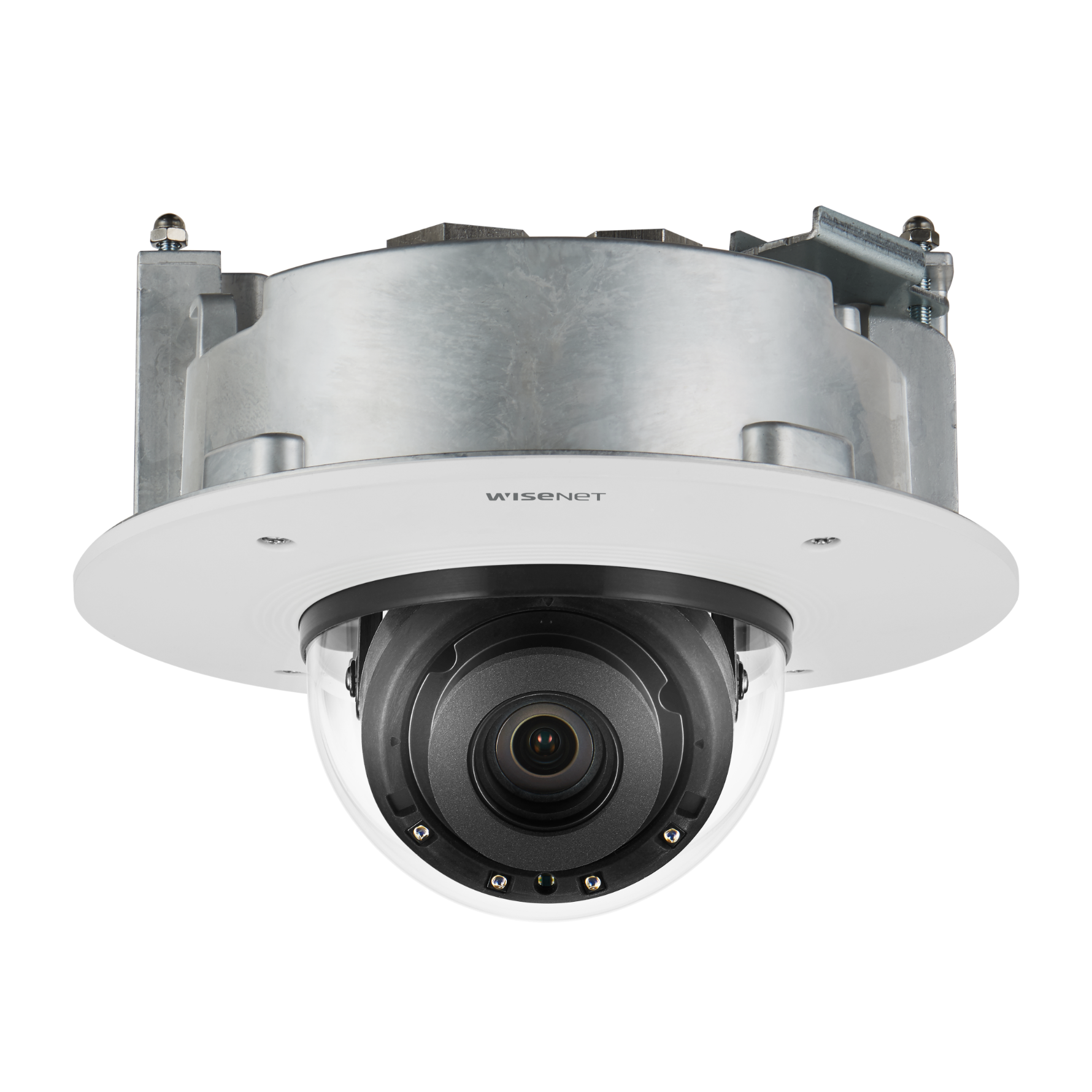

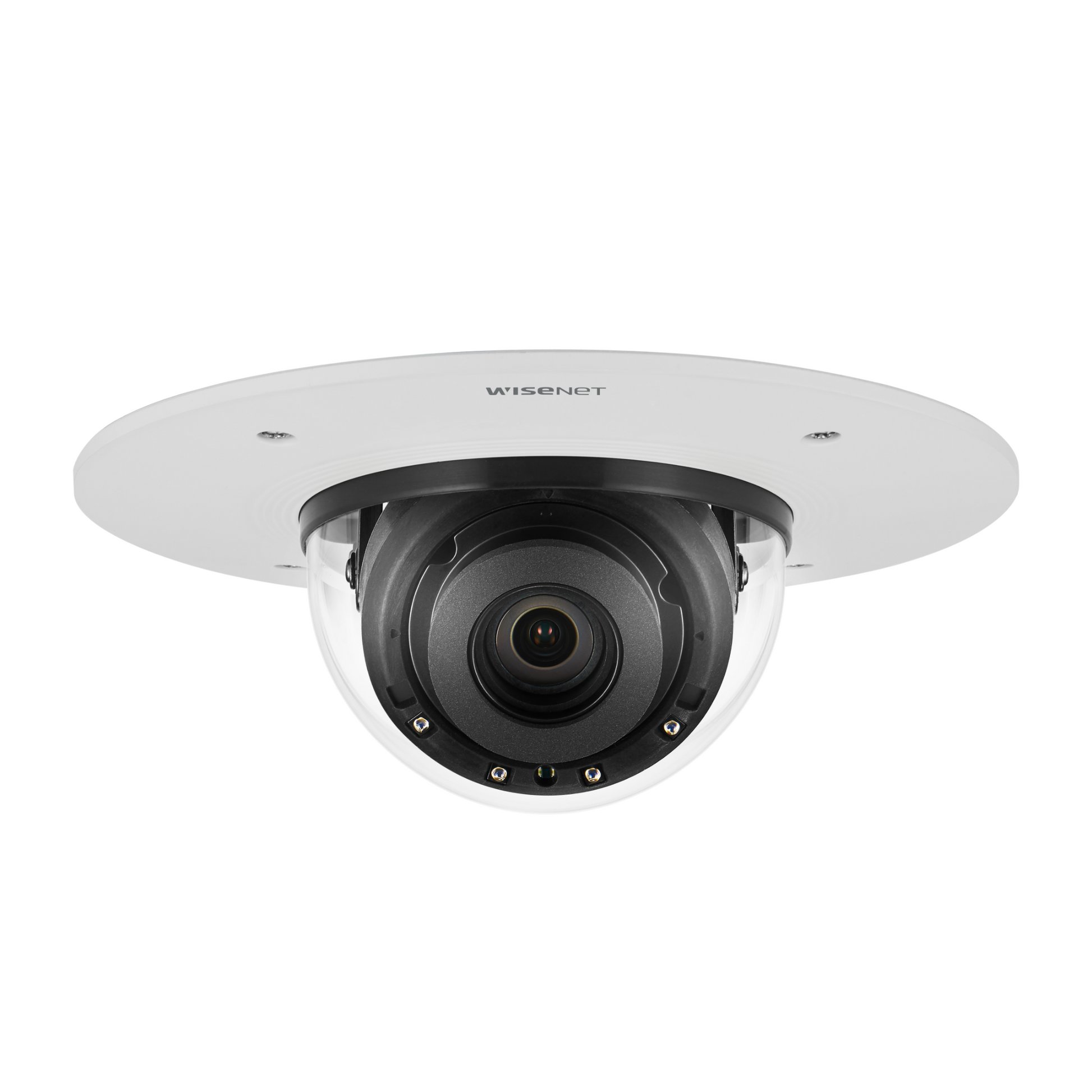

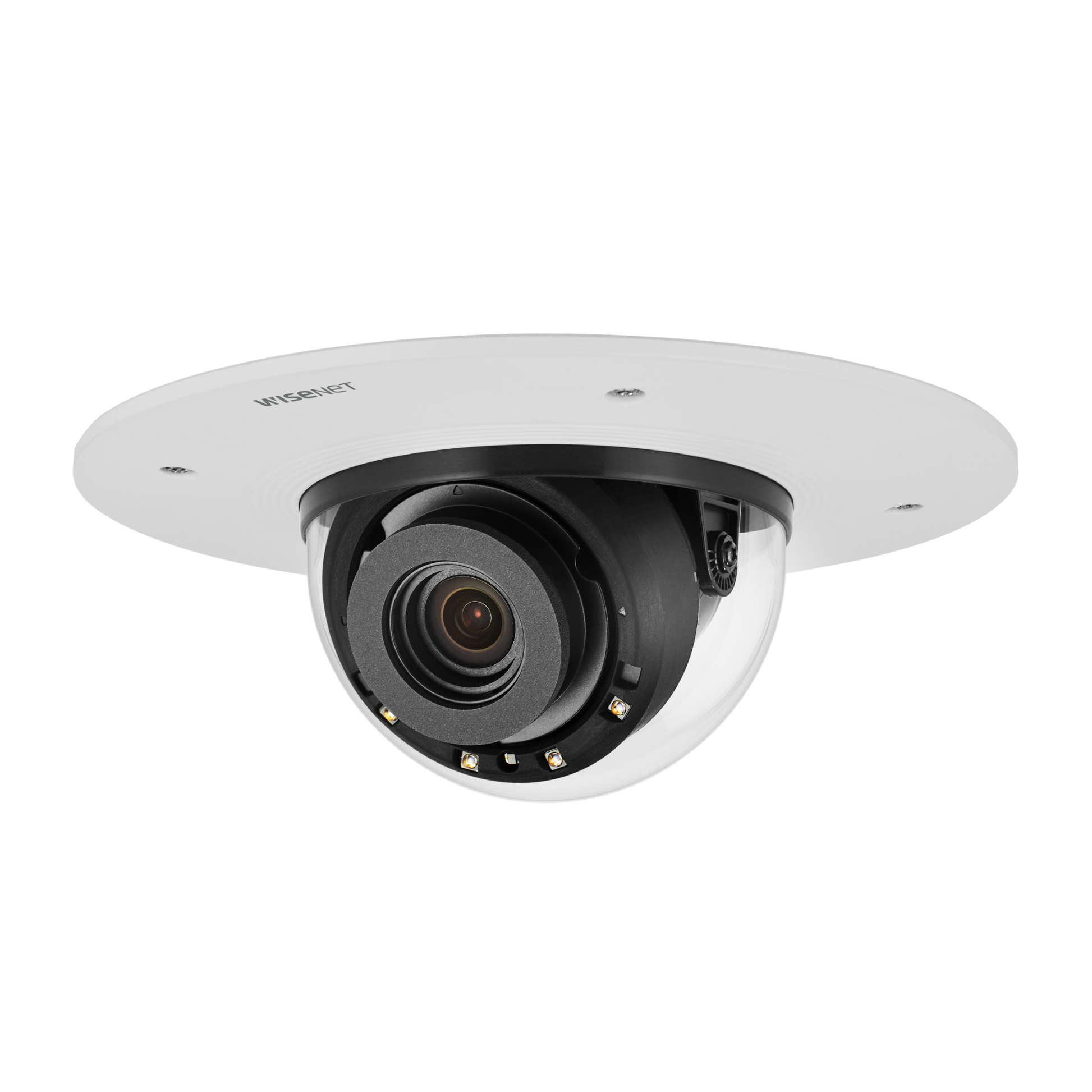

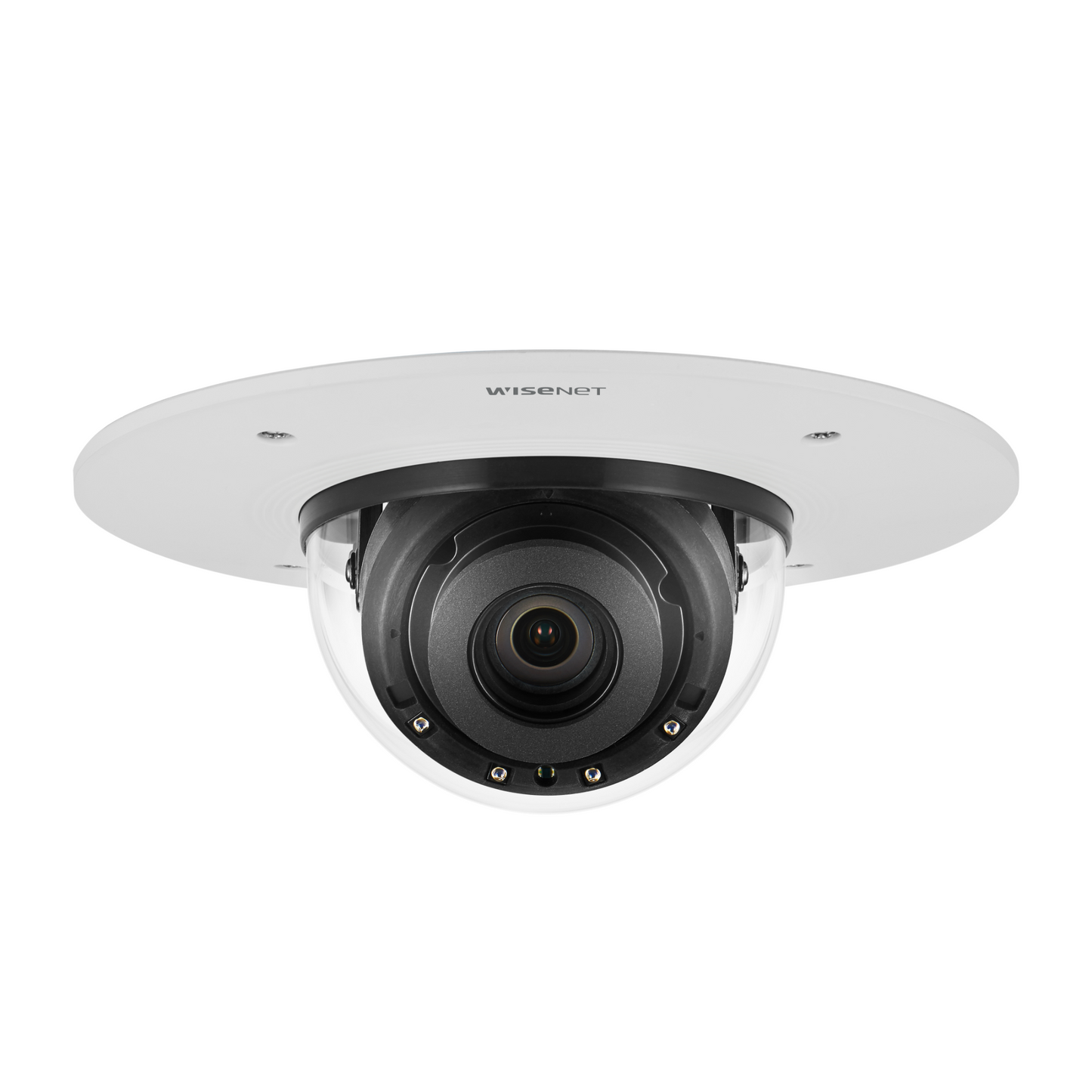

Hanwha Techwin PND-A9081RF 4K Network AI IR IP Security Dome Camera 4.5~10mmLens

Hanwha Techwin PND-A9081RF 4K Network AI IR IP Security Dome Camera 4.5~10mmLens

PND-A9081RF

$1,950.00 USD
$1,950.00 USD
Sale Sold out
Shipping calculated at checkout.

Hanwha Techwin PND-A9081RF Network AI IR IP Security Dome Camera

PND-A9081RF

4K Network AI IR Dome Camera

• Max. 4K resolution
• 0.05Lux@F1.6 (Color), 0Lux (B/W, IR LED on)
• Day & Night(ICR), WDR(120dB)
• H.265, H.264, MJPEG codec, WiseStreamⅡ
• Video Analytics based on AI
- Object detection and classification(Person, Face, Vehicle, License Plate)
- Face mask detection, Social distancing detection
- Attribute, BestShot
• Compatible with Wisenet Retail Insight v2.0 for Business Intelligence
- Age/gender based People counting
- Heatmap, Queue management
• Modular structure for easy installation
• Requires camera firmware v1.41.03 or later to use Face Mask Detection
• System requirements
- SSM v2.10.8 or later, Genetec plugin v1.0 or later, Milestone plugin v1.0.2 or later

Product Specification

  • Video
    Imaging Device 1/1.8" CMOS
    Resolution 3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768,
    800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360
    Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
    MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    Min. Illumination Color: 0.05Lux(F1.6, 1/30sec)
    BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on)
    Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
    USB: Micro USB Type B, 1280x720 for installation
    Lens
    Focal Length (Zoom Ratio) 4.5~10mm(2.2x) motorized varifocal
    Max. Aperture Ratio F1.6(Wide)~F2.65(Tele)
    Angular Field of View H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele)
    Min. Object Distance 0.5m(1.64ft)
    Focus Control Simple focus
    Lens Type P iris
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range 0˚~360˚ / -45˚~85˚ / 0˚~355˚
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, WDR, SSDR
    Digital Noise Reduction SSNRⅤ, WiseNR Ⅱ(using AI engine)
    Digital Image Stabilization Stabilization Support(built-in gyro sensor)
    Motion Detection 8ea, polygonal zones
    Privacy Masking 6ea, rectangle zones
    - Color: Gray/Black/White
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
    Auto prefer shutter control based on AI engine
    Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
    Analytics - Classified object type : Person/Face/Vehicle/License plate with attributes, BestShot per object
    - Analytics events based on AI engine : Object detection, Face mask detection, Directional detection, Digital auto tracking, Enter/Exit, Loitering, Virtual line, Social distancing detection
    - Analytics events : Defocus detection, Motion detection, Appear/Disappear, Tampering, Audio detection, Sound classification, Shock detection
    Business Intelligence People counting, Queue management, Heatmap based on AI engine
    Alarm I/O Input 1ea / Output 1ea / DC 12V Power(Max. 50mA) 1ea
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC or NAS recording at event triggers
    Alarm output
    Handover
    Audio playback
    Audio In Selectable(mic in/line in)
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio Out Line out, Max.output level: 1Vrms
    IR Viewable Length 30m(98.42ft)
    Network
    Ethernet Metal shielded RJ-45(10/100/1000 BASE-T)
    Video Compression H.265/H.264: Main/High, MJPEG
    Audio Compression G.711 u-law /G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    AAC-LC: 48Kbps at 16KHz
    Smart Codec Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(using AI engine)
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(6 users) / Multicast
    Multiple streaming(Up to 3 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Device Certificate(Hanwha Techwin Root CA)
    Secure boot
    Application Programming Interface ONVIF Profile S/G/T/M
    SUNAPI(HTTP API)
    Wisenet open platform
    General
    Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
    Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    Edge Storage Micro SD/SDHC/SDXC 2slots 512GB
    Memory 4096MB RAM, 512MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -25°C ~ +50°C (-13°F ~ +122°F) / Less than 90% RH
    Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
    Certification IP52, IK10, Plenum rate
    Input Voltage PoE+(IEEE802.3at), 12VDC
    Power Consumption PoE+: Max 20.00W, typical 16.00W
    12VDC: Max 17.70W, typical 14.00W
    Mechanical
    Color / Material White / Aluminum
    RAL Code RAL9003
    Product Dimensions / Weight Ø205x163mm(8.07x4.92"), Weight : 1.95Kg (4.30lb)
    DORI (EN62676-4 standard)
    Detect (25PPM/ 8PPF) Wide: 62.9m(206.34ft) / Tele: 183m(600.33ft)
    Observe (63PPM/ 19PPF) Wide: 25.1m(82.34ft) / Tele: 73.3m(240.46ft)
    Recognize (125PPM/ 38PPF) Wide: 12.6m(41.33ft) / Tele: 36.6m(120.07ft)
    Identify (250PPM/ 76PPF) Wide: 6.3m(20.67ft) / Tele: 18.3m(60.03ft)

  • • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
