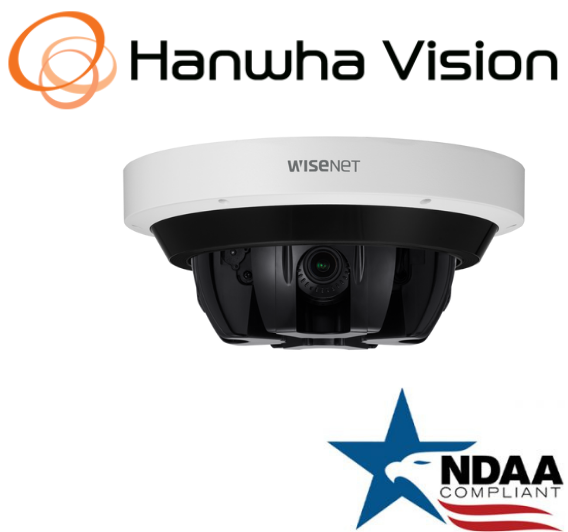

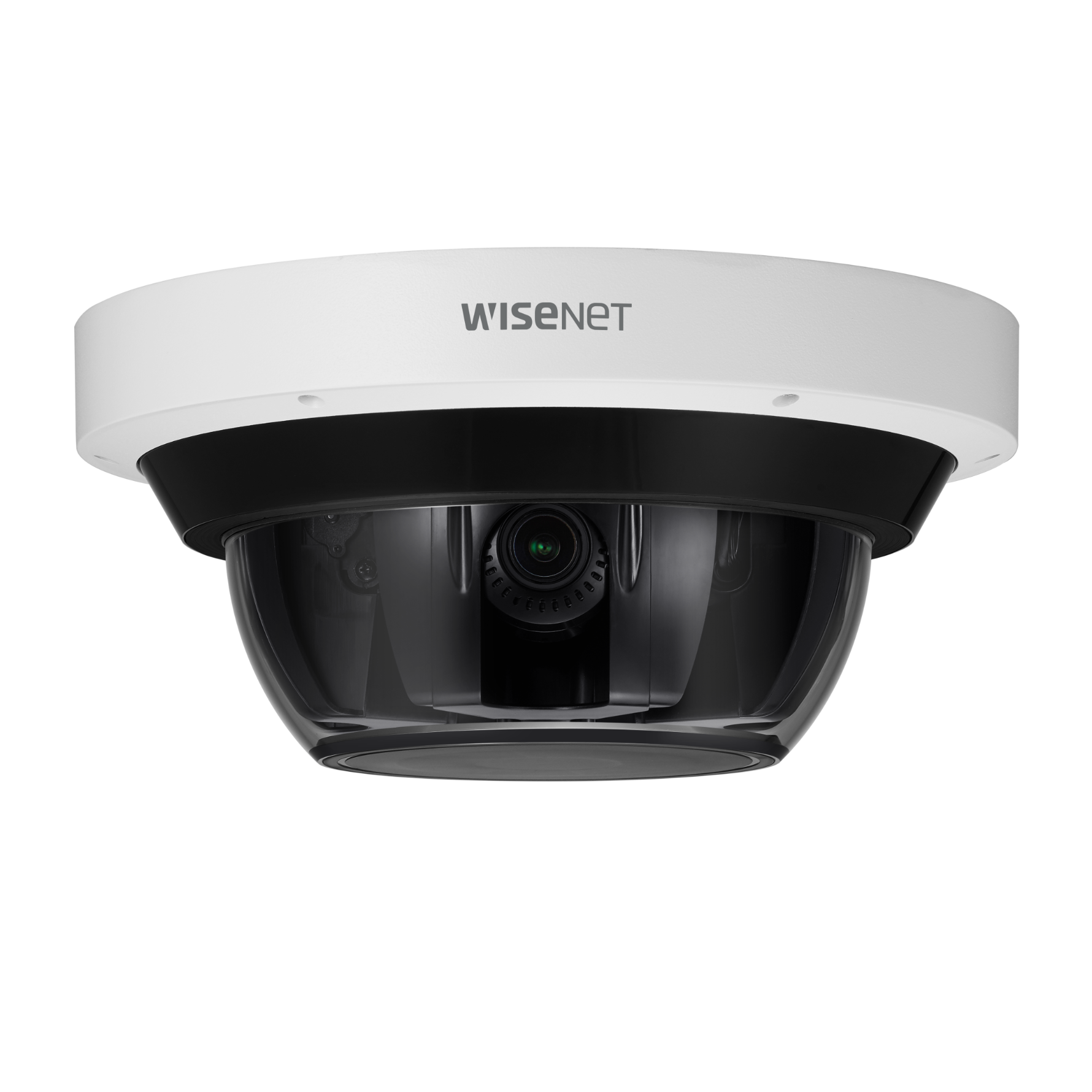

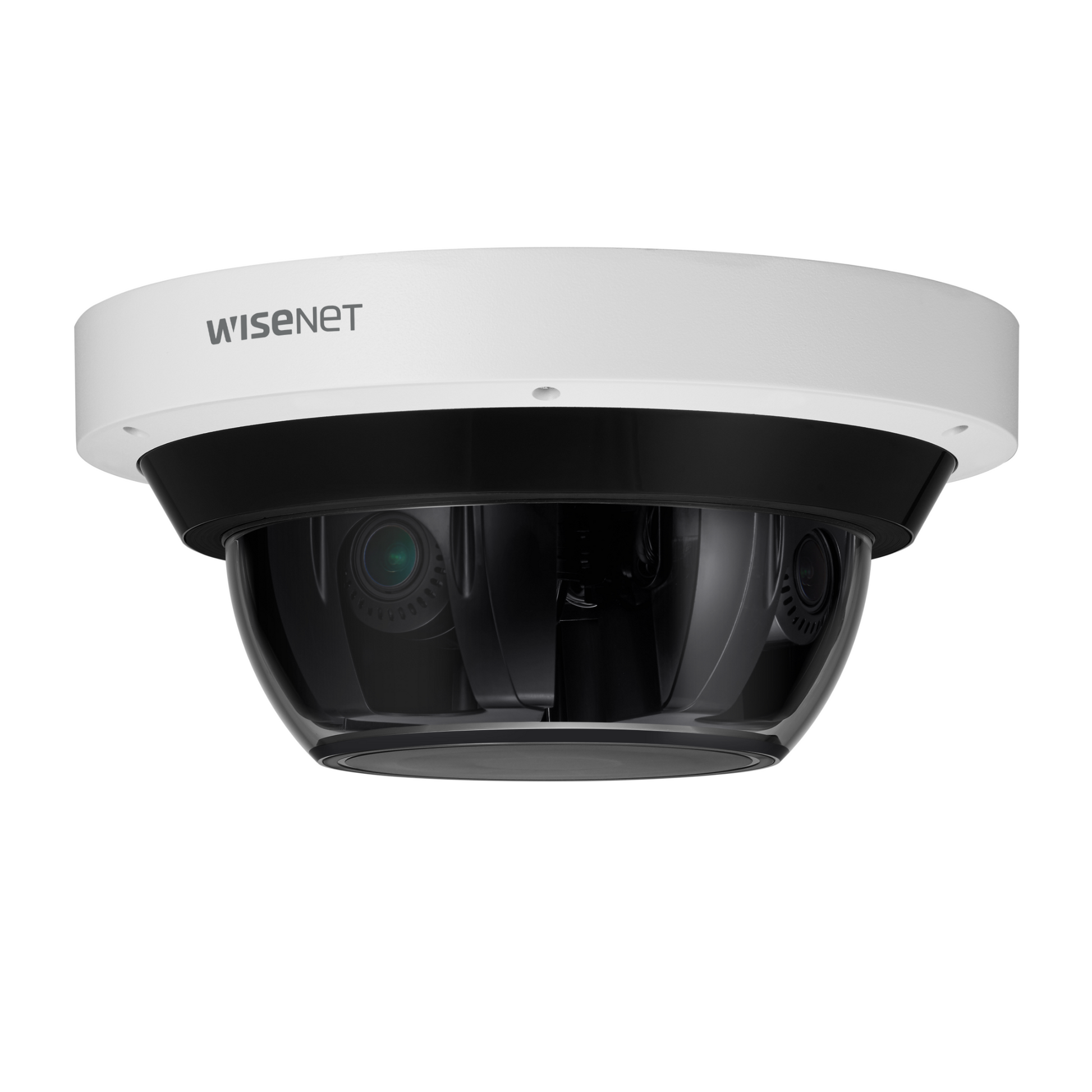

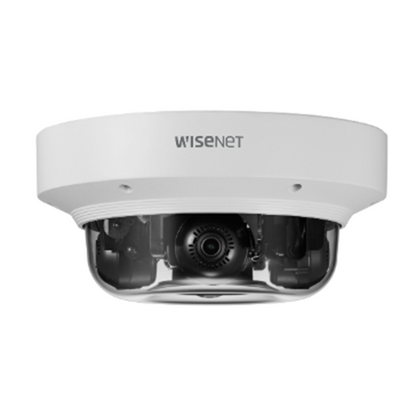

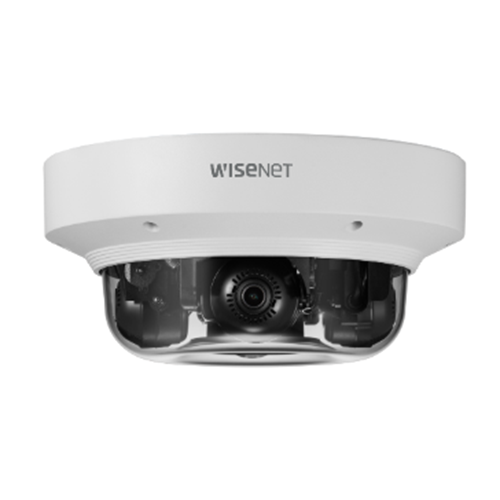

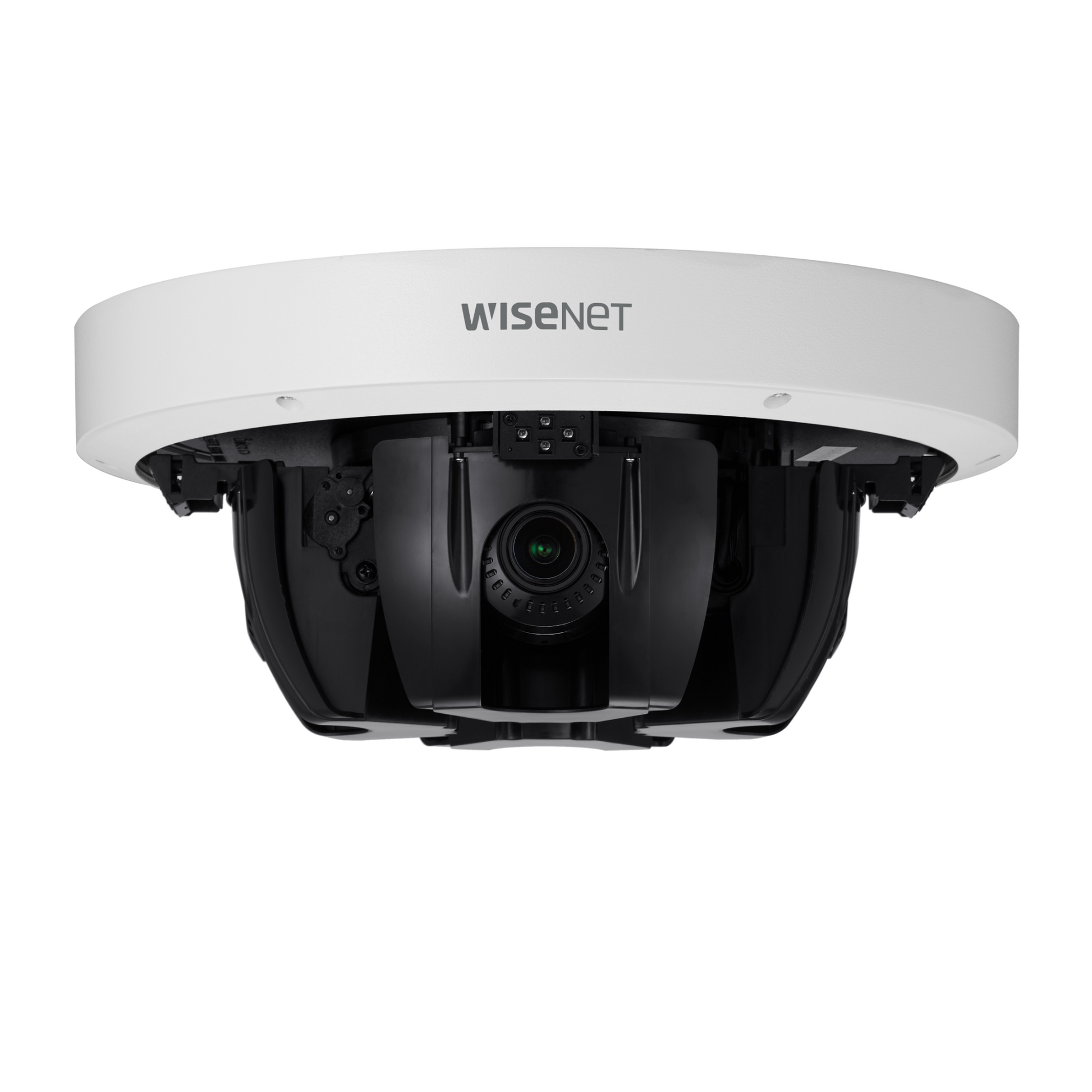

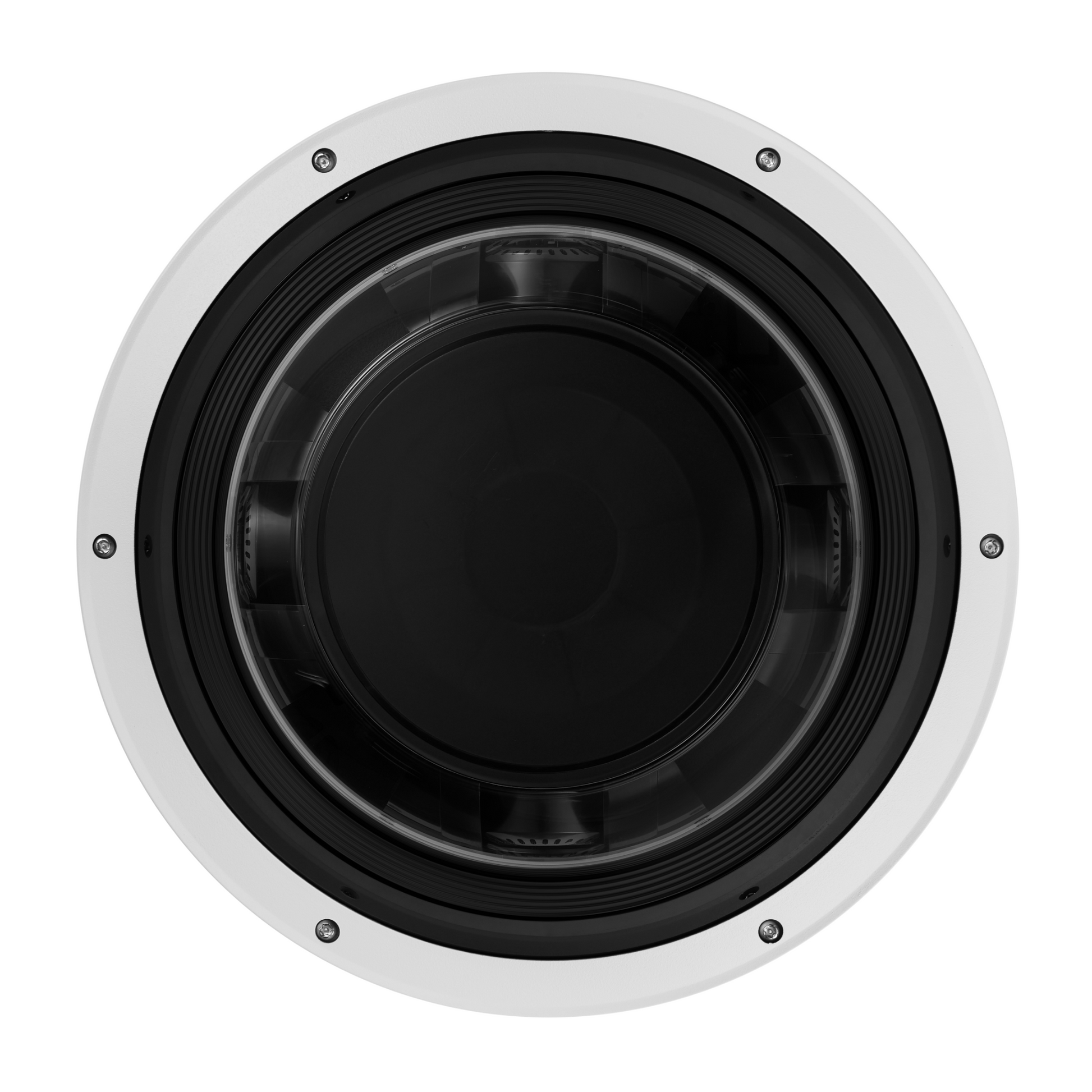

Hanwha Techwin PNM-9084RQZ 2MP x 4 PTRZ IP66 IP Dome SecurityCamera 3.2-10mmLens

Hanwha Techwin PNM-9084RQZ 2MP x 4 PTRZ IP66 IP Dome SecurityCamera 3.2-10mmLens

SKU:PNM-9084RQZ

Regular price $2,880.00 USD
Regular price Sale price $2,880.00 USD
Sale Sold out
Shipping calculated at checkout.

Hanwha Techwin PNM-9084RQZ (2MP x 4)CH IP Security PTRZ Dome Camera


PNM-9084RQZ

8MP (2MP x 4) Multi-Sensor, Multi-Directional PTRZ Camera

  • 2MP x 4ch multi-directional camera, using one IP address
  • Motorized PTRZ for easy installation and remote adjustment of entire FoV
  • 60fps@2MP(H.265, H.264)
  • 3.2~10mm(3.1x) motorized PTRZ varifocal lens
  • Integrated IR that rotates with camera head, viewable length : 30m
  • H.265, H.264, MJPEG codec, Multi streaming
  • Video analytics, WiseStreamII
  • IP66, IK10, NEMA4X
  • Easy Gangbox mounting installation

Product Specification

  • Video
    Imaging Device 1/2.8" CMOS x 4CH
    Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
    MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    Min. Illumination Color: 0.05lux(F1.6,30 IRE)
    BW: 0Lux(IR LED on)
    Lens
    Focal Length (Zoom Ratio) 3.2~10mm(3.1x) motorized varifocal
    Max. Aperture Ratio F1.6(Wide)~F2.9(Tele)
    Angular Field of View H: 109.0°(Wide)~33.2°(Tele), V: 57.4°(Wide)~18.7°(Tele), D: 132.0°(Wide)~38.0°(Tele)
    Min. Object Distance 0.5m(1.64ft)
    Focus Control Simple focus
    Lens Type DC auto iris
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range Remote adjustment (Max. 200cycles)
    0~360° / 30~80° / 0~90°
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, HLC, WDR, SSDR
    Wide Dynamic Range 120dB
    Digital Noise Reduction SSNRⅤ
    Digital Image Stabilization Support
    Defog Support
    Motion Detection 8ea, 8point polygonal zones
    Privacy Masking 32ea, polygonal zones
    - Color: Grey, Green, Red, Blue, Black, White
    - Mosaic
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
    Video Rotation Flip, Mirror
    Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection
    Alarm I/O Input 1ea / Output 1ea
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC at event triggers
    Alarm output
    Handover
    Audio In Selectable(mic in/line in)
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio Out Line out, Max.output level: 1Vrms
    Network
    Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
    Video Compression H.265/H.264: Main/Baseline/High, MJPEG
    Audio Compression G.711 u-law /G.726
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    AAC-LC: 48Kbps at 16KHz
    Smart Codec Manual(5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(20 users) / Multicast
    Multiple streaming(Up to 10 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Device Certificate(Hanwha Techwin Root CA)
    Application Programming Interface ONVIF Profile S/T
    SUNAPI(HTTP API)
    Wisenet open platform
    General
    Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    Edge Storage Micro SD/SDHC/SDXC 4slot 256GB(each CH)
    Memory 5GB RAM, 1280MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -40°C~+55°C(-40°F~+131°F) / Less than 90% RH
    Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / Less than 90% RH
    Certification IP66, IK10, NEMA4X
    Input Voltage HPoE(IEEE802.3bt, Class6, Type3, Injector included), 12VDC
    Power Consumption PoE: Max. 42 W, Typical 30 W
    12VDC: Max. 38 W, Typical 28.2 W
    Mechanical
    Color / Material White / Aluminum
    RAL Code RAL9003
    Product Dimensions / Weight Ø315x145.9 mm(12.40"x5.74") / 5.2 kg(11.5lb)
    DORI (EN62676-4 standard)
    Detect (25PPM/ 8PPF) Wide: 27.4m(89.9ft) / Tele: 128.8m(422.6ft)
    Observe (63PPM/ 19PPF) Wide: 62.5m(35.9)ft) / Tele: 51.5m(169.0ft)
    Recognize (125PPM/ 38PPF) Wide: 5.5m(18.0ft) / Tele: 25.8m(84.5ft)
    Identify (250PPM/ 76PPF) Wide: 2.7m(9.0)ft) / Tele: 12.9m(42.3ft)

  • • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
