SKU:PNM-9085RQZ1
Regular price
$3,800.00 USD
Regular price
Sale price
$3,800.00 USD
Unit price
/
per
Couldn't load pickup availability

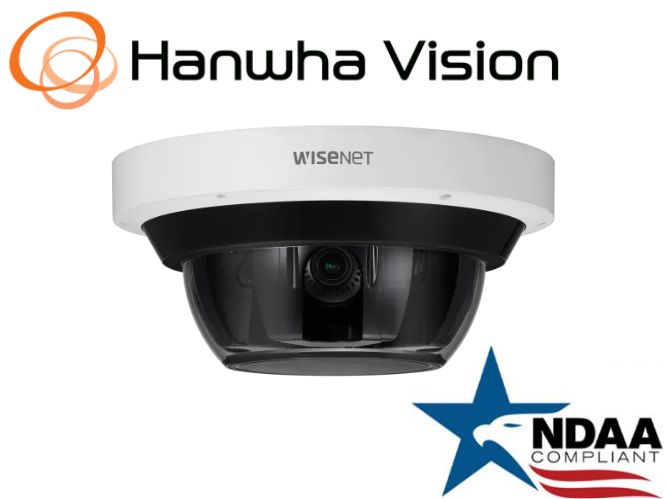

Hanwha Techwin PNM-9085RQZ1 5MP x 4CH IR PTRZ Multi-sensor Multi-directional network vandal outdoor dome Security Camera
PNM-9085RQZ1
5MP x 4CH IR PTRZ Multi-directional Camera
• Motorized PTRZ support
• Maximum 30fps@5MP(H.265, H.264)
• 4.13~9.4mm(2.3x) motorized varifocal lens
• IR viewable length : 30m(98.43ft)
• H.265, H.264, MJPEG codec, Multi streaming
• Video analytics, WiseStreamⅡ
• IP66, IK10, NEMA4X
Product Specification
| Sensor |
4 x 5 MP 1/1.8" CMOS |
| Focal Length |
4.1 to 9.4mm |
| Lens Field of View |
Horizontal: 87.58 to 37.34°
Vertical: 64.58 to 28.04°
Diagonal: 112.46 to 46.85° |
| Pan/Tilt |
Programmed
Pan: 360°
Programmed
Tilt: 45°
|
| Power Source |
DC, PoE 802.3bt (60 W) |
| Illumination |
IR LEDs up to 98.4' / 30 m |
Camera
| Sensor |
4 x 5 MP 1/1.8" CMOS |
| Focal Length |
4.1 to 9.4mm |
| Maximum Aperture |
f/1.92 to 2.67 |
| Zoom |
Optical: 2.3x |
| Lens Field of View |
Horizontal: 87.58 to 37.34°
Vertical: 64.58 to 28.04°
Diagonal: 112.46 to 46.85° |
| IR Cut Filter |
Mechanical |
| Day/Night |
Yes |
| Minimum Illumination |
Color: 0.11 Lux
B&W: 0 Lux |
| Shutter Speed |
1/12000 to 2 Seconds |
Video
| Streaming Resolution |
2560 x 1920 at 30 fps |
| Supported Video Compression |
H.264, H.265, MJPEG |
| Multi-View Streaming |
Yes, 10 Streams |
Audio
| 1- or 2-Way Audio |
Two-Way |
| Audio Formats |
AAC-LC, G.711, G.726 |
Pan & Tilt
| Pan/Tilt |
Programmed
Pan: 360°
Programmed
Tilt: 45° |
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log |
System Integration
| Application Programming Interface (API) |
ONVIF Profiles S & T, SUNAPI (HTTP API), Wisenet Open Platform |
| Analytics |
Defocus Detection, Directional Detection, Face Detection, Fog Detection, Motion Detection (8 Polygonal Zones), Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual Line, Audio Detection |
Sensors & Alarms
| Event Trigger |
Yes |
| Event Action |
Recording, Notification, Alarm |
| Data Streaming |
Yes |
Hardware
| Memory |
5 GB RAM / 1280 MB Flash |
| Media/Memory Card Slot |
Per Sensor: microSD/microSDHC/microSDXC [256 GB Maximum] |
Power
| Power Source |
DC, PoE 802.3bt (60 W) |
| Power Consumption |
DC: 42 W
PoE+: 45 W |
Environmental
| Operating Temperature |
-40 to 131°F / -40 to 55°C |
| Storage Temperature |
-58 to 140°F / -50 to 60°C |
| Operating Humidity |
0 to 90% |
| IP Rating |
IP66 |
| IK Rating |
IK10 |
General
| Inputs/Outputs |
1 x RJ45
1 x Power |
| Illumination |
IR LEDs up to 98.4' / 30 m |
| Supported Languages |
Czech
Dutch
English
French
German
Greek
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Turkish |
| Material of Construction |
Aluminum |
| Dimensions |
ø: 12.4 x H: 5.7" / ø: 315.0 x H: 145.9 mm |
| Weight |
11.5 lb / 5.2 kg |
Packaging Info
| Package Weight |
16.62 lb |
| Box Dimensions (LxWxH) |
17.6 x 16.5 x 9.4" |
