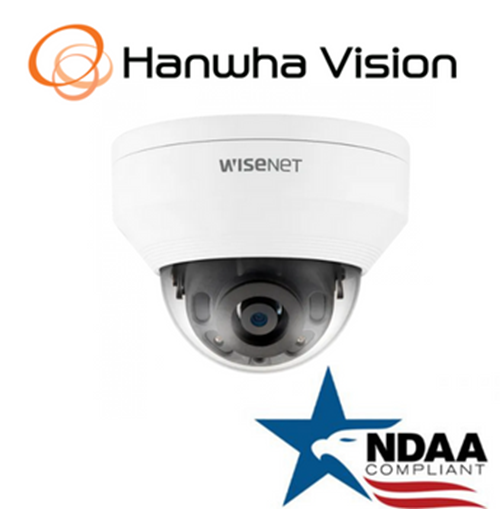

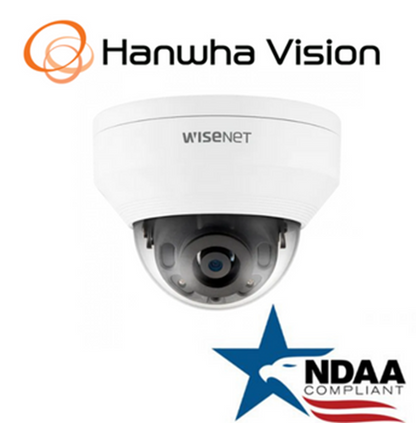

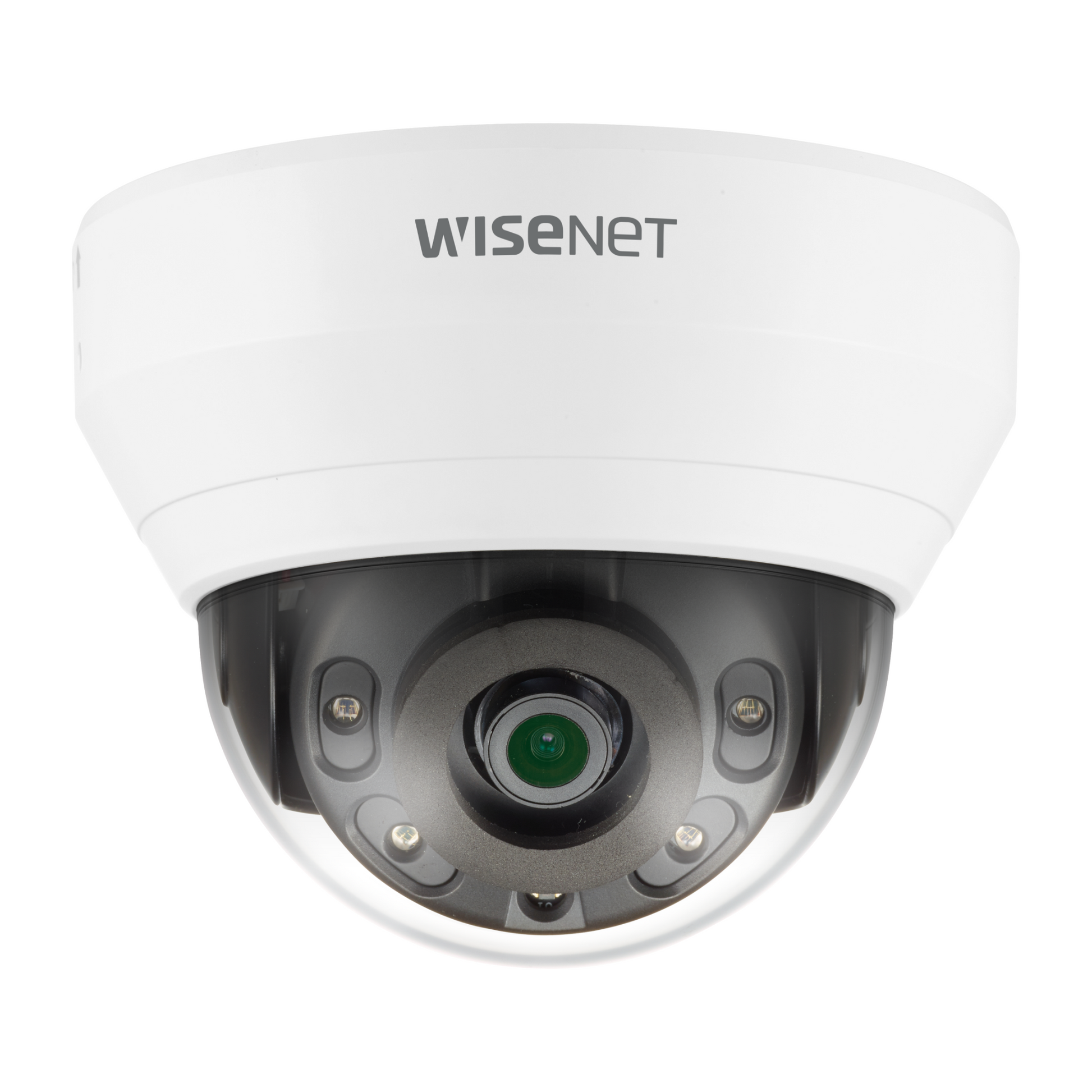

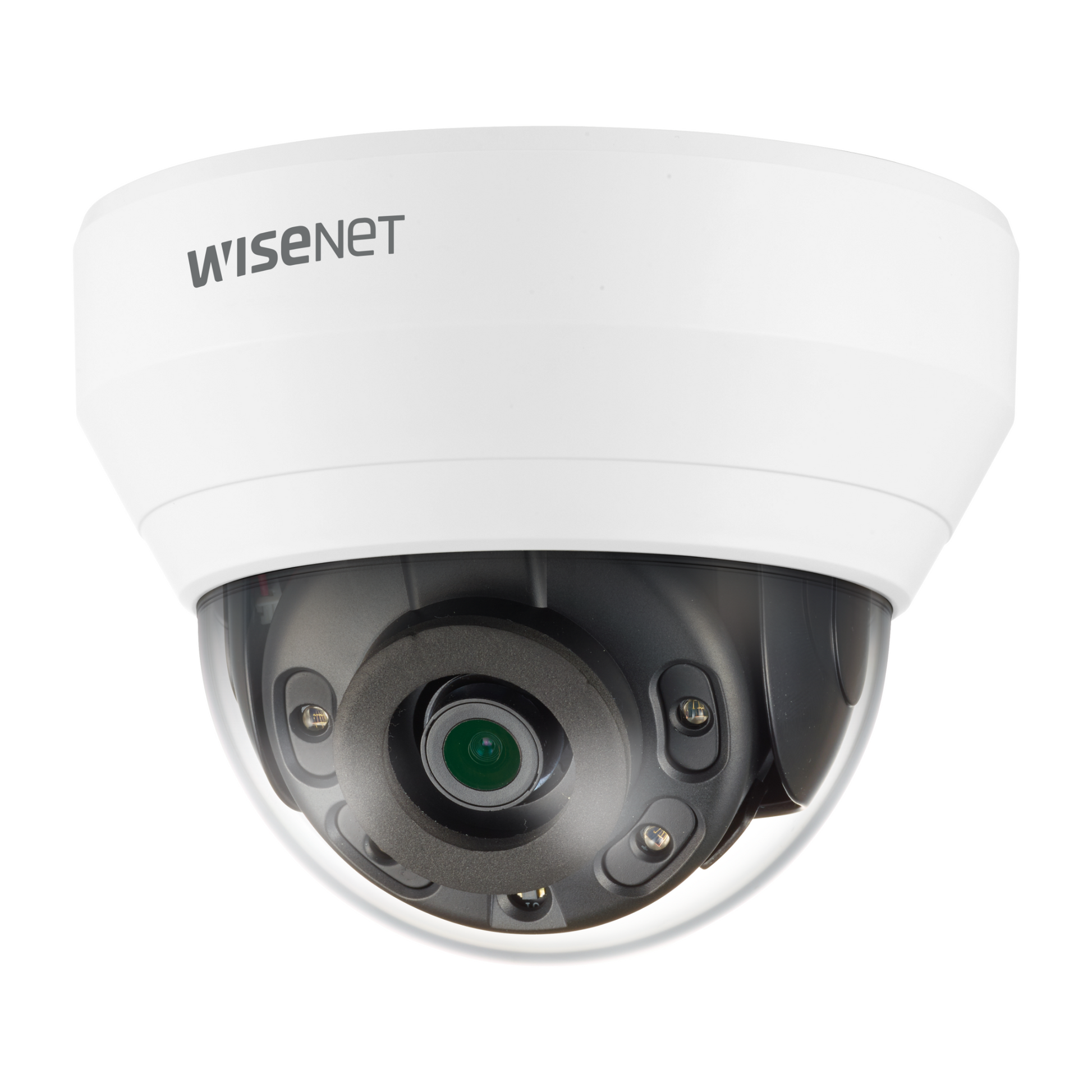

Hanwha Techwin QND-6012R 2MP PoE Indoor IP Dome Security Camera 2.8mm Fixed Lens

Hanwha Techwin QND-6012R 2MP PoE Indoor IP Dome Security Camera 2.8mm Fixed Lens

QND-6012R

$289.00 USD
$289.00 USD
Sale Sold out
Shipping calculated at checkout.

Special Order

Hanwha Techwin QND-6012R 2MP Indoor Network Dome Security Camera

QND-6012R

2MP H.265 IR Dome Camera

• Max. 2megapixel (1920 x 1080) resolution
• 0.03Lux (Color), 0Lux (B/W, IR LED on)
• 2.8mm fixed lens
• Max. 30fps@2M all resolutions (H.265/H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection
• Hallway view (90°/270°), LDC support
• Micro SD/SDHC/SDXC memory slot (Max. 128GB)
• IR viewable length 20m, PoE

Product Specification

  • Video
    Imaging Device 1/2.8" 2MP CMOS
    Resolution 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
    Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
    MJPEG: Max. 15fps/12fps(60Hz/50Hz)
    Min. Illumination Color: 0.03Lux(F2.0, 1/30sec)
    BW: 0Lux(IR LED on)
    Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
    Lens
    Focal Length (Zoom Ratio) 2.8mm fixed focal
    Max. Aperture Ratio F2.0
    Angular Field of View H: 113.7 / V: 61.5° / D: 134.5°
    Focus Control Fixed
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355°
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, WDR, SSDR
    Wide Dynamic Range 120dB
    Digital Noise Reduction SSNR
    Motion Detection 4ea, polygonal zones
    Privacy Masking 6ea, rectangular zones
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
    Video Rotation Flip, Mirror, Hallway view(90°/270°)
    Analytics Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
    Alarm I/O Input 1ea / Output 1ea
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC or NAS recording at event triggers
    Alarm output
    Audio In Built-in mic
    IR Viewable Length 20m(65.62ft)
    Network
    Ethernet RJ-45(10/100BASE-T)
    Video Compression H.265/H.264: Main/High, MJPEG
    Audio Compression G.711 u-law /G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    Smart Codec WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(6 users) / Multicast
    Multiple streaming(Up to 3 profiles)
    Environmental & Electrical
    Operating Temperature / Humidity -10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH
    Storage Temperature / Humidity -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
    Input Voltage PoE(IEEE802.3af, Class3), 12VDC
    Power Consumption PoE: Max 7.40W, typical 6.00W
    12VDC: Max 6.40W, typical 5.10W
    Mechanical
    Color / Material White / Plastic
    RAL Code RAL9003
    Product Dimensions / Weight Ø110.0x86.0mm(Ø4.33x3.39"), 255g(0.56 Ib)
    DORI (EN62676-4 standard)
    Detect (25PPM/ 8PPF) 25.1m(82.21ft)
    Observe (63PPM/ 19PPF) 10.0m(32.89ft)
    Recognize (125PPM/ 38PPF) 5.0m(16.44ft)
    Identify (250PPM/ 76PPF) 2.5m(8.22ft)
  • • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
