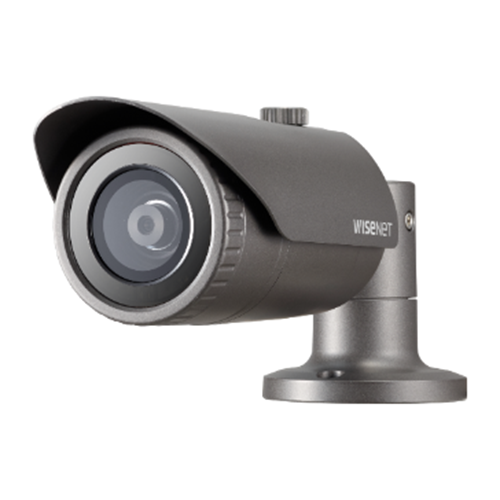

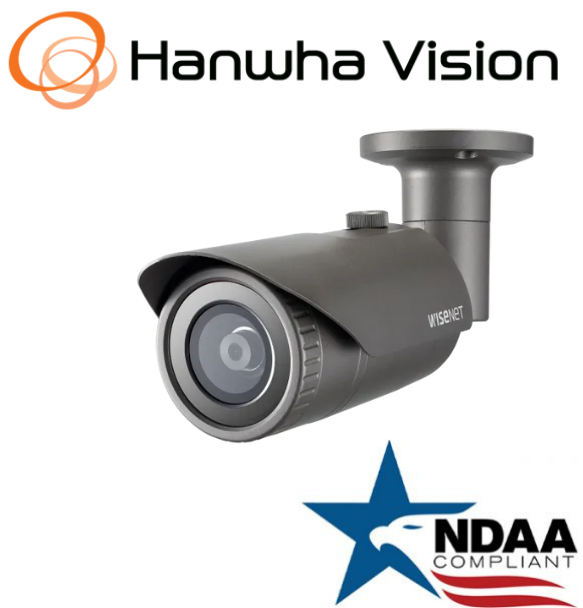

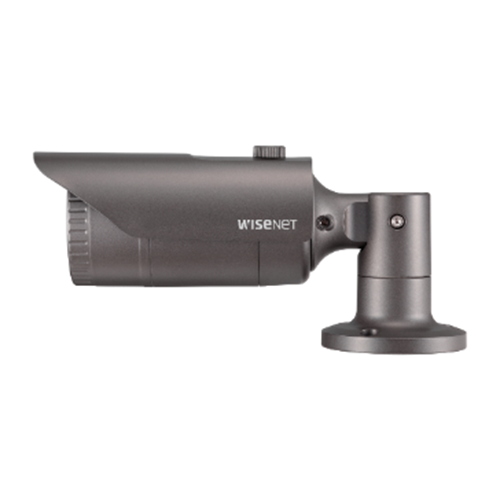

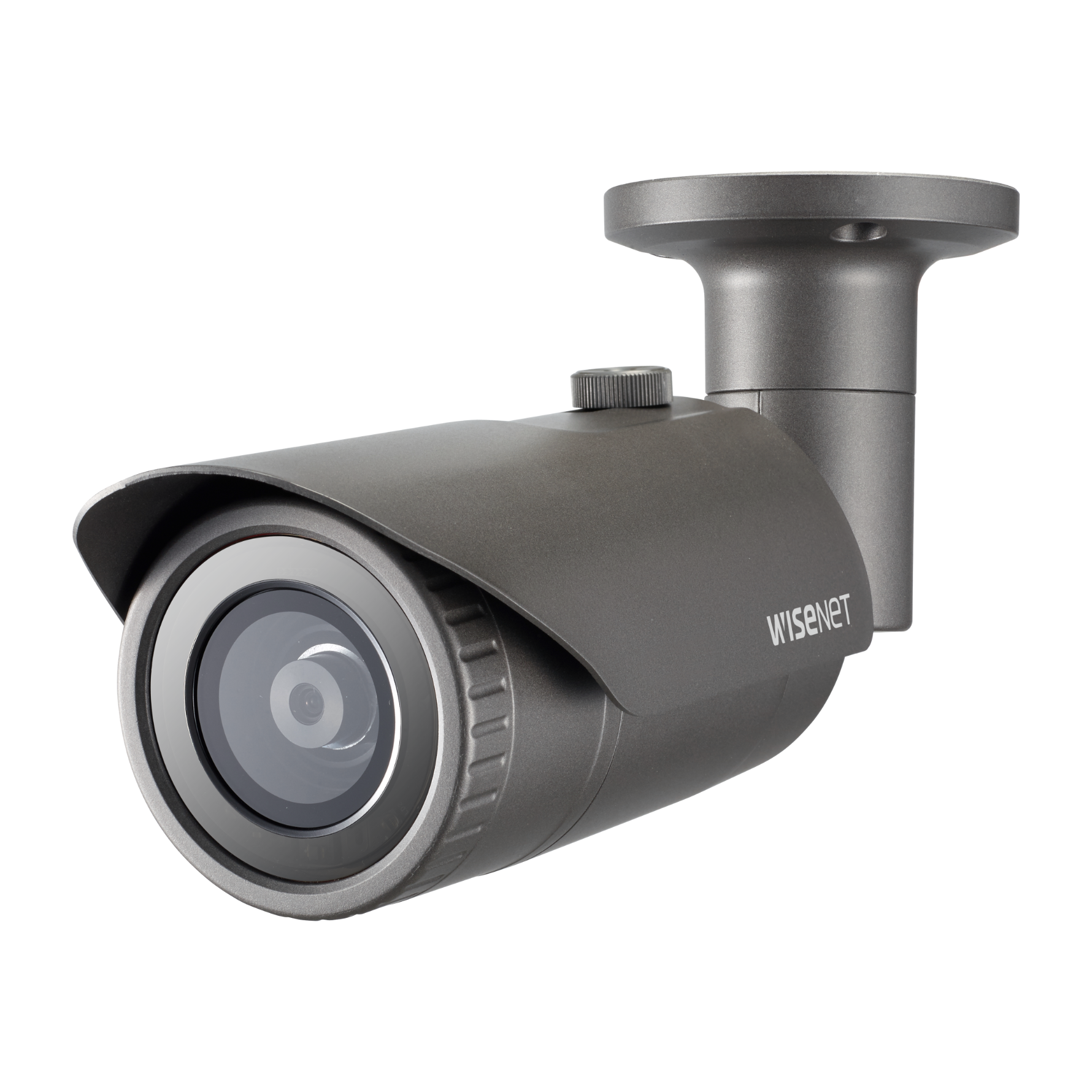

Hanwha Techwin QNO-8030R 5MP IR Bullet Network Security Camera 6mm Fixed Lens
Hanwha Techwin QNO-8030R 5MP IR Bullet Network Security Camera 6mm Fixed Lens
SKU:QNO-8030R
Regular price
$470.00 USD
Regular price
Sale price
$470.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Hanwha Techwin QNO-8030R 5MP IR Bullet Network IP Security Camera
QNO-8030R
5M H.265 NW IR Bullet Camera
• Max. 5Megapixel (2592 x 1944) resolution
• 6mm fixed lens
• 0.15Lux (Color), 0Lux (B/W, IR LED on)
• Max. 30fps@5MP (H.265 / H.264)
• H.265, H.264, MJPEG codec support, Multiple streaming
• Day & Night, WDR (120dB)
• Tampering, Motion detection, Defocus detection
• Micro SD / SDHC / SDXC memory slot (Max. 128GB)
• Hallway view, WiseStream II support
• IR Viewable length 30m
• IP66, IK10, PoE
• 6mm fixed lens
• 0.15Lux (Color), 0Lux (B/W, IR LED on)
• Max. 30fps@5MP (H.265 / H.264)
• H.265, H.264, MJPEG codec support, Multiple streaming
• Day & Night, WDR (120dB)
• Tampering, Motion detection, Defocus detection
• Micro SD / SDHC / SDXC memory slot (Max. 128GB)
• Hallway view, WiseStream II support
• IR Viewable length 30m
• IP66, IK10, PoE
Product Spec
Video
Imaging Device
1/2.8" 5MP CMOS
Resolution
5MP mode : 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600,
800x448, 720x576, 720x480, 640x480, 640x360, 320x240
4MP mode : 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600,
800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate
H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps/12fps(60Hz/50Hz)
Min. Illumination
Color: 0.15Lux(F2.0, 1/30sec)
BW: 0Lux(IR LED on)
Video Out
CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio)
6.0mm fixed focal
Max. Aperture Ratio
F2.0
Angular Field of View
H: 49.4°/ V: 37.4°/ D: 61.0°
Focus Control
Fixed
Operational
Camera Title
Displayed up to 85 characters
Day & Night
Auto(ICR)
Backlight Compensation
BLC, WDR, SSDR
Wide Dynamic Range
120dB
Digital Noise Reduction
SSNR
Motion Detection
4ea, polygonal zones
Privacy Masking
6ea, rectangular zones
Gain Control
Low / Middle / High
White Balance
ATW / AWC / Manual / Indoor / Outdoor
LDC
Support
Electronic Shutter Speed
Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation
Flip, Mirror, Hallway view(90°/270°)
Analytics
Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Alarm I/O
Input 1ea / Output 1ea
Alarm Triggers
Analytics, Network disconnect, Alarm input
Alarm Events
File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
IR Viewable Length
30m(98.42ft)
Network
Ethernet
RJ-45(10/100BASE-T)
Video Compression
H.265/H.264: Main/High, MJPEG
Smart Codec
WiseStreamⅡ
Bitrate Control
H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming
Unicast(6 users) / Multicast
Multiple streaming(Up to 3 profiles)
Protocol
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Security
HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface
ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage Language
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch
Edge Storage
Micro SD/SDHC/SDXC 1slot 128GB
Memory
512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity
-30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -20°C
Storage Temperature / Humidity
-30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
Certification
IP66, IK10
Input Voltage
PoE(IEEE802.3af, Class3)
Power Consumption
PoE: Max 7.50W, typical 6.10W
Mechanical
Color / Material
Dark grey / Aluminum
Product Dimensions / Weight
Ø70.0x246.0mm(Ø4.33x3.39"), 680g(1.50 lb)
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)
112.7m(369.74ft)
Observe (63PPM/ 19PPF)
45.1m(147.90ft)
Recognize (125PPM/ 38PPF)
22.5m(73.95ft)
Identify (250PPM/ 76PPF)
11.3m(36.97ft)
- • Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
