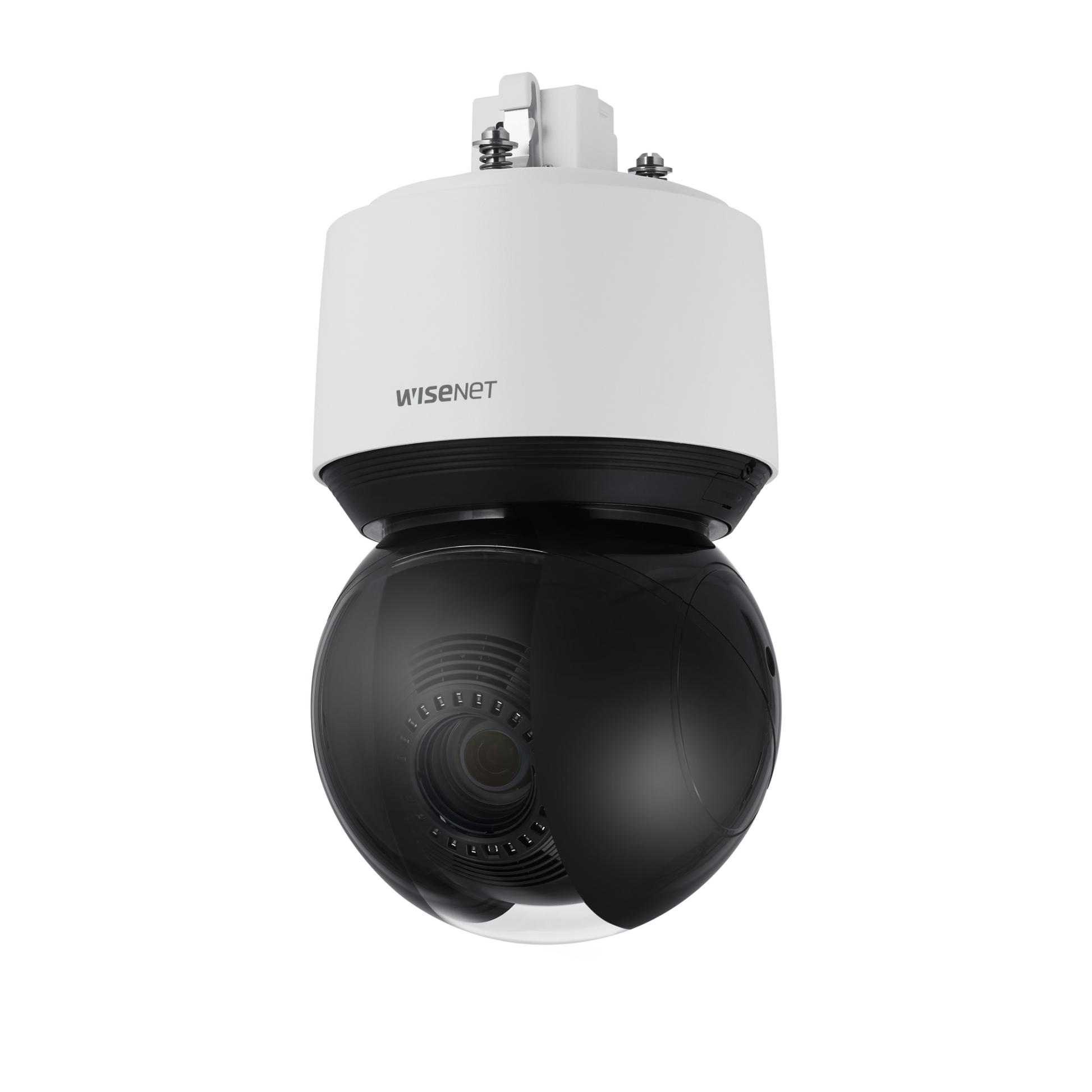

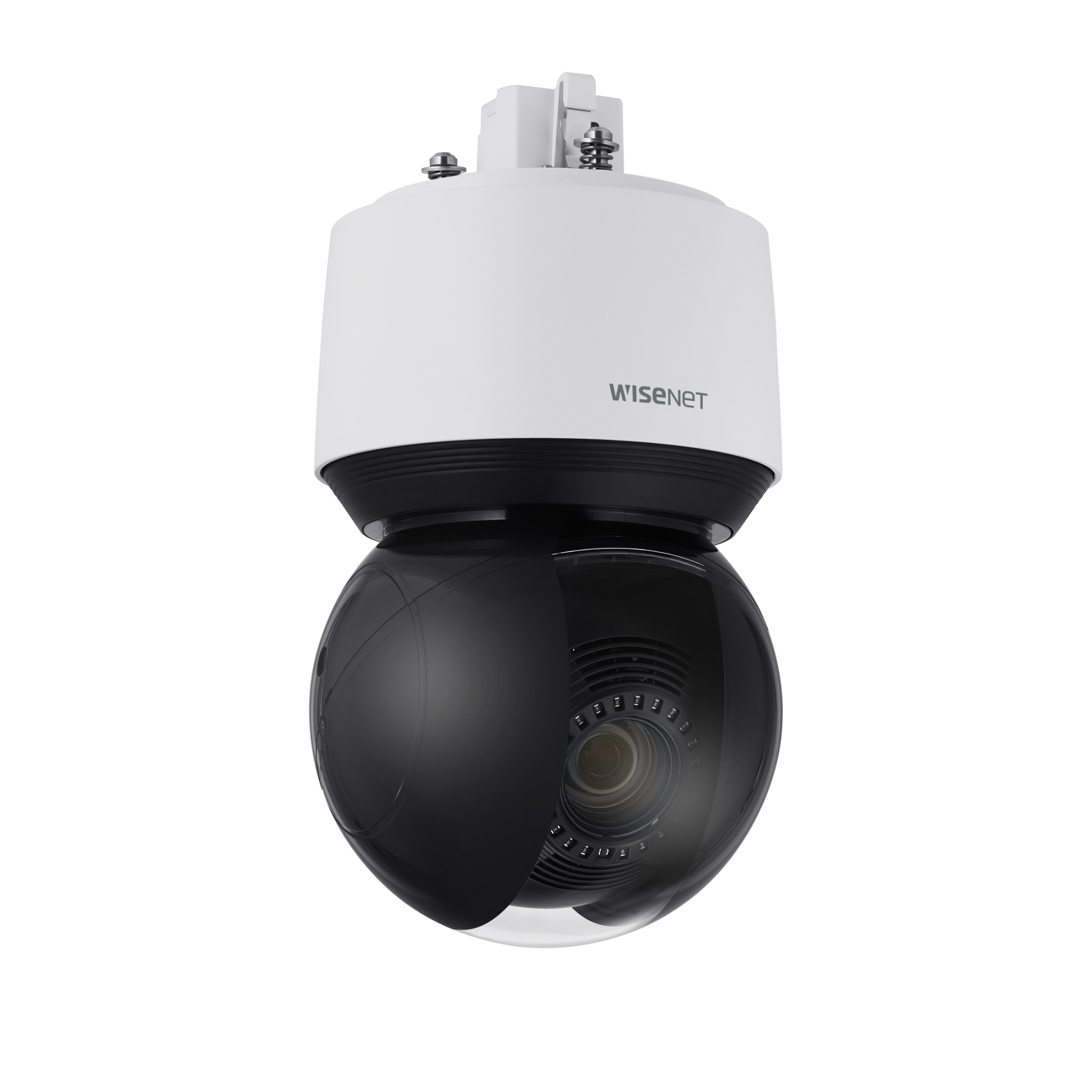

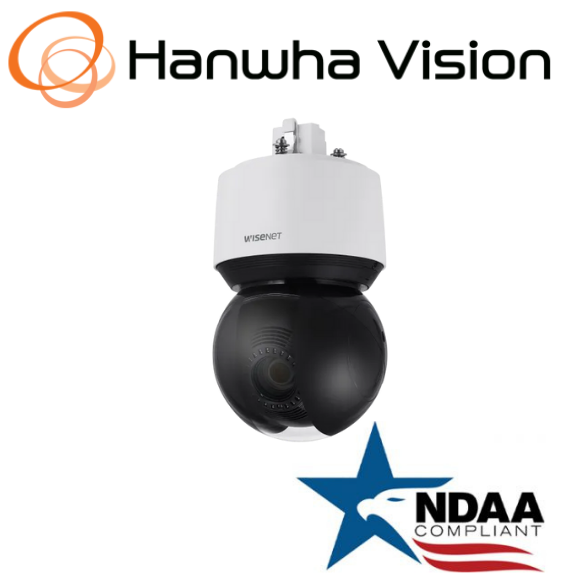

Hanwha Techwin QNP-6250R 2MP Network 25x PTZ IP SecurityCamera 4.44~111mm Lens

Hanwha Techwin QNP-6250R 2MP Network 25x PTZ IP SecurityCamera 4.44~111mm Lens

QNP-6250R

$2,000.00 USD
$2,000.00 USD
Sale Sold out
Shipping calculated at checkout.

Special Order

Hanwha Techwin QNP-6250R 2MP Network IR 25x PTZ IP Security Camera

QNP-6250R

2MP IR 25x PTZ

  • 2MP resolution
  • 4.44~111mm (25x) lens
  • Max. IR viewable length 100m (328.08ft)
  • Day & Night (ICR), WDR, DIS (Built-in gyro sensor)
  • Intelligent Analytics
  • H.264, H.265, MJPEG codec, WiseStreamII
  • Micro SD/SDHC/SDXC 1slot 256GB
  • IP66, IK10, NEMA4X

Specifications

Video
Imaging Device 1/2.8" CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
NETD None
Pixel Size None
Min. Illumination Color: 0.05Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On)
Video Out None
Video Transmission Distance None
Lens
Focal Length (Zoom Ratio) 4.44~111mm(25x) zoom (digital 32x, total 800x zoom)
Max. Aperture Ratio F1.6(Wide)~F3.9(Tele)
Angular Field of View H: 64.66˚(Wide)~2.99˚(Tele) / V: 38.08˚(Wide)~1.68˚(Tele)
Min. Object Distance Wide: 1.5m(4.92ft), Tele: 2m(6.56ft)
Focus Control Oneshot AF, Focus save
Lens Type DC auto iris
Mount Type None
Optional Lens None
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range None
Pan Range 360˚ Endless
Pan Speed Preset: 700˚/sec, Manual: 0.024˚/sec~250˚/sec
Tilt Range 110˚(-20˚~90˚)
Tilt Speed Preset: 300˚/sec, Manual: 0.024˚/sec~250˚/sec
Rotate Range None
Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy ±0.2˚ (±°20°C by temperature at preset setting)
Operational
Camera Title Displayed up to 85 characters
Direction Indicator Support
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, Quadrangle Support - Color: Grey/Green/Red/Blue/Black/White - Solid/Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
LDC None
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Digital PTZ None
Video Rotation Flip, Mirror
Analytics Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line * Audio detection(with NW I/O Box)
Business Intelligence None
Serial Interface None
Alarm I/O None
Alarm Triggers Analytics, Network disconnect * Alarm input(with NW I/O Box)
Alarm Events File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers PTZ Preset Handover * Alarm output(with NW I/O Box)
Audio In None
Audio Out None
IR Viewable Length 100m(328.08ft)
IR Illuminator (Optional) None
Water Removal None
Auto Tracking None
Coaxial Protocol None
Color Palettes None
Radiometry
Temperature detect range None
Temperature accuracy None
Temperature detection None
Additional None
Network
Ethernet Metal shielded RJ-45(10/100BASE-T)
Video Compression H.265/H.264,MJPEG
Audio Compression None
Smart Codec Manual(5ea area), WiseStreamⅡ
Video Quality Adjustment H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour,LLDP, SRTP
Security HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer None
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity Normal : -35°C~+55°(-31°F ~ +131°F) / Intermittent : -40°C~+60°C(-40°F ~ +140°F) * Start up should be done at above -30°C Less than 95% RH(Non-condensing)
Storage Temperature / Humidity -50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing)
Certification IP66, IK10, NEMA4X
Input Voltage PoE+(IEEE802.3at, Class4)
Power Consumption Typ.14.7W, Max.25.5W Camera only
Mechanical
Color / Material Body : White / Aluminum Head : Black / Polycarbontate Hard-coated dome
RAL Code RAL9003
Product dimensions / weight Ø158x293.3mm / 3.1Kg
Conduit hole None
Hanging mount(Dome) None
Skin cover(Dome) None
Weather cap(Dome) None
Power module None
Backbox None
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 64.2m(199.1ft) / Tele: 1471.3m(4827.2ft)
Observe (63PPM/ 19PPF) Wide: 24.3m(79.6ft) / Tele: 588.5m(1930.9ft)
Recognize (125PPM/ 38PPF) Wide: 12.1m(39.8ft) / Tele: 294.3m(965.4ft)
Identify (250PPM/ 76PPF) Wide: 6.1m(19.9ft) / Tele: 147.1m(482.7ft)
