Hanwha Techwin SBP-317HMWP Hanging Cap Adapter with storage Security Accessory

Hanwha Techwin SBP-317HMWP Hanging Cap Adapter with storage Security Accessory

SBP-317HMWP

$275.00 USD
$275.00 USD
Sale Sold out
Shipping calculated at checkout.

Hanwha Techwin  SBP-317HMWP Hanging Cap Adapter with storage Security Accessory

SBP-317HMWP

Hanging Mount with Storage (White)

The SBP-317HMWP Hanging Cap Adapter is an installation solution that provides extra storage space in the cap above the camera, used to mount installation equipment, such as HPoE injector, fiber converter etc.
  • Can be used with PNM-9084RQZ / PNM-9084RQZ1 / PNM-9085RQZ / PNM-9085RQZ1 cameras
  • Compatible with SBP-390WMW2 wall mount

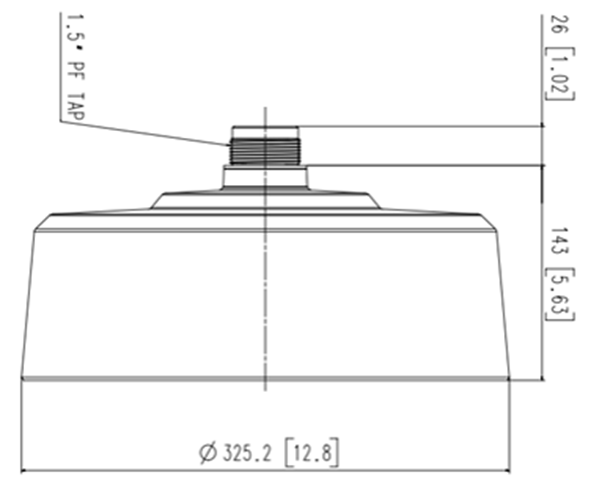

  • Dimensions: Ø325.2 x 169mm (Ø12.8” x 6.65”)
  • 9.26 lb, 4.20Kg
  • Mount screw size : NPT 1 1/2"
  • White

Specifications

Environmental
Operating Temperature / Humidity None
Storage Temperature / Humidity None
Fan/Heater None
Certification None
Electrical
Input Voltage None
Power Consumption None
Mechanical
Color White
Material Aluminum
RAL code RAL9003
Product dimensions / weight Φ325x169mm, 4.20Kg
Pan / Tilt / Rotate Range None
Tile thickness None
Mount Screw size TR20
Max. load None
Conduit hole None
Supported products PNM-9084RQZ/RQZ1, PNM-9085RQZ/RQZ1
