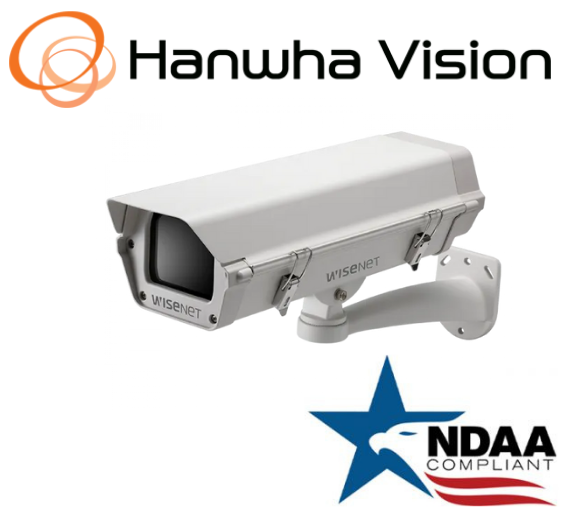

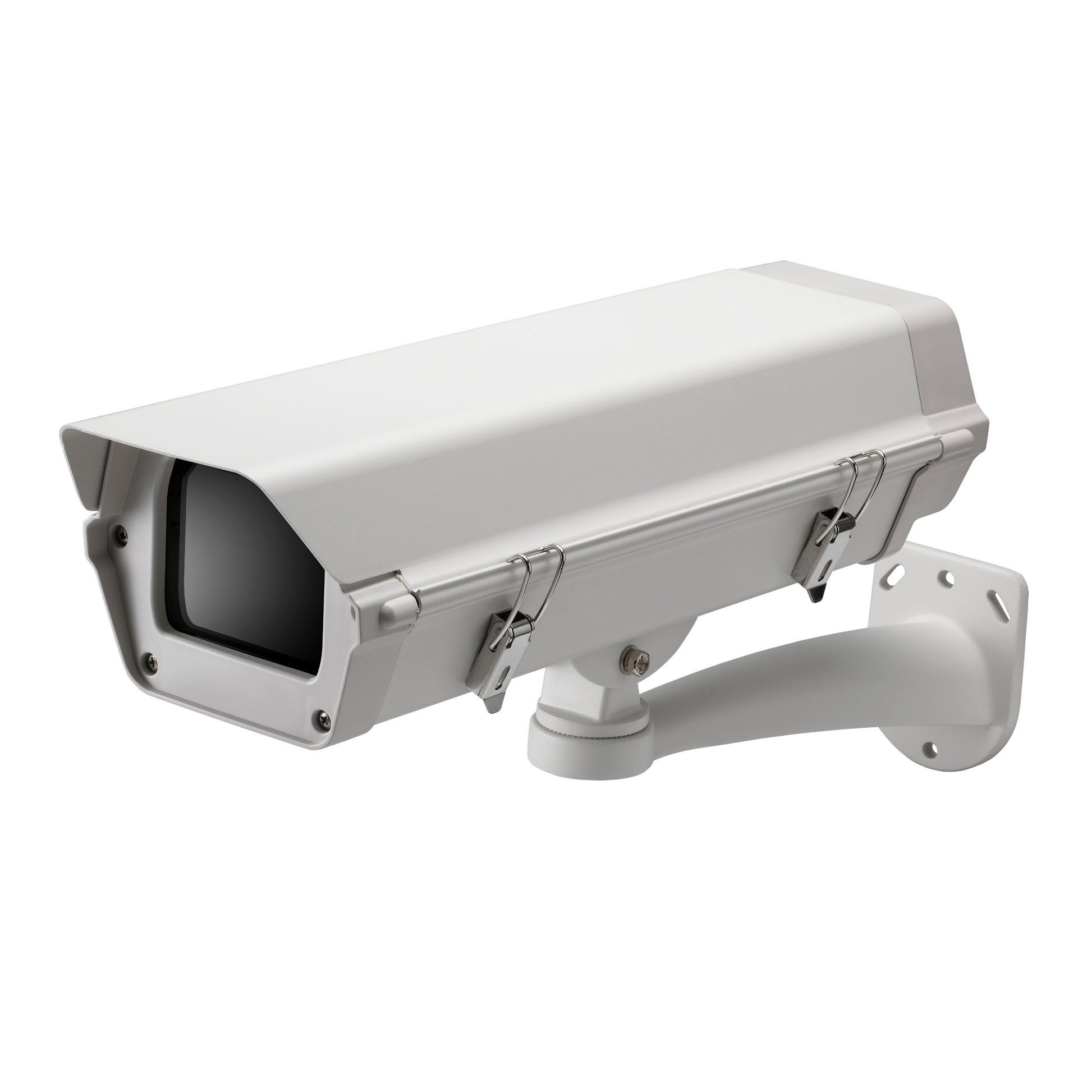

Hanwha Techwin SHB-4200H Indoor/Housing for Fixed Camera Security Accessory

SHB-4200H

Indoor Housing for Fixed Camera

• For fixed lens application
• Rugged and compact all aluminum construction
• Wall/ceiling installations
• Easy to install slide open type
• Built in bracket
• Construction: Aluminum
• Ingress Protection: IP66
• Power: 24VAC
• Color: Ivory

Product Specification

• Environmental
  Operationg Temperature / Humidity		-35°C ~ +50°C (-31°F ~ +122°F) / Less than 90% RH
  Fan/Heater		Support (Heater : 4°C ± 3°C on / Blower : 45°C ± 5°C on)
  Certification		IP66
  Electrical
  Input Voltage		24VAC
  Power Consumption		21.6W AC FAN(1.6W) : 1.6W * 1EA AC HEATER(20W) : 20W * 1EA
  Mechanical
  Color		Ivory
  Material		Aluminum
  Product dimensions / weight		Outside : 148(W)x107(H)x421(D)mm Inside : 84(W)x78(H)x260(D)mm
  Pan / Tilt / Rotate Range		0°~360° / 0°~90°
  Supported products		Box cameras (Network/Analog)

•
  • Design and specifications are subject to change without notice.
  • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
