SKU:SHB-4301HP
Regular price
$450.00 USD
Regular price
Sale price
$450.00 USD
Unit price
/
per
Couldn't load pickup availability

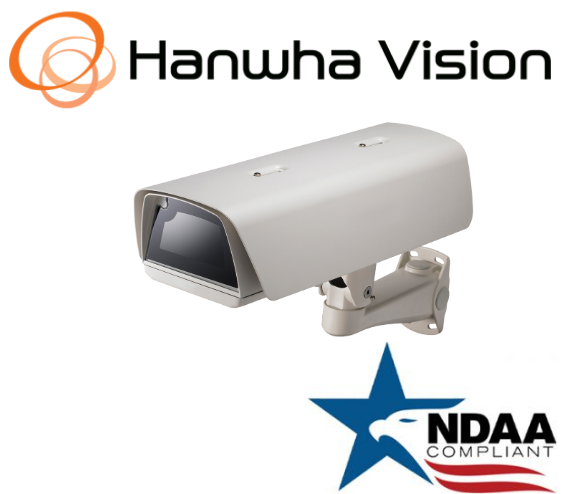

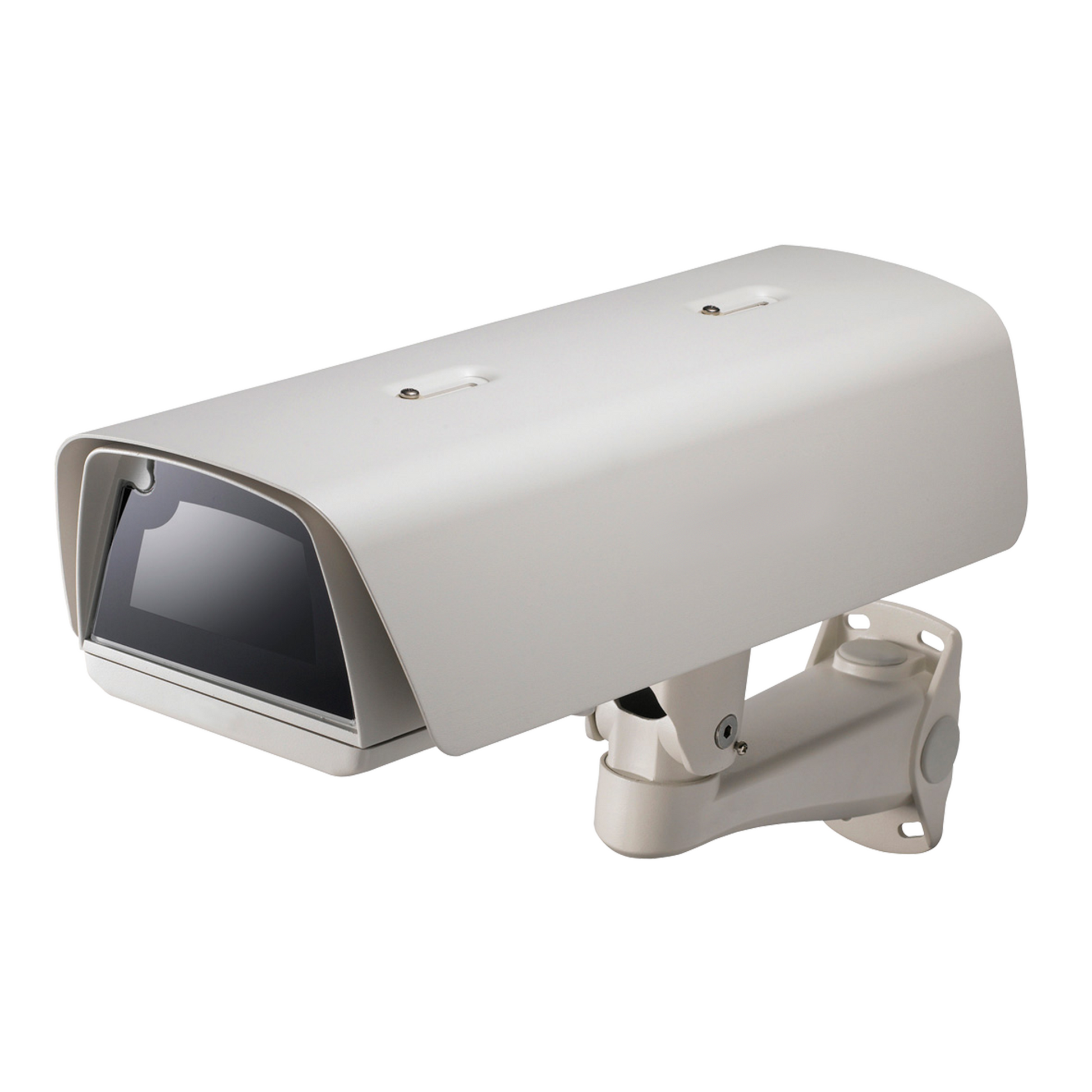

Hanwha Techwin SHB-4301HP Box Camera Fixed Housing Security AccessorySHB-4301HP
SHB-4301HP
Box Camera Housing
Indoor/Outdoor PoE+ housing and wall mount with Power over Ethernet capability.
- Material: Aluminium Die-Casting ADC 12
- Use Condition: -35°C ~ +50°C
- Weight: 2.5kg (without Bracket)
- Color: Ivory
- PoE function, Dustproof, Waterproof, IP66
- Supports standard box cameras and XNZ-6320
- Ingress Protection: IP66
- Heater, blower, & defroster
- Power: PoE+(IEEE802.3at) / 12VDC
Product Specification
| Operating Temperature / Humidity |
-35˚C ~ +50˚C (-31˚F ~ +122˚F) / Less than 90% RH |
| Storage Temperature / Humidity |
None |
| Fan/Heater |
Support (Heater : 5˚C ± 5˚C on, 15˚C ± 5˚C off / Blower : 35˚C ± 2˚C on, 30˚C ± 2˚C off) |
| Certification |
IP66 |
| Input Voltage |
PoE(IEEE802.3at, Class4), 12VDC |
| Power Consumption |
16W FAN(2W) : 2W * 1EA HEATER(9W) : 9W * 1EA |
| Color |
Ivory |
| Material |
Aluminum |
| RAL code |
None |
| Product dimensions / weight |
Outside : 184(W)x127(H)x460(D)mm Inside : 99(W)x80(H)x250(D)mm |
| Pan / Tilt / Rotate Range |
0˚~360˚ / 0˚~90˚ |
| Tile thickness |
None |
| Mount Screw size |
None |
| Max. load |
None |
| Conduit hole |
None |
| Supported products |
Box cameras (Network) ※ For further compatible models, please visit our website or use Toolbox |
