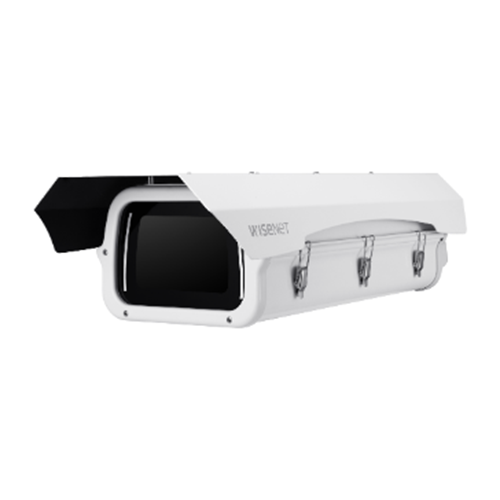

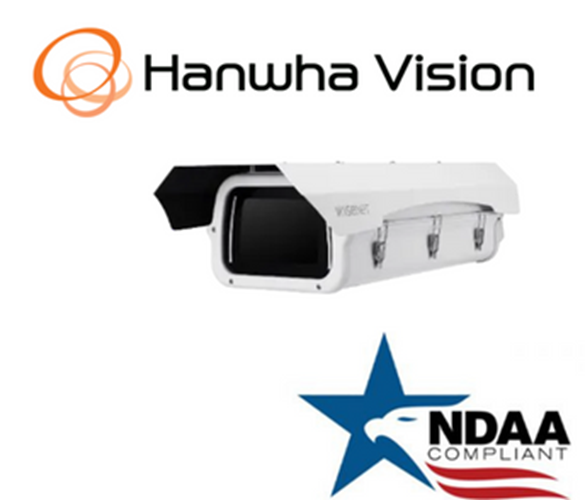

Hanwha Techwin SHB-9000H Box Camera (TNB-9000) Housing Security Accessory

Hanwha Techwin SHB-9000H Box Camera (TNB-9000) Housing Security Accessory

SHB-9000H

$2,925.00 USD
$2,925.00 USD
Sale Sold out
Shipping calculated at checkout.

Hanwha Techwin SHB-9000H  Box Camera (TNB-9000) Housing Security Accessory

SHB-9000H

Box Camera (TNB-9000) Housing

  • Compatible camera: TNB-9000
  • Materials:
    • Body/Sun shield : Aluminum
    • Front and Rear cap : ABS
  • Operating Temperature: -50⁰C ~ +60⁰C(-58⁰F ~ +140⁰F) / 10-100% RH (condensing)
  • Weight: 6.2kg(13.67 lb)
  • Color: White IP66

Specifications

Environmental
Operationg Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / 10-100% RH (condensing)
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Fan/Heater Support (Thermostat controlled)
Certification IP66, UL 62368-1, FCC, NDAA
Electrical
Input Voltage 100-240VAC
Power Consumption AC Fan(10W): 5W * 2EA AC Heater(50W): 3.7W[Max.25W] * 2EA
Mechanical
Color White
RAL Code None
Material Body/Sun shield : Aluminum Front&Rear cap : ABS
Product dimensions / weight 300(W)x184(H)x700(D)mm(11.81x7.24x27.56"), 6.2kg(13.67 lb)
Tile thickness None
Mount Screw size None
Max. load None
Conduit hole None
Supported products Camera : TNB-9000 Lens : Canon 24mm f1.4L, Auto-Iris, Canon 35mm f1.4L, Auto-Iris, Canon 50mm f1.4, Auto-Iris, Canon 85mm f1.2L, Auto-Iris, Canon 100mm f2.0, Auto-Iris, Canon 200mm f2.8L, Auto-Iris
