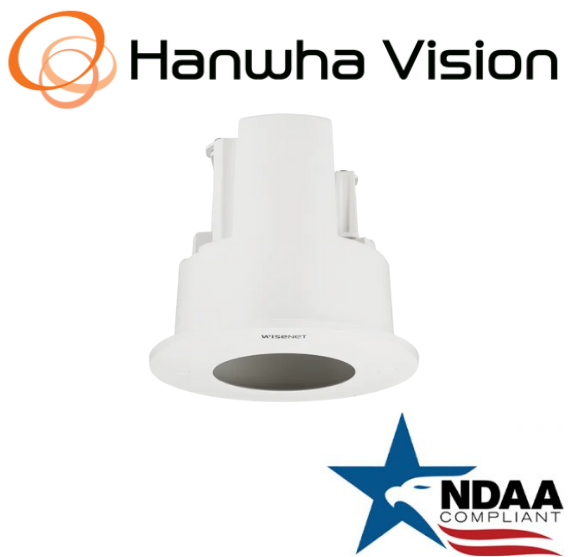

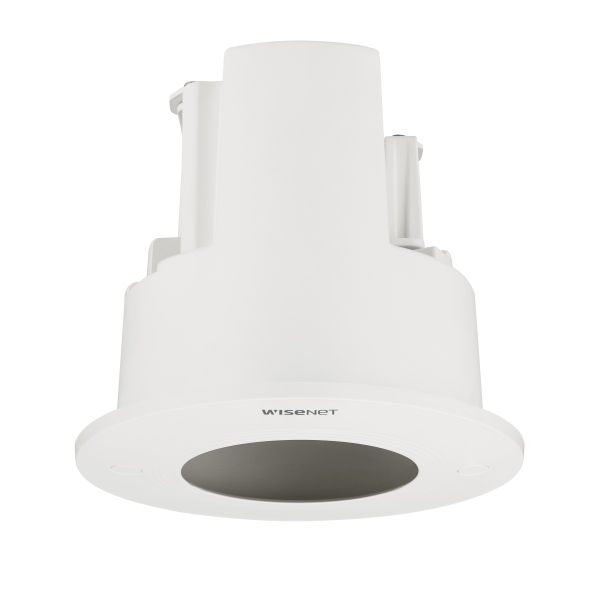

Hanwha Techwin SHD-1128FPW indoor ceiling tile flush mount Security Accessory

SHD-1128FPW

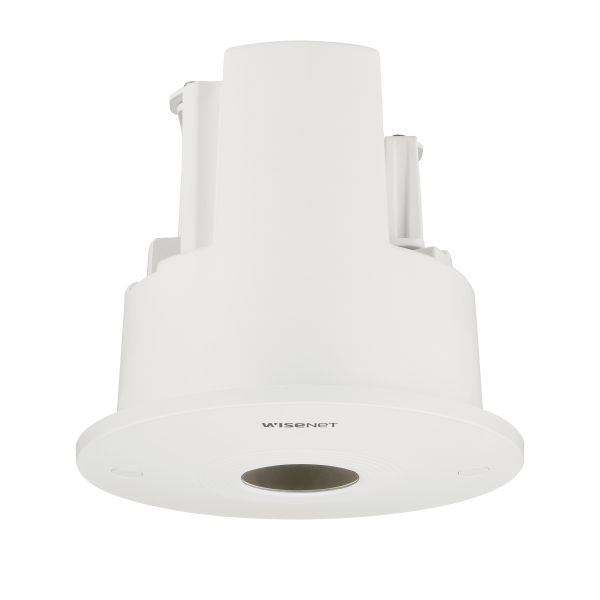

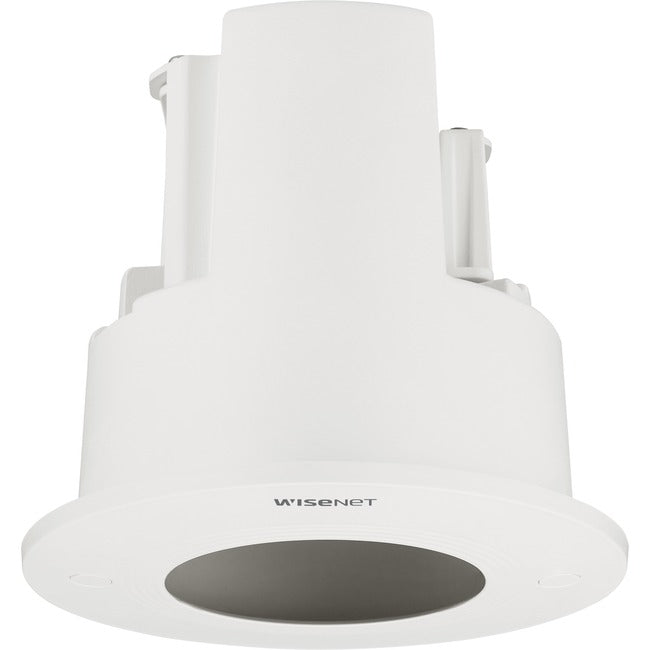

In-ceiling flush mount

This white, low profile plenum-rated aluminum flush mounting solution can be used with the following compatible models:

• HCD-6010 / HCD-6020R \n
• HCD-7010R / HCD-7010RA / HCD-7020R / HCD-7020RA / HCD-7030R / HCD-7030RA \n
• LND-6010R / LND-6011R / LND-6012R / LND-6020R / LND-6021R / LND-6022R / LND-6030R / LND-6031R / LND-6032R \n
• QND-6010R / QND-6011 / QND-6012R / QND-6020R / QND-6021 / QND-6022R / QND-6030R / QND-6032R \n
• QND-7010R / QND-7020R / QND-7030R \n
• QND-8010R / QND-8011 / QND-8020R / QND-8021 / QND-8030R \n
• QNF-8010 \n
• QNF-9010 \n
• XND-6010 / XND-6020R \n
• XND-8020R / XND-8030R / XND-8040R \n
• XNV-6011 / XNV-6011W \n

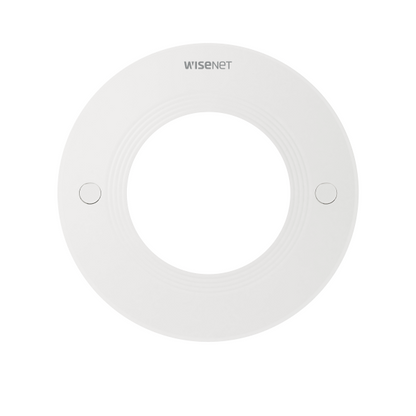

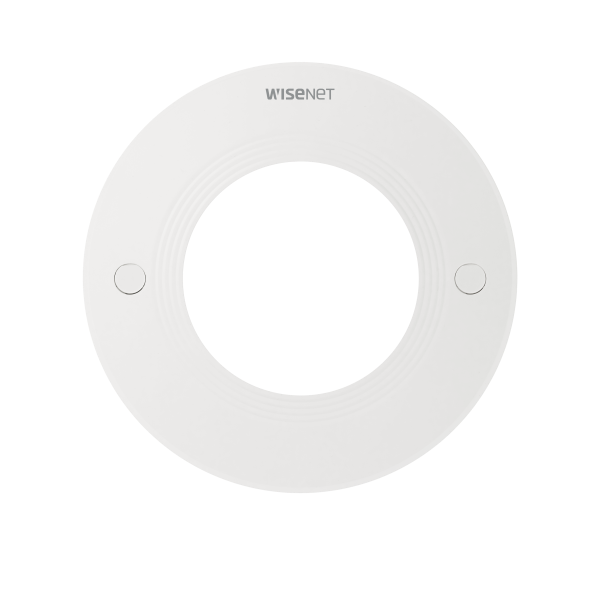

\n \nThis universal mounting solution includes 3 trim rings to fit the camera models listed above. A QR code provides easy installation support.

SHD-1128FPW Specifications

Environmental
Operationg Temperature / Humidity	None
Storage Temperature / Humidity	None
Fan/Heater	None
Certification	None
Electrical
Input Voltage	None
Power Consumption	None
Mechanical
Color	White
Material	Enclosure : Aluminum Top cover : Polycarbonate(PC)
RAL code	RAL9003
Product dimensions / weight	Ø160x145.5mm (Ø6.30x5.73") / 692g(1.53 Ib)
Pan / Tilt / Rotate Range	None
Tile thickness	5~70mm
Mount Screw size	None
Max. load	None
Conduit hole	19.1mm(3/4") (M25) 12.7mm(1/2") (M20)
Supported products	QND-8021/8011/6021/6011 XND-8040R/8030R/8020R/6020R/6010
