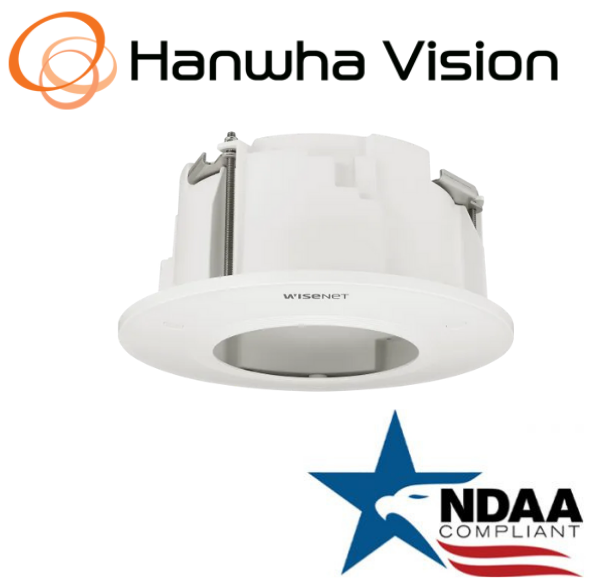

Hanwha Techwin SHD-1408FPW In-ceiling Plenum flush mount Security Accessory

Hanwha Techwin SHD-1408FPW In-ceiling Plenum flush mount Security Accessory

SHD-1408FPW

$125.00 USD
$125.00 USD
Sale Sold out
Shipping calculated at checkout.

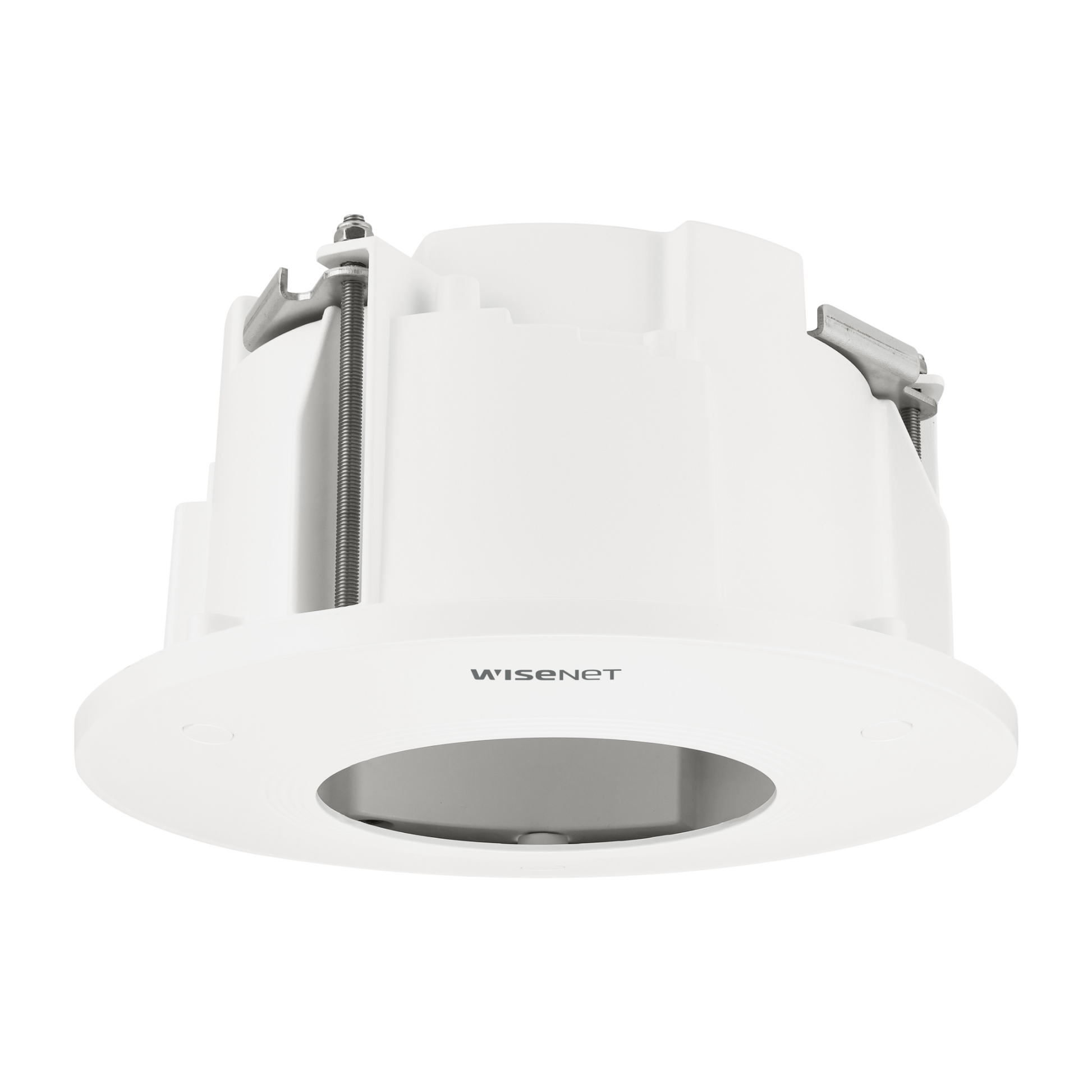

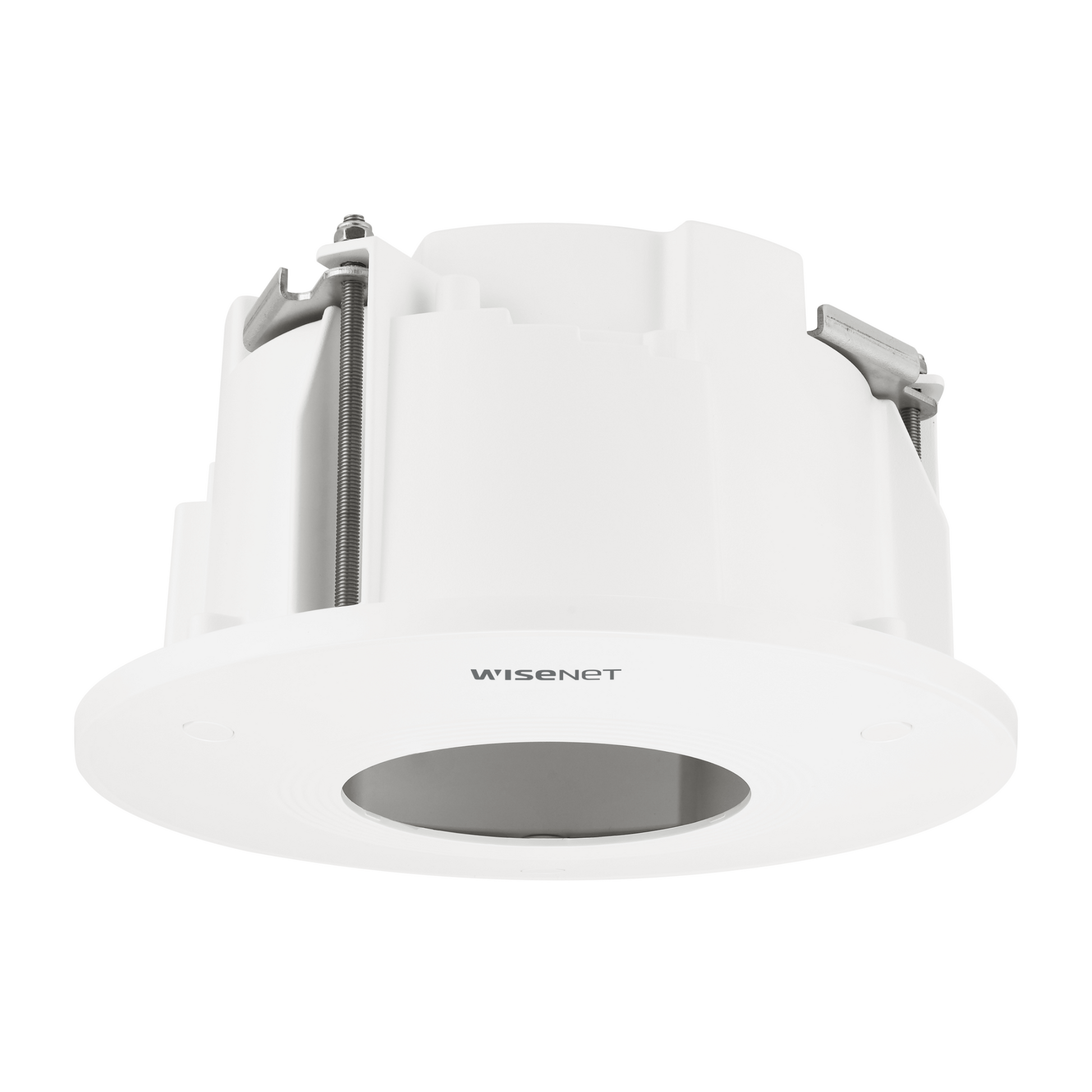

    Hanwha Techwin SHD-1408FPW In-ceiling Housing tile flush mount Security Accessory

    SHD-1408FPW

    In-ceiling Housing

    • Enclosure: Aluminum / Top cover : Polycarbonate (PC)
    • Dimensions : Ø209mm x H115mm (8.23" x 4.53")
    • Weight : 1,020g (2.25 lb)
    • Color : White
    • Universal Housing (Supports various camera models with one housing)
    • QR installation guide suppo

    Installation code combination

    A-A-1 B-B-1 B-C-2 B-D-3 B-E-1 C-C-2 D-D-3
    PND-9080R QNV-6072R QND-8080R XNV-6010 HCV-6070R HCD-6080R HCV-7010R HCV-7010RA
    XND-6080 QNV-6082R XNV-6020R HCV-6080R HCD-7070R HCV-7020R HCV-7020RA
    XND-6080R QNV-8080R XNV-8020R HCV-6080R HCD-7070RA HCV-7030R HCV-7030RA
    XND-6080RV QNV-6070R XNV-8030R HCV-6080RSD HCD-7080R LNV-6011R LNV-6021R
    XND-6080V QNV-6071R XNV-8040R HCV-7070R LND-6071R LNV-6031R QNV-6010R
    XND-8080R QNV-7080R HCV-7070RA QND-6070R QNV-6020R QNV-6030R
    XND-8080RV QNV-7081R HCV-7080R QND-6071R QNV-7010R QNV-7020R
    XND-L6080R LNV-6071R HCV-7080RVP QND-7080R QNV-7030R LNV-6010R
    XND-L6080RV LNV-6070R QND-7081R LNV-6012R LNV-6020R
    XND-L6080V LNV-6072R LND-6070R LNV-6022R LNV-6030R
    XNP-6040H LND-6072R LNV-6032R QNV-6012R
    QND-6072R QNV-6022R QNV-6032R
    QND-6082R QNV-8010R QNV-8020R
    QNV-8030R

    Product Specification

    • Mechanical
      Color White
      Material Enclosure : Aluminum

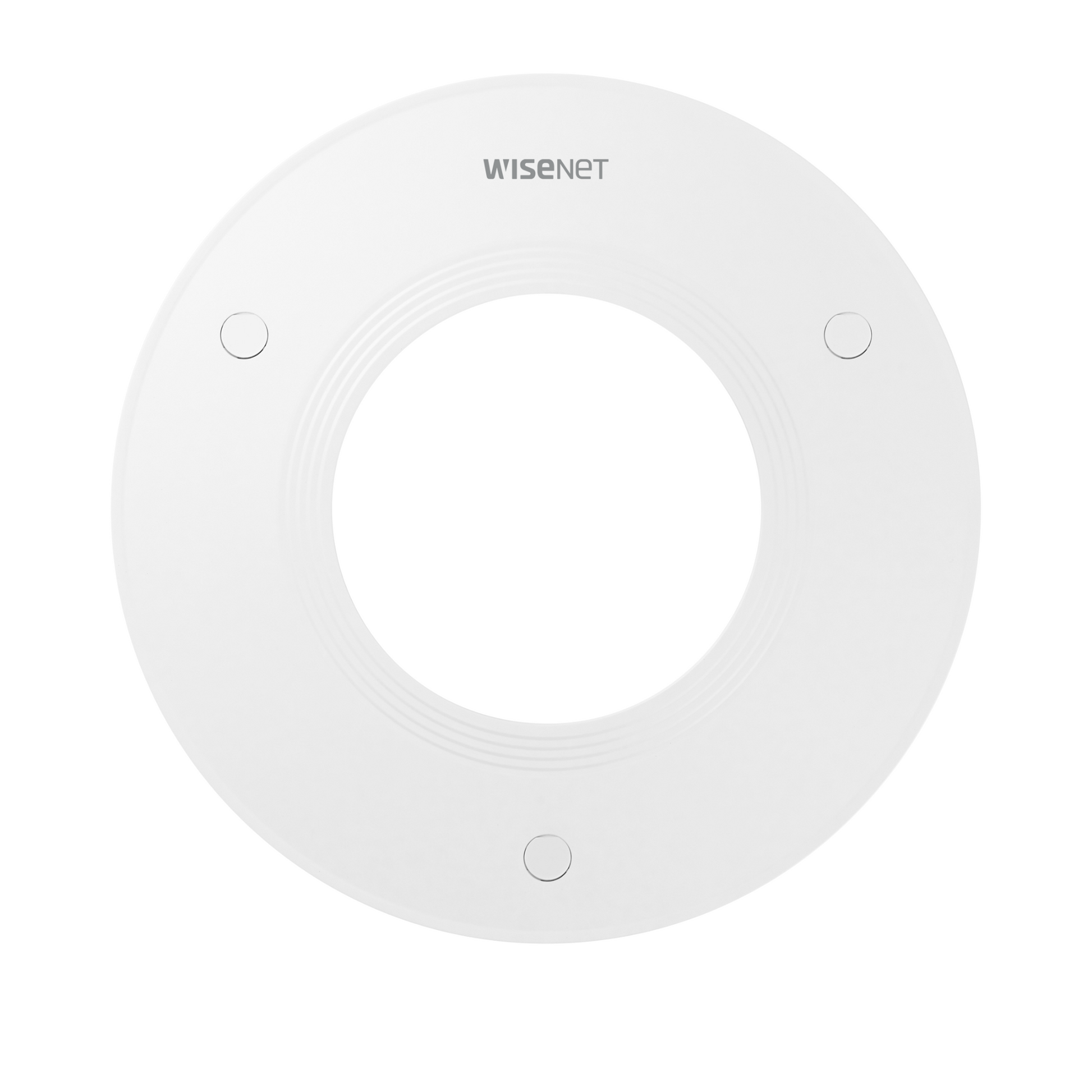

      Top cover : Polycarbonate(PC)
      RAL code RAL9003
      Product dimensions / weight Ø209 x 115mm (Ø8.23x4.53") / 1020g (2.25lb)
      Tile thickness 5~70mm
      Conduit hole 19.1mm(3/4") (M25)
      12.7mm(1/2") (M20)
      Supported products QNV-8030R/8020R/8010R/7030R/7020R/7010R/6032R/6022R/6012R
      LNV-6030R/6020R/6010R

    • • Design and specifications are subject to change without notice.
      • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
