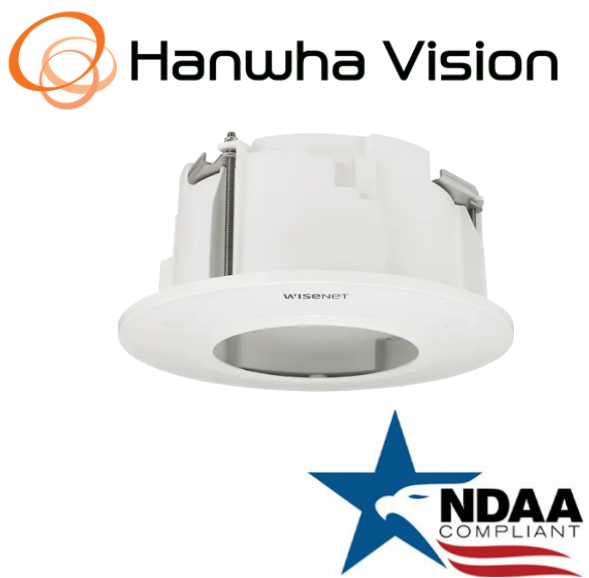

Hanwha Techwin SHD-1600FPW In-ceiling plenum Housing flush Mount Security AccessorySHD-1600FPW
SHD-1600FPW

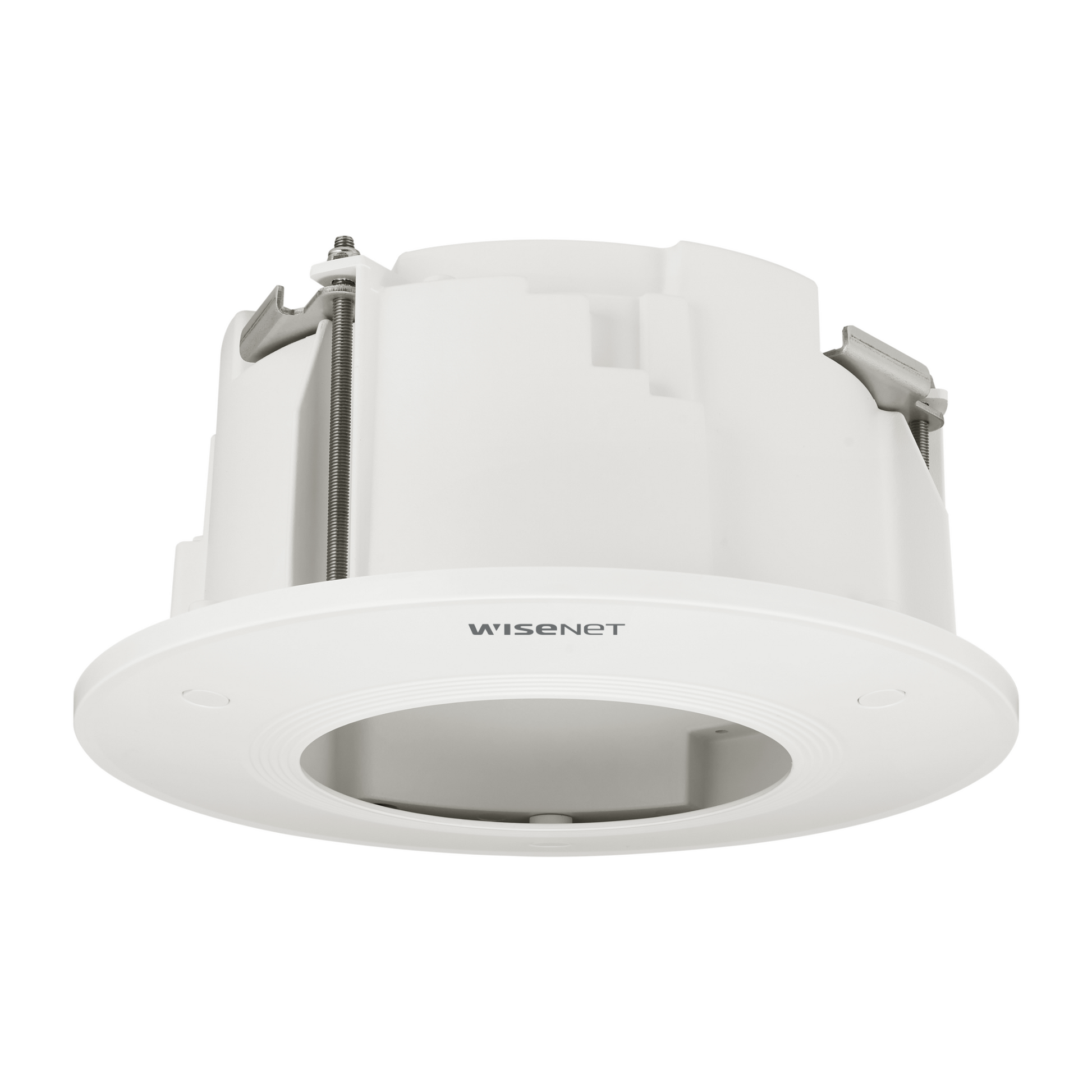

In-ceiling Housing
• Body: Aluminum / Rim : PC
• Dimensions : Ø234 x H123.24mm (9.21" x 4.85")
• Weight : 1,200g (2.65 lb)
• Color : White
• Universal Housing (Supports various camera models with one housing)
The SHD-1600FPW is a white in-ceiling, flush mount housing for a variety of camera model. The housing allows the camera to blend into the installation environment. Compatible with:
Installation code combination
| A-A-2 |
B-B-1 |
C-C-2 |
D-D-1 |
E-E-1 |
| XND-6085 |
PNV-9080R |
XNV-6120 |
XNF-9010RV |
XNF-8010R |
| XND-6085V |
XNV-6080 |
XNV-6120R |
|
XNF-8010RV |
| XNV-6085 |
XNV-6080R |
|
|
|
|
XNV-8080R |
|
|
|
|
XNV-L6080 |
|
|
|
|
XNV-L6080R |
|
|
|
Product Specification
| Mechanical |
|---|
| Color |
White |
| Material |
Enclosure : Aluminum
Rim : Polycarbonate(PC) |
| RAL code |
RAL9003 |
| Product dimensions / weight |
Ø234 X 123.24(H), 1200g |
| Tile thickness |
5~70mm |
| Conduit hole |
19.1mm(3/4") (M25)
12.7mm(1/2") (M20) |
| Supported products |
PNV-9080R
XNF-9010RV/8010R/8010RV
XND-6085/6085V
XNV-6085/6120/6120R/8080R/6080R/6080
XNV-L6080R/L6
|
-
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
