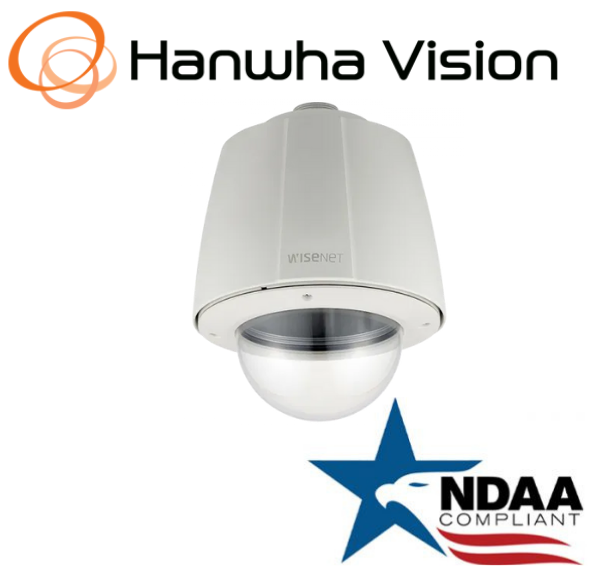

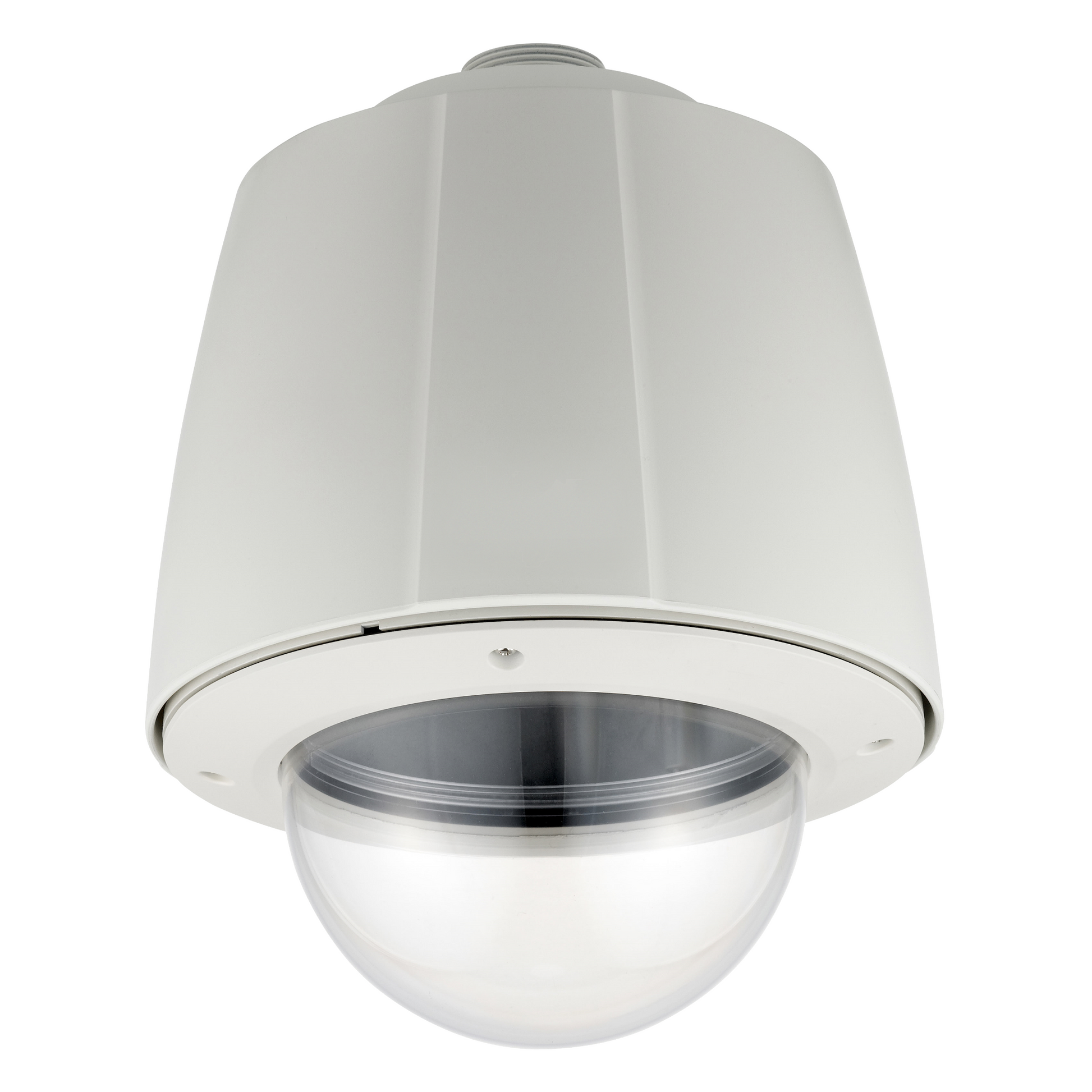

H Techwin SHP-3701H PTZ Camera Outdoor Housing IP66 Security Accessory

SHP-3701H

PTZ Camera Outdoor Housing

• Built-in Fan / Heater
• IP66 /IK10 Grade
•1 ½", PF Tab

This IK10 vandal and IP66 ingress protected camera housing solution with an extended operating temperature range of -58°F to +122°F is compatible with the camera models below:

SCP-3430		SCP-3370
SCP-3250		SCP-2430
SCP-2370		SCP-2330
SCP-2270		SCP-2250
SCP-3371		SCP-2373
SCP-2371		SCP-2273
SCP-2271		SNP-5200
SNP-3371		SNP-3302
SNP-3302		SNP-6321
SNP-6320		SNP-6201
SNP-6200		SNP-5430
SNP-5321		SNP-5320
SNP-5300		SNP-L6233
SNP-L5233

Product Specification

Power	24 VAC (50 Hz)
Power Consumption	5 W (fan) / 50 W (heater on)
Operating Temperature	-58 to 122°F (-50 to 50°C)
Operating Humidity	0 to 90%
Fan	Operating always
Heater	Operating Temperature: 39.2°F (4°C) or below
IP Rating	IP66
Compatible With	Camera models SCP-3370 / 2370 / 2330 / 2270, SCP-2250, SCP-3371 / 2371 / 2271, SNP-6200 / 5200, SNP-5300, and SNP-3371 / 3302
Dimensions	9.84 x 12.56" (24.99 x 31.90 cm)
Weight	6.39 lb (2.90 kg)

Packaging Info

Package Weight	9.5 lb
Box Dimensions (LxWxH)	15.8 x 11.7 x 11.6"
