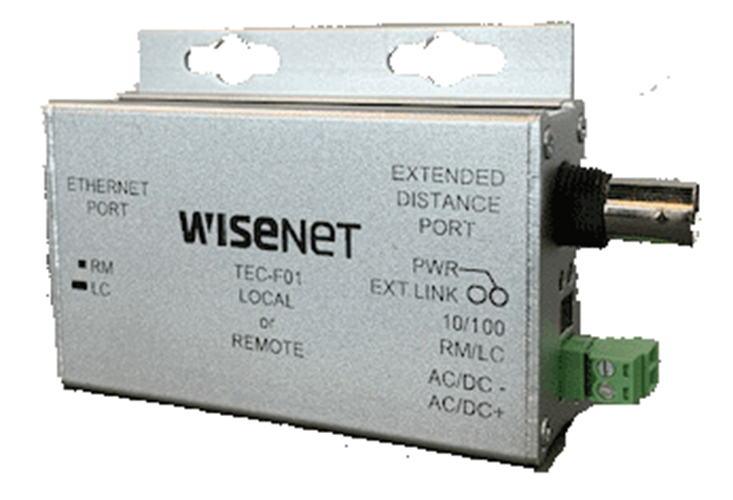

Hanwha Techwin TEC-F01 Single-Channel Ethernet over COAX with Pass-through PoE

TEC-F01

1 Channel Ethernet over Coax Extender With Pass-Through PoE

• Transmits individual Ethernet data channels with Pass-through PoE over standard Coaxial cable
• Extends Ethernet up to 5,000 feet (1,524 m) at 10 Mbps or 2,000 feet (610m) at 100 Mbps over Coaxial cable
• Extended temperature operation from -40ºC to +75ºC
• Extended Pass-through PoE meets the IEEE 802.3af standard for Power over Ethernet
• Full 10/100 Mbps Bandwidth
• Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
• Perfect to retrofit existing analog CCTV installations to Ethernet-based systems
• Designed for CCTV systems for casinos, airports, school campuses, & more...
