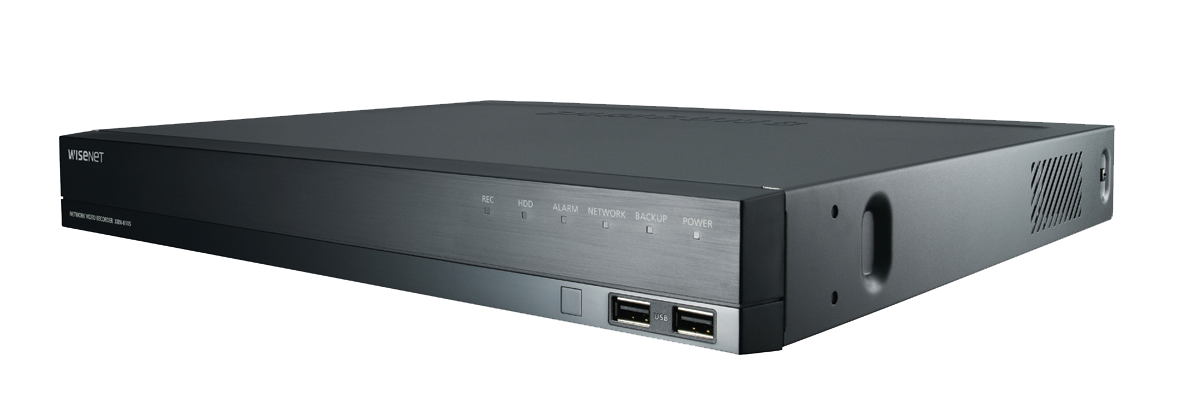

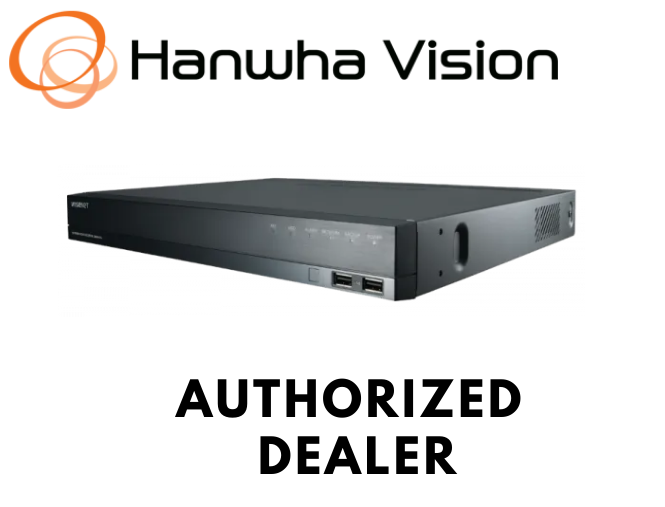

Hanwha Techwin WiseNet XRN-810S-8TB 8CH 8MP PoE+ Security NVR Recorder 8TB HDD
Hanwha Techwin WiseNet XRN-810S-8TB 8CH 8MP PoE+ Security NVR Recorder 8TB HDD
SKU:XRN-810S-8TB
Regular price
$2,405.00 USD
Regular price
Sale price
$2,405.00 USD
Unit price
/
per
Hanwha Techwin WiseNet X Series XRN-810S 8-Channel 8MP PoE+ security NVR Recorder 8TB HDD
XRN-810S-8TB
8CH 8M H.265 NVR with PoE Switch
• Up to 8CH, 8megapixel camera supported
• H.265, H.264, MJPEG codec support,
• WiseStream support
• 100Mbps network camera recording
• Plug & play by 8 PoE/PoE+ ports
• Max. 2HDDs supported
• HDMI / VGA local monitor
• ARB supported
• P2P service(QR code connect) support
• H.265, H.264, MJPEG codec support,
• WiseStream support
• 100Mbps network camera recording
• Plug & play by 8 PoE/PoE+ ports
• Max. 2HDDs supported
• HDMI / VGA local monitor
• ARB supported
• P2P service(QR code connect) support
Product Spec
Display
Network camera
Inputs
Max. 8CH
Resolution
8MP ~ CIF
Protocols
Wisenet, ONVIF
Decoding
Local Display
[Clone Display]
HDMI: 3840 x 2160, 1920x1080, 1280x720
VGA: 1920x1080, 1280x720
Resolution
8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(240fps), 720p(240fps), D1(240fps)
Performance
Record
Compression
H.265, H.264, MJPEG
Recording Bandwidth
Max. 100Mbps
Resolution
8MP ~ CIF
Mode
Normal, Schedule(Continuous/Event), Event (Pre/Post)
Event Trigger
Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus)
Event Action
e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out
Search & Play
Playback Bandwidth
Max. 32Mbps(8CH simultaneously)
User
Max. 4 Users (Local 1, Remote 3)
Simultaneous playback
Max. 8CH(Local Monitor, Network)
Fisheye Dewarping
WEB / CMS
Storage
Supported HDD
Up to 6TB
HDD Slot
SATA 2ea(Max. 12TB)
Backup
File backup
BU/Exe(GUI), JPG/AVI(Network)
Function
Multi channel(Upto 8CH) Play, Date-Time/Title display
Network
Protocol
IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS
Wisenet DDNS
Transmission Bandwidth
Max. 128Mbps
Audio
Input/Output
8 CH(network)
Compression
G.711, G.726, AAC(16/48KHz)
Audio Communication
2-Way
Max Remote Users
Search(3), Live Unicast(10), Multicast(20)
Security
IP address filtering, User access Log, 802.1x, Encryption
Web viewer
Supported OS
Windows 7, 8, 10, Mac OS X 10.9. 10.10. 10.11
Supported browser
Plug-in free web viewer
- Supported Browser: Google Chrome 47, MS Edge 20
Plug-in Webviewer
- Supported MS Explore 11, Apple Safari 9 * Mac OS X only
Viewer Software
SSM, Webviewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS
Functions
Camera Setup
Item
IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ
Control
Via GUI, Webviewer, SPC-2000
Smart phone
Support Model
iOS, Android
Protocol Support
RTP, RTSP, HTTP, CGI(SUNAPI)
Control
Live(Multi-Profile Support), Playback
Max. Remote Users
Search(3), Live Unicast(10)
Redundancy
ARB
Support
Easy configuration
P2P(QR code)
Interface
HDMI
1EA
VGA
1EA
e-SATA
1EA
Audio
Out(1EA, RCA, Line)
Ethernet
RJ-45(10/100/1000BASE-T) x 1
RJ-45(PoE+) x 8
Alarm
In 4EA, Out 3EA
USB
3EA(Front 2, Rear 1)
Power inlet
AC 1EA
System
System Control
Mouse, IR remocon, Web, Controller (SPC-2000)
Language
English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
Environmental
Operating Temperature
0°C to +40°C(32℉ to 104℉)
Operating Humidity
20% ~ 85% RH
Electrical
Power Input
100~240VAC±10%
Power Consumption
MAX. 19W (64BTU, 2TB HDD x 1ea)
PoE Budget
Max. 100W
Mechanical
Color / Material
Black / Metal
Dimension (WxHxD)
W370 x H44 x D320mm (14.57”X1.73”X12.6”) (1U)
Weight
3.356kg
-
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
