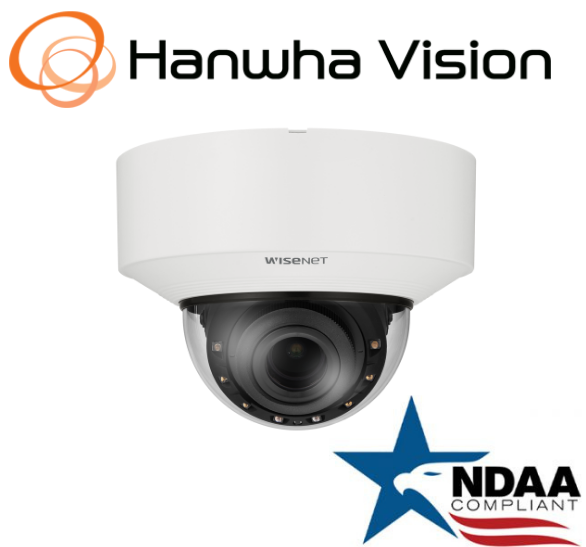

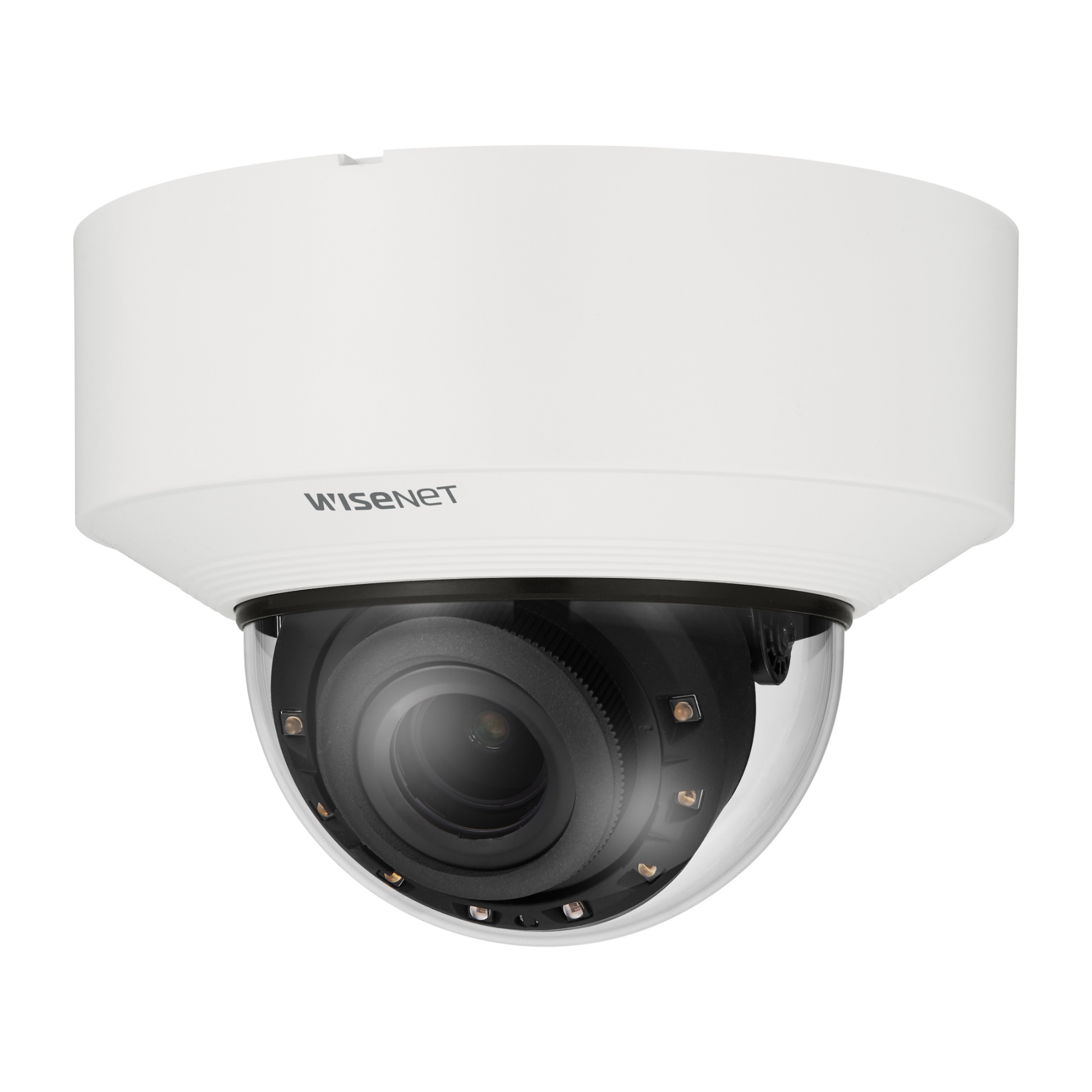

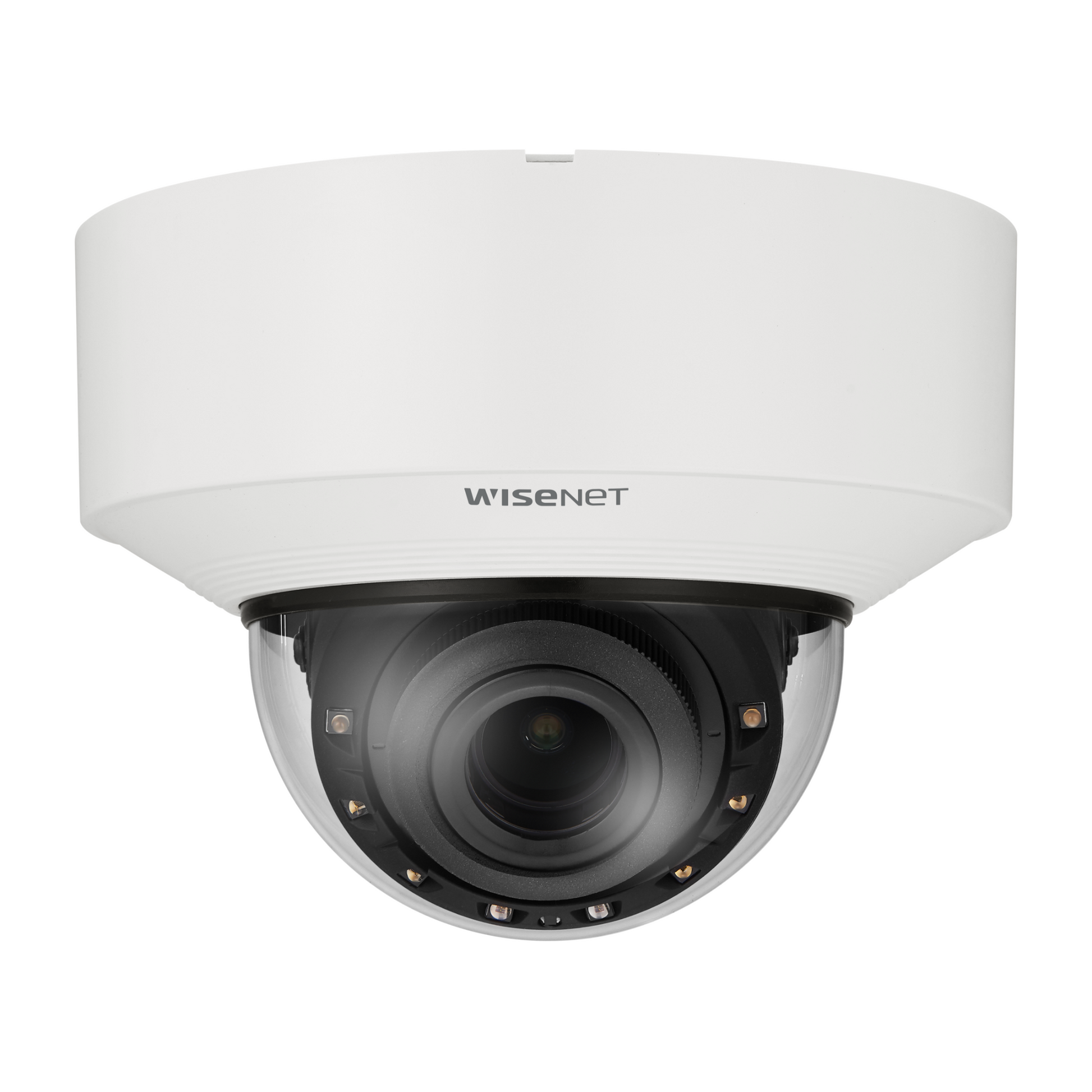

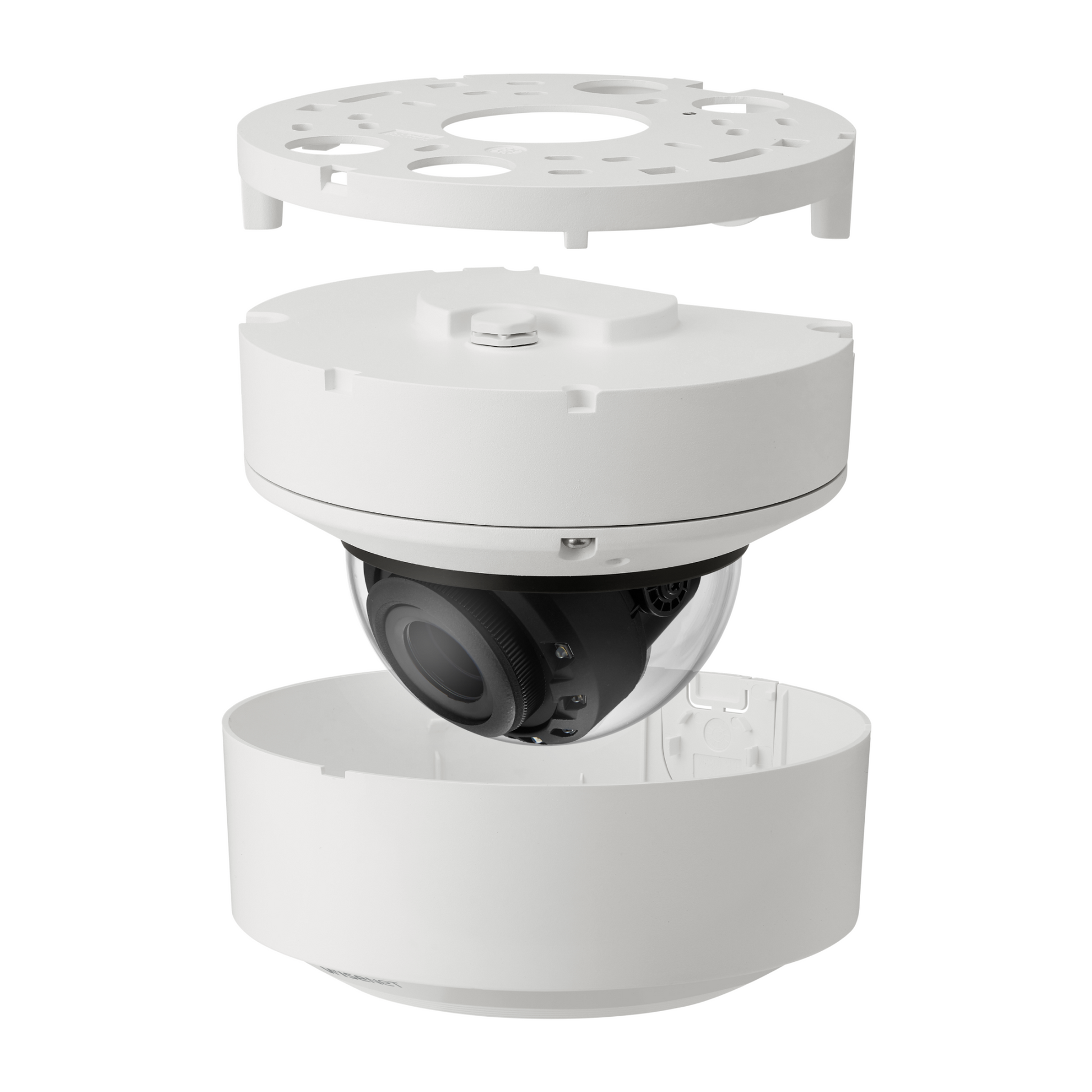

Hanwha Techwin XND-C8083RV 4K IP 6MP Vandal Dome AI SecurityCamera 4.4~9.3mmLens

Hanwha Techwin XND-C8083RV 4K IP 6MP Vandal Dome AI SecurityCamera 4.4~9.3mmLens

SKU:XND-C8083RV

Regular price $1,350.00 USD
Regular price Sale price $1,350.00 USD
Sale Sold out
Shipping calculated at checkout.

Hanwha Techwin XND-C8083RV 4K IR 6MP Vandal Dome AI IP Security Camera

XND-C8083RV

6MP IR Indoor Vandal Dome AI Camera

  • 6MP resolution
  • 4.4~9.3mm (2.1x) motorized varifocal
  • Color: 0.04 Lux (F1.3, 1/30sec, 30IRE), 0 Lux (IR LED on)
  • Maximum 30 fps (H.265/H.264)
  • WiseIR: IR viewable length 40m (131.23 ft)
  • Day & Night (ICR), extremeWDR (120 dB)
  • Hard-coated dome bubble
  • WiseNR(Based on AI engine), WiseStream III(Based on AI engine)
  • DIS with built-in Gyro sensor
  • Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate)
  • IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
  • Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
  • Audio detection, Sound classification, Shock detection, Appear/Disappear
  • IP52, IK08

Specifications

Video
Imaging Device 1/1.8" progressive CMOS
Resolution 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz)
Min. Illumination Color: 0.04Lux(F1.3, 1/30sec, 30IRE) B/W : 0.004Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on)
Video Out USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 4.4~9.3mm(2.1x) motorized varifocal
Max. Aperture Ratio F1.3(Wide) ~ F2.15(Tele)
Angular Field of View H : 112.1°(Wide)~47.5°(Tele) V : 58.0°(Wide)~26.6°(Tele) D : 137.5°(Wide)~54.6°(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus, Manual
Lens Type P-iris(IR corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~360° / -45°~75° / 0°~355°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range extremeWDR (120dB)
Digital Noise Reduction WiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point Polygonal zones
Privacy Masking 32ea, Quadrangle zones - Color : Gray, Green, Red, Blue, Black, White - Mosaic
Gain Control Support
White Balance ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
LDC Support (Fill/stretch mode)
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) prefer shutter control(Based on AI engine)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics - Analytics events based on AI engine : Object detection (Person/Face/Vehicle(car/bus/truck/motorcycle/bicycle)/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, Appear/Disappear, intrusion) - Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection
Business Intelligence Based on AI engine : People counting, Queue management, Heatmap
Alarm I/O 2 configurable I/O ports
Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule
Alarm Events When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Audio clip playback
Audio In Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
IR Viewable Length WiseIR 40m(131.23ft)
Network
Ethernet Metal shielded RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine)
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles, 3 virtual channel support)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Security HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate HTPM (Hanwha Trusted platform module) Secure OS/Boot/Storage, Verify firmware forgery CyberSecurity assuarance program UL CAP (UL 2900-1)
Application Programming Interface ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
Edge Storage Micro SD/SDHC/SDXC 1slot 512GB
Memory 4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -10 °C ~ 50 °C(14°F ~ +122°F) * Maximum temperature : +55°C (intermittent) 0~95% RH(non-condensing) Humidity control /w GORE vent
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification IP52, IK08
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 12.95W, typical 11.2W 12VDC: Max 13.2W, typical 10.8W
Mechanical
Color / Material White / Aluminum + PC Hard-coated dome bubble
RAL Code RAL9003
Product Dimensions / Weight Ø160x118mm(Ø6.30x4.65"), 1350g(2.98 lb)
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 44.8m(147.02ft) / Tele: 151.3m(496.29ft)
Observe (63PPM/ 19PPF) Wide: 17.9m(58.81ft) / Tele: 60.5m(198.52ft)
Recognize (125PPM/ 38PPF) Wide: 9.0m(29.4ft) / Tele: 30.3m(99.26ft)
Identify (250PPM/ 76PPF) Wide: 4.5m(14.7ft) / Tele: 15.1m(49.63ft)
