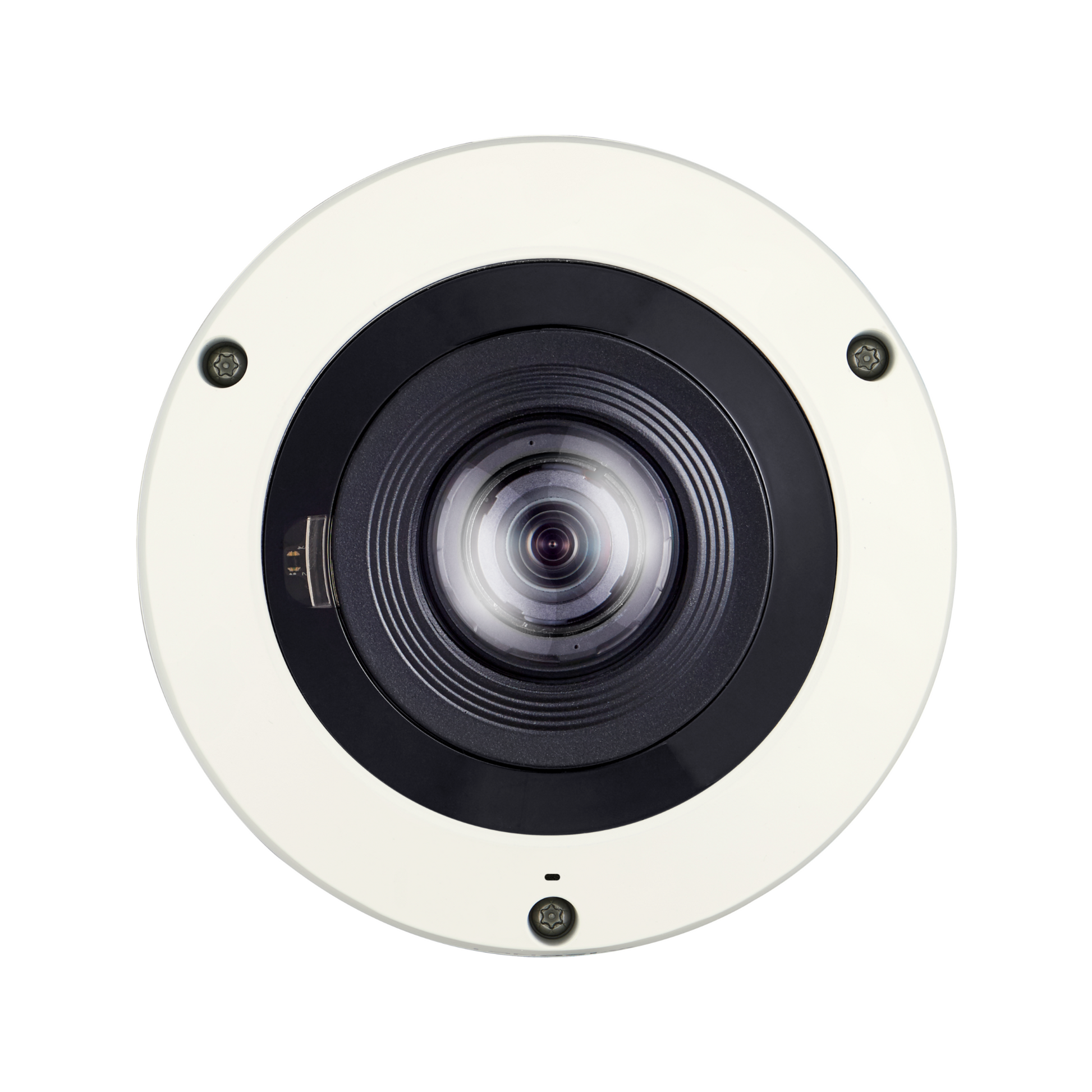

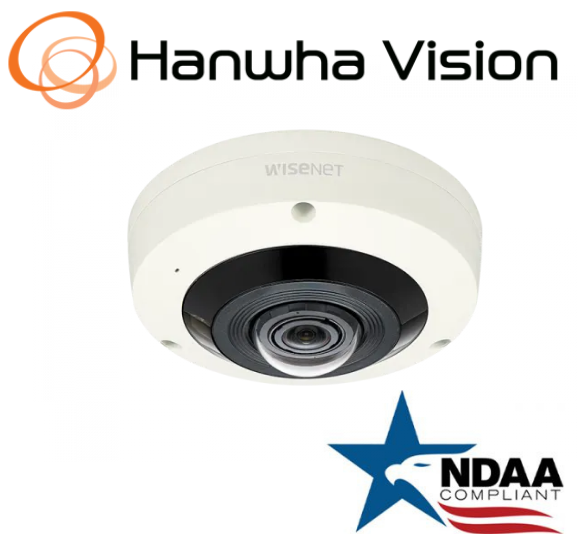

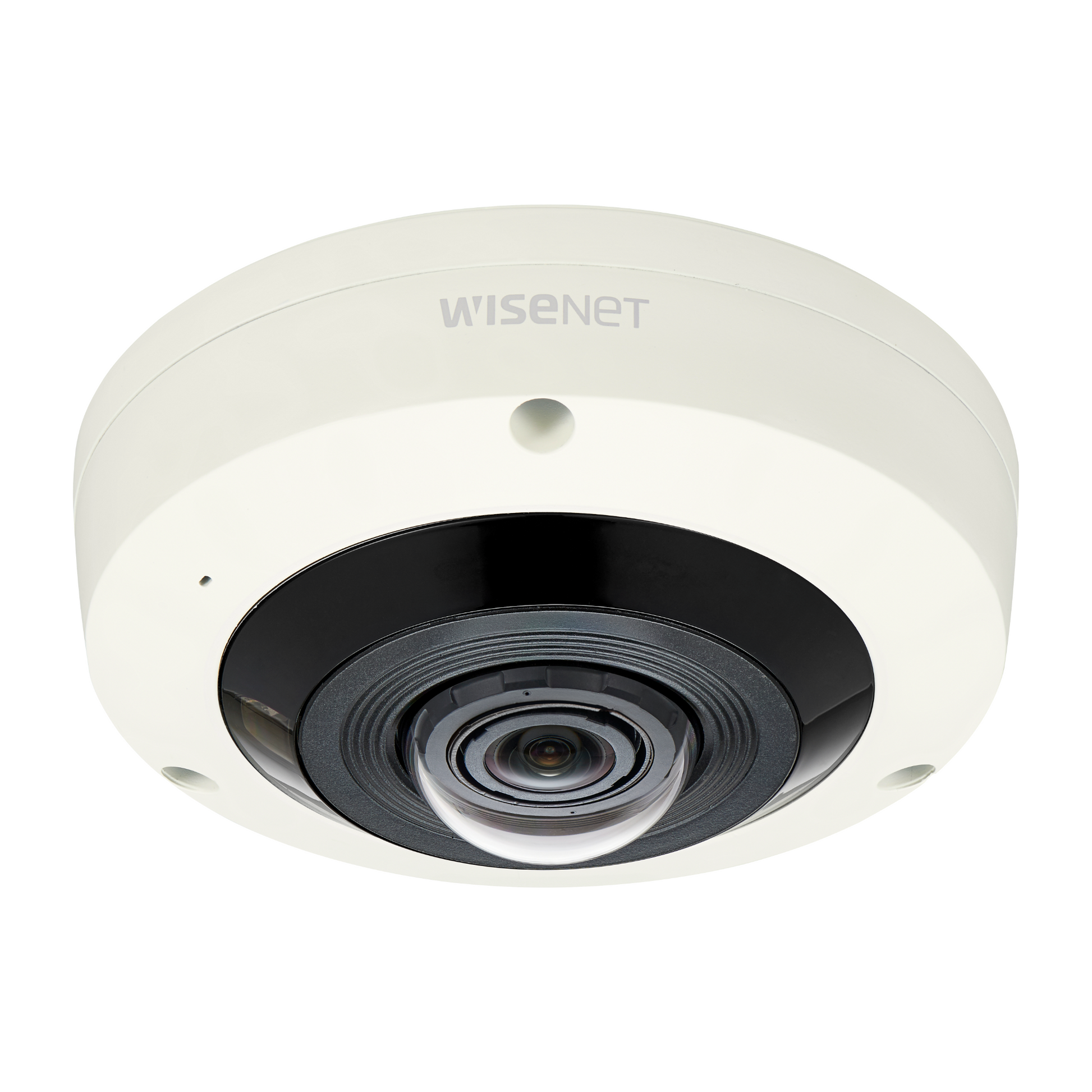

Hanwha Techwin XNF-8010RV 6MP Outdoor Fisheye IP Security Camera1.6mm fixed Lens
Hanwha Techwin XNF-8010RV 6MP Outdoor Fisheye IP Security Camera1.6mm fixed Lens
SKU:XNF-8010RV
Regular price
$1,050.00 USD
Regular price
Sale price
$1,050.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Hanwha Techwin XNF-8010RV 6MP Outdoor Network Fisheye IP Security Camera
XNF-8010RV
6MP H.265 Fisheye Camera
• Max. 2048 x 2048 resolution
• H.265, H.264, MJPEG codec supported
• Fisheye, Single panorama, Double panorama, Quad view
• On board dewarping, Digital PTZ (8x), Bi-directional audio
• True WDR (120dB), WiseStreamⅡ support
• Video Analytics, Heatmap, People counting
• Queue management
• Motion detection, Handover, M12 (8010RVM), IP66/IK10
• H.265, H.264, MJPEG codec supported
• Fisheye, Single panorama, Double panorama, Quad view
• On board dewarping, Digital PTZ (8x), Bi-directional audio
• True WDR (120dB), WiseStreamⅡ support
• Video Analytics, Heatmap, People counting
• Queue management
• Motion detection, Handover, M12 (8010RVM), IP66/IK10
Product Specification
Video
Imaging Device
1/1.8" 6M CMOS
Resolution
Original view: 2048x2048, 1280x1280, 1080x1080, 960x960, 768x768, 720x720, 640x640, 480x480
Single panorama: 2048x512, 1920x480, 1280x320, 640x160, 704x176
Double panorama: 2048x1024, 1920x960, 1280x640, 640x320, 704x352
Quad view: 2048x1536, 1600x1200, 1280x960, 1024x768, 800x600, 640x480, 704x576
Q1/2/3/4: 1024x768, 800x600, 640x480
Max. Framerate
H.264/H.265 : 30fps/25fps@2048x2048(60Hz/50Hz)
MJPEG : Max 15fps
Min. Illumination
Color: 0.1 Lux (F1.6, 1/30sec), BW: 0 Lux (IR LED On)
Video Out
CVBS: 1.0 Vp-p / 75Ω composite, 714x480(N), 702x576(P) for Installation
USB: Micro USB Type B, for installation
Lens
Focal Length (Zoom Ratio)
1.6mm fixed focal
Max. Aperture Ratio
F1.6
Angular Field of View
H: 192˚ / V: 192˚ / D: 192˚
Min. Object Distance
0.3m
Focus Control
Simple remote control focus via network
Operational
Camera Title
Displayed up to 85 characters
Day & Night
Auto(ICR)
Backlight Compensation
BLC, HLC, WDR, SSDR
Wide Dynamic Range
120dB
Digital Noise Reduction
SSNRⅤ
Defog
Support
Motion Detection
8ea, 8point polygonal zones
Privacy Masking
32ea, Quadrangle zones
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain Control
Low / Middle / High
White Balance
ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed
Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation
Flip, Mirror
Analytics
Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
Business Intelligence
People counting, Queue management, Heatmap
Alarm I/O
Input 1ea / Output 1ea
Alarm Triggers
Analytics, Network disconnect, Alarm input
Alarm Events
File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Audio In
Selectable(mic in/line in/built-in mic)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out
Line out, Max.output level: 1Vrms
IR Viewable Length
15m(49.21ft)
Radiometry
Temperature Accuracy
G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Network
Ethernet
RJ-45(10/100BASE-T)
Video Compression
H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression
G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec
Manual(5ea area), WiseStreamⅡ
Bitrate Control
H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming
Multiple streaming(Up to 10 profiles)
Protocol
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SRTP(Unicast)
Security
HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface
ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage Language
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage
Micro SD/SDHC/SDXC 2slot 512GB
Memory
1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity
-40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity
-50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification
IP66, IK10
EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009,
EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014
EN61000-4-6:2009, EN50155:2007
Input Voltage
PoE(IEEE802.3af, Class3), 12VDC
Power Consumption
PoE: Max 12.95W
12VDC: Max 12W
Mechanical
Color / Material
Ivory / Aluminum
Product Dimensions / Weight
Ø146x65.8mm(Ø5.75x2.59"), 785g(1.73 lb)
- • Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
