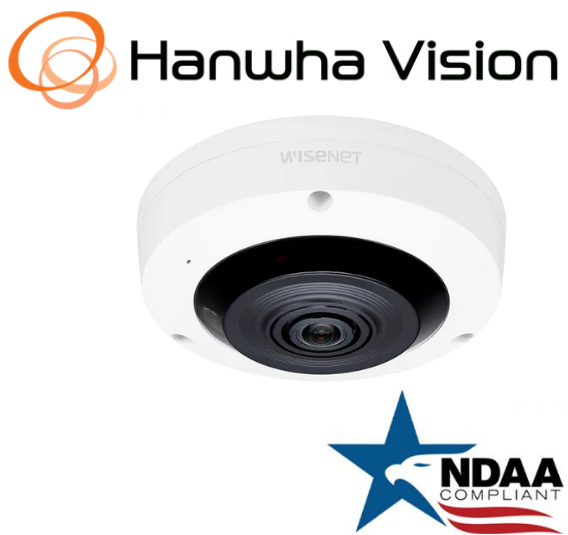

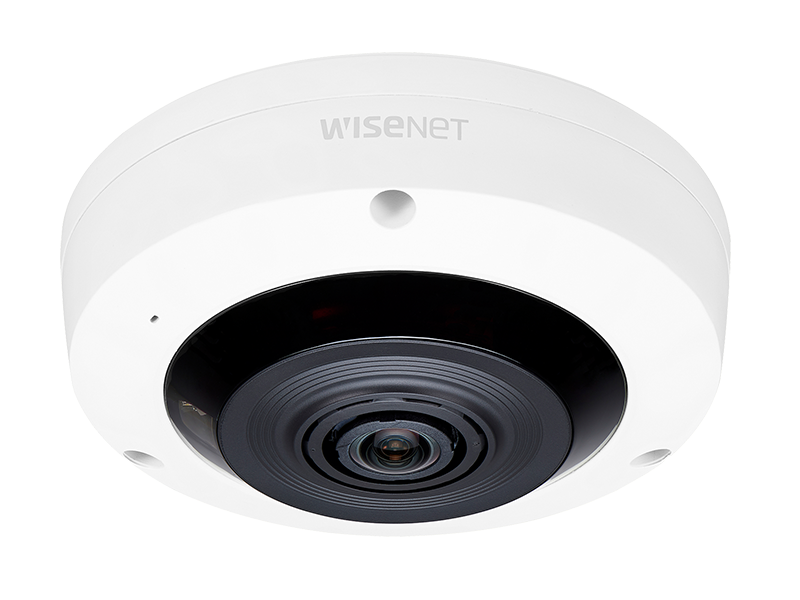

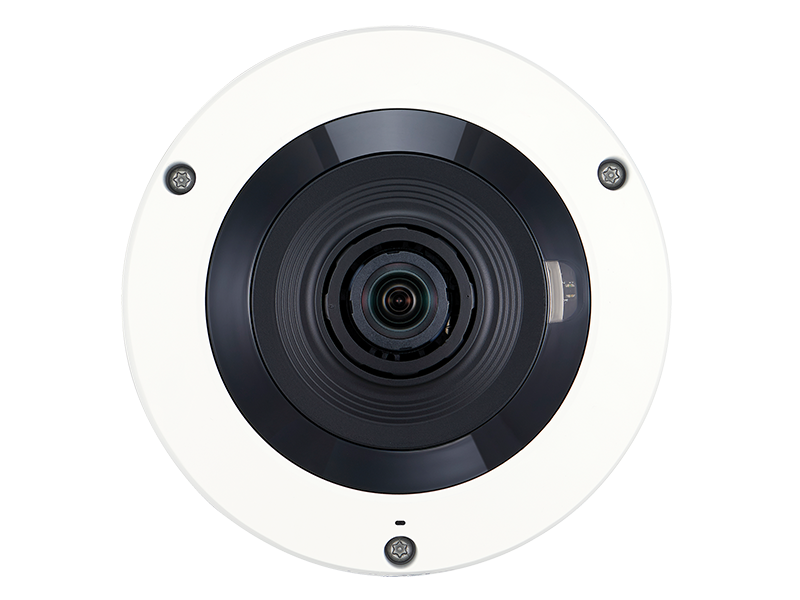

Hanwha Techwin XNF-8010RW 6MP IR Fisheye IP Security Camera 1.6mm Fixed Lens

Hanwha Techwin XNF-8010RW IR Network Fisheye IP Security Camera

XNF-8010RW

X series 6 MP sensor 360° Indoor IR Fisheye (white)

• Max Resolution: 6MP (2,048(H) x 2,048(V))
• Image Sensor: 1/1.8" 6M CMOS
• Day/Night: Auto (ICR) / Color / B/W / External / Schedule
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color : 0.1 Lux (F1.6), B/W : 0 Lux (IR LED On)
• IR Illuminators: Yes
• IR Illuminator Range: 15m (49.21ft)
• Lens Type: Fixed / Board-in type
• Focal Length: 1.6mm / F1.6
• Field of View: H : 192˚ / V : 192˚ / D : 192˚
• Focus: Simple focus / Manual, Remote control Via network
• Compression Styles: H.265 / H.264 / MJPEG
• Frame Rate: H.265 / H.264 : 30fps, MJPEG : Max. 15fps
• WDR Technology: 120dB
• Image Settings: Camera Title, Day & Night, Backlight Compensation, Wide Dynamic Range, Contrast Enhancement (SSDR), Digital Noise Reduction, Digital Image Stabilization, Defog, Motion Detection, Privacy Masking, Gain Control, White Balance, Digital Zoom, Electronic Shutter Speed, Flip/Mirror
• Intelligent Video Analytics: Tampering, Loitering, Directional detection, Virtual line, Enter/Exit, (Dis)Appear, Audio detection, Sound classification, People counting, Heatmap, Queue management
• Alarm/Event Management: Alarm Input, Motion detection, Video & Audio analytics, Network disconnect. File upload Via FTP and E-Mail, Notification Via E-Mail, Local storage (SD/SDHC/ SDXC) or NAS recording at event triggers, External output
• Built-in Microphone: Yes
• Audio Capabilities: Selectable (Mic in / Line in / Built-in mic) / Line out (3.5mm mono jack)
• ONVIF: Yes
• Security: HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x Authentication (EAP-TLS, EAP-LEAP)
• Users: 20 users at unicast mode
• On-board Storage: Yes, SD/SDHC/SDXC 2slot (Up to 512GB)
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: Ø146 x 54.8mm (Ø5.75" x 2.16")
• Weight: 730g (1.61 lb)
• Operating Temperature: -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
• Power/Consumption: 12V DC ±10%, PoE (IEEE802.3af, Class3) / Max. 11W (12V DC), Max. 12W (PoE)
• Warranty: 3 Year
• This housing is White. Also available in Ivory as the XNF-8010R.
