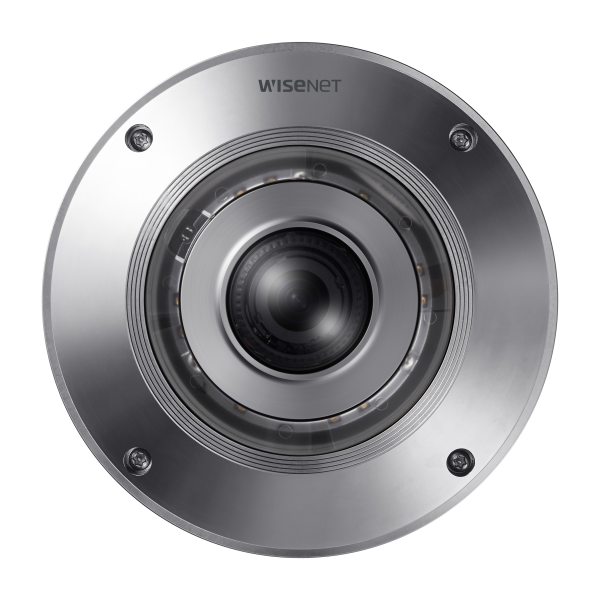

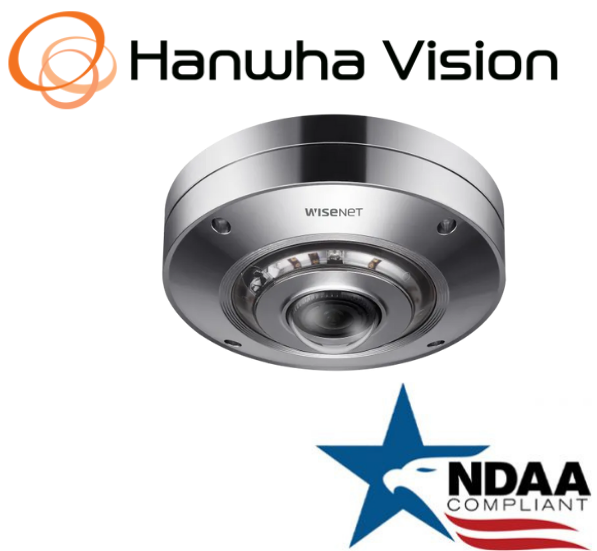

Hanwha Techwin XNF-9010RS 12MP NW IR IP Fisheye SecurityCamera 1.08mm fixed Lens

Hanwha Techwin XNF-9010RS 12MP NW IR IP Fisheye SecurityCamera 1.08mm fixed Lens

XNF-9010RS

$2,150.00 USD
$2,150.00 USD
Sale Sold out
Shipping calculated at checkout.

Special Order

Hanwha Techwin XNF-9010RS 12 MP NW IR Fisheye Security Camera

XNF-9010RS

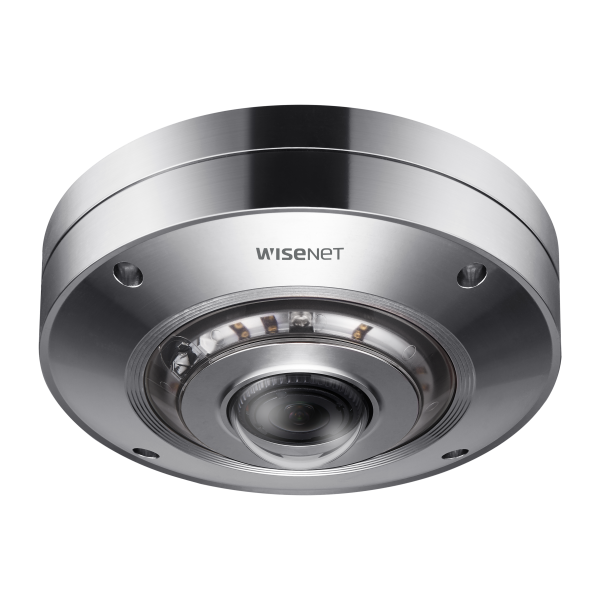

12MP Stainless Steel IR Fisheye Camera

1/2.3" 12MP CMOS 3008x3008 resolution @ 30FPS 1.08mm fixed focal lens Stereographic type lens for enhanced resolution for the peripheral regions H.265, H.264, MJPEG codec supported Fisheye, Single panorama, Double panorama, Quad view, Onboard dewarping, Digital PTZ extreme WDR (120dB) WiseStream support Wise IR, IR viewable length 26.2' (8m) Virtual channel support selectable I/O port Video Analytics (Heatmap, People counting, Queue management) PTZ Handover IP66/IP67/IP6K9K/IK10+/NEMA4X PoE, 12VDC NSF/ANSI Standard 169 Special Purpose Food Equipment and Devices

Specifications

Video
Imaging Device 1/2.3" 12MP CMOS
Resolution Original view(1:1): 3008x3008~480x480, Double panorama(2:1): 3584x1792~640x320, Single panorama(4:1): 3584x896~640x160, Quad view: 3584x2688~640x480, Q1/Q2/Q3/Q4(4:3): 1792x1344~640x480
Max. Framerate H.265/H.264: Original view-Max.30fps/25fps@3008x3008(60Hz/50Hz), Double panorama-Max.30fps/25fps@3584x1792(60Hz/50Hz) Single panorama-Max.30fps/25fps@3584x896(60Hz/50Hz) MJPEG: Max.30fps/25fps@1080x1080(60Hz/50Hz)
NETD None
Pixel Size None
Min. Illumination Color: 0.39 Lux (F2.2, 1/30sec), BW : 0Lux(IR LED on)
Video Out CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for Installation USB: Micro USB Type B, 1280x720 for installation
Video Transmission Distance None
Lens
Focal Length (Zoom Ratio) 1.08mm fixed focal
Max. Aperture Ratio F2.2
Angular Field of View H: 187° / V: 187° / D: 187°
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Lens Type None
Mount Type None
Optional Lens None
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range None
Pan Range None
Pan Speed None
Tilt Range None
Tilt Speed None
Rotate Range None
Sequence None
Preset Accuracy None
Operational
Camera Title Displayed up to 85 characters
Direction Indicator None
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range extremeWDR (120dB)
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization None
Defog None
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
Gain Control Low / Middle / High
White Balance ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
LDC None
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Digital PTZ Support(Preset, Group)
Video Rotation Flip, Mirror
Analytics Defocus detection, Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
Business Intelligence People counting, Queue management, Heatmap
Serial Interface None
Alarm I/O 2 configured I/O
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset Handover Audio playback
Audio In Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max. output level: 1Vrms
IR Viewable Length 8m(26.25ft), Wise IR
IR Illuminator (Optional) None
Water Removal None
Auto Tracking None
Coaxial Protocol None
Color Palettes None
Radiometry
Temperature detect range None
Temperature accuracy None
Temperature detection None
Additional None
Network
Ethernet Metal shielded RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Video Quality Adjustment H.264/H.265: Target bitrate level control MJPEG: Quality level control
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Security HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA)
Application Programming Interface ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer None
Edge Storage Micro SD/SDHC/SDXC 2slot 1TB(512GBx2)
Memory 4096MB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C ~ +50°C (-40°F ~ +122°F) / Less than 95% RH
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 95% RH
Certification IP66, IP67, IP6K9K, NEMA4X, IK10, IK10+(it can resist impacts of 40 joules), NSF/ANSI Standard 169 – Special Purpose Food Equipment and Devices.
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 12.95W, typical 11W 12VDC: Max 11W, typical 9.1W
Mechanical
Color / Material Silver / Stainless(SUS316L), Nylon dome bubble
RAL Code RAL9003
Product Dimensions / Weight ø167.9 x 72.1mm(66.10x28.38"), 2,980g(6.57lb)
Compatible Conduit hole / Gangbox Single, Double, 4"Octagon, Square
Hanging Mount (Dome) SBB-300HMS6
Skin Cover (Dome) None
Weather Cap (Dome) None
Power Module None
Backbox None
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) 34.9m(114.49ft)
Observe (63PPM/ 19PPF) 13.9m(45.60ft)
Recognize (125PPM/ 38PPF) 7.0m(22.96ft)
Identify (250PPM/ 76PPF) 3.5m(11.48ft)
