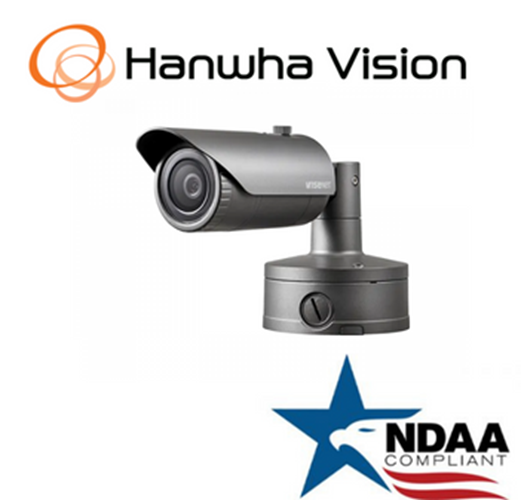

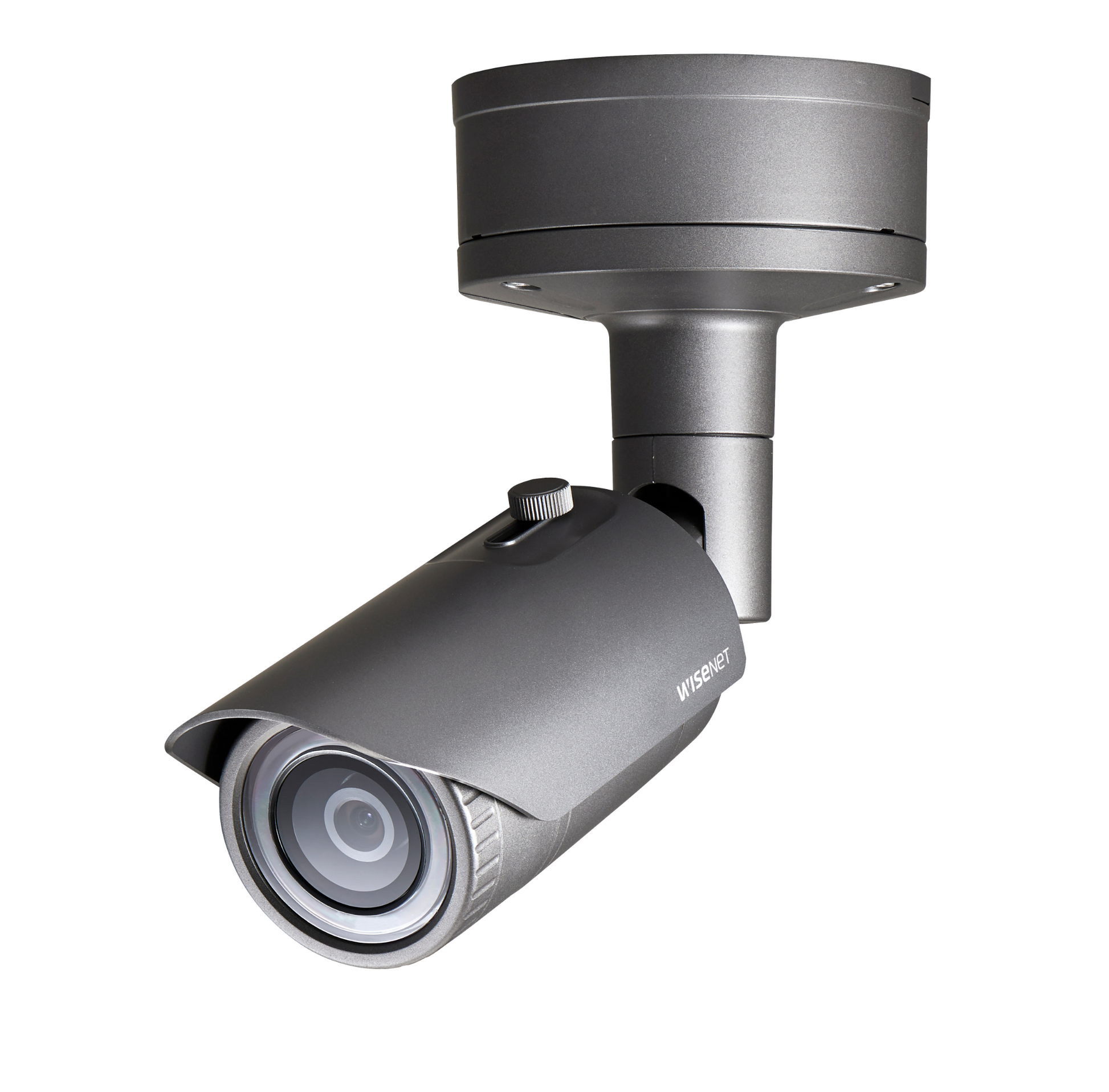

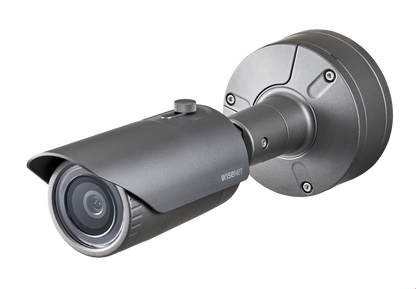

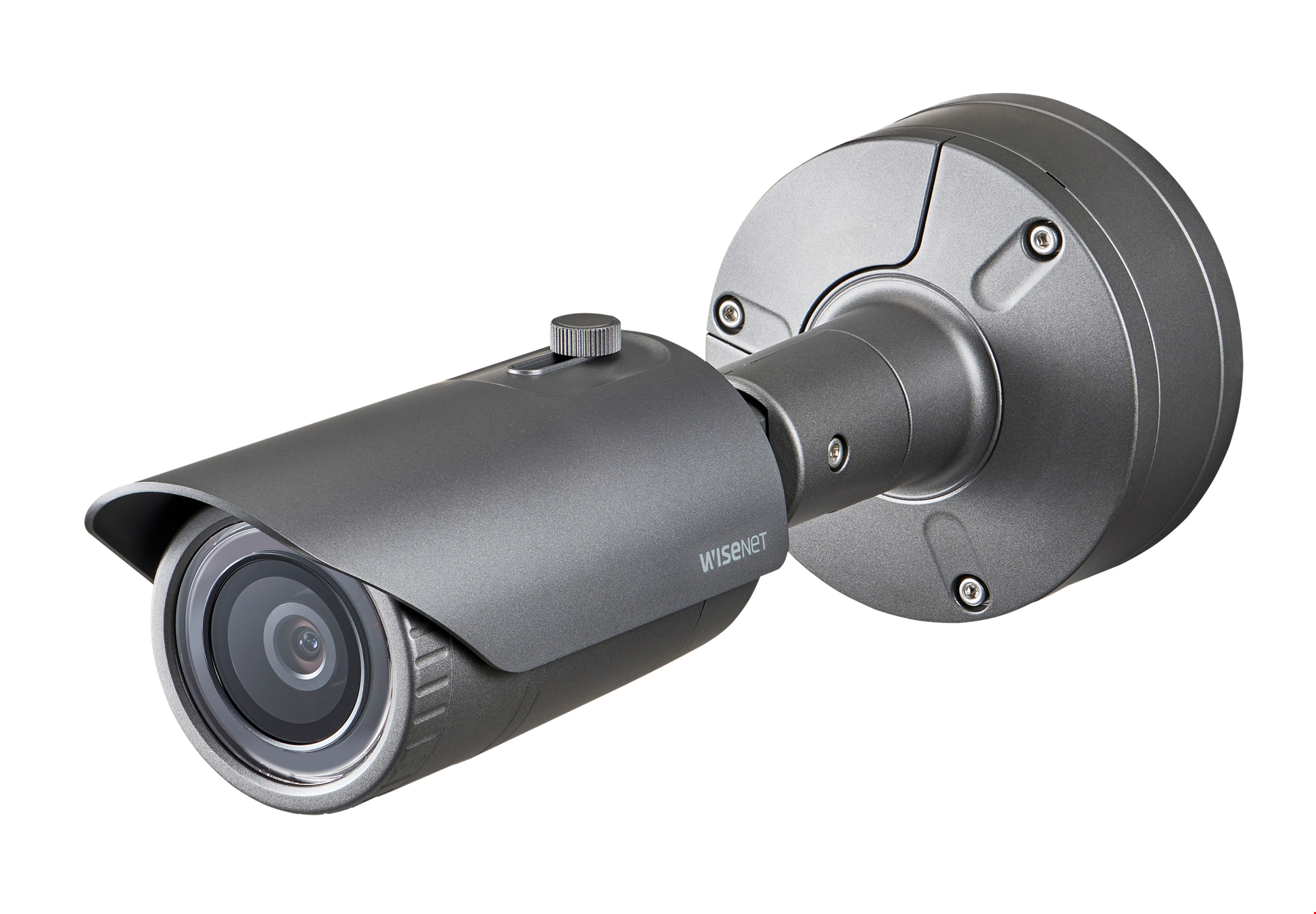

Hanwha Techwin XNO-8020R 5MP Outdoor NW IR IP Security Bullet Camera 3.7mm Lens
Hanwha Techwin XNO-8020R 5MP Outdoor NW IR IP Security Bullet Camera 3.7mm Lens
SKU:XNO-8020R
Regular price
$900.00 USD
Regular price
Sale price
$900.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Hanwha Techwin XNO-8020R 5MP Outdoor Network IR Bullet Security Camera
Upgrade your surveillance with the Hanwha Techwin XNO 8020R, a powerful 5MP outdoor IR bullet security camera. Designed for professionals, this Hanwha Wisenet camera offers intelligent video analytics, durable weatherproof housing, and crisp video performance in any condition.
Key Features of Hanwha Bullet Camera
• Built-in 3.7mm fixed lens
• Max. 30fps@all resolutions (H.265/H.264)
• Loitering, Directional detection, Fog detection
• Digital auto tracking, Sound classification, Heatmap
• People counting, Queue management, Tampering
• Motion detection, Handover , Audio detection
• Dual SD slots (Max. 512GB),WiseStream II support
• IR viewable length 30m, IP67/IP66, NEMA 4X, IK10
• Max. 30fps@all resolutions (H.265/H.264)
• Loitering, Directional detection, Fog detection
• Digital auto tracking, Sound classification, Heatmap
• People counting, Queue management, Tampering
• Motion detection, Handover , Audio detection
• Dual SD slots (Max. 512GB),WiseStream II support
• IR viewable length 30m, IP67/IP66, NEMA 4X, IK10
Hanwha Techwin XNO-8020R 5MP Outdoor Bullet Security Camera
The Hanwha Techwin XNO 8020R 5MP Outdoor IR Bullet Camera is a premium choice for anyone seeking reliable Hanwha Wisenet cameras with advanced analytics and rugged performance. This Hanwha bullet camera features a 3.7mm fixed lens with 30fps H.265/H.264 streaming, delivering high-definition surveillance even in low-light conditions.
With a built-in IR viewable length of 30m, IP67-rated waterproof and IK10-rated vandal-resistant housing, this Hanwha outdoor camera is ideal for harsh environments. It supports PoE outdoor camera setups, dual SD card slots (up to 512GB), and includes advanced AI-powered features like people counting, motion detection, sound classification, and tampering alerts.
Perfect for both businesses and residential use, this IP camera Hanwha Techwin model ensures flexible installation and secure remote monitoring. If you're searching for the best Hanwha camera price and powerful performance, the XNO 8020R offers unmatched value.
Compatible with various Hanwha WiFi camera systems and part of the trusted Wisenet series, it stands out as a top-tier solution in modern security technology.
Product Specification of the Hanwha XNO-8020R Camera
-
Video Imaging Device 1/1.8" 5MP CMOS Resolution 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 Max. Framerate H.265/H.264 : Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)Min. Illumination Color: 0.16Lux(F1.6, 1/30sec)
B/W: 0Lux(IR LED on)Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation
USB: Micro USB Type B, 1280x720, for installationLens Focal Length (Zoom Ratio) 3.7mm fixed focal Max. Aperture Ratio F1.6 Angular Field of View H: 97.5°, V:71.9°, D: 126.2° Min. Object Distance 0.4m(1.31ft) Focus Control Simple focus Operational Camera Title Displayed up to 85 characters Day & Night Auto(ICR) Backlight Compensation BLC, HLC, WDR, DWDR, SSDR Wide Dynamic Range 120dB Digital Noise Reduction SSNRⅤ Digital Image Stabilization Support Defog Support Motion Detection 8ea, 8point polygonal zones Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- MosaicGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror, Hallway view(90°/270°) Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification Business Intelligence People counting, Queue management, Heatmap Alarm I/O Input 1ea / Output 1ea Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events File upload via FTP and E-Mail
Notification via E-Mail
SD/SDHC/SDXC or NAS recording at Event Triggers
Alarm output
HandoverAudio In Selectable(Mic in/Line in),
Supply voltage: 2.5VDC(4mA), Input impedance: 2K OhmAudio Out Line out, Max. output level: 1Vrms IR Viewable Length 30m(98.43ft) Network Ethernet RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC : 48Kbps at 16KHzSmart Codec Manual(5ea area)
WiseStreamⅡBitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour , LLDP, SRTP Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication(EAP-TLS, EAP-LEAP)Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformGeneral Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)Edge Storage Micro SD/SDHC/SDXC 2slot 512GB Memory 1024MB RAM, 256MB Flash Environmental & Electrical Operating Temperature / Humidity -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH
*Start up should be done at above -20°CStorage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH Certification IP67/IP66/NEMA4X, IK10 Input Voltage PoE(IEEE802.3af, Class3), 12VDC Power Consumption PoE: Max 10.3W
12VDC: Max 9.3WMechanical Color / Material Dark grey / Aluminum Product Dimensions / Weight Ø70x296mm(Ø2.76"x11.65"), 1220g(2.69 lb) - • Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
- • Design and specifications are subject to change without notice.
