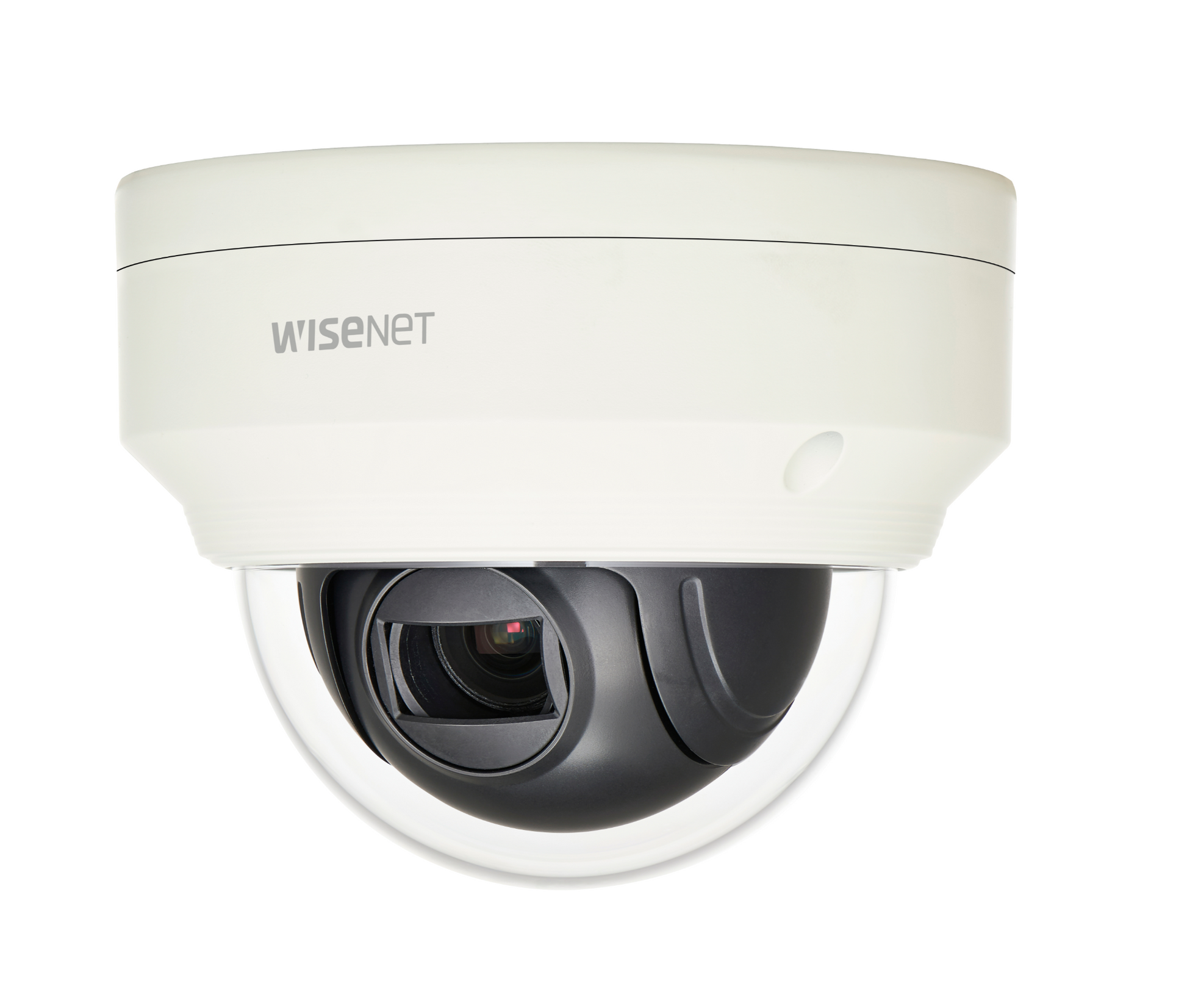

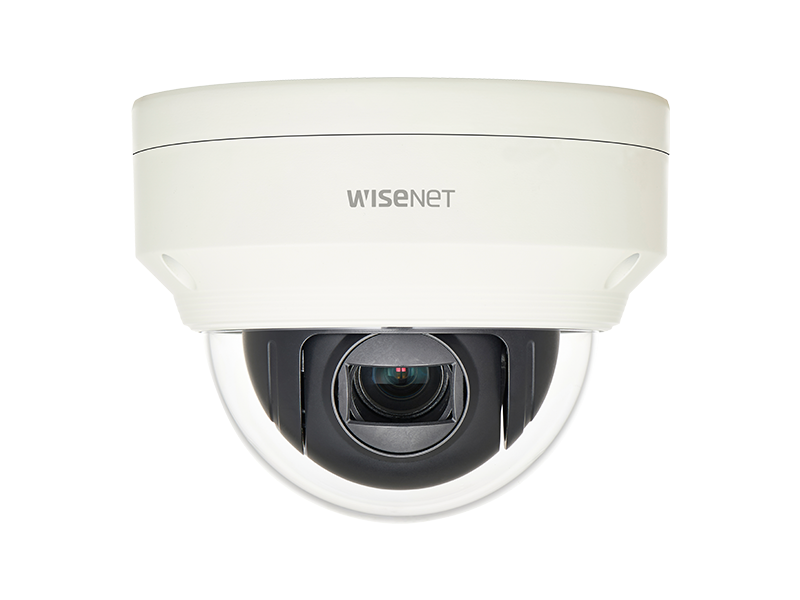

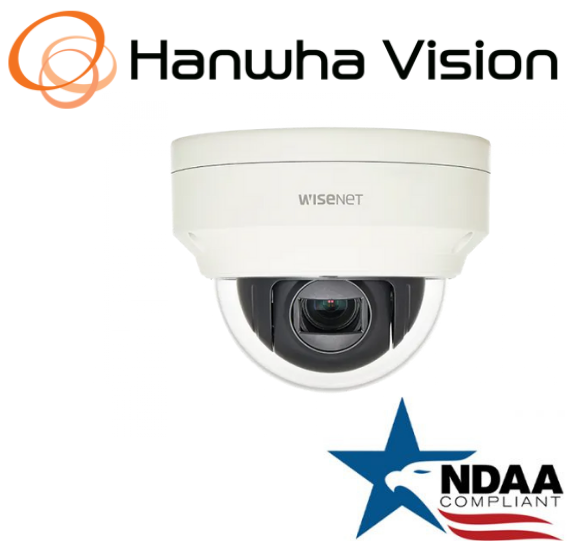

Hanwha Techwin XNP-6040H 2MP PoE PTZ Outdoor NW IP Security Camera 2.8-12mm Lens
Hanwha Techwin XNP-6040H 2MP PoE PTZ Outdoor NW IP Security Camera 2.8-12mm Lens
SKU:XNP-6040H
Regular price
$1,200.00 USD
Regular price
Sale price
$1,200.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Hanwha Techwin XNP-6040H 2MP PoE PTZ Outdoor Network IP Security Camera
XNP-6040H
2M H.265 4.3x PTZ Camera
• Max. 2Megapixel (1920 x 1080) resolution
• 2.8 ~ 12mm (4.3x), 24x digital zoom
• H.265, H.264, MJPEG codec
• WiseStreamII/IP66, IK10 Support, Multiple streaming
• Day & Night (ICR), WDR (150dB)
• Digital image stabilization with Built-in Gyro sensor
• Motion/Direction/Fog/Audio detection
• SD/SDHC/SDXC memory slot (Max. 512GB), PoE / 12V DC
• 2.8 ~ 12mm (4.3x), 24x digital zoom
• H.265, H.264, MJPEG codec
• WiseStreamII/IP66, IK10 Support, Multiple streaming
• Day & Night (ICR), WDR (150dB)
• Digital image stabilization with Built-in Gyro sensor
• Motion/Direction/Fog/Audio detection
• SD/SDHC/SDXC memory slot (Max. 512GB), PoE / 12V DC
Product Specification
Video
Imaging Device
1/2.8" CMOS
Resolution
1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate
H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination
Color: 0.015Lux(F1.4, 1/30sec)
BW: 0.0015Lux(F1.4, 1/30sec)
Video Out
CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio)
2.8~12mm(4.3x) zoom
Max. Aperture Ratio
F1.4
Angular Field of View
H: 119.5°(Wide)~27.9°(Tele) / V: 62.8°(Wide)~15.7°(Tele) / D: 142.1°(Wide)~32.0°(Tele)
Min. Object Distance
Wide: 1.5m(4.92ft), Tele: 2m(6.56ft)
Focus Control
Oneshot AF
Lens Type
DC auto iris
Pan / Tilt / Rotate
Pan Range
0° ~ 350°
Pan Speed
0.1°/sec ~60°/sec
Tilt Range
0° ~90°
Tilt Speed
0.1°/sec ~60°/sec
Sequence
Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy
±0.5°
Operational
Camera Title
Displayed up to 85 characters
Day & Night
Auto(ICR)
Backlight Compensation
BLC, HLC, WDR, SSDR
Wide Dynamic Range
150dB
Digital Noise Reduction
SSNRⅤ
Digital Image Stabilization
Support(built-in gyro sensor)
Defog
Support
Motion Detection
8ea, 8point polygonal zones
Privacy Masking
32ea, rectangular Support
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain Control
Low / Middle / High
White Balance
ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed
Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation
Flip, Mirror
Analytics
Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
Serial Interface
RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O
Input 1ea / Output 1ea
Alarm Triggers
Analytics, Network disconnect, Alarm input
Alarm Events
File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
PTZ Preset
Audio In
Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out
Line out, Max.output level: 1Vrms
Auto Tracking
Support
Network
Ethernet
RJ-45(10/100BASE-T), SFP(Optional)
Video Compression
H.265/H.264,MJPEG
Audio Compression
G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec
Manual(5ea area), WiseStreamⅡ
Bitrate Control
H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming
Unicast(20 users) / Multicast (128 user)
Multiple streaming(Up to 10 profiles)
Protocol
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour,LLDP, SRTP
Security
HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface
ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage Language
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage
Micro SD/SDHC/SDXC 2slot 512GB
Memory
1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity
-30°C~+55°C (-22°F~+131°F) / Less than 90% RH
Storage Temperature / Humidity
-30°C~+60°C (-22°F~+140°F) / Less than 90% RH
Certification
IP66, IK10
Input Voltage
DC12V, PoE(IEEE802.3af, Class3)
Power Consumption
DC12V: Max. 8.6W
PoE : Max. 9.6W
Mechanical
Color / Material
Ivory / Aluminum
Product Dimensions / Weight
Ø136x106mm(5.35x4.17"), 780g(1.72 lb)
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)
Wide: 22.4m(73.47ft) / Tele: 154.6m(507.18ft)
Observe (63PPM/ 19PPF)
Wide: 9.0m(29.39ft) / Tele: 61.8m(202.87ft)
Recognize (125PPM/ 38PPF)
Wide: 4.5m(14.69ft) / Tele: 30.9m(101.44ft)
Identify (250PPM/ 76PPF)
Wide: 2.2m(7.35ft) / Tele: 15.5m(50.72ft)
- • Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
| Video | ||
|---|---|---|
| Imaging Device | 1/2.8" CMOS | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
|
| Min. Illumination | Color: 0.015Lux(F1.4, 1/30sec) BW: 0.0015Lux(F1.4, 1/30sec) |
|
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB type B, 1280x720 for installation |
|
| Lens | ||
| Focal Length (Zoom Ratio) | 2.8~12mm(4.3x) zoom | |
| Max. Aperture Ratio | F1.4 | |
| Angular Field of View | H: 119.5°(Wide)~27.9°(Tele) / V: 62.8°(Wide)~15.7°(Tele) / D: 142.1°(Wide)~32.0°(Tele) | |
| Min. Object Distance | Wide: 1.5m(4.92ft), Tele: 2m(6.56ft) | |
| Focus Control | Oneshot AF | |
| Lens Type | DC auto iris | |
| Pan / Tilt / Rotate | ||
| Pan Range | 0° ~ 350° | |
| Pan Speed | 0.1°/sec ~60°/sec | |
| Tilt Range | 0° ~90° | |
| Tilt Speed | 0.1°/sec ~60°/sec | |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule | |
| Preset Accuracy | ±0.5° | |
| Operational | ||
| Camera Title | Displayed up to 85 characters | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range | 150dB | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Defog | Support | |
| Motion Detection | 8ea, 8point polygonal zones | |
| Privacy Masking | 32ea, rectangular Support - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
|
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) | |
| Video Rotation | Flip, Mirror | |
| Analytics | Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification | |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) | |
| Alarm I/O | Input 1ea / Output 1ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset |
|
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
|
| Audio Out | Line out, Max.output level: 1Vrms | |
| Auto Tracking | Support | |
| Network | ||
| Ethernet | RJ-45(10/100BASE-T), SFP(Optional) | |
| Video Compression | H.265/H.264,MJPEG | |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
|
| Smart Codec | Manual(5ea area), WiseStreamⅡ | |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
|
| Streaming | Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles) |
|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour,LLDP, SRTP | |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
|
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
|
| General | ||
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB | |
| Memory | 1024MB RAM, 256MB Flash | |
| Environmental & Electrical | ||
| Operating Temperature / Humidity | -30°C~+55°C (-22°F~+131°F) / Less than 90% RH | |
| Storage Temperature / Humidity | -30°C~+60°C (-22°F~+140°F) / Less than 90% RH | |
| Certification | IP66, IK10 | |
| Input Voltage | DC12V, PoE(IEEE802.3af, Class3) | |
| Power Consumption | DC12V: Max. 8.6W PoE : Max. 9.6W |
|
| Mechanical | ||
| Color / Material | Ivory / Aluminum | |
| Product Dimensions / Weight | Ø136x106mm(5.35x4.17"), 780g(1.72 lb) | |
| DORI (EN62676-4 standard) | ||
| Detect (25PPM/ 8PPF) | Wide: 22.4m(73.47ft) / Tele: 154.6m(507.18ft) | |
| Observe (63PPM/ 19PPF) | Wide: 9.0m(29.39ft) / Tele: 61.8m(202.87ft) | |
| Recognize (125PPM/ 38PPF) | Wide: 4.5m(14.69ft) / Tele: 30.9m(101.44ft) | |
| Identify (250PPM/ 76PPF) | Wide: 2.2m(7.35ft) / Tele: 15.5m(50.72ft) | |
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
