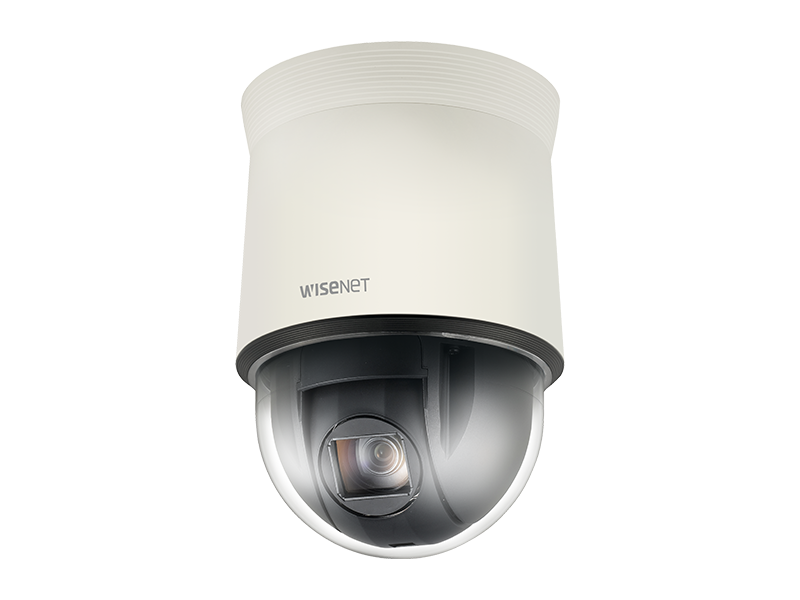

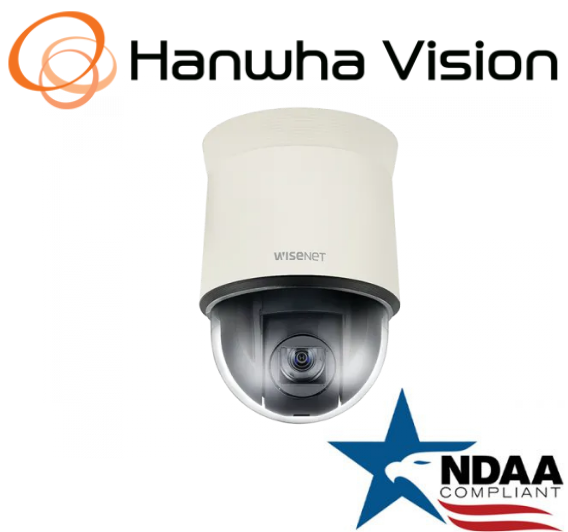

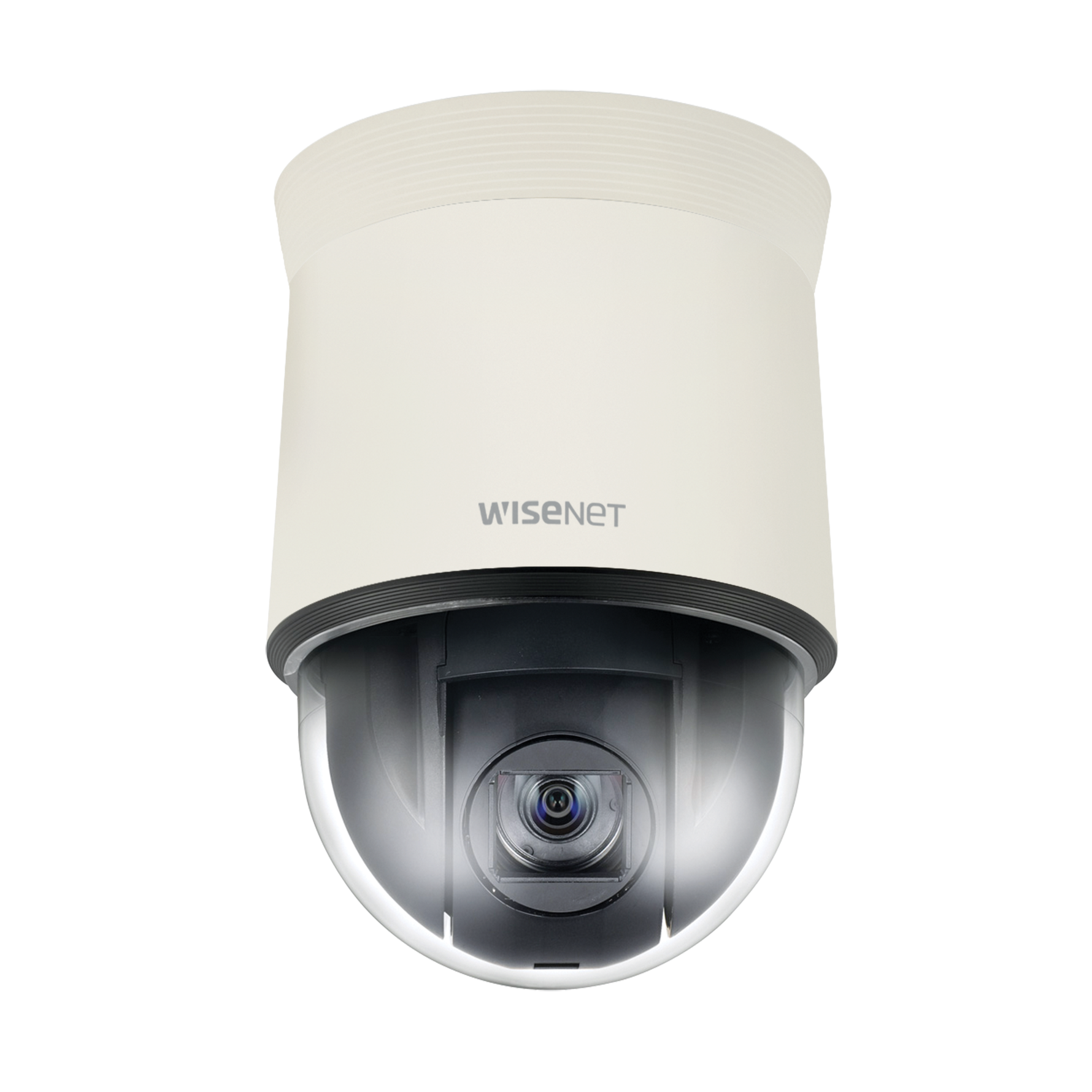

Hanwha Techwin X Series XNP-6320 2MP 32X PTZ Optical Zoom lens Security Camera

XNP-6320

2M H.265 NW 32x PTZ Camera

• IP66, IK10 (with SHP-3701H)

Product Spec

• Video
  Imaging Device		1/2.8" 2MP CMOS
  Resolution		1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
  Max. Framerate		H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
  Min. Illumination		Color: 0.05Lux(F1.6, 1/30sec) B/W: 0.005 Lux(F1.6, 1/30sec)
  Video Out		CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation
  Lens
  Focal Length (Zoom Ratio)		4.44~142.6mm(32x) zoom
  Max. Aperture Ratio		F1.6(Wide)~F4.4(Tele)
  Angular Field of View		H: 61.8°(Wide)~2.19°(Tele) / V: 36.2°(Wide)~1.24°(Tele)
  Min. Object Distance		Wide: 1.5m(4.92ft) / Tele: 2.0m(6.56ft)
  Focus Control		Oneshot AF
  Lens Type		DC auto iris
  Pan / Tilt / Rotate
  Pan Range		360° Endless
  Pan Speed		Preset: 700°/sec, Manual: 0.024°/sec~200°/sec
  Tilt Range		210°(-15°~195°)
  Tilt Speed		Preset: 700°/sec, Manual: 0.024°/sec~200°/sec
  Sequence		Preset(300ea), Swing, Group(6ea), Trace, Tour(1ea), Auto Run, Schedule
  Preset Accuracy		±0.2°
  Operational
  Camera Title		Displayed up to 85 characters
  Day & Night		Auto(ICR)
  Backlight Compensation		BLC, HLC, WDR, SSDR
  Wide Dynamic Range		150dB
  Digital Noise Reduction		SSNRⅤ
  Digital Image Stabilization		Support(built-in gyro sensor)
  Defog		Support
  Motion Detection		8ea, 8point polygonal zones
  Privacy Masking		24ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
  Gain Control		Low / Middle / High
  White Balance		ATW / AWC / Manual / Indoor / Outdoor
  Electronic Shutter Speed		Minimum / Maximum / Anti flicker (2~1/12,000sec)
  Video Rotation		Flip, Mirror
  Analytics		Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
  Serial Interface		RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
  Alarm I/O		Input 4ea / Output 2ea
  Alarm Triggers		Analytics, Network disconnect, Alarm input
  Alarm Events		File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset
  Audio In		Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
  Audio Out		Line out, Max.output level: 1Vrms
  Auto Tracking		Support
  Network
  Ethernet		RJ-45 (10/100BASE-T)
  Video Compression		H.265/H.264: Main/Baseline/High, MJPEG
  Audio Compression		G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
  Smart Codec		Manual(5ea area), WiseStreamⅡ
  Bitrate Control		H.264/H.265: CBR or VBR MJPEG: VBR
  Streaming		Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
  Protocol		IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
  Security		HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
  Application Programming Interface		ONVIF Profile S/G SUNAPI(HTTP API) Wisenet open platform
  General
  Web Viewer		Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
  Edge Storage		Micro SD/SDHC/SDXC 2slot 512GB
  Memory		1024MB RAM, 256MB Flash
  Environmental & Electrical
  Operating Temperature / Humidity		-10°C~+55°C(-14°F~+131°F) / Less than 90% RH
  Storage Temperature / Humidity		-30°C~+60°C(-22°F~+140°F) / Less than 90% RH
  Input Voltage		PoE+(IEEE802.3at, Class4), 24VAC
  Power Consumption		24VAC: Max 20W
  Mechanical
  Color / Material		Ivory / Plastic+Aluminum
  Product Dimensions / Weight		Ø152x218mm(5.98x8.58"), 1.7Kg(3.75 lb)

• • Design and specifications are subject to change without notice.
  • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
