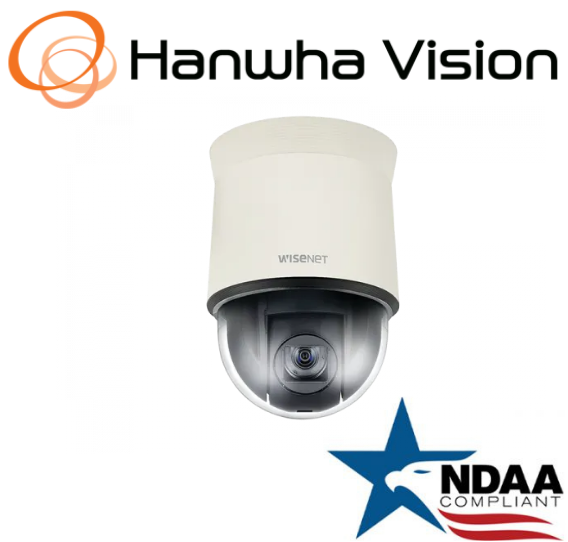

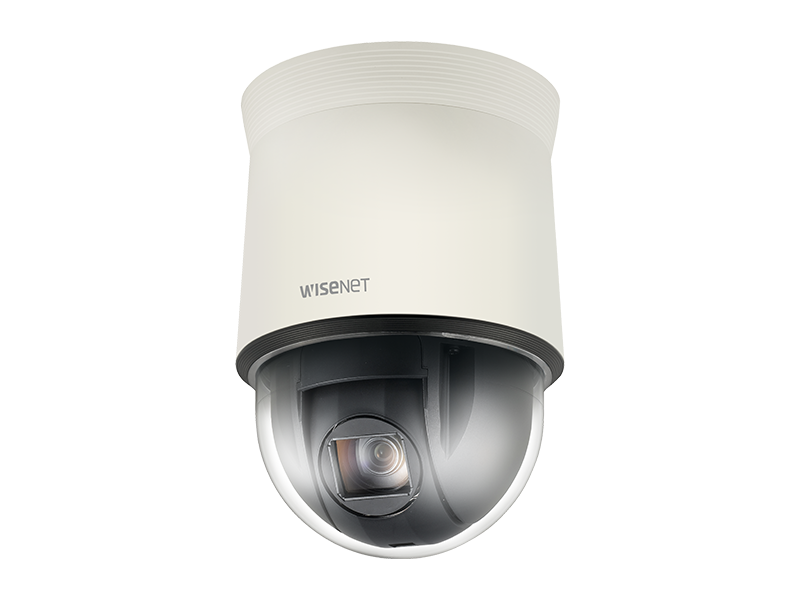

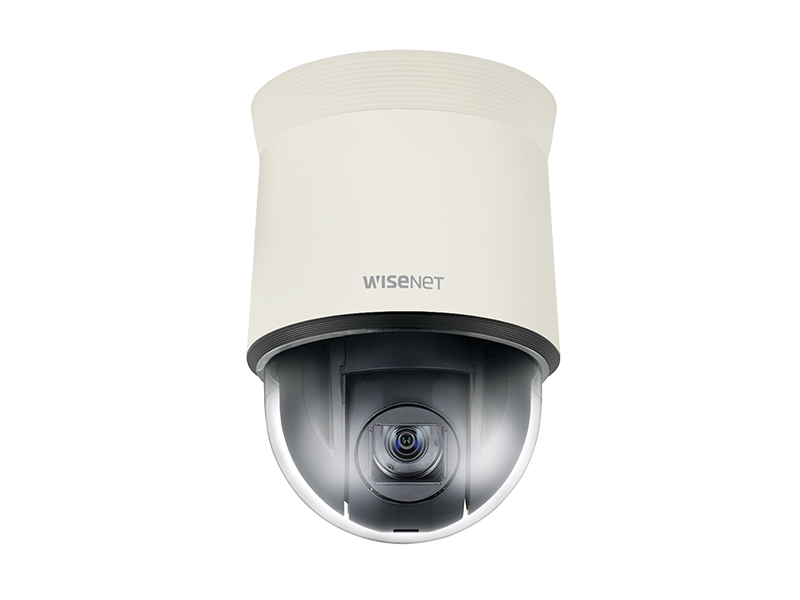

Hanwha Techwin XNP-6321 2MP Network 32x PTZ IP Security Camera 4.44-142.6mm Lens

Hanwha Techwin XNP-6321 2MP Network 32x PTZ IP Security Camera 4.44-142.6mm Lens

XNP-6321

$2,900.00 USD
$2,900.00 USD
Sale Sold out
Shipping calculated at checkout.

Hanwha Techwin XNP-6321 2MP Network 32x PTZ IP Security Camera

XNP-6321

32x 2MP Indoor PTZ

  • 2MP (1920 x 1080) resolution
  • H.265, H.264, MJPEG codec support
  • Multiple streaming, WiseStream II support
  • Day & Night (ICR), WDR (150dB)
  • DIS with Built-in Gyro sensor
  • Intelligent video analytics
  • Dual Memory slots (Max. 512GB)
  • IP66, IK10 (XNP-6321H)
Video
Imaging Device 1/2.8" 2MP CMOS
Effective Pixels 1944(H)x1212(V)
NETD None
Pixel Size None
Min. Illumination Color: 0.05Lux(F1.6, 1/30sec) BW: 0.005 Lux(F1.6, 1/30sec)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 4.44~142.6mm(32x) zoom
Max. Aperture Ratio F1.6(Wide)~F4.4(Tele)
Angular Field of View H: 61.8°(Wide)~2.19°(Tele) / V: 36.2°(Wide)~1.24°(Tele)
Min. Object Distance Wide: 1.5m(4.92ft) / Tele: 2.0m(6.56ft)
Focus Control Oneshot AF
Lens Type DC auto iris
Mount Type None
Optional Lens None
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range None
Pan Range 360˚ Endless
Pan Speed Preset: 700˚/sec, Manual: 0.024˚/sec~200˚/sec
Tilt Range 210˚(-15˚~195˚)
Tilt Speed Preset: 700˚/sec, Manual: 0.024˚/sec~200˚/sec
Rotate Range None
Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy ±0.2˚
Azimuth Support
Auto Tracking None
Operational
IR Viewable Length None
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 150dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 24ea, Rectanglular zone - Color: Grey/Green/Red/Blue/Black/White - Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC None
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Digital PTZ None
Video Rotation Flip, Mirror
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
Business Intelligence None
Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O Input 4ea / Output 2ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset
Audio In Selectable(mic in/line in/built-in mic) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
IR Illuminator (Optional) None
Wiper None
Coaxial Protocol None
Video Transmission Distance None
Radiometry
Temperature detect range None
Temperature accuracy None
Temperature detection None
Additional None
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Smart Codec Manual(5ea area), WiseStremⅡ
Video Quality Adjustment H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Audio Compression G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
Application Programming Interface ONVIF Profile S/G SUNAPI(HTTP API) Wisenet open platform
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Memory 1024MB RAM, 256MB Flash
Environmental
Operating Temperature / Humidity -10°C~+55°C(14°F~+131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C~+60°C(-22°F~+140°F) / Less than 90% RH
Certification None
Electrical
Input Voltage PoE+(IEEE802.3at, Class4), 24VAC
Power Consumption 24VAC: Max. 20W
Mechanical
Color / Material Ivory / Plastic
RAL Code None
Product dimensions / weight Ø152x218mm(5.98x8.58"), 1.7Kg(3.75 lb)
Conduit hole None
Hanging mount(Dome) SBP-301HM3
Skin cover(Dome) None
Weather cap(Dome) None
Power module None
Backbox None
