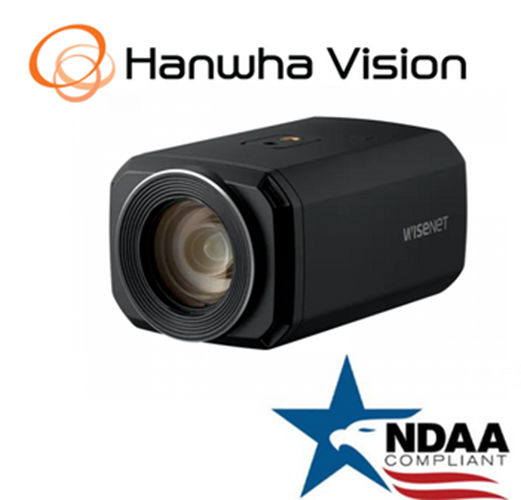

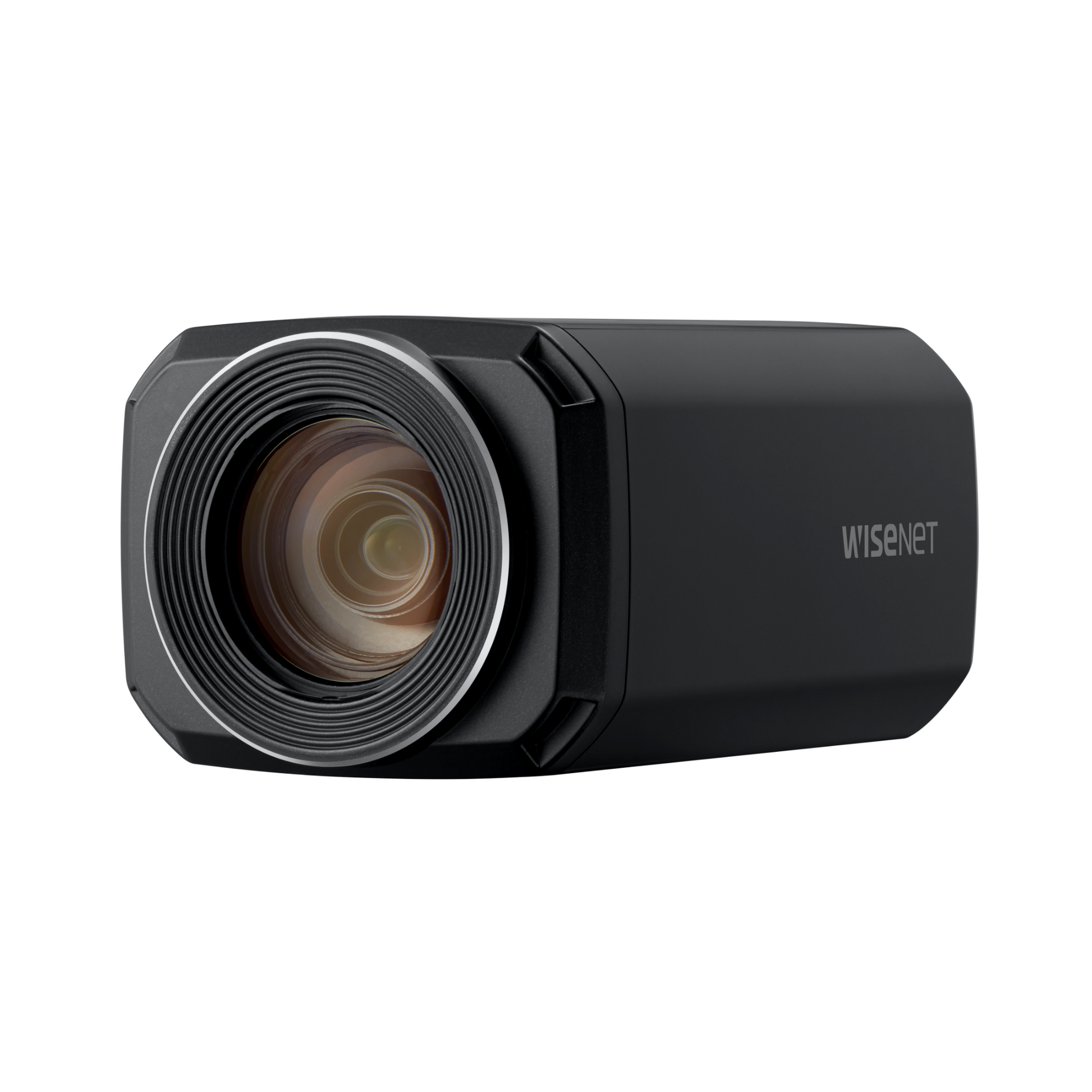

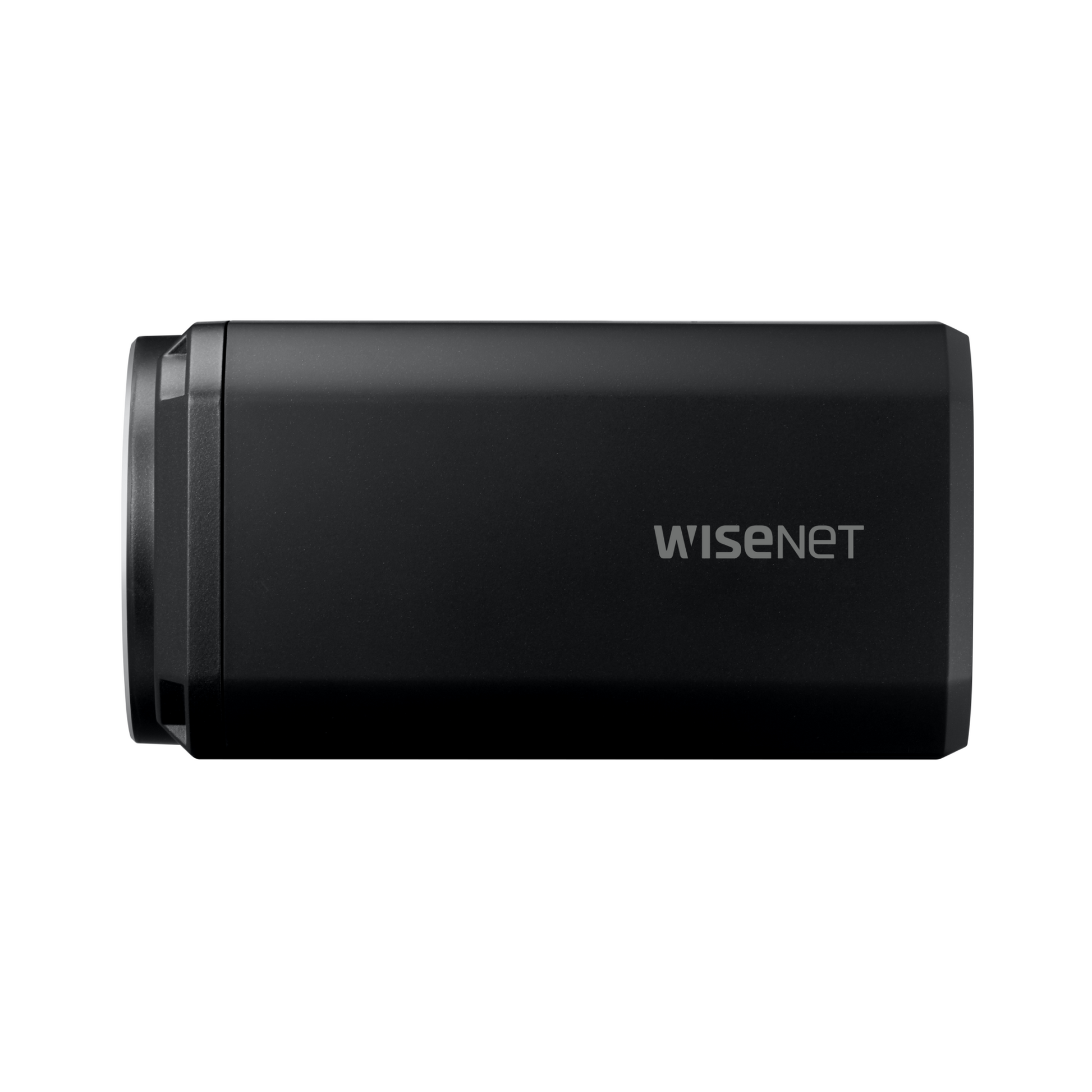

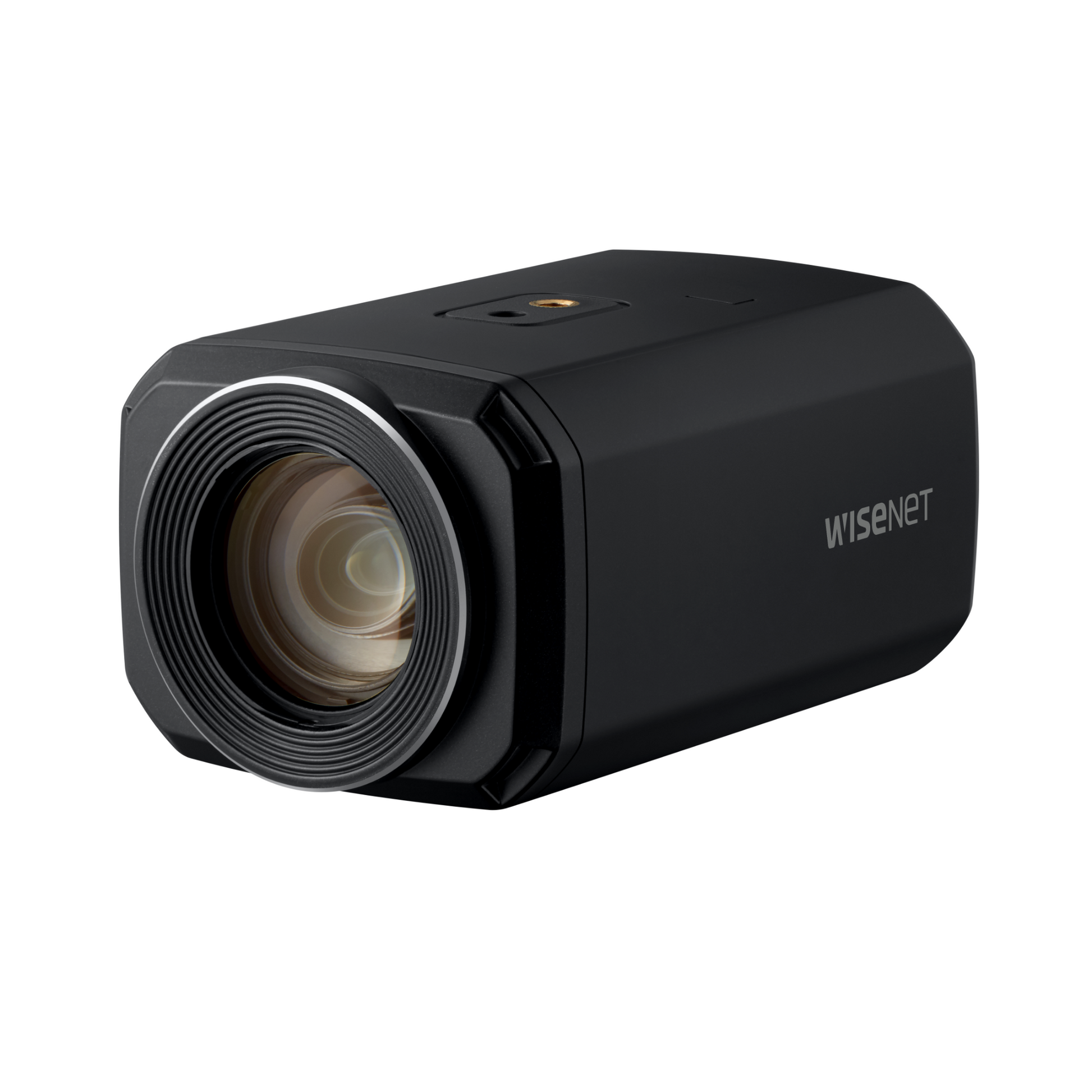

Hanwha Techwin XNZ-6320 2MP IP Security Zoom Box Camera 4.44mm ~142.6mm Lens

XNZ-6320

2M H.265 NW 32x Zoom Camera

• PoE, SFP, SD/SDHC/SDXC memory slot

Product Spec

• Video
  Imaging Device		1/2.8" 2MP CMOS
  Resolution		1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
  Max. Framerate		H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
  Min. Illumination		Color: 0.05Lux (1/30sec, F1.6) B/W: 0.005 Lux (1/30sec, F1.6)
  Video Out		CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation
  Lens
  Focal Length (Zoom Ratio)		4.44 ~ 142.6mm(Optical 32X)
  Max. Aperture Ratio		F1.6(Wide)~F4.4(Tele)
  Angular Field of View		H: 61.8°(Wide)~2.19°(Tele) / V: 36.2°(Wide)~1.24°(Tele)
  Min. Object Distance		Wide 1.5m(4.92ft) ,Tele 2m(6.56ft)
  Focus Control		Auto, One shot AF
  Lens Type		DC Iris
  Operational
  Camera Title		Displayed up to 85 characters
  Day & Night		Auto(ICR)
  Backlight Compensation		BLC, HLC, WDR, SSDR
  Wide Dynamic Range		150dB
  Digital Noise Reduction		SSNRⅤ
  Digital Image Stabilization		Support
  Defog		Support
  Motion Detection		8ea, 8point polygonal zones
  Privacy Masking		32ea, rectangular zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
  Gain Control		Low / Middle / High
  White Balance		ATW / AWC / Manual / Indoor / Outdoor
  Electronic Shutter Speed		Minimum / Maximum / Anti flicker (2~1/12,000sec)
  Video Rotation		Flip, Mirror
  Analytics		Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
  Serial Interface		RS-485/422(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
  Alarm I/O		Input 1ea / Output 2ea
  Alarm Triggers		Analytics, Network disconnect, Alarm input
  Alarm Events		File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset
  Audio In		Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
  Audio Out		Line out, Max.output level: 1Vrms
  Network
  Ethernet		RJ-45(10/100BASE-T), SFP(100BASE-FX)
  Video Compression		H.265/H.264: Main/Baseline/High, MJPEG
  Audio Compression		G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
  Smart Codec		Manual(5ea area), WiseStreamⅡ
  Bitrate Control		H.264/H.265: CBR or VBR MJPEG: VBR
  Streaming		Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
  Protocol		IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
  Security		HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP)
  Application Programming Interface		ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
  General
  Web Viewer		Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
  Edge Storage		Micro SD/SDHC/SDXC 2slot 512GB
  Memory		1024MB RAM, 256MB Flash
  Environmental & Electrical
  Operating Temperature / Humidity		-10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH
  Storage Temperature / Humidity		-30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
  Input Voltage		PoE(IEEE802.3af, Class3), 24VAC, 12VDC
  Power Consumption		PoE: Max 7W 12VDC: Max 6.7W
  Mechanical
  Color / Material		Dark grey / Aluminum
  Product Dimensions / Weight		96 x 76 x 143.5mm, 578g

•
  • Design and specifications are subject to change without notice.
  • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
