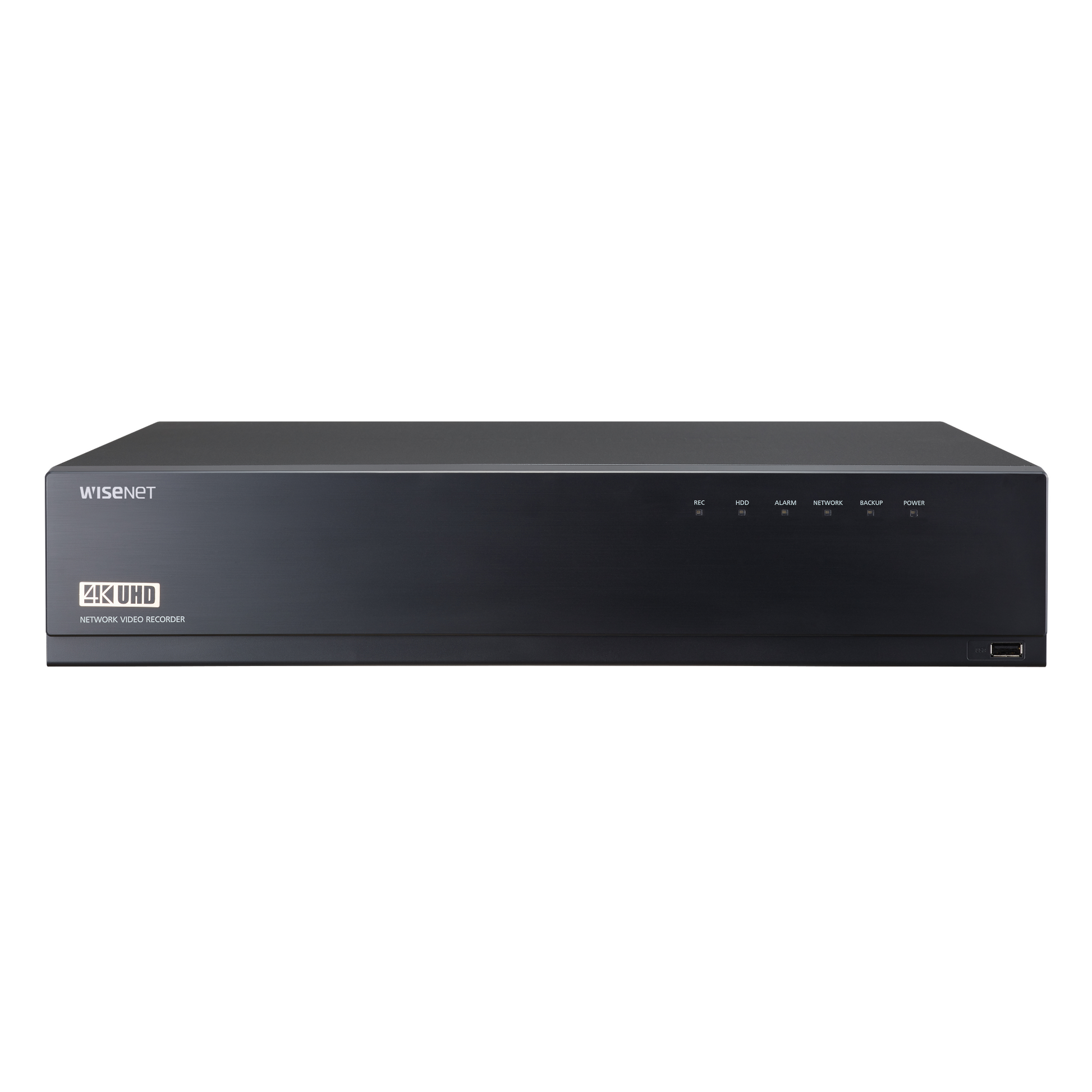

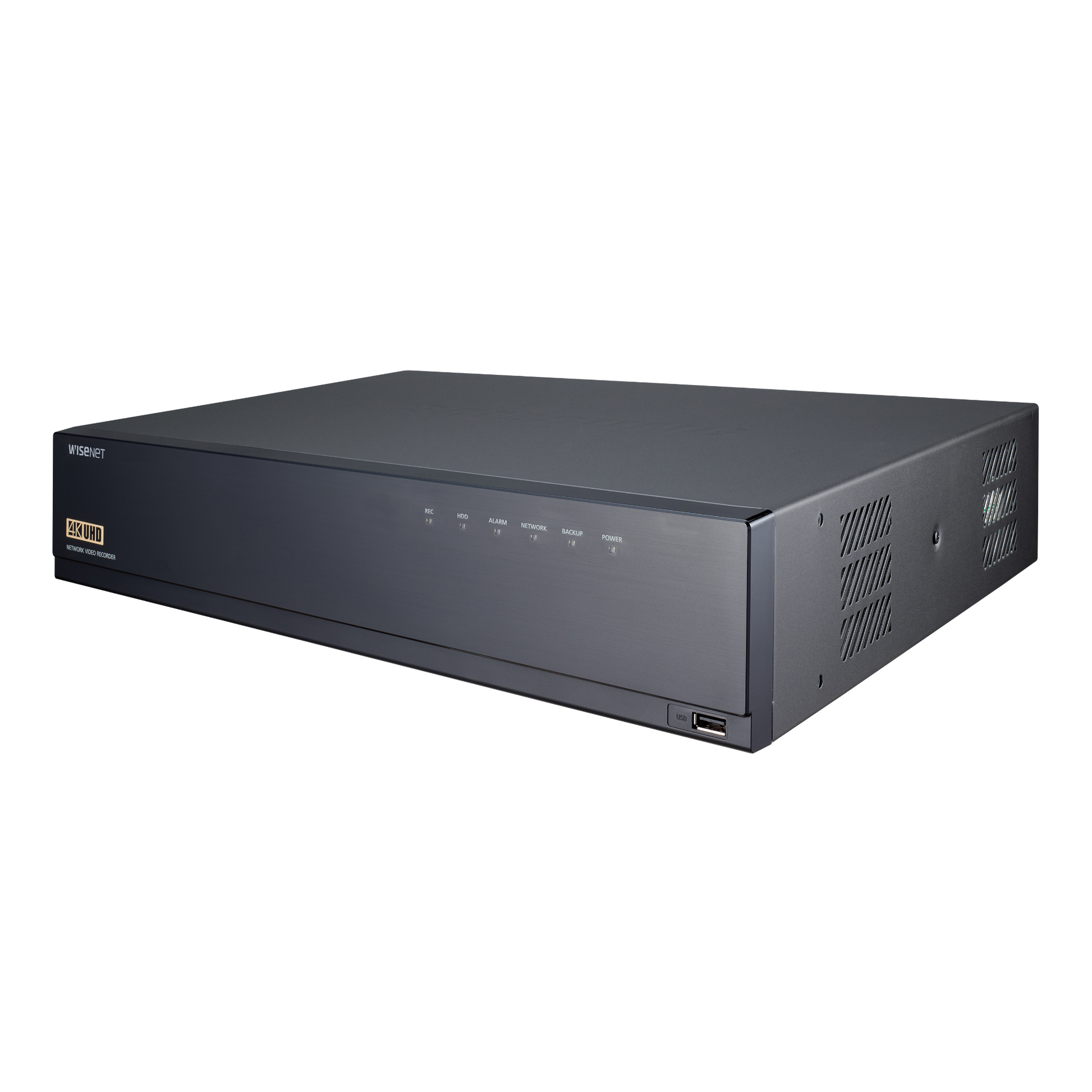

Hanwha Techwin XRN-1610SA-4TB 16CH 12MP Security NVR Recorder with PoE+ 4TB HDD
Hanwha Techwin XRN-1610SA-4TB 16CH 12MP Security NVR Recorder with PoE+ 4TB HDD
SKU:XRN-1610SA-4TB
Regular price
$2,139.99 USD
Regular price
Sale price
$2,139.99 USD
Unit price
/
per
Hanwha Techwin XRN-1610SA-4TB 16CH 12MP H.265 Security NVR Recorder with PoE+
XRN-1610SA-4TB
16CH 12M H.265 NVR with PoE Switch
• Up to 16CH 12megapixel supported
• H.265, H.264, MJPEG codec supported
• WiseStream support
• 180Mbps network camera recording
• Plug & play by 16 PoE/PoE+ ports
• Max. 4HDDs, e-SATA storage supported
• HDMI / VGA local monitor
• P2P service (QR code connect) support
• H.265, H.264, MJPEG codec supported
• WiseStream support
• 180Mbps network camera recording
• Plug & play by 16 PoE/PoE+ ports
• Max. 4HDDs, e-SATA storage supported
• HDMI / VGA local monitor
• P2P service (QR code connect) support
Product Spec
Display
Network camera
Inputs
Max. 16CH
Resolution
12MP ~ CIF
Protocols
Wisenet, ONVIF
Decoding
Local Display
[Dual Display]
HDMI: 3840 x 2160, 1920x1080, 1280x720
VGA: 1920x1080, 1280x720
Resolution
12MP(30fps), 8MP(120fps), 5MP(180fps), 3MP(240fps), 2MP(480fps), 720p(480fps), D1(480fps)
Performance
Record
Compression
H.265, H.264, MJPEG
Recording Bandwidth
Max. 180Mbps
Resolution
12MP ~ CIF
Mode
Normal, Schedule(Continuous/Event), Event (Pre/Post)
Event Trigger
Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus)
Event Action
e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out
Search & Play
Playback Bandwidth
Max. 32Mbps(16CH simultaneously)
User
Max. 4 Users (Local 1, Remote 3)
Simultaneous playback
Max. 16CH(Local Monitor, Network)
Fisheye Dewarping
WEB / CMS
Storage
Supported HDD
Up to 6TB
HDD Slot
SATA 4ea(Max. 24TB)
External
iSCSI storage(Max. 384TB)
Backup
File backup
BU/Exe(GUI), JPG/AVI(Network)
Function
Multi channel(Upto 16CH) Play, Date-Time/Title display
Network
Protocol
IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS
Wisenet DDNS
Transmission Bandwidth
Max. 256Mbps (iSCSI off)
Max. 128Mbps (iSCSI on)
Audio
Input/Output
16 CH(network)
Compression
G.711, G.726, AAC(16/48KHz)
Audio Communication
2-Way
Max Remote Users
Search(3), Live Unicast(10), Multicast(20)
Security
IP address filtering, User access Log, 802.1x, Encryption
Web viewer
Supported OS
Window XP (Service pack 2 or above), Vista, 7, 8, 10, Mac OS X (10.7 or above)
Supported browser
Plug-in free Webviewer
- Supported Browser : Google Chrome 47, MS Edge 20
- WMF : 1CH live (800 x 600), Setup
Plug-in Webviewer
- Supported Browser : MS Explore 11, Mozilla Firefox 43 , Apple Safari 9 * Mac OS X only
Viewer Software
SSM, Webviewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS
Functions
Camera Setup
Item
IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ
Control
Via GUI, Webviewer, SPC-2000
Smart phone
Support Model
iOS, Android
Protocol Support
RTP, RTSP, HTTP, CGI(SUNAPI)
Control
Live(Multi-Profile Support), Playback
Max. Remote Users
Search(3), Live Unicast(10)
Redundancy
ARB
Support
Easy configuration
P2P(QR code)

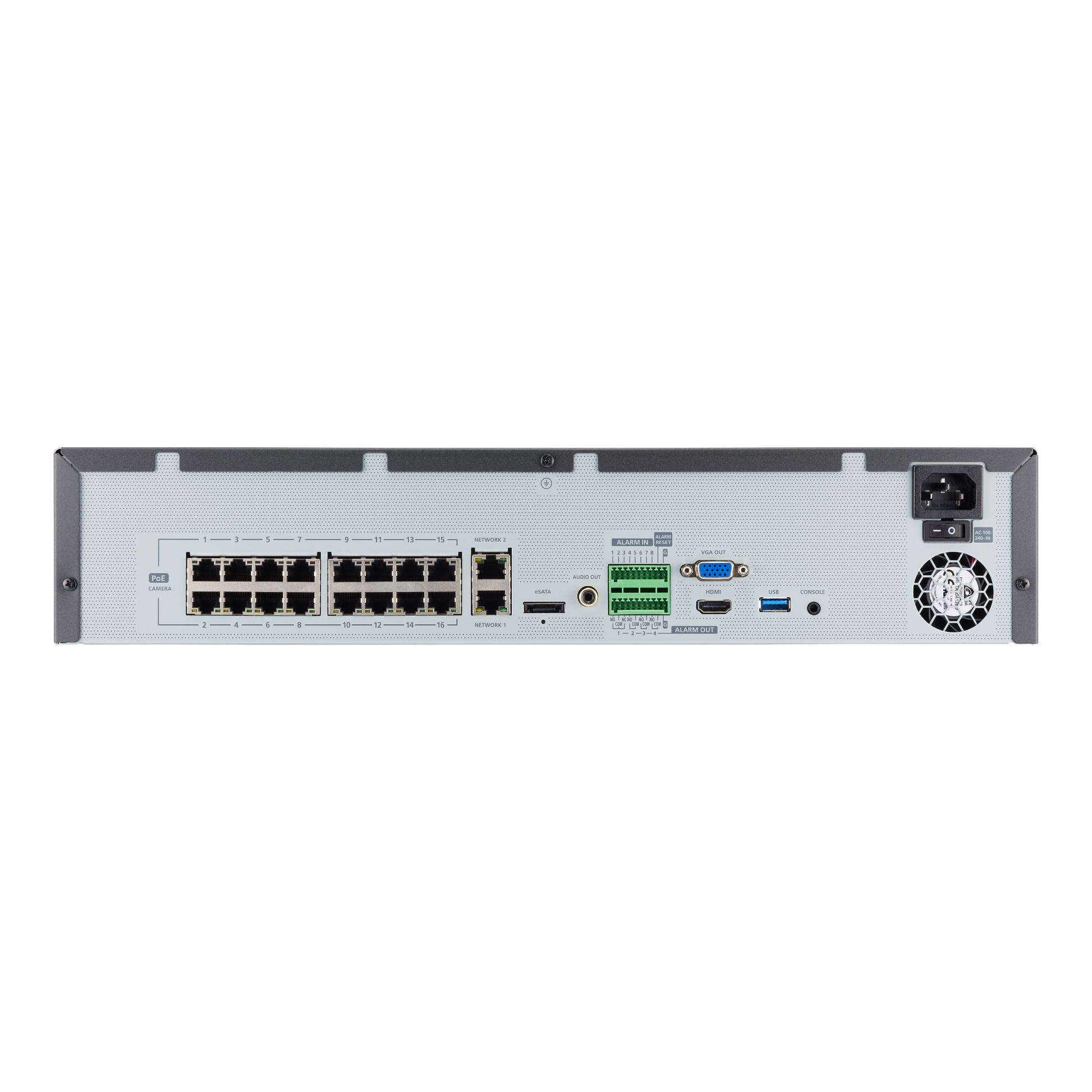

Interface
HDMI
1EA
VGA
1EA
e-SATA
1EA
Audio
Out(1EA, RCA, Line)
Ethernet
RJ-45(10/100/1000BASE-T) x 2
RJ-45(PoE+) x 16
Alarm
In 8EA, Out 4EA
USB
2EA(Front 1, Rear 1)
Power inlet
AC 1EA
System
System Control
Mouse, IR remocon, Web, Controller (SPC-2000)
Language
English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
Environmental
Operating Temperature
0°C to +40°C(32℉ to 104℉)
Operating Humidity
20% ~ 85% RH
Electrical
Power Input
100~240VAC±10%
Power Consumption
Max. 271.9W (4 HDDs, PoE/PoE+ On)
Max. 51.9W (4 HDDs, PoE/PoE+ Off)
PoE Budget
Max. 220W
Mechanical
Color / Material
Black / Metal
Dimension (WxHxD)
440.0 x 88.0 x 384.8mm (17.32" x 3.46" x 15.15") (2U)
Weight
5.1Kg (11.24lb)
-
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
Display Network camera Inputs Max. 16CH Resolution 12MP ~ CIF Protocols Wisenet, ONVIF Decoding Local Display [Dual Display]
HDMI: 3840 x 2160, 1920x1080, 1280x720
VGA: 1920x1080, 1280x720Resolution 12MP(30fps), 8MP(120fps), 5MP(180fps), 3MP(240fps), 2MP(480fps), 720p(480fps), D1(480fps) Performance Record Compression H.265, H.264, MJPEG Recording Bandwidth Max. 180Mbps Resolution 12MP ~ CIF Mode Normal, Schedule(Continuous/Event), Event (Pre/Post) Event Trigger Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus) Event Action e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out Search & Play Playback Bandwidth Max. 32Mbps(16CH simultaneously) User Max. 4 Users (Local 1, Remote 3) Simultaneous playback Max. 16CH(Local Monitor, Network) Fisheye Dewarping WEB / CMS Storage Supported HDD Up to 6TB HDD Slot SATA 4ea(Max. 24TB) External iSCSI storage(Max. 384TB) Backup File backup BU/Exe(GUI), JPG/AVI(Network) Function Multi channel(Upto 16CH) Play, Date-Time/Title display Network Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) DDNS Wisenet DDNS Transmission Bandwidth Max. 256Mbps (iSCSI off)
Max. 128Mbps (iSCSI on)Audio Input/Output 16 CH(network) Compression G.711, G.726, AAC(16/48KHz) Audio Communication 2-Way Max Remote Users Search(3), Live Unicast(10), Multicast(20) Security IP address filtering, User access Log, 802.1x, Encryption Web viewer Supported OS Window XP (Service pack 2 or above), Vista, 7, 8, 10, Mac OS X (10.7 or above) Supported browser Plug-in free Webviewer
- Supported Browser : Google Chrome 47, MS Edge 20
- WMF : 1CH live (800 x 600), Setup
Plug-in Webviewer
- Supported Browser : MS Explore 11, Mozilla Firefox 43 , Apple Safari 9 * Mac OS X onlyViewer Software SSM, Webviewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3'rd party VMSFunctions Camera Setup Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera WebpagePTZ Control Via GUI, Webviewer, SPC-2000 Smart phone Support Model iOS, Android Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI) Control Live(Multi-Profile Support), Playback Max. Remote Users Search(3), Live Unicast(10) Redundancy ARB Support Easy configuration P2P(QR code) Interface HDMI 1EA VGA 1EA e-SATA 1EA Audio Out(1EA, RCA, Line) Ethernet RJ-45(10/100/1000BASE-T) x 2
RJ-45(PoE+) x 16Alarm In 8EA, Out 4EA USB 2EA(Front 1, Rear 1) Power inlet AC 1EA System System Control Mouse, IR remocon, Web, Controller (SPC-2000) Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai Environmental Operating Temperature 0°C to +40°C(32℉ to 104℉) Operating Humidity 20% ~ 85% RH Electrical Power Input 100~240VAC±10% Power Consumption Max. 271.9W (4 HDDs, PoE/PoE+ On)
Max. 51.9W (4 HDDs, PoE/PoE+ Off)PoE Budget Max. 220W Mechanical Color / Material Black / Metal Dimension (WxHxD) 440.0 x 88.0 x 384.8mm (17.32" x 3.46" x 15.15") (2U) Weight 5.1Kg (11.24lb) -
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
