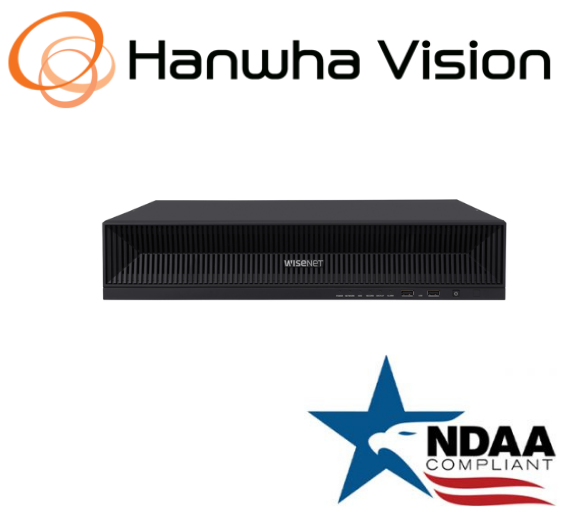

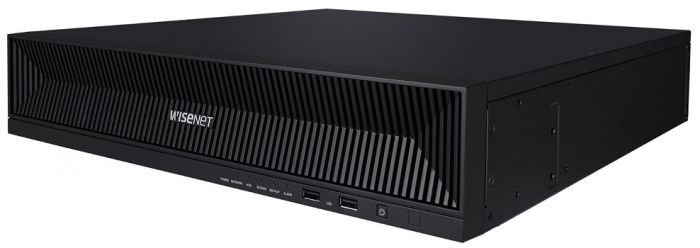

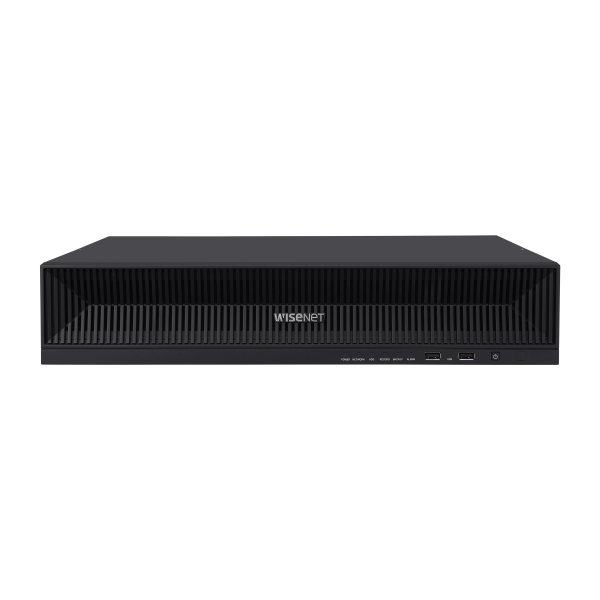

Hanwha Techwin WiseNet XRN-1620SB1-12TB HDD 16CH 32M H.265 PoE+ NVR IP Security Recorder

XRN-1620SB1

16CH NVR

Product Specification

• Display
  Network camera
  	Inputs	Max. 16CH
  	Resolution	32MP ~ CIF
  	Protocols	SUNAPI, ONVIF
  Decoding
  	Local Display	FHD : HDMI & VGA Dual monitor UHD : HDMI Single monitor
  	Multi Screen Display	[Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9/ 13/ 16/ Sequence [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
  	Resolution	[Local Monitior] FHD Clone mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(480fps) UHD Single mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(270fps) FHD Expand mode: 32M(12fps, H.265 Only), 12M(25fps, H.265 Only), 8.3M(30fps), 1080p(90fps), D1(200fps) Clone/Single mode : MAX 15fps when displaying more than 10CH Expand mode : Up to 9 divisions, Max 15fps when displaying more than 8CH
  Performance
  Operating System
  	Embedded	Linux
  Record
  	Compression	H.265, H.264, MJPEG
  	Recording Bandwidth	Max. 140Mbps
  	Resolution	32MP ~ CIF
  	Mode	Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
  	Event Trigger	Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event
  	Event Action	e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out
  Search & Play
  	Playback Bandwidth	Max. 32Mbps
  	User	Max. 4 Users (Local 1, Remote 3)
  	Simultaneous playback	Max. 64CH(Local 16CH, Remote 16CH per user)
  	Fisheye Dewarping	CMS
  	Mode	Date & Time(Calendar), Event list, Text Search, Smart Search
  	Resolution	CIF ~ 32MP (Up to H.264 8.3MP, H.265 32MP)
  	Playback Control	Fast/Slow Forward / Backward, Move one step Up / Down
  Storage
  	Supported HDD	Up to 6TB
  	HDD Slot	SATA 4ea(Max. 24TB)
  Backup
  	File backup	BU/Exe(GUI), JPG/AVI(Network)
  	Function	Multi channel(Up to 16CH) Play, Date-Time/Title display
  Network
  Protocol		IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
  DDNS		Hanwha DDNS
  Transmission Bandwidth		Max. 140Mbps
  Audio
  	GUI	16 CH(network)
  	Web	G.711, G.726, AAC(16/48KHz)
  	Audio Communication	2-Way
  Max Remote Users		Search(3), Live Unicast(10), Multicast(20)
  Security		IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
  Web viewer
  	Supported OS	Windows 10, macOS 10.13
  	Supported browser	Google Chrome, Microsoft Edge, Mac Safari, Firefox
  Viewer Software		WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS
  Functions
  Camera Setup
  	Register	Auto, Manual
  	Item	IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
  PTZ
  	Control	Via GUI, Webviewer, SPC-2000
  	Preset	300 Presets
  Smart phone
  	Support Model	iOS, Android
  	Protocol Support	RTP, RTSP, HTTP, CGI(SUNAPI)
  	Control	Live 16CH(Multi-Profile Support), Playback 4CH
  	Max. Remote Users	Search(3), Live Unicast(10)
  Redundancy
  	Failover	N+1
  	ARB	Support
  Easy configuration		P2P(QR code)
  Interface
  Front
  	Indicator	HDD, Alarm, Power, Record, Backup, Network
  Storage		OK
  HDMI		1EA 3840x2160 30Hz
  VGA		1EA 1920x1080 60Hz
  Audio		Out 1EA
  Ethernet		PoE RJ-45 16EA (LAN, 10/100), RJ-45 2ea (LAN/WAN 1Gbps)
  Alarm		In 4EA, Out 2EA
  USB		3EA(Front 2 x USB 2.0, Rear 1 x USB 3.0)
  Power inlet		AC 1EA
  System
  Log
  	Log List	Max. 100,000 (System Log, Event Log each)
  System Control		Mouse, Web, Controller (SPC-2000)
  Language		English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
  Environmental
  Operating Temperature		0°C to +40°C(32℉ to 104℉)
  Operating Humidity		20% ~ 85% RH
  Electrical
  Power Input		100 ~ 240 VAC ±10%; 50/60 Hz
  Power Consumption		Max. 310W
  PoE Budget		200W
  Mechanical
  Color / Material		Black
  Dimension (WxHxD)		440 x 89.8 x 428.4 mm
  Weight		5.76Kg
  Intelligent Analysis
  AI Search
  	Object Attribute	Compatible for Wisenet AI Camera

•
  • Design and specifications are subject to change without notice.
  • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
