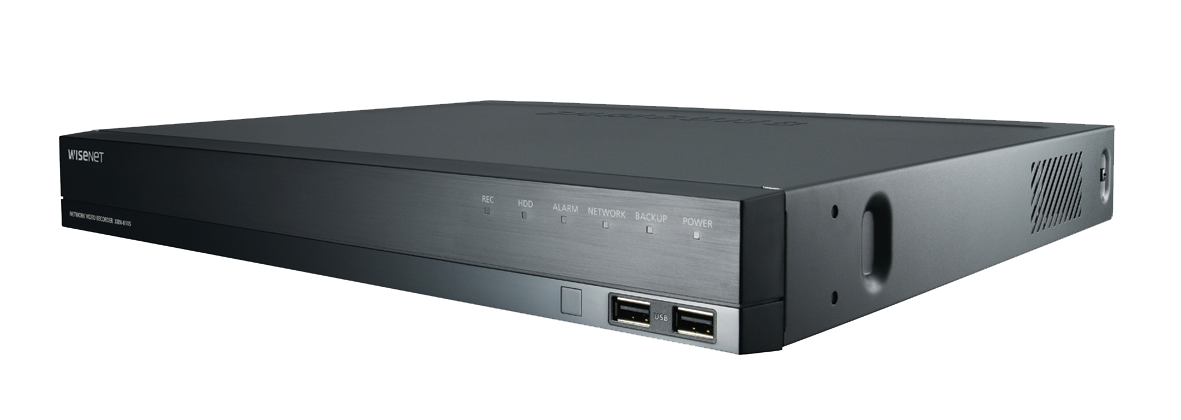

Hanwha Techwin XRN-820S-2TB HDD 8CH 32MP H.265  PoE+ NVR IP Security Recorder

XRN-820S-2TB

8 CH PoE NVR

• Up to 8 channels, 8 megapixel supported
• H.265, H.264, MJPEG codec supported
• 80Mbps network camera recording
• Plug & play with 8 PoE+ ports, 65W budget
• Maximum 1 HDD (up tp 6Tb) supported
• HDMI local monitor
• P2P service (QR code connect) support
• Dual track recording, 4K HDMI monitor out

Specifications

Inputs	None
Signal Type	None
Inputs	Max. 8CH
Resolution	8MP ~ CIF
Protocols	Wisenet, ONVIF
Local Display	HDMI: 3840 x 2160, 1920x1080, 1280x720
Multi Screen Display	None
Resolution	8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(240fps), 720p(240fps), D1(240fps)
Local Display	None
Multi Screen Display	None
Resolution	None
Embedded	None
Compression	H.265, H.264, MJPEG
Record Rate(Analog)	None
Recording Bandwidth	Max. 80Mbps
Resolution	8MP ~ CIF
Mode	Normal, Schedule(Continuous/Event), Event (Pre/Post), Dual track Recording
Event Trigger	Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus)
Event Action	e-Mail, PTZ Preset, Buzzer, Monitor Out
Playback Bandwidth	Max. 32Mbps(8CH simultaneously)
User	Max. 4 Users (Local 1, Remote 3)
Simultaneous playback	Max. 8CH(Local Monitor, Network)
Fisheye Dewarping	WEB / CMS / Mobile
Mode	None
Resolution	None
Playback Control	None
Supported HDD	Up to 6TB
HDD Slot	SATA 1ea(Max. 6TB)
External	None
RAID	None
File backup	BU/Exe(GUI), JPG/AVI(Network)
Function	Multi channel(Upto 8CH) Play, Date-Time/Title display
Wired(LAN)	None
WiFi	None
3G/LTE	None
Input/Output	8CH(network)
Compression	G.711, G.726, AAC(16/48KHz)
Audio Communication	2-Way
Supported OS	None
Supported browser	None
Register	None
Item	IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Wisestream, Dynamic GOV/FPS, VA Setup Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
Control	Via GUI, Webviewer
Preset	None
Support Model	iOS, Android
Protocol Support	RTP, RTSP, HTTP, HTTPS, CGI(SUNAPI)
Control	Live(Multi-Profile Support), Playback
Max. Remote Users	Search(3), Live Unicast(10)
Failover	None
ARB	Support
Indicator	None
Log List	None
Shutdown Delay	None
Startup Delay	None
Indicator	None
Emergency Button	None
Audio/Power Switch	None
Main I/O	None
Color / Material	None
Dimension (WxHxD)	None
Weight	None
