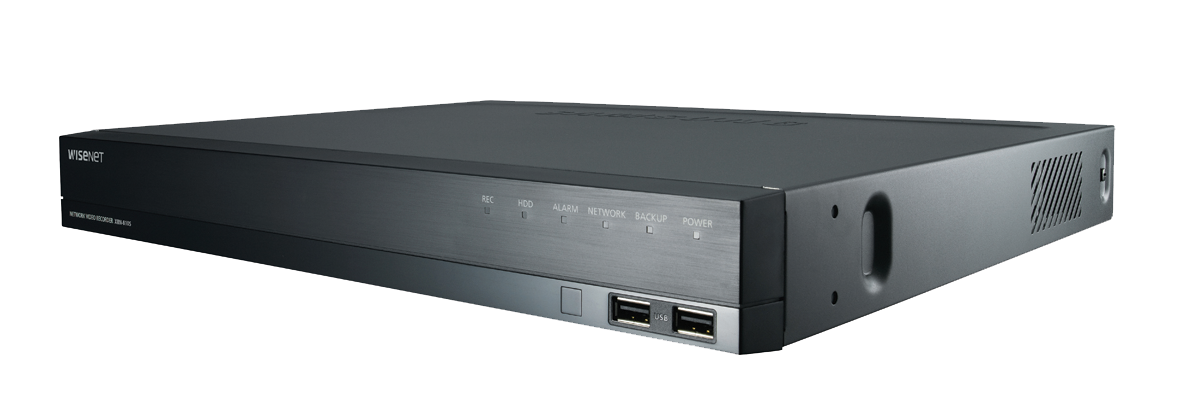

Hanwha Techwin XRN-820S 8CH 32MP H.265 PoE+ NVR IP Security Recorder No-HDD

Hanwha Techwin XRN-820S 8CH 32MP H.265 PoE+ NVR IP Security Recorder No-HDD

XRN-820S

$1,367.00 USD
$1,367.00 USD
Sale Sold out
Shipping calculated at checkout.

Hanwha Techwin XRN-820S 8CH 32MP H.265 PoE+ NVR IP Security Recorder No HDD

XRN-820S

8CH 4K 100Mbps H.265 NVR


  • Up to 8 channels, Supports up to 32 megapixel camera resolution
  • 100Mbps network camera recording
  • Support 4K video out on HDMI monitor
  • Support dual monitor HDMI/VGA video out
  • H.265, H.264, MJPEG compression
  • WiseStream support
  • Maximum 2 internal HDDs (12TB)
  • ARB & failover (N+1), dynamic event, Wisenet AI metadata search support

Product Specification

  • Display
    Network camera
    Inputs Max. 8CH
    Resolution 32MP ~ CIF
    Protocols SUNAPI, ONVIF
    Decoding
    Local Display FHD : HDMI & VGA Dual monitor
    UHD : HDMI Single monitor
    Multi Screen Display [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9/ Sequence
    [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
    Resolution [Local Monitior]
    FHD Clone mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(480fps)
    UHD Single mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(270fps)
    FHD Expand mode: 32M(12fps, H.265 Only), 12M(25fps, H.265 Only), 8.3M(30fps), 1080p(90fps), D1(200fps)
    Expand mode : Max 15fps when displaying 8CH
    Performance
    Operating System
    Embedded Linux
    Record
    Compression H.265, H.264, MJPEG
    Recording Bandwidth Max. 100Mbps
    Resolution 32MP ~ CIF
    Mode Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
    Event Trigger Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event
    Event Action e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out
    Search & Play
    Playback Bandwidth Max. 32Mbps
    User Max. 4 Users (Local 1, Remote 3)
    Simultaneous playback Max. 32CH(Local 8CH, Remote 8CH per user)
    Fisheye Dewarping CMS
    Mode Date & Time(Calendar), Event list, Text Search, Smart Search
    Resolution CIF ~ 32MP (Up to H.264 8.3MP, H.265 32MP)
    Playback Control Fast/Slow Forward / Backward, Move one step Up / Down
    Storage
    Supported HDD Up to 6TB
    HDD Slot SATA 2ea(Max. 12TB)
    Backup
    File backup BU/Exe(GUI), JPG/AVI(Network)
    Function Multi channel(Up to 8CH) Play, Date-Time/Title display
    Network
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
    DDNS Hanwha DDNS
    Transmission Bandwidth Max. 100Mbps
    Audio
    GUI 8 CH(network)
    Web G.711, G.726, AAC(16/48KHz)
    Audio Communication 2-Way
    Max Remote Users Search(3), Live Unicast(10), Multicast(20)
    Security IP address filtering, User access Log, 802.1x, Encryption
    Device certificate(Hanwha Techwin Root CA), Signed firmware
    Web viewer
    Supported OS Windows 10, macOS 10.13
    Supported browser Google Chrome, Microsoft Edge, Mac Safari, Firefox
    Viewer Software WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile
    Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS
    Functions
    Camera Setup
    Register Auto, Manual
    Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon)
    Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
    PTZ
    Control Via GUI, Webviewer, SPC-2000
    Preset 300 Presets
    Smart phone
    Support Model iOS, Android
    Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
    Control Live 8CH(Multi-Profile Support), Playback 4CH
    Max. Remote Users Search(3), Live Unicast(10)
    Redundancy
    Failover N+1
    ARB Support
    Easy configuration P2P(QR code)
    Interface
    Front
    Indicator HDD, Alarm, Power, Record, Backup, Network
    Storage OK
    HDMI 1EA 3840x2160 30Hz
    VGA 1EA 1920x1080 60Hz
    Audio Out 1EA
    Ethernet PoE RJ-45 8EA (LAN, 10/100), RJ-45 2ea (LAN/WAN 1Gbps)
    Alarm In 4EA, Out 2EA
    USB 3EA(Front 2 x USB 2.0, Rear 1 x USB 3.0)
    Power inlet AC 1EA
    System
    Log
    Log List Max. 100,000 (System Log, Event Log each)
    System Control Mouse, Web, Controller (SPC-2000)
    Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
    Environmental
    Operating Temperature 0°C to +40°C(32℉ to 104℉)
    Operating Humidity 20% ~ 85% RH
    Electrical
    Power Input 100 ~ 240 VAC ±10%; 50/60 Hz
    Power Consumption Max 160W
    PoE Budget 100W
    Mechanical
    Color / Material Black
    Dimension (WxHxD) 370 x 50.7 x 324.3 mm
    Weight 2.7Kg
    Intelligent Analysis
    AI Search
    Object Attribute Compatible for Wisenet AI Camera
  • • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
