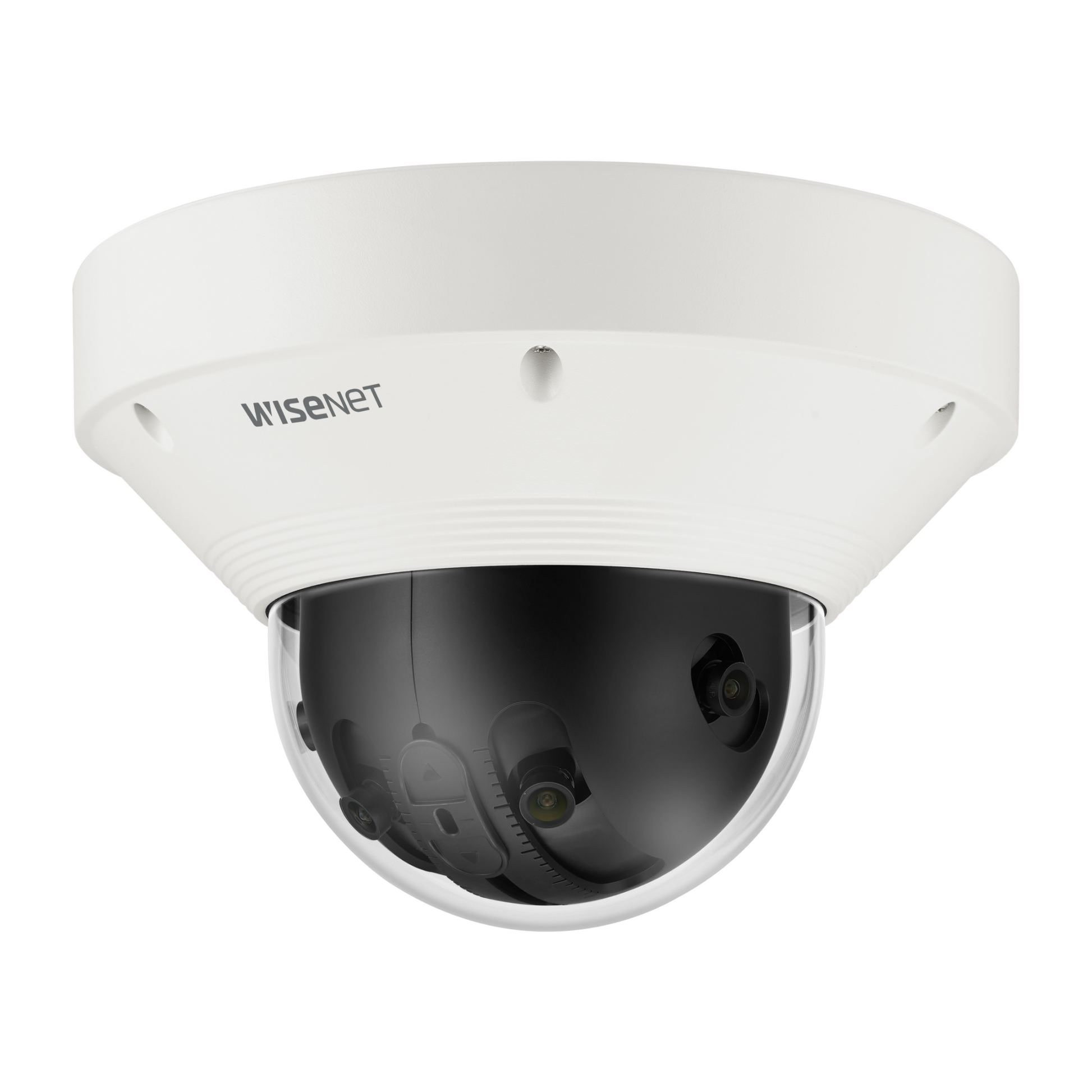

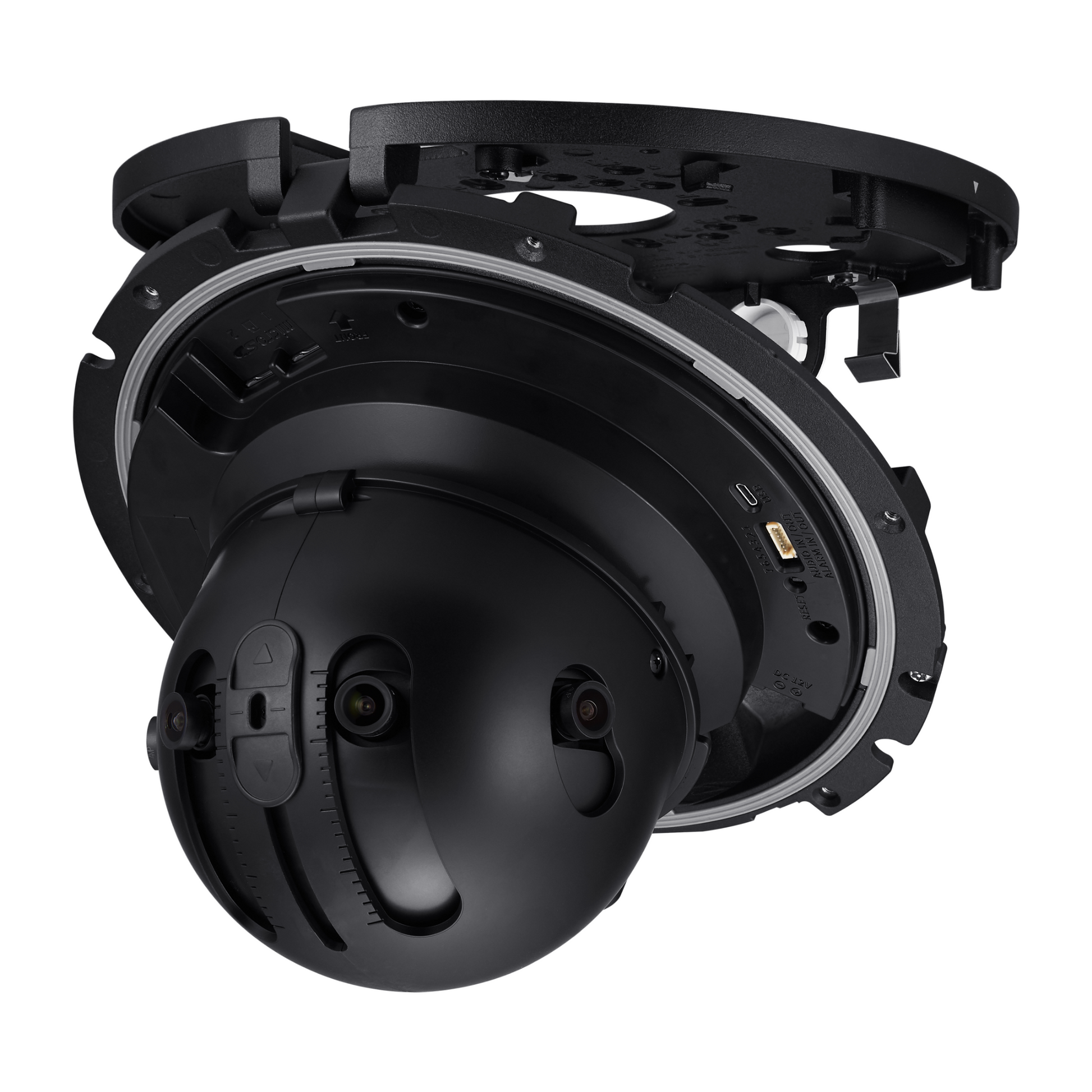

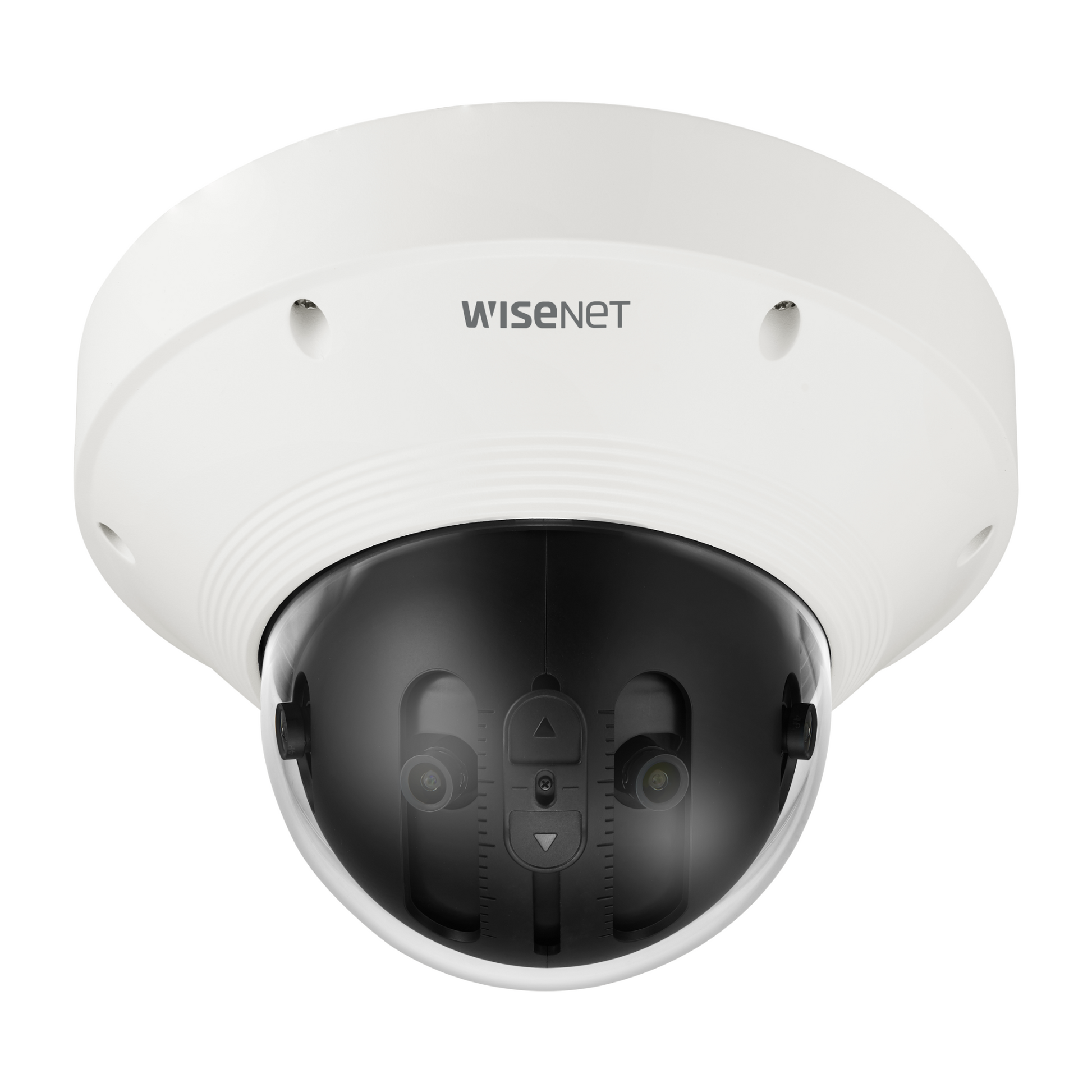

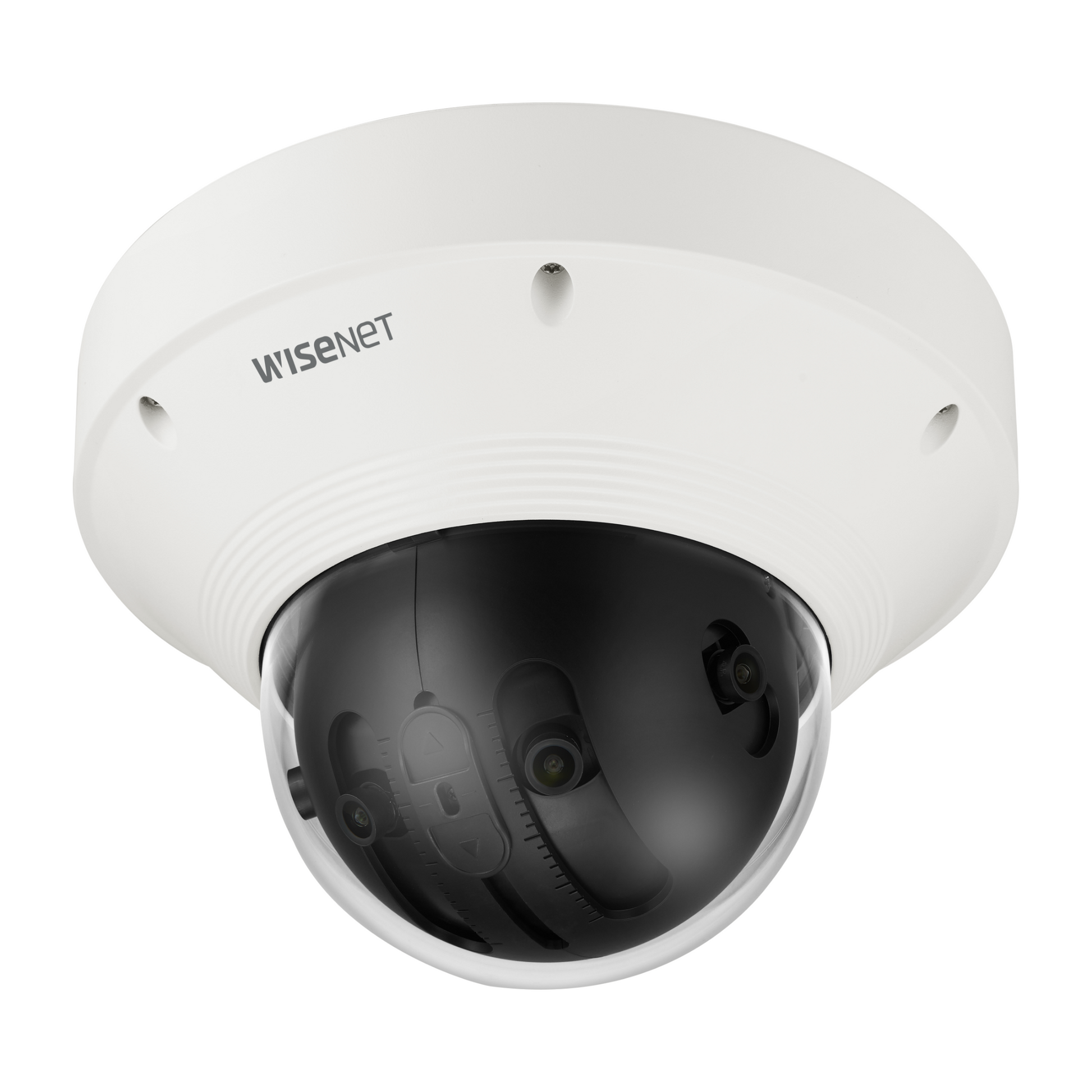

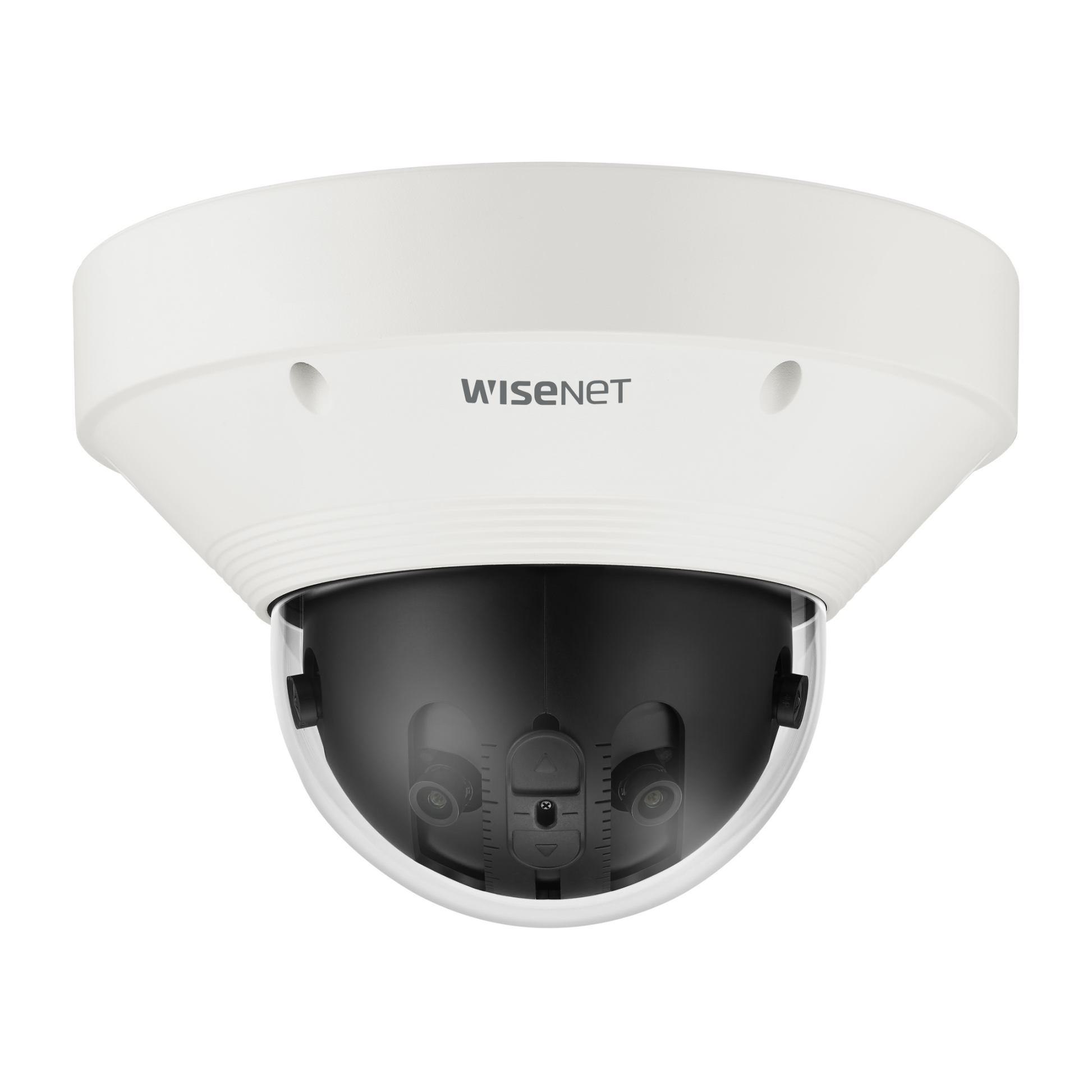

HanwhaTechwin PNM-9022V 8.3MP Panoramic MultiSensor IP Security Camera 2.8mmLens

HanwhaTechwin PNM-9022V 8.3MP Panoramic MultiSensor IP Security Camera 2.8mmLens

SKU:PNM-9022V

Regular price $1,800.00 USD
Regular price Sale price $1,800.00 USD
Sale Sold out
Shipping calculated at checkout.
Hanwha Techwin PNM-9022V WN7 Panoramic Multi-sensor Security Camera

PNM-9022V

2MP x 4CH H.265 Panoramic 209˚ Camera

• Max. 2MP x 4CH
• 209° Mode, 180° Mode support
• 2.8mm fixed focal lens x 4
• H.265/H.264 : Max. 30fps
• MJPEG : Max. 30fps
• extreme WDR (120dB)
• H.265, H.264, MJPEG codec, WiseStreamII supported
• Digital PTZ Support (2CH)
• Tampering, Heatmap
• IP66, IK10, NEMA4X

Product Specification

  • Video
    Imaging Device 1/2.8" CMOS x 4
    Resolution [209° Mode]
    4608X1800, 4032X1576, 3456X1352, 2864X1124,
    2304X900, 1728X676, 1152X452, 560X224, 720x576

    [180° Mode]
    4096X1800, 3584X1576, 3072X1352, 2560X1124,
    2048X900, 1536X676, 1024X452, 512X224, 720X576
    Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
    MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    Min. Illumination Color : 0.1 Lux (F1.6,1/30sec)
    B/W : 0.01 Lux (F1.6,1/30sec)
    Video Out USB : Micro USB Type B, 1280x720 for installation
    Lens
    Focal Length (Zoom Ratio) 2.8mm fixed focal x 4
    Max. Aperture Ratio F1.6
    Angular Field of View H: 209°, V: 83.3°
    Min. Object Distance 1.5m
    Focus Control Fixed
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range 0°~355° / 0°~60° / -
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, HLC, WDR, SSDR
    Wide Dynamic Range extreme WDR(120dB)
    Digital Noise Reduction SSNRⅤ
    Defog Support
    Motion Detection 8ea, 8point polygonal zones
    Privacy Masking 32ea, polygonal zones
    - Color: Grey/Green/Red/Blue/Black/White
    - Mosaic
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
    Video Rotation Flip, Mirror
    Analytics Defocus detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection
    Business Intelligence Heatmap
    Alarm I/O Selectable 2 port
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC recording at event triggers
    Alarm output
    Audio In Selectable(mic in/line in/built-in mic)
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio Out Line out, Max.output level: 1Vrms
    Network
    Ethernet Metal shielded RJ-45(10/100BASE-T)
    Video Compression H.265/H.264: Main/Baseline/High, MJPEG
    Audio Compression G.711 u-law /G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    AAC-LC: 48Kbps at 16KHz
    Smart Codec Manual(5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(20 users) / Multicast
    Multiple streaming(Up to 10 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Device Certificate(Hanwha Techwin Root CA)
    Application Programming Interface ONVIF Profile S/G/T
    SUNAPI(HTTP API)
    Wisenet open platform
    General
    Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    Edge Storage Micro SD/SDHC/SDXC 2slot 1TB(512GB X 2)
    Memory 4GB RAM, 512MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity Normal : -40°C~+55°(-40°F ~ +131°F) / Intermittent : -40°C~+60°C(-40°F ~ +140°F)
    Less than 95% RH(Non-condensing)
    Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
    Certification IP66, IK10, NEMA4X
    Input Voltage PoE+(IEEE802.3at, Class4), 12VDC
    Power Consumption PoE+: Max 18W, Typical 10.4W
    12VDC: Max 16W, Typical 9W
    Mechanical
    Color / Material White / Aluminum
    RAL Code RAL9003
    Product Dimensions / Weight Ø253x165mm(9.96"x6.5"), 3200g

  • • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
