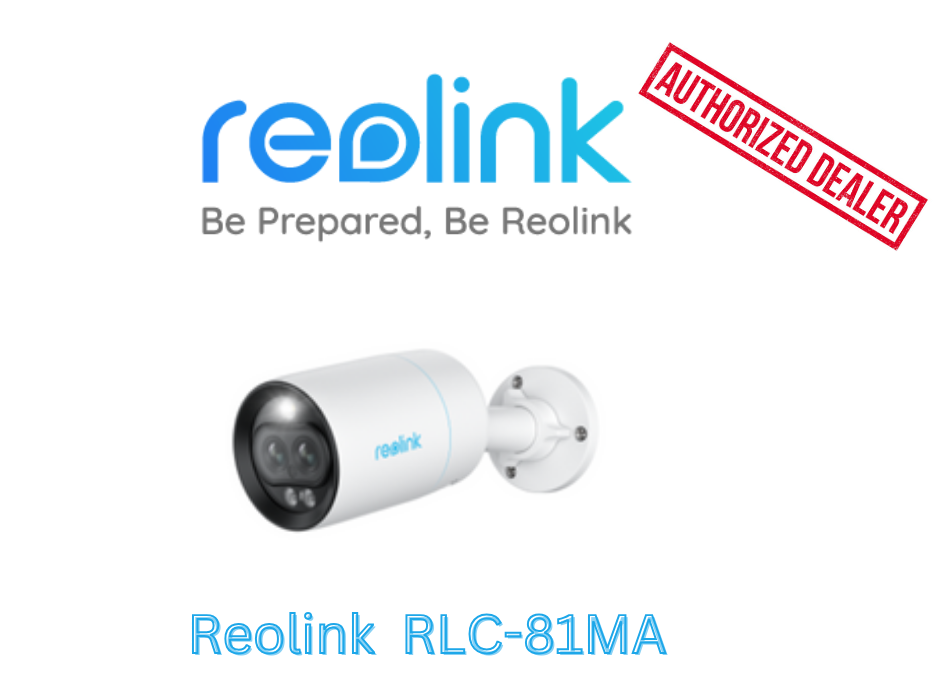

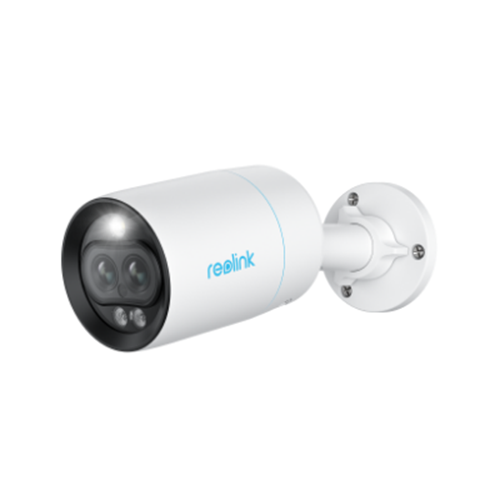

Reolink 4K 8MP Smart Dual-Lens PoE Dual View Color Night Vision Security Camera
Reolink 4K 8MP Smart Dual-Lens PoE Dual View Color Night Vision Security Camera
SKU:RLC-81MA
4K Smart Dual-Lens PoE Camera with
Dual View
ü
4K 8MP UHD
ü
Full-View & Close-up Images
ü
Person/Vehicle Detection
ü Color Night Vision
Dual Lens, Dual View
Got two lenses with one-time installation. With a 109° panoramic view* captured by the wide-angle lens and a close-up view by the telephoto lens, the camera protects what you care most without losing sight of any corner. You can check the two images at one glance as they are displayed on one screen.
Flexible Night Mode Options
Switch between three night modes according to your need: the Black & White Mode, Color Night Mode, and Smart Night Mode. With the Smart Night Mode enabled, the spotlight will be automatically triggered when motion is detected and everything will be captured in full-color.
Advanced Detection: Fast and Accurate
Applying smart detection technology, the RLC-81MA will accurately detect people, vehicles, and pets, and send notifications to your mobile phone in no time. By focusing on what really matters, it reduces false alarms caused by leaves or flying insects.
Dual Warning, Double Security
When the RLC-81MA detects movement, you'll get push notifications right away. At the same time, the siren and spotlight will be activated automatically or manually to warn off intruders.
Two-Way Audio for Real-Time Talk
Thanks to the built-in mic and speaker, you'll have a
two-way communication with your visitors, the unwelcome, or your furry friends.
Beauty Awakens in Time Lapse Videos
There are some amazing moments that cannot be captured by the naked eye. But with the time lapse feature, you can condense long-term changes like sunrise or snowfall into film-like short videos and reveal the breathtaking beauty.
* The time lapse feature is only
supported in its wide-angle view and is incompatible when the camera is
connected to NVRs.
Fast Installation within Minutes
Thanks to the Power over Ethernet (PoE) technology, RLC-81MA is ready to use once connected. It receives data and will be powered simultaneously via only one network cable. No cable clutter.
Works with Reolink IoT Devices
RLC-81MA is compatible with Reolink IoT devices such as Reolink Floodlight PoE/WiFi. When it detects motion at night, the paired floodlight will turn on automatically and illuminate a large area, leaving no threats in shadow.
Flexible Storage Options
RLC-81MA supports 24/7 continuous, motion-triggered or scheduled recording. It can be saved to microSD card, Reolink NVR or FTP server. Choose a way you like and enjoy customized security.
Reolink NVR
If you want to save videos for a much longer time or manage
multiple cameras, you can simply connect this camera to a compatible Reolink
NVR or security camera system.
* Reolink NVRs are recommended for
best performance. Also, the NVR fimware must be updated for dual-view
displaying.
No Fear of Bad Weather
With a rugged and IP66 waterproof housing, the IP camera works perfectly in all weather conditions. Ideal for indoor and outdoor use.
Control Your Cameras, Hands-Free
As easy as saying “Hey Google, show me the backyard”, you can check what’s happening there on your Google Nest Hub or Chromecast-enabled TVs.
Specifications:
Video & Audio
Image Sensor
1/2.7"CMOS Sensor
Video Resolution
Up to 3840 x 2160 (8.0 Megapixels) at 20 fps
Lens
f=2.8 mm@F=1.6,f=8 mm@F=1.6
Video Format
H.265
Field of View
• Horizontal: 109° - 43°
• Vertical: 58° - 25°
Day & Night
IR-cut filter with auto-switching
Infrared Night Vision
Up to 30 Meters (100ft) (LED: 2pcs/850nm)
Color Night Vision
Spotlight: 1pc/6500K/450 Lumens
Audio
Two-way audio
Power
PoE
IEEE 802.3af, 48V active
DC Power
DC 12.0 V⎓1 A, < 12 W
Interface
Power
DC Power port
System
Reset button
Ethernet
1*10M/ 100Mbps RJ45
Storage
microSD card slot (max. 256GB)
Audio
Built-in microphone and speaker
Software Features
Frame Rate
• Mainstream: 2fps - 20fps (Default: 20fps)
• Substream: 4fps - 20fps (Default: 20fps)
Code Rate
• Mainstream: 4096Kbps -8192Kbps (default: 6144Kbps)
• Substream: 64Kbps -512Kbps (default: 256Kbps)
Browser
Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Smart Alarm
Motion detection/ person detection/ vehicle detection/ pet detection
Record Mode
Motion recording (default); scheduled recording; 24/7 recording
Protocols & Standards
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Maximum User Access
20 users (1 admin account and 19 user accounts); 12 simultaneous video streams (10 substreams and 2 mainstreams)
Work with
Google Assistant
Working Environment
Temperature
Operating Temperature: -10°C~+50°C (14°F~122°F)
Humidity
Operating Humidity: 10% ~ 90%
Waterproof
IP66
Size & Weight
Dimension
Φ 67 x 187 mm
Weight
460g
