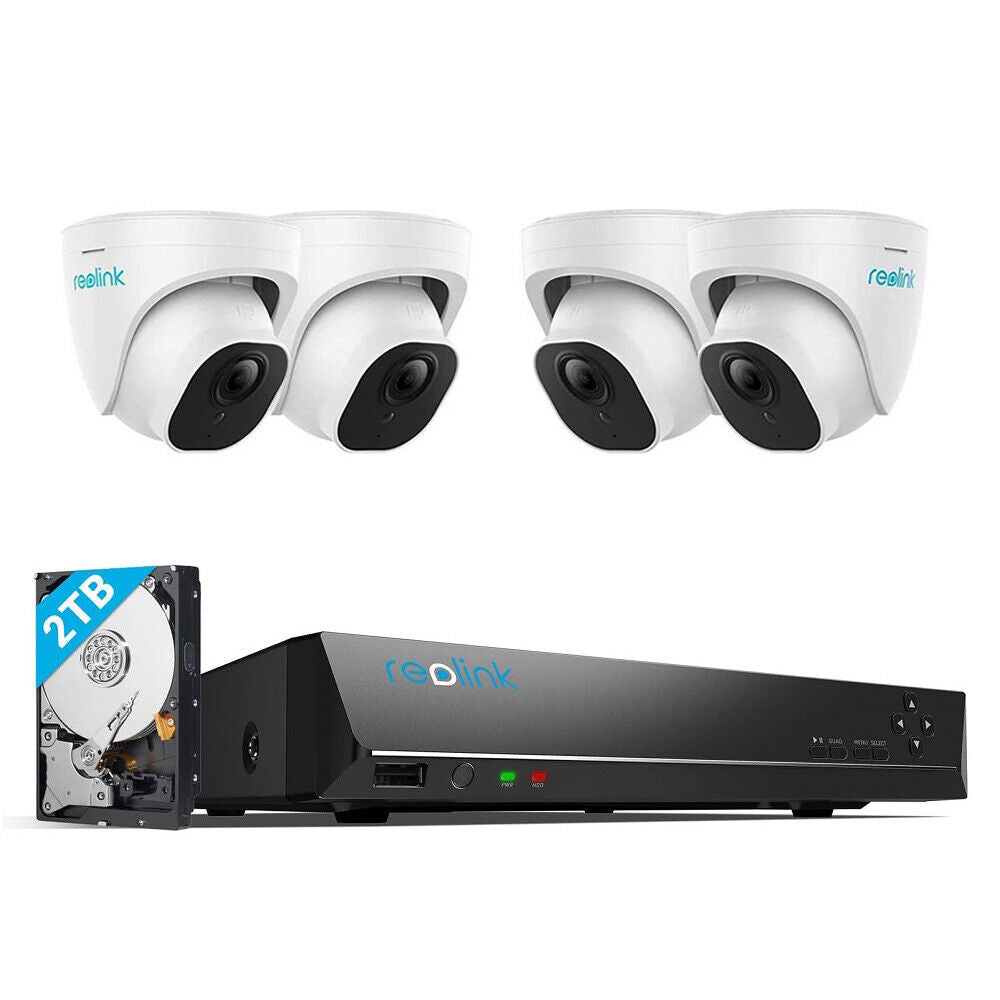

Reolink 5MP 8CH NVR PoE IP Security Camera Kit with Person/Vehicle Detection
Reolink 5MP 8CH NVR PoE IP Security Camera Kit with Person/Vehicle Detection
SKU:RLK8-520D4
Regular price
$480.00 USD
Regular price
Sale price
$480.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
REOLINK Smart 5MP 8CH Home Security Camera System, 4pcs Wired 5MP PoE IP Cameras Outdoor with Person Vehicle Detection, 4K 8CH NVR with 2TB HDD for 24-7 Recording
View and Playback in 5MP/30fps
Featuring the latest technology, the wired security camera system can record in crystal clear 5MP at 30fps, providing you with some unnoticeable details while maintaining smooth on-screen movement.
High Quality Night Vision
With plenty LED lights and improved infrared radiation for 24-hour vigilance, the 5MP/4MP cameras ensure a clear night vision, up to 100 feet long distance (depending on the environment).
Smart Person/Vehicle Detection
Cute pets but often trigger false alarms? New person/vehicle detection technology identifies true threats for you, much more accurately than general motion detection. Make security more light-hearted.
Multiple Ways of Alert
Once motion is detected, you will be alerted by the NVR buzzer, an email, or a push alarm. Video uploading to the FTP server is also underway.
Buzzer: The buzzer in NVR makes sound warning.
Email: Email photos or 30-second video clips.
App: Push notifications to your mobile device.
FTP: Save and upload captured images & videos to an FTP server.
Buzzer: The buzzer in NVR makes sound warning.
Email: Email photos or 30-second video clips.
App: Push notifications to your mobile device.
FTP: Save and upload captured images & videos to an FTP server.
Enhanced Video Recording
Thanks to the built-in mic of Reolink cameras, the system can pick up ambient sound and help to add another layer of security despite the reliable 24/7 continuous recording.
24/7 Recording and Monitoring
●Pre-installed 2TB HDD for 24/7 recording and monitoring.
●Support all cameras recording at the same time (up to 8 cameras).
●If you want longer recording, try motion detection recording, which will trigger recording only when motion is detected.
●Allow you to install an external hard disk drive via e-SATA for more storage (up to 6TB).
●Support all cameras recording at the same time (up to 8 cameras).
●If you want longer recording, try motion detection recording, which will trigger recording only when motion is detected.
●Allow you to install an external hard disk drive via e-SATA for more storage (up to 6TB).
Video Playback — Recall Events and Moments
The playback feature of this Reolink RLK8-520D4 allows you to know the whole events.
●Replay significant evidence or funny video records.
●4-channel simultaneous playback.
●Quick search for any event that happened at any time.
●Freely playback any event on days, hours and even minutes with the help of timer axis under the split screen.
●4-channel simultaneous playback.
●Quick search for any event that happened at any time.
●Freely playback any event on days, hours and even minutes with the help of timer axis under the split screen.
Local and Remote Access Anytime & Anywhere
For local access and control: Connect the system to a monitor or an HD TV.
For remote access and control: Get live streaming via free Reolink App on iOS & Android devices, through free Reolink Client software on Windows pcs & Mac computers, or via web browsers. Also, up to 19 user accounts can be created to share access.
For remote access and control: Get live streaming via free Reolink App on iOS & Android devices, through free Reolink Client software on Windows pcs & Mac computers, or via web browsers. Also, up to 19 user accounts can be created to share access.
PoE — Easy Setup, Even for a Beginner
A real plug and play security system! It features PoE (Power over Ethernet), with a single network cable connecting each IP camera to the NVR for both power supply and video signal transmission. Easy wiring – the wiring process can’t be simpler for DIY enthusiasts and beginners.
Waterproof Works Perfectly Outdoor/Indoor
The cameras have a solid aluminum bodies and housings, with an IP66 waterproof rating. So you can feel free to install them outdoors, like in your garage, backyard, or anywhere else.
Customize Your Own Security Camera System
This security system kit RLK8-520D4-5MP supports all Reolink 4K/5MP/4MP IP cams(except Battery-powered cameras), apart from this NVR, you can choose up to 8 cameras to build your own video surveillance system. (It needs two unoccupied channels of the Reolink NVR to add Duo PoE/WiFi security camera.)
 |
|
|||||||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| 811A | 822A | 842A | 823A | 810A | 820A | 812A | 510A | 510A-Black | 520A | |
| PoE Cameras with Person/Vehicle Detection and Zoom | PoE Cameras with Person/Vehicle Detection | |||||||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| Duo PoE | Duo WiFi | 523WA | 542WA | 511WA | E1 Outdoor | 510WA | Lumus | 410W | E1 Series | |
| Dual Lens Cameras | WiFi Cameras with Person/Vehicle Detection and Zoom | Outdoor/ Indoor WiFi Cameras | ||||||||
Gallery & Specs
| RLN8-410 8-channel NVR Specifications | ||||
| Hardware | Hardware V2 |
|||
| Video/Audio Input | IP Video Input | PoE IP camera x 8 | Audio Input | Cameras with built-in mic |
| Video/Audio Output | Video Output | VGA, HDMI | Display Resolution |
• HDMI: 3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768
• VGA: 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768
|
| Audio output | 1-channel, RCA | |||
| Decoding | Video Format | H.264, H.265 | Live View/Playback Resolution | 3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p |
| Synchronous Playback | Up to 4 channels | |||
| HDD | SATA | 1 x SATA interface (1 x Seagate 2TB HDD included) | External HDD | 1 eSATA interface for HDD |
| Capacity | Up to 8TB (Max. 4TB capacity for each HDD) | |||
| External Interface | USB Interface | 2 x USB 2.0 | Network Interface |
• RJ45,10M/100M Ethernet, 8 Network Ports for IP camera, 1 Giga Network Port for LAN/WAN
• 8 Independent 100 Mbps PoE Network Interfaces
|
| PoE | Max. Power Per Port | 25W | Supported Standard | IEEE 802.3af/at |
| Network | Network Protocols | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP | Browsers Supported | Edge, Firefox, Chrome, Safari |
| OS Supported | PC: Windows, Mac OS; SmartPhone: iOS, Android | Max. User Access | 20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams) | |
| General | Power Supply |
DC 48V/2A | Power Consumption | <10W (without HDD&PoE) |
| Working Environment | Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90% | Dimensions | 260 x 41 x 230mm | |
| Weight | 1.4kg | |||
| Warranty | Limited Warranty | 2-year limited warranty. | ||

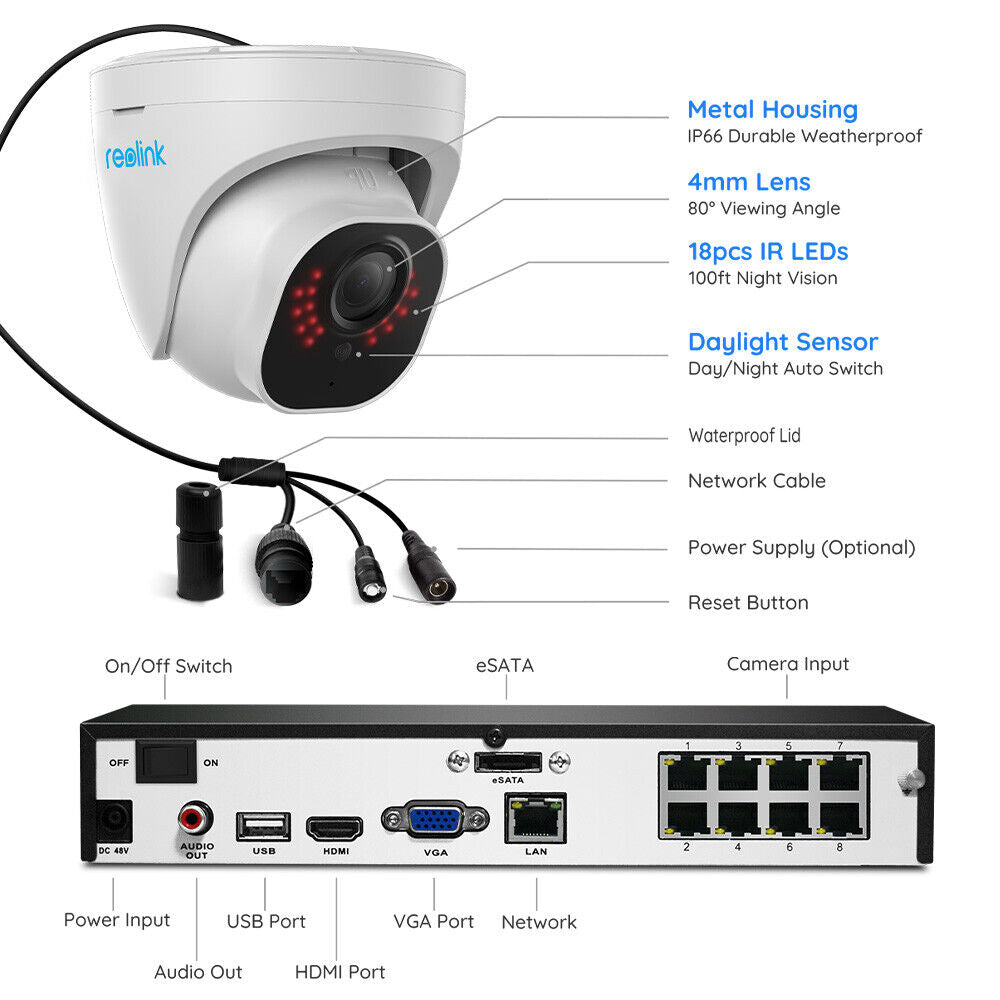

| D500 5MP Camera Specifications | ||||
| Video & Audio | Image Sensor | 1/2.7" CMOS Sensor | Video Resolution | 2560x1920 (5.0 Megapixels) at 30 frames/sec |
| Lens | f=4.0mm fixed; F=2.0, with IR-cut filter | Video Format | H.264 | |
| Field of View |
• Horizontal: 80°
• Vertical: 58°
|
Day & Night | Auto-switching with IR-cut filter | |
| Night Vision | 30 meters (100ft) (LED: 18pcs/14mil/850nm) | Audio | Audio recording | |
| Power | PoE | IEEE 802.3af, 48V Active | DC Power | DC 12.0V⎓1A, <12W |
| Interface | Power | DC power port | System | Reset button |
| Ethernet | One 10M/100Mbps; RJ45 | Audio | Built-in microphone | |
| Software Features | Frame Rate |
• Mainstream: 2fps - 30fps (default: 30fps)
• Substream: 4fps - 15fps (default: 10fps)
|
Code Rate |
• Mainstream: 1024Kbps - 8192Kbps (default: 6144Kbps)
• Substream: 64Kbps - 512Kbps (default: 160Kbps)
|
| Smart Alarm | Motion detection; person detection; vehicle detection | Record Mode | Motion-triggered recording; scheduled recording; 24/7 recording | |
| Working Environment | Temperature | Operating temperature: -10°C - +55°C (14°F - 131°F) | Humidity | Operating humidity: 10% - 90% |
| Waterproof | IP66 | |||
| Size & Weight | Dimension | Φ105*93mm | Weight | 480g |
| Warranty | Limited Warranty | 2-year limited warranty. | ||
