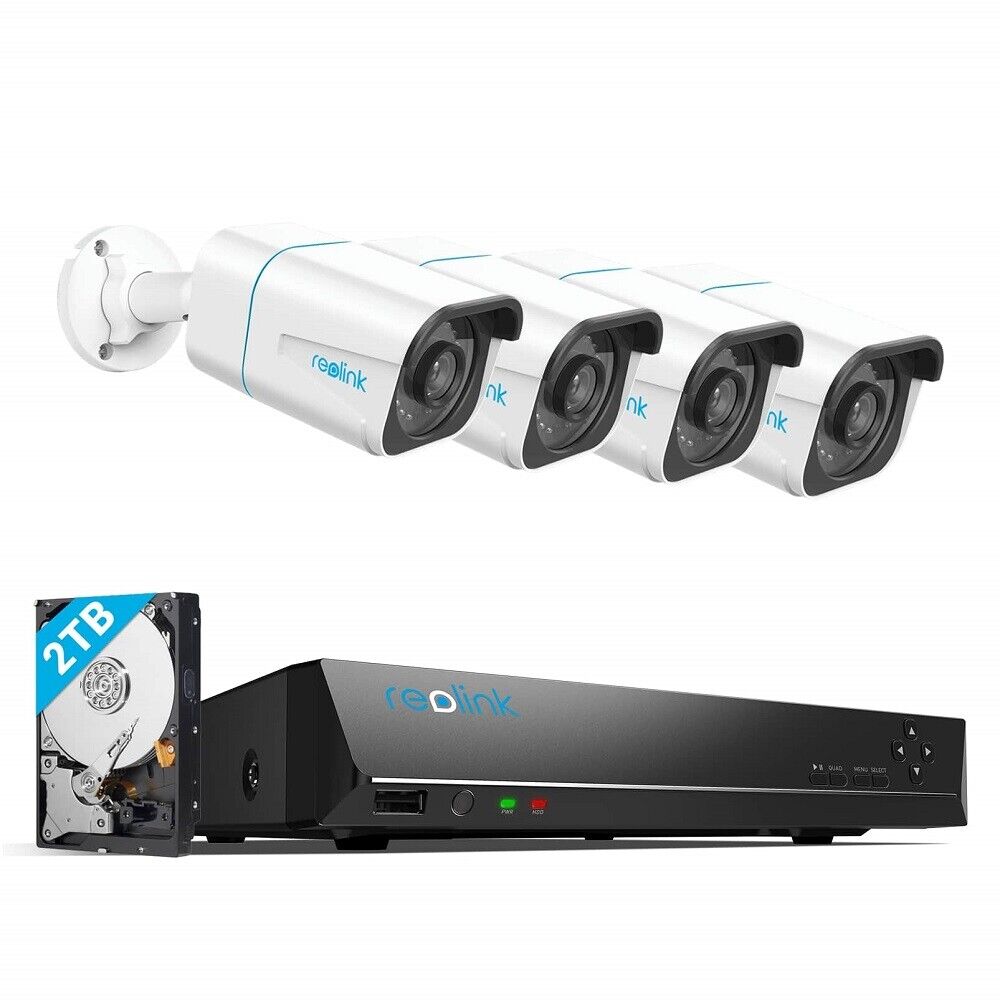

Reolink 8CH NVR 4K 8MP IP PoE 2TB HDD Human/Car Detection Security Camera System
Reolink 8CH NVR 4K 8MP IP PoE 2TB HDD Human/Car Detection Security Camera System
SKU:RLK8-810B4-A
Regular price
$672.00 USD
Regular price
Sale price
$672.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Reolink Smart 4K PoE Security Camera System, 4pcs Person/Vehicle Detection Wired 8MP PoE IP Cameras, Audio Recording, H.265 8MP 8CH NVR with 2TB HDD Video Surveillance System for 24/7 Recording
Person/Vehicle Detection & Smart Playback
Powered by smart motion detection technology, this camera can tell people and vehicles from other objects. Get alerts when suspicious person or car is loitering around your house or store.
When replaying all-day videos, you can easily find the clip you need by date or type of motion event. With Reolink App or Client, play back anywhere, anytime.
See Finest Details in 4K
Each camera in this kit captures videos of 3840*2160 resolution, which is 4 times the clarity of 1080p camera. You can see crucial details clearly, like faces, logos, and plate numbers. With the built-in microphone, cameras can also pick up ambient sound for an extra layer of security.
Keep Guard at Night
With 18 infrared LEDs in each cam, this system captures videos clearly in the dark within the range of up to 100ft, protecting your home and business with 24-hour vigilance.

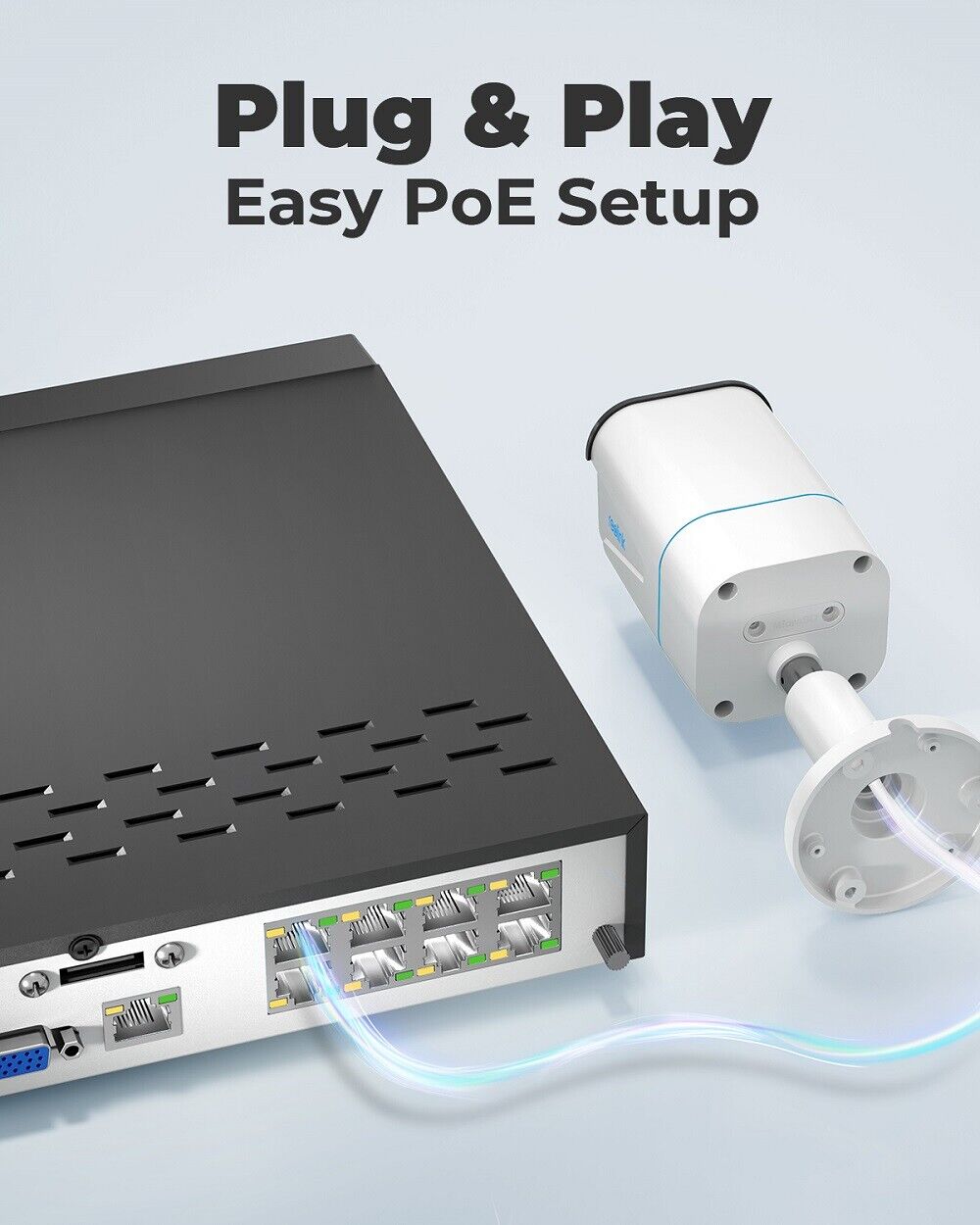

Easy Setup with PoE Technology
This 4K security camera system features PoE (Power over Ethernet) tech, with only one cable connecting each IP camera to the NVR for both power supply and video signal transmission. A real plug and play security system!
Re-installed HDD can Change to More Storage
With the 2TB HDD and the storage capacity of up to 12TB, the PoE video surveillance kit supports all cameras to record continuously at the same time. You will have all-day video without missing a beat.
Customize Your Own Security Camera System
This security system kit RLK8-810B4-A supports all Reolink 4K/5MP/4MP IP cams(except Battery-powered cameras), apart from this NVR, you can choose up to 8 cameras to build your own video surveillance system.
(It needs two unoccupied channels of the Reolink NVR to add Duo PoE/WiFi security camera.)
 |
|
|||||||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|
| 811A | 822A | 842A | 823A | 810A | 820A | 812A | 510A | 510A-Black | 520A | |
| PoE Cameras with Person/Vehicle Detection and Zoom | PoE Cameras with Person/Vehicle Detection | |||||||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| Duo PoE | Duo WiFi | 523WA | 542WA | 511WA | E1 Outdoor | 510WA | Lumus | 410W | E1 Series | |
| Dual Lens Cameras | WiFi Cameras with Person/Vehicle Detection and Zoom | Outdoor/ Indoor WiFi Cameras | ||||||||
Work with Reolink Wifi Camera
RLN8-410 could work perfectly with Reolink PoE camera for 24/7 recording, motion detections, live views, playback and more features. And it also supports working with Reolink wifi camera if they are in the same LAN.
Motion Alerts
Informs you when the cam spots the movement via push notifications, emails, or buzzer alarm in the NVR.
Focus on the Areas That Matter
Create the specific areas that you want to receive motion alerts from. It can save you the trouble of unwanted alarms from out of designated areas.
Data Encryption, Cyber Security
We use AWS server to achieve remote access to your system, meaning your data stays your data as the Reolink servers are not involved at all. All the data is dynamically encrypted and well protected.
Remote Viewing, Anytime, from Anywhere
Remotely view the IP camera via free Reolink App on your mobile device, free Reolink Client on your computer, web browsers (IE, Google Chrome, Microsoft Edge, Safari, Firefox, etc.).
Ready for Anywhere, Inside & Outside
Feel free to put these 4K Ultra HD smart PoE cameras anywhere, outdoors or indoors. With IP66 waterproof rating, these cameras will never shrink back in front of the elements, like freezing rain, heavy snow, extreme cold and heat.
| Specifications | ||||
| Model | Name | 8-Channel PoE Network Video Recorder | Hardware | V2 |
| Video/Audio Input | IP Video Input | PoE IP Camera x 8 | Audio Input | Cameras with Built-In Mic |
| Video/Audio Output | Video Output | VGA, HDMI | Display Resolution |
• HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768
• VGA: 1920*1080, 1280*1024, 1280*720, 1024*768
|
| Audio output | 1CH RCA | |||
| Decoding | Live View/Playback Resolution |
3840*2160/2560*1920/2560*1440/
2048*1536/2304*1296/1080P/720P
|
Video Format | H.265, H.264 |
| Synchronous Playback | 1-4 Channels | |||
| Storage | SATA | 1 SATA Interface (2TB HDD Included) | Maximum Capacity | 12TB (up to 6TB Capacity for Each HDD) |
| External HDD | 1 eSATA Interface for HDD | |||
| External Interface | USB Interface | 2 x USB 2.0 | Network Interface |
• 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface for LAN/WAN
• 8, RJ-45 10/100 Mbps Self-Adaptive PoE Ethernet Interface for IP Camera
|
| PoE | Supported Standard | IEEE 802.3 af/at | Max. Power Consumption | 25W |
| Network | Network Protocol | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP | Browser Supported | Edage, Firefox, Chrome, Safari |
| OS Supported | PC: Windows, Mac OS; SmartPhone: iOS, Android | Max. User Access | 20 Users | |
| General | Power Supply | DC 48V/1.875A | Power Consumption | <10W (Without HDD&PoE) |
| Working Environment | Temperature: -10℃~+45℃ (14°F~113°F); Humidity: 10%~90% | Dimensions (mm) | 260(W) x 41(H) x 230(D) | |
| Weight (w/o HDD) | 1.2 kg | |||
| PoE Camera Specifications | ||||
| Video & Audio | Image Sensor | 1/2.49" CMOS Sensor | Video Resolution | 3840x2160 (8.0 Megapixels) at 25 frames/sec |
| Lens | f=4.0mm fixed; F=2.0, with IR-cut filter | Video Format | H.265 | |
| Field of View |
• Horizontal: 87°
• Vertical: 44°
|
Day & Night | Auto-switching IR-cut filter | |
| Night Vision | 30 meters (100ft) (LED: 18pcs/14mil/850nm) | Audio | Audio recording | |
| Power | PoE | IEEE 802.3af, 48V Active | DC Power | DC 12.0V⎓1A, <12W |
| Interface | Power | DC power port | System | Reset button |
| Ethernet | One 10M/100Mbps; RJ45 | |||
| Audio | Built-in microphone | |||
| Software Features | Frame Rate |
• Mainstream: 2fps - 25fps (default: 25fps)
• Substream: 4fps - 15fps (default: 10fps)
|
Code Rate |
• Mainstream: 1024Kbps - 8192Kbps (default: 6144Kbps)
• Substream: 64Kbps - 512Kbps (default: 160Kbps)
|
| Browser Supported | IE, Edge, Chrome, Firefox, Safari | OS Supported | PC: Windows, Mac OS; Smartphone: iOS, Android | |
| Smart Alarm | Person detection; vehicle detection; motion detection | Record Mode | Motion-triggered recording (default); scheduled recording | |
| Maximal User Access | 20 users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams) | |||
| Working Environment | Temperature | Operating temperature: -10°C - +55°C (14°F - 131°F) | Humidity | Operating humidity: 10% - 90% |
| Waterproof | IP66 | |||
| Size & Weight | Dimension | Φ192*66mm | Weight | 488g |
