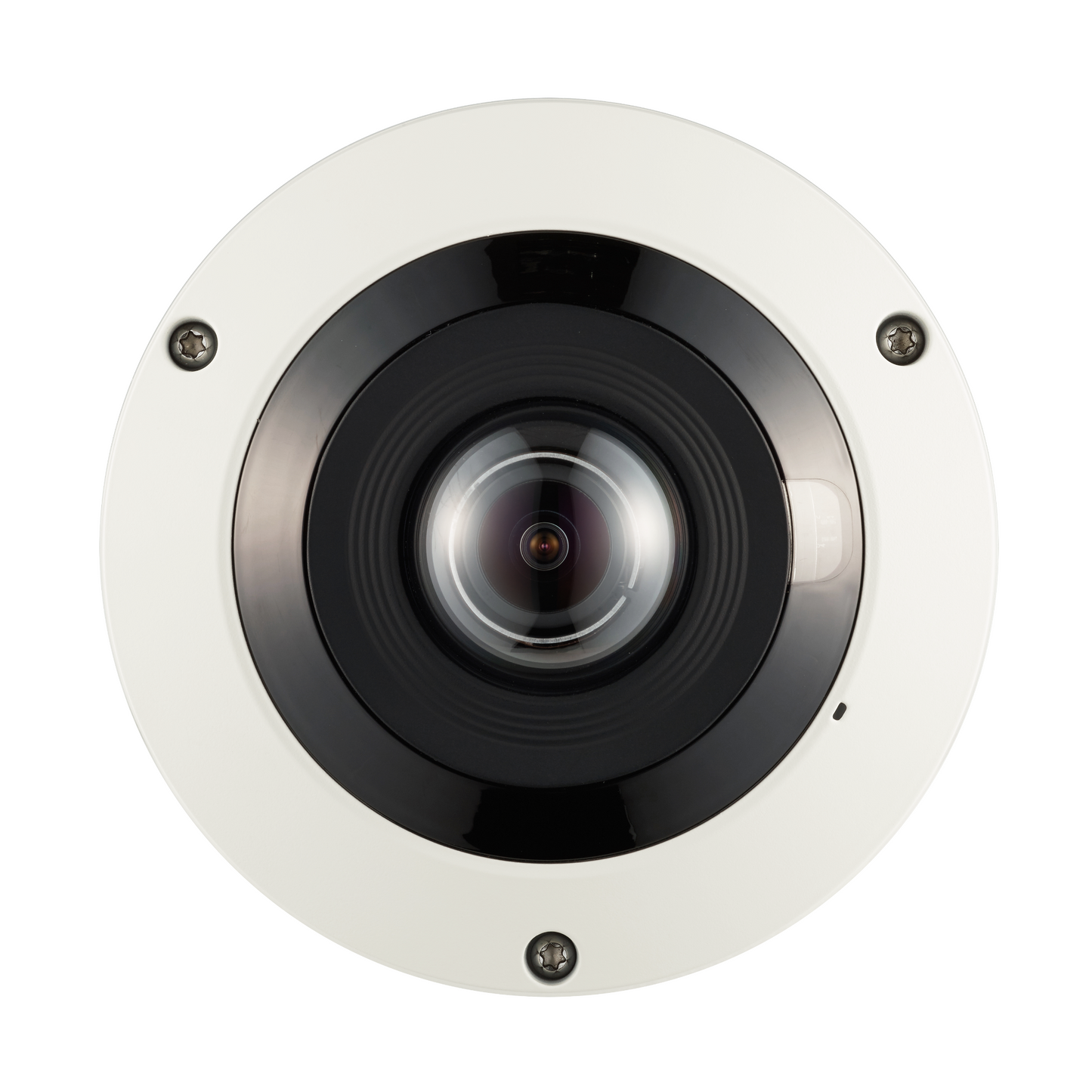

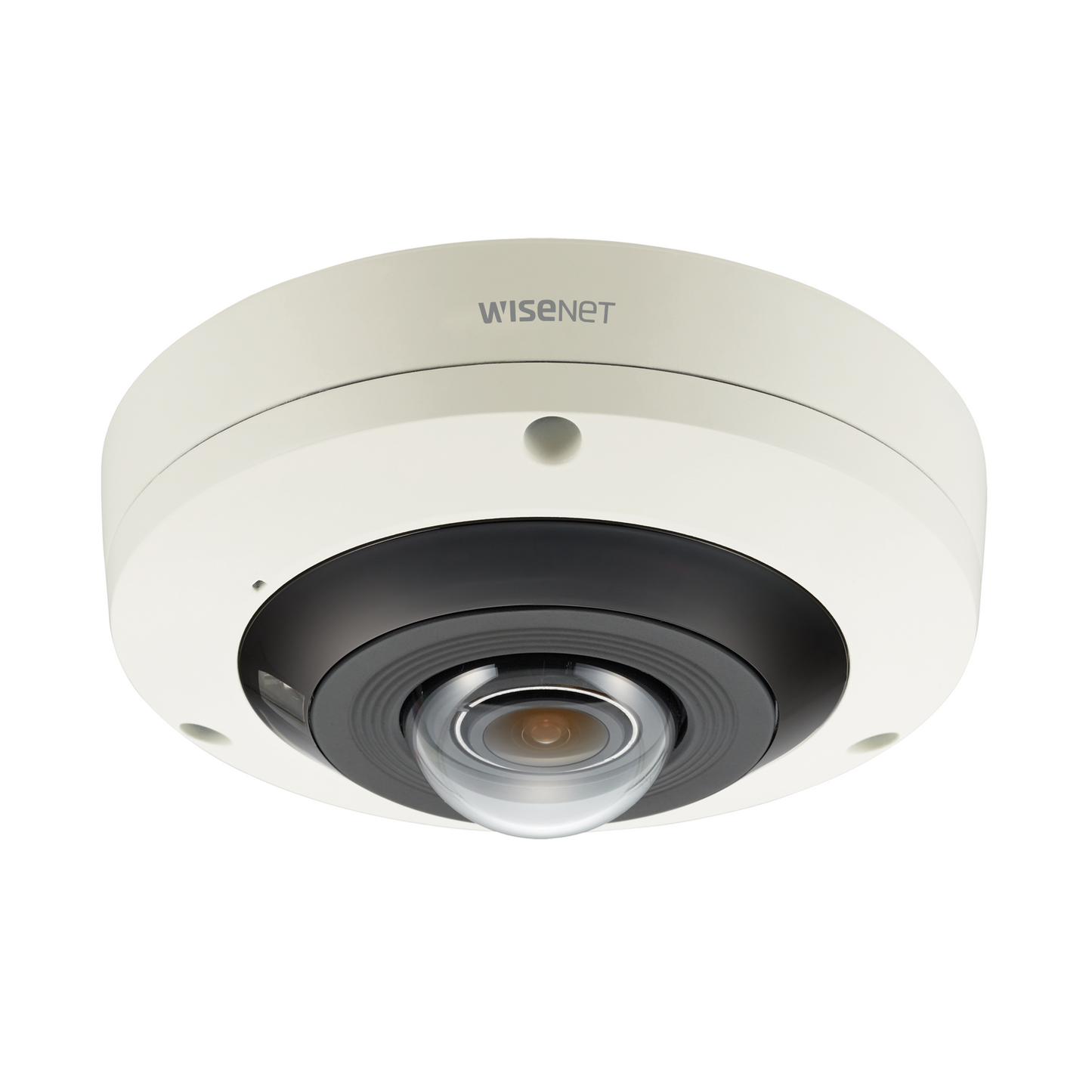

Samsung Hanwha Techwin PNF-9010RV 4K H.265 NW Fisheye Security Camera

Samsung Hanwha Techwin PNF-9010RV 4K H.265 NW Fisheye Security Camera

PNF-9010RV

$1,800.00 USD
$1,800.00 USD
Sale Sold out
Shipping calculated at checkout.
PNF-9010RV
12MP 360˚ Fisheye Camera
The PNF-9010RV is a 12MP/4K outdoor vandal fisheye camera featuring Hanwha's WiseStream technology. Additional features include True D/N, triple codec H.265/H.264/MJPEG, people counting and heat map analytics, SD card slot (up to 128GB), 2-way audio, built-in mic, simple focus, PoE/DC dual power, IK10 and IP66. The PNF-9010RV is ideal for situational awareness, and applications requiring a wide area of surveillance.
Key Features:
  • 9MP @ 25fps
  • 12MP @ 20fps
  • Triple Codec H.265/H.264/MJPEG
  • Simple Focus
  • Wide Dynamic Range 120dB
  • On-board Analytics
  • IP66, IK10

Product Spec

  • Video
    Imaging Device 1/1.7" 12M CMOS
    Min. Illumination Color: 0.3Lux(F2.2, 1/30sec) BW : 0Lux(IR LED on)
    Video Out CVBS : 1.0 Vp-p / 75Ω composite, 714x480(N), 702x576(P), for Installation
    Lens
    Focal Length (Zoom Ratio) 2.1mm fixed focal
    Max. Aperture Ratio F2.2
    Angular Field of View H: 180° / V: 180° / D: 180°
    Min. Object Distance 0.5m(1.64ft)
    Focus Control Simple focus
    Operational
    Camera Title Displayed up to 60 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, WDR
    Wide Dynamic Range 120dB
    Digital Noise Reduction SSNR
    Defog Support
    Motion Detection 8ea, 8point polygonal zones
    Privacy Masking 8ea, polygonal zones
    - Color: Grey/Green/Red/Blue/Black/White
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    Electronic Shutter Speed Minimum / Maximum / Anti flicker
    Video Rotation Flip, Mirror
    Analytics Defocus detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection
    Business Intelligence People counting, Heatmap
    Alarm I/O Input 1ea / Output 1ea
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC or NAS recording at event triggers
    Alarm output
    Audio In Selectable(mic in/line in/built-in mic)
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio Out Line out, Max.output level: 1Vrms
    IR Viewable Length 15m(49.21ft)
    Network
    Ethernet RJ-45(10/100BASE-T)
    Video Compression H.265/H.264: Main/Baseline/High, MJPEG
    Smart Codec Manual(5ea area), WiseStreamⅠ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Multiple streaming(Up to 3 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Application Programming Interface ONVIF Profile S/G
    SUNAPI(HTTP API)
    Wisenet open platform
    Environmental & Electrical
    Operating Temperature / Humidity -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
    Storage Temperature / Humidity -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
    Certification IP66, IK10
    EN55011:2009+A1:2010, EN50581:2012, EN50121-3-2:2015, EN61000-4-2:2009,
    EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014,
    EN61000-4-6:2009
    Mechanical
    Color / Material Ivory / Aluminum
    Product dimensions / weight Ø146x63.4mm(Ø5.75x2.5"), 810g(1.79 lb)

View full details
