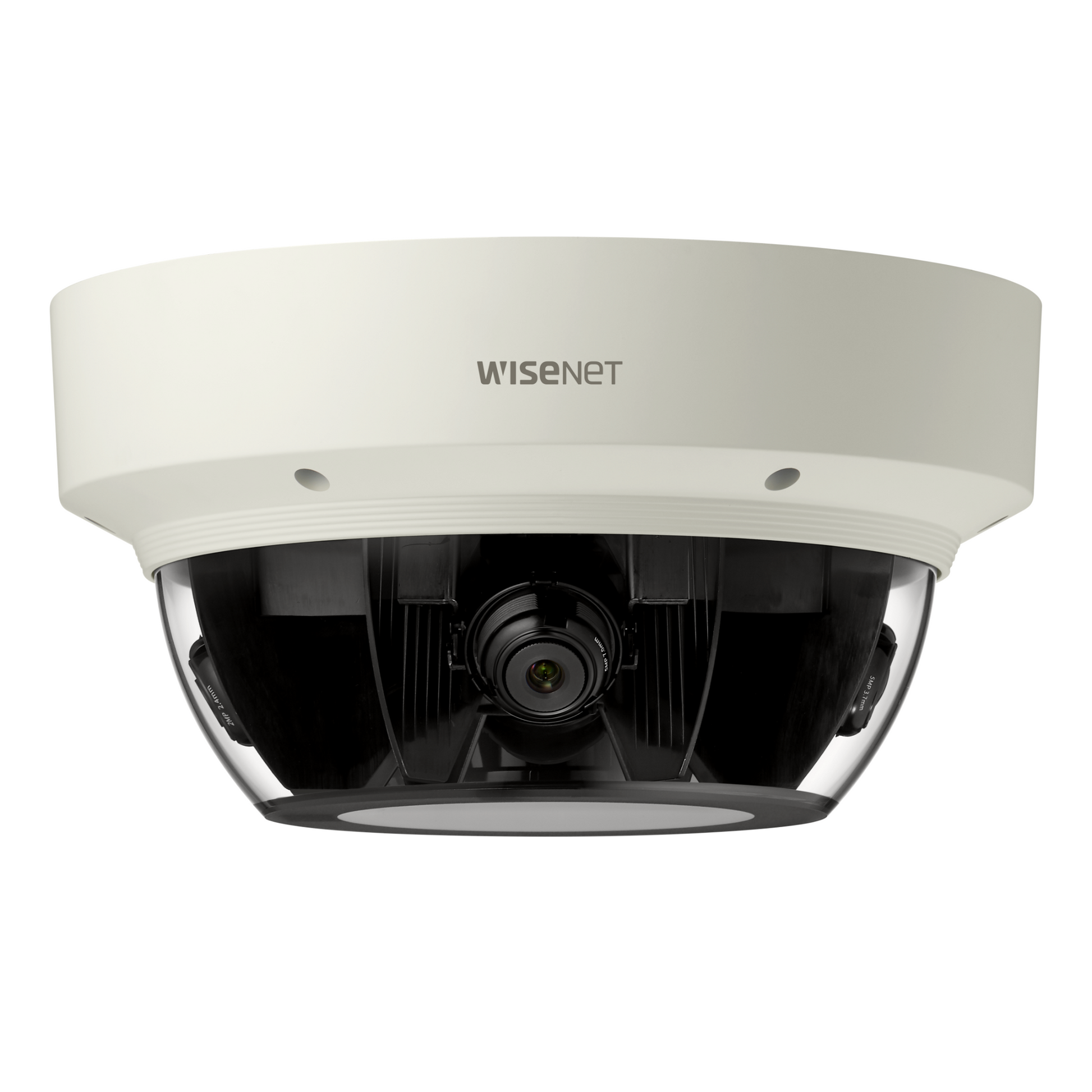

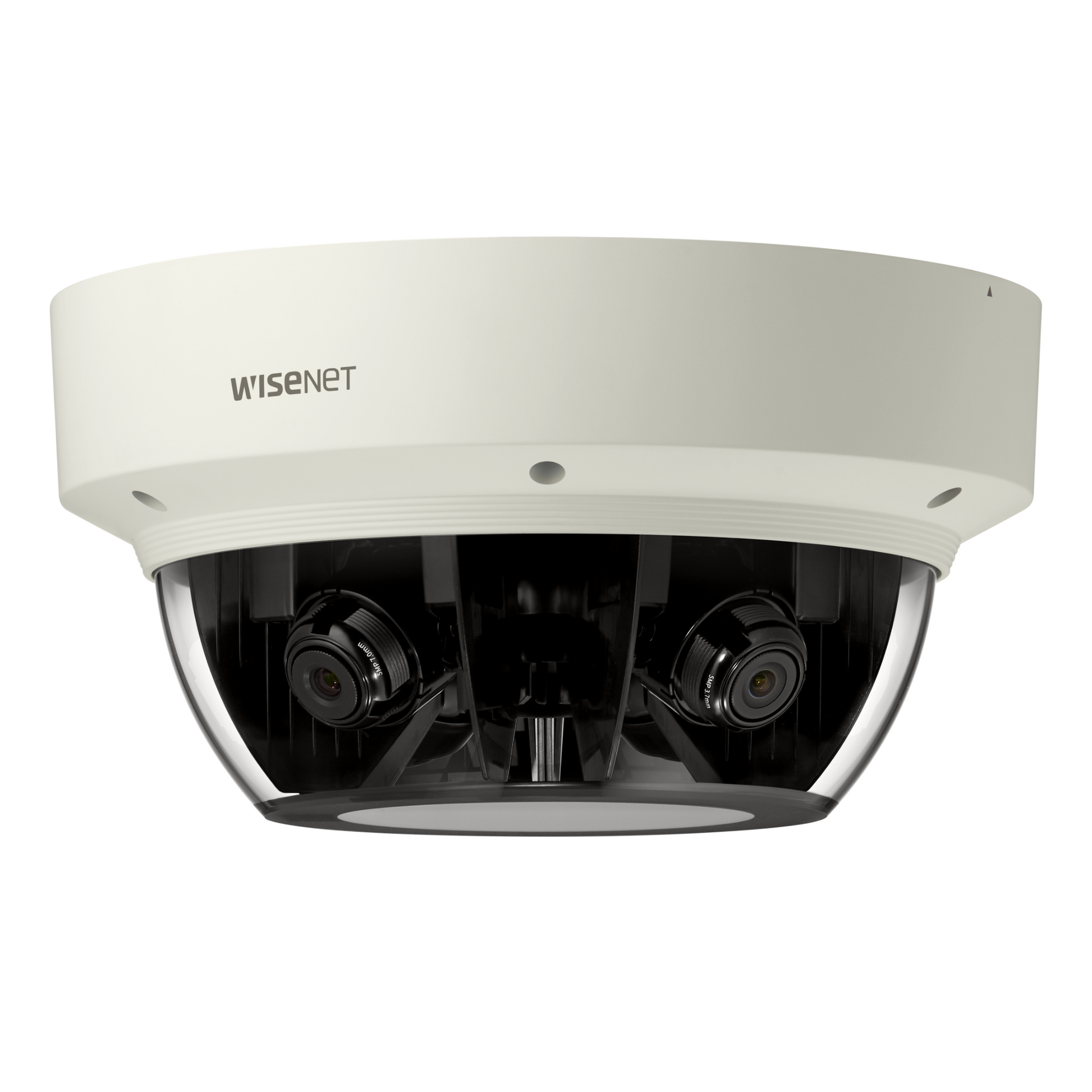

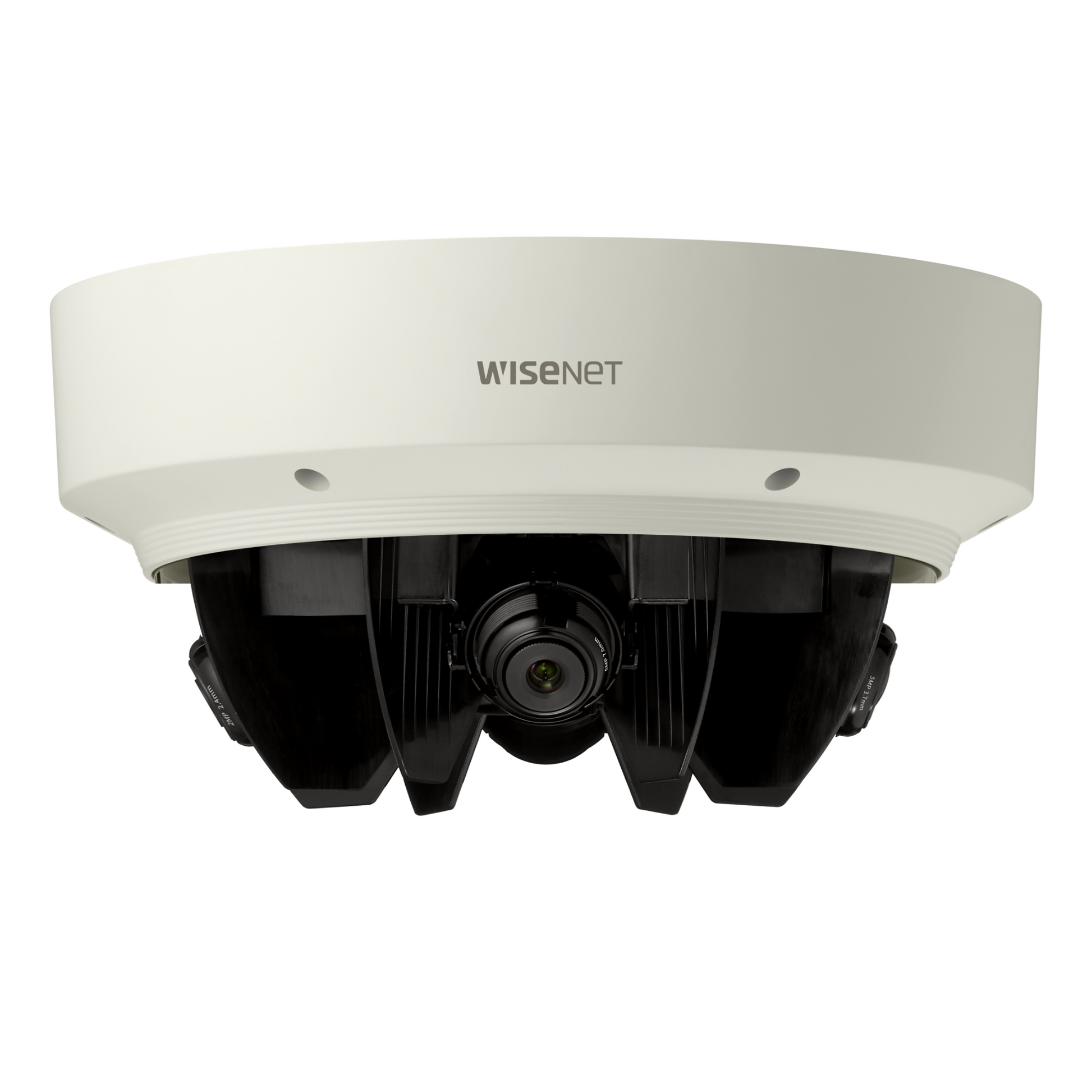

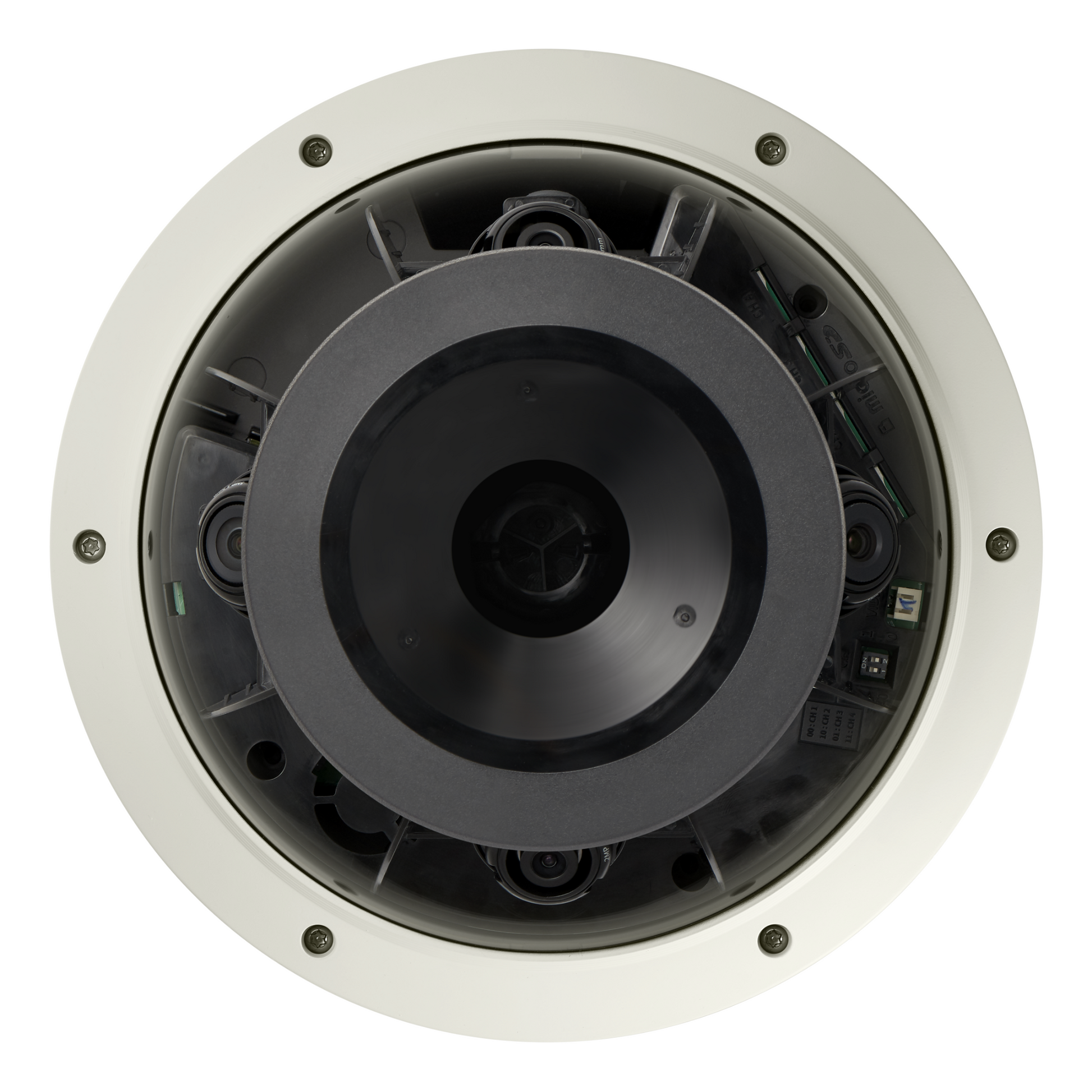

Samsung Hanwha Techwin WiseNet P Series PNM-9000VQ Outdoor NW Quad Dome Camera
Samsung Hanwha Techwin WiseNet P Series PNM-9000VQ Outdoor NW Quad Dome Camera
SKU:PNM-9000VQ
Regular price
$1,700.00 USD
Regular price
Sale price
$1,700.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
PNM-9000VQ
4x 2MP / 5MP Multi-sensor Multi-directional cameraNetwork vandal outdoor Multi-sensor Multi-Directional dome camera, (2MP/5MP X 4 sensors) 8MP ~20MP (2MP @ 60fps or 5MP @30fps), fixed focal lens modules, triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR @ 2MP or 120dB @ 5MP, defocus detection, built in analytics, 4x SD card, hallway view, HLC, fog detection, DIS(Gyro Sensor), PoE+, IP66/IK10, -40°C ~ +55°C (-40°F ~ +131°F)Key Features:
- Exchangeable 4ea x 2MP / 5MP lens modules 8MP to 20MP resolution depend on the combination of lens modules
- 60fps@2MP, 30fps@5MP (H.265 / H.264)
- WDR 150dB with 2MP lens module, 120dB with 5MP lens module
- 2.4mm, 2.8mm, 3.6mm, 6mm fixed lens (2MP module)
- 3.7mm, 4.6mm, 7mm fixed lens (5MP module)
- H.265, H.264, MJPEG codec, Multi streaming support
- Video analytics, WiseStream Ⅱ
- IP66, IK10, SD / SDHC / SDXC memory 4 slots
- Lens modules are required, not included with the camera
Samsung Hanwha Techwin PNM-9000VQ Specs
CameraZoom Digital: 24x IR Cut Filter Digital Day/Night Yes Shutter Speed 1/12,000 to 2 Seconds VideoStreaming Resolution 2560 x 1920 at 30 fps
1920 x 1080 at 60 fpsSupported Video Compression H.264, H.265, MJPEG Multi-View Streaming Yes, 10 Streams NetworkingSecurity Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log Supported Protocols ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile S, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP System IntegrationApplication Programming Interface (API) SUNAPI (HTTP API) Analytics Tampering, Loitering, Directional Detection, Fog Detection, Virtual Line, Enter, Exit, Appear, Disappear, Face Detection, Motion Detection, and Defocus Detection Event Trigger Yes Event Action Recording, Notification, Alarm System RequirementsWindows OS Support Windows 7, 8.1, 10 Mac OS Support macOS 10.12, OS X 10.11, OS X 10.10 EnvironmentalOperating Temperature -40 to 131°F / -40 to 55°C Storage Temperature -58 to 140°F / -50 to 60°C Operating Humidity 0 to 89% IP Rating IP66 IK Rating IK10 GeneralRecording Media microSD (up to 1024 GB) Pan/Tilt None I/O Connections 1 x RJ45 Video Management Software SmartViewer, SSM Supported Languages Czech
Dutch
English
French
German
Greek
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Spanish
Swedish
Traditional Chinese
TurkishCertifications UL, as per Manufacturer Internal Storage None External Storage Options Local PC Power Source PoE 802.3at (30 W) Power Consumption 25.5 W Material of Construction Metal (Unspecified Type) Dimensions ø: 10.0 x H: 5.1" / ø: 253.0 x H: 130.0 mm Weight 6.61 lb / 3 kg
