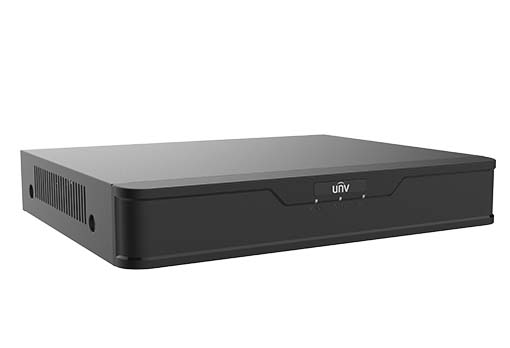

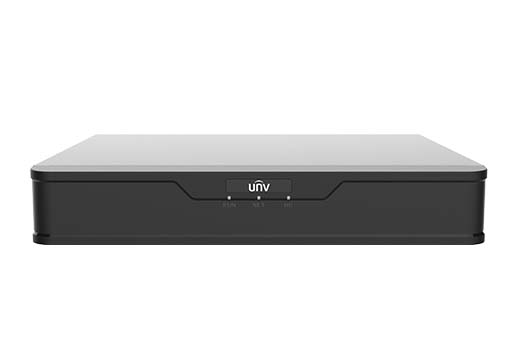

Uniview 5MP HD 16-Ch Hybrid XVR Uniview IP Security Vedio Recorder
Uniview 5MP HD 16-Ch Hybrid XVR Uniview IP Security Vedio Recorder
SKU:XVR301-16G3
Regular price
$339.00 USD
Regular price
Sale price
$339.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Uniview 5MP HD 16-Channel Hybrid XVR Uniview IP Security Vedio Recorder
Features:
Compression:H.265, H.264
Channel:16
Pre-Installed Storage: No HDD
Video output:1-ch HDMI, 1-ch VGA
Max.Recording Resolution:5MP
Hard drive Ports:1 SATA interfaces
Max.Storage Capacity:8TB
Color:Black
Support mainstream cameras of ONVIF and RTSP protocols
Long transmission distance over coaxial cable
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
Specification:
| Model | XVR301-16G3 | |
| Video/Audio Input | ||
| Analog Video Input | 16-ch, BNC | |
| IP Video Input | 8-ch(up to 16-ch after analog camera conversion) | |
| Supported Analog Camera Types |
Support AHD input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps Support TVI input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input |
|
| Audio Input | 1-ch, RCA | |
| Audio Compression | G.711U | |
| Video/Audio Output | ||
| VGA Output | 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| HDMI Output | 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | HD:8-ch SD:16-ch |
|
| Live view display | HDMI/VGA: 1/4/6/8/9/16/25 | |
| Two-way Audio | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 40Mbps | |
| Outgoing Bandwidth | 64Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
|
| Recording Resolution | 5MP Lite/4MP Lite /1080P/1080P Lite/720P/D1/CIF | |
| Recording Frame Rate |
Main stream: | Sub stream: |
| 5MP Lite@6fps | D1@6fps | |
| 4MP Lite@8fps | D1@8fps | |
| 1080P Lite@12fps | D1@12fps | |
| 720P@12fps | D1@12fps | |
| Audio Sample Rate | 8KHz,16 bit per channel | |
| Audio Bit Rate | 64Kbps per channel | |
| Hard Disk | ||
| SATA | 1 SATA interface | |
| Capacity | Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) | |
| General Alarm | ||
| General Alarm | Motion detection | |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel: 2 x USB2.0 | |
| Serial Interface | 1 x RS485 | |
