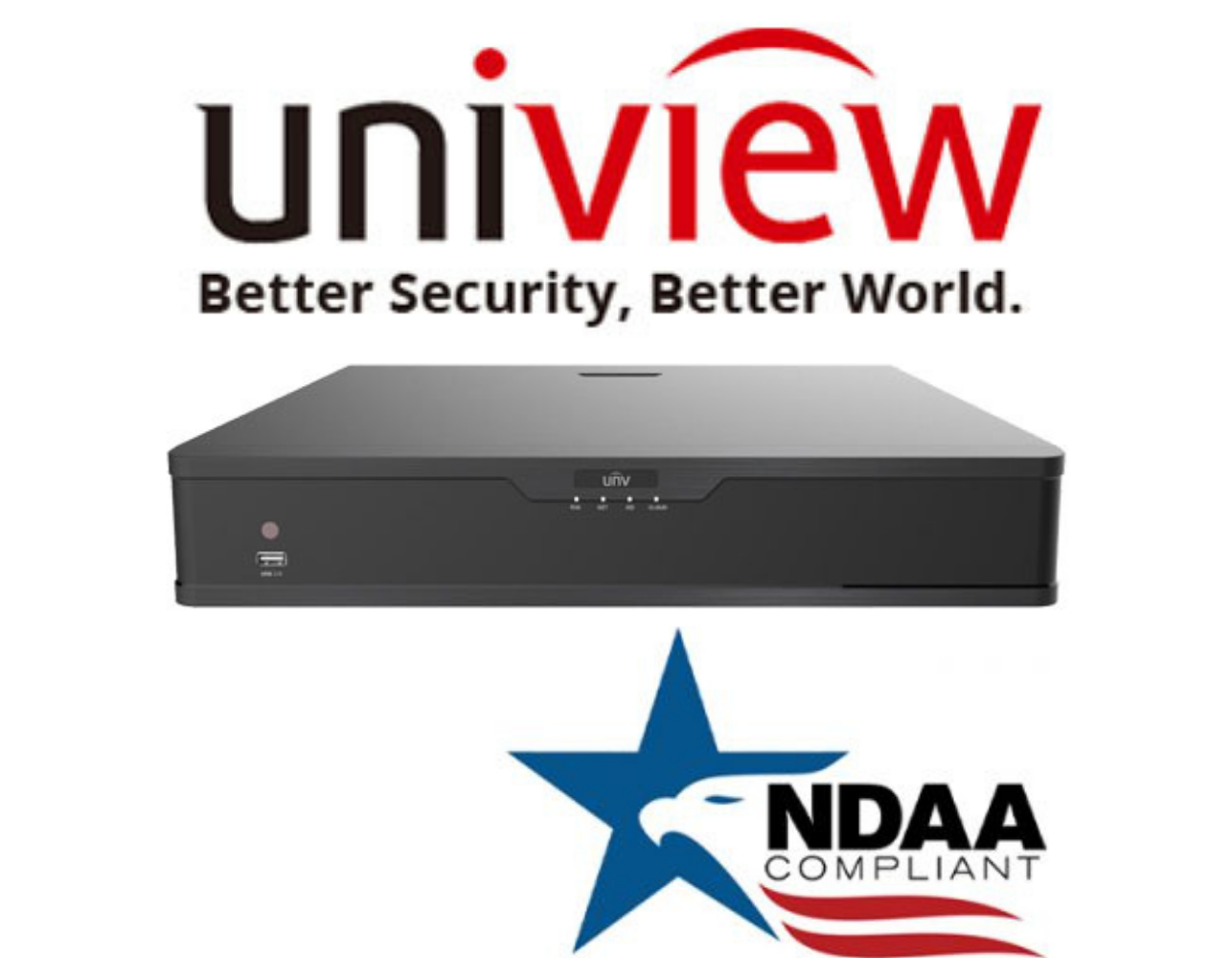

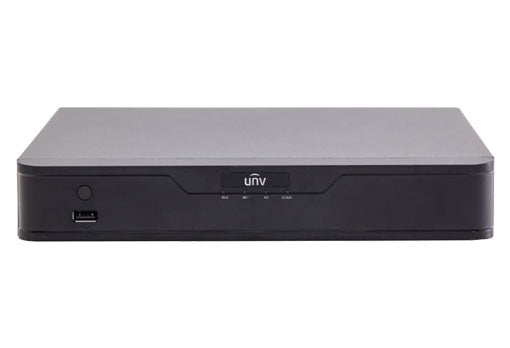

Uniview 5MP HD 8-Ch XVR Q Series Uniview IP Security Video Recorder
Uniview 5MP HD 8-Ch XVR Q Series Uniview IP Security Video Recorder
SKU:XVR302-08Q
Regular price
$279.00 USD
Regular price
Sale price
$279.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Uniview 5MP HD 8-Channel XVR Q Series Uniview IP Security Video Recorder
Uniview 8-Ch with Support audio over coaxial cable.
Key Features:
Channel:8
Video output:1-ch HDMI, 1-ch VGA
Max.Recording Resolution:5MP
Hard drive Ports:2 SATA interfaces
Max.Storage Capacity:6TB
Color:Black

Specification:
-
Model
XVR302-08Q
Video/Audio Input
Analog Video Input
8-ch, BNC
IP Video Input
4-ch(only IP up to 12ch), each channel up to 4K
Supported Analog Camera Types
Support AHD input: 8MP@15fps(channel1-channel2)
5MP@20fps
4MP@30fps
3MP@30fps(channel1-channel2)
1080P@30fps
720P@60fps
Support TVI input: 8MP@15fps(channel1-channel2)
5MP@20fps
4MP@30fps
3MP@20fps(channel1-channel2)
1080P@30fps
720P@60fps
Support CVI input: 8MP@15fps(channel1-channel2)
4MP@30fps
1080P@30fps
720P@60fps
Support CVBS input
Audio Input
1-ch, RCA
Two-way Audio
1-ch, RCA
Network
Incoming Bandwidth
56Mbps
Outgoing Bandwidth
64Mbps
Remote Users
128
Protocols
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
CVBS Output
1-ch, BNC
VGA Output
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output
1-ch, RCA
Synchronous Playback
8-ch
Encoding
Recording Resolution
8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF
Recording Frame Rate
Main stream: 8MP Lite@8fps(channel1-channel2)
5MP Lite@12fps
4MP Lite@15fps
3MP@15fps(channel1-channel2)
2MP@15fps
720P@30fps
Sub stream: D1@30fps(Max)
Hard Disk
SATA
2 SATA interfaces
Capacity
up to 6TB for each HDD
External Interface
Network Interface
1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface
Rear panel: 1 x USB2.0, Front panel: 1xUSB2.0
Serial Interface
1 x RS485
General
Power Supply
12V DC
Power Consumption: ≤ 8 W( without HDD )
Working Environment
-10°C~+ 55°C (+14°F~+131°F)
Dimensions(W×D×H)
380mm ×315mm× 53mm (15" × 12.4"×2.1")
Weight ( without HDD )
≤1.9 Kg ( 4.19lb )
