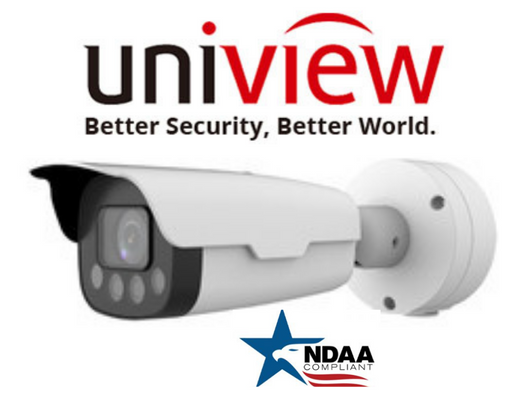

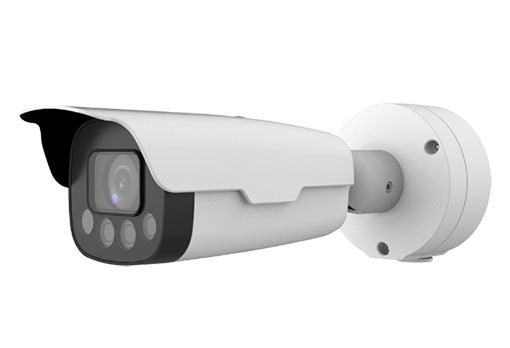

UNV 2MP IP67 1080p NDAA 2way Audio Uniview IP Network Bullet LPR Security Camera
UNV 2MP IP67 1080p NDAA 2way Audio Uniview IP Network Bullet LPR Security Camera
SKU:HC121@TS8CR-Z
Couldn't load pickup availability
UNV 2MP License Plate IR 10X Bullet Uniview IP Security Camera with 4.7-47mm Lens
The Uniview Security Camera with License Plate Accessory.
Key Features:
Compression : H.265, H.264
Megapixel: 2MP
Camera Style: Bullet
Lens Type :Motorized Zoom lens
Lens Size :4.7-47mm
Protection Code : IP67
Dimensions (L × W × H): 386mm× 126mm × 130mm
Weight: 2kg
Description:
The Uniview Bullet IP Security Camera stands out as a powerful tool for safeguarding your assets. It is a cutting-edge solution with the goal to change the way you think about security cameras. This Camera boasts crystal-clear 4K Ultra HD resolution, capturing every detail with stunning clarity. Whether it's day or night this camera excels in providing impeccable video quality. The Uniview is design to brave the elements. It's rated for outdoor use, with an IP67 weatherproof rating making it impervious to rain, snow and dust. For busy homeowners and business owners this feature is a game-changer. In the realm of security cameras, the Uniview Bullet IP Security Camera stands as a shining example of excellence.
Specification:
| Camera |
Description |
|
Sensor |
1/2.8” 2MP CMOS |
|
Focal length |
4.7 to 47mm, motorized zoom |
|
Shutter |
Auto/Manual, range: 1/25 to 1/100000 s |
|
Minimum illumination |
0.001lux (F1.6) |
| Image |
Description |
|
Image collection format |
1080P@25 (default), 30, 50, 60 |
|
Resolution |
Main stream: 1080P (default), 720P, D1 Sub stream: 720P (default), D1, 2CIF, CIF Third stream: D1 (default), 2CIF, CIF |
|
Frame rate |
60, 50, 30, 25 (default), 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1 |
|
Video compression |
H.264 (default), H.265 |
|
ROI |
Supports up to 8 regions |
|
Video OSD |
Supports 8 overlay areas and allows contents including date, time, date& time, zoom ratio, custom contents |
|
Image OSD |
Supports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, |
| Smart |
Description |
|
Application scenario |
Vehicle speed ≤90km/h Supports simultaneous application to road and entry/exit scenes without switching Supports license plate detection and recognition for up to 2 lanes in road scenes |
|
Vehicle detection mode |
Video (default) or inductive loop |
|
Capture vehicle head only |
Support |
|
License plate number recognition |
Supports recognition of license plates with numbers and letters by default |
|
Vehicle body color recognition |
Supports 10 colors: red, green, blue, yellow, white, gray, black, purple, brown, pink |
|
List configuration |
Supports allow list and blocklist configuration, each list allows 20,000 items Supports import, export, add, and delete operations |
|
Barrier opening policy |
Only for the recognized vehicles Barrier for all vehicles Open barrier only for vehicles on the allow list Open barrier for vehicles not on the blocklist Configurable Boolean output ID |
Storage |
Description |
|
Edge storage |
Supports ANR with a Micro SD card, up to 128GB |
Structure |
Description |
|
Illumination |
Built-in integrated illumination module, including 4 IR LEDs, 50m illumination distance, automatic on/off control |
|
Sunshield |
Long sunshield |
|
Bracket |
3-axis mounting bracket |
|
Junction box |
The camera comes with a junction box for storing tail cable |
Interface |
Description |
|
Network interface |
1 × 10M/100M RJ45 |
|
Serial port |
1 × RS485 |
|
Boolean output |
1 relay output, withstand voltage: AC 125V/0.3A, DC 30V/1A |
|
Boolean input |
2 inputs, supports level/Boolean, with max level up to DC 5V |
|
Audio interface |
1 × audio input, 1 × audio output |
|
Storage interface |
1 × Micro SD card slot |
General |
Description |
|
Power supply |
DC12V + 25% - 10% |
|
Max. power consumption: 20W |
|
|
Supports PoE (802.3at, class 4) |
|
|
Dimensions (L×W×H) |
386mm x 126mm x 130mm |
|
Weight |
2kg |
|
Operating environment |
-40℃ to 60℃, ≤90% RH |
|
Ingress protection |
IP67, IK10 |
