UNV IP67 4MP IR Uniview IP Security Surveillance Camera 2.8mm Fixed Lens Uniarch
UNV IP67 4MP IR Uniview IP Security Surveillance Camera 2.8mm Fixed Lens Uniarch
SKU:IPC-B124-APF28
Couldn't load pickup availability

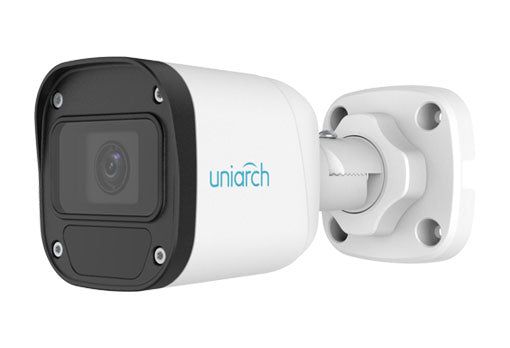

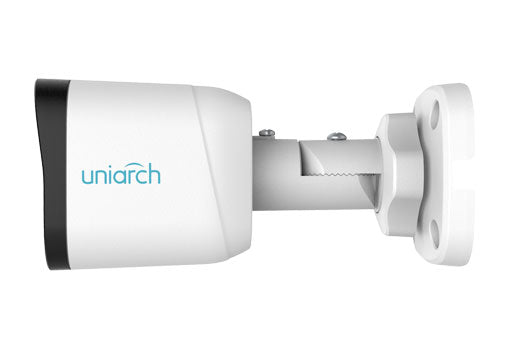

UNV 1440p 4MP Weatherproof Mini Bullet Uniview IP Security Camera with a 2.8mm Fixed Lens
This Mini Bullet IP Security Camera with a 2.8mm Fixed Lens. Day/night functionality - Smart IR, up to 30m (98ft) IR distance, Optical glass window with higher light transmittance,
IR anti-reflection window to increase the infrared transmittance, 2D/3D DNR (Digital Noise Reduction).
UNV 4MP IP67 Mini Bullet IP Camera – NDAA Compliant, Built-in Mic
key Features:
- Compression : Ultra 265, H.265, H.264,MJPEG
- Camera Style: Bullet
- Megapixel: 4MP
- Lens Type :Fixed Lens
- Lens Size : 2.8mm
- Protection Code : IP67
- Color : White
- Dimensions (Ø x H):142.1 × 62.4 × 65.2mm (5.6” × 2.5” × 2.6”)
- Weight: 0.19kg (0.42lb)
- Audio Support :Built-in Mic
|
|
|
|
||||||
|
Camera |
||||||||
|
Sensor |
1/2.7", progressive scan, CMOS |
|||||||
|
Lens |
2.8mm@F2.1 |
|
||||||
|
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
|||
|
2.8 |
56.0 |
22.4 |
11.2 |
5.6 |
||||
|
|
|
|
|
|||||
|
Angle of View (H) |
112.7° |
86.5° |
||||||
|
Angle of View (V) |
60.1° |
44.1° |
||||||
|
Angle of View (O) |
146.5° |
106.4° |
||||||
|
Adjustment angle |
Pan: 0° ~ 360° |
Tilt: 0° ~ 90° |
Rotate: 0° ~ 360° |
|||||
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|||||||
|
Minimum Illumination |
Colour: 0.02Lux (F2.1, AGC ON) 0Lux with IR on |
|||||||
|
Digital noise reduction |
2D/3D DNR |
|||||||
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|||||||
|
S/N |
>52dB |
|||||||
|
IR Range |
Up to 30m (98ft) IR range |
|||||||
|
Defog |
Digital Defog |
|||||||
|
WDR |
DWDR |
|||||||
|
Video |
||||||||
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|||||||
|
H.264 code profile |
Baseline profile, Main Profile |
|||||||
|
Frame Rate |
Main Stream: 4MP (2560*1440), Max 20fps; 1080P (1920*1080), Max 20fps; Sub Stream: 720P (1280*720), Max 20fps |
|||||||
|
HLC |
Supported |
|||||||
|
BLC |
Supported |
|||||||
|
OSD |
Up to 4 OSDs |
|||||||
|
Privacy Mask |
Up to 4 areas |
|||||||
|
ROI |
Up to 2 areas |
|||||||
|
Motion Detection |
Up to 4 areas |
|||||||
|
Network |
||||||||
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, RTMP |
|||||||
|
Compatible Integration |
ONVIF (Profile S, Profile T), API |
|||||||
|
Interface |
||||||||
|
Network |
10/100M Base-TX Ethernet |
|||||||
|
General |
||||||||
|
Power |
DC 12V±25%, PoE |
|||||||
|
Power consumption: Max 4.5W |
||||||||
|
Dimensions (L × W × H) |
142.1 × 62.4 × 65.2mm (5.6” × 2.5” × 2.6”) |
|||||||
|
Weight |
0.19kg (0.42lb) |
|||||||
|
Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|||||||
Conclusion
If you're looking for a high-performance yet affordable security solution, the UNV 4MP Mini Bullet IP Camera is an excellent choice. With NDAA compliance, a built-in microphone, and weatherproof IP67 protection, this camera is designed for both residential and commercial surveillance. Whether you’re upgrading your current system or building a new one, this Uniview IP camera delivers exceptional clarity, advanced features like Smart IR, and long-lasting durability.
At Secure IT Global, we offer the best Uniview 8MP IP camera price options, ensuring you get top-tier UNV security cameras at competitive rates. All our UNV IP cameras are carefully tested for quality and compliance, making them a reliable part of your security ecosystem.
Browse our full selection of NDAA compliant cameras today or contact us to get a custom quote on your preferred Uniview security camera model.
