UNV 4MP IP67 NDAA Audio IP Network Uniview Bullet Security Surveillance Camera
UNV 4MP IP67 NDAA Audio IP Network Uniview Bullet Security Surveillance Camera
SKU:IPC2124SB-ADF28KMC-I0
Couldn't load pickup availability
UNV 4MP HD LightHunter Bullet IP Uniview Security Camera 2.8mm Fixed Lens
Uniview LightHunter with WDR technology enables clear image in strong light scene.
Looking for a reliable and crystal-clear surveillance solution? The UNV 4MP HD LightHunter Bullet IP Camera by Uniview delivers exceptional performance with a compact design. Ideal for both residential and commercial security systems, this NDAA compliant camera features advanced video compression, built-in audio, and cutting-edge LightHunter technology—making it perfect for low-light environments.
Key Features of Uniview 4MP IP Camera:
- Compression : Ultra 265, H.265, H.264, MJPEG
- Megapixel: 4MP
- Camera Style: Bullet
- Lens Type :Fixed Lens
- Lens Size : 2.8mm
- Protection Code : IP67
- Dimensions (L × W × H): 191× 75 × 74mm (7.5” × 3.0” × 2.9”)
- Weight: 0.50kg (1.10lb)
- Environmental : outdoor

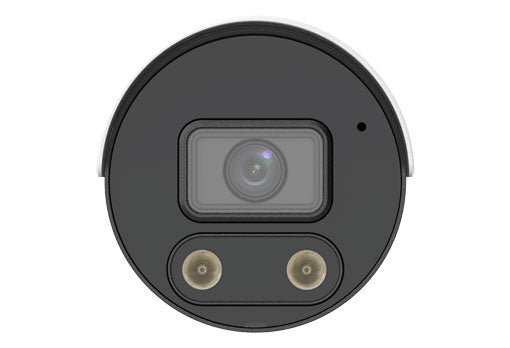

- Audio Support : Built-in Mic
Uniview 4MP LightHunter Bullet IP Camera – Fixed 2.8mm Lens
The Uniview 4MP IP Bullet Camera is engineered for superior video surveillance. Equipped with a 2.8mm fixed lens, this compact yet powerful UNV IP camera captures ultra-clear footage, even in challenging lighting conditions. Thanks to LightHunter technology and WDR support, you'll experience enhanced night vision and sharp imaging during both day and night.
Built to last, the UNV 4MP camera features an IP67-rated weatherproof housing, ensuring durability in harsh outdoor environments. Whether you're monitoring a commercial property or upgrading your home security system, this Uniview security camera is the perfect choice. Plus, it includes a built-in microphone for real-time audio recording, expanding your surveillance coverage.
With support for Ultra 265, H.265, H.264, and MJPEG, this camera ensures efficient bandwidth usage without compromising quality. As an NDAA compliant Uniview product, it's ideal for government, enterprise, or sensitive installations.
Specification Uniview 4MP IP Camera :
Camera |
|||||||||
| Sensor | 1/2.7", 4.0 megapixel, progressive scan, CMOS | ||||||||
| Minimum Illumination | Colour: 0.002 lux (F1.6, AGC ON) 0 lux with Light on | ||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||||
| WDR | 120dB | ||||||||
| S/N | >56dB | ||||||||
Lens |
|||||||||
| Lens type | 2.8mm@F1.6 | ||||||||
| Iris | Fixed | ||||||||
| Field of View (H) | 101.1° | ||||||||
| Field of View (V) | 55.3° | ||||||||
| Field of View (D) | 111.1° | ||||||||
DORI |
|||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |||||
Illuminator |
|||||||||
| IR Range | Up to 30m (98 ft) IR range | ||||||||
| Wavelength | 850nm | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
Video |
|||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||||
| Frame Rate | Main Stream: 4MP Sub Stream: 720P Third Stream: D1 | ||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
| U-code | Support | ||||||||
| OSD | Up to 8 OSDs | ||||||||
| Privacy Mask | Up to 4 areas | ||||||||
| ROI | Up to 8 areas | ||||||||
| Video Stream | Triple streams | ||||||||
Image |
|||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||||
| Smart IR | Support | ||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
| Dewarping | N/A | ||||||||
| HLC | Support | ||||||||
| BLC | Support | ||||||||
| Defog | Digital Defog | ||||||||
Intelligent |
|||||||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||||||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||||||
Events |
|||||||||
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection | ||||||||
| General Function | Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication | ||||||||
Audio |
|||||||||
| Audio Compression | G.711 | ||||||||
| Audio Bitrate | 64 Kbps | ||||||||
| Two-way audio | Support | ||||||||
| Suppression | Support | ||||||||
| Sampling Rate | 8KHZ | ||||||||
Storage |
|||||||||
| Edge Storage | Micro SD, up to 256GB | ||||||||
| Network Storage | ANR, NAS(NFS) | ||||||||
Network |
|||||||||
| Protocols | IPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, etc. | ||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||||
| Security | Password protection, strong password, HTTPS encryption, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||||
| Client | EZStation EZView EZLive | ||||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||||
Interface |
|||||||||
| Audio I/O | N/A | ||||||||
| Alarm I/O | N/A | ||||||||
| RS485 | N/A | ||||||||
| Built-in Mic | Support | ||||||||
| Built-in Speaker | Support | ||||||||
| WIFI | N/A | ||||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||||
| Video Output | N/A | ||||||||
| Alarm Light | Support | ||||||||
Certifications |
|||||||||
| EMC | CE-EMC FCC | ||||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||||||
| Environment | CE-RoHS | ||||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||||||
General |
|||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
| Power consumption: Max 11.5W | |||||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||||
| Dimensions (L × W × H) | 191× 75 × 74mm (7.5” × 3.0” × 2.9”) | ||||||||
| Weight | 0.50kg (1.10lb) | ||||||||
| Material | Metal | ||||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Surge Protection | 4KV | ||||||||
| Reset Button | Support | ||||||||
